Nord Lift 60 V3 – OTTO 1500

The Nord Lift 60 is a lifting top module that lets a OTTO 1500 pick up and deliver payloads, pallets, carts autonomously, handling up to 1 500 kg. It is rated for at least 600,000 lifts at maximum payload and reports its status, lift count and error codes directly to the AMR.

Robot Compatibility
OTTO 1500 V3
Dimensions (LWH)
1 458 x 1 041 x 99 mm | 57.4 x 41 x 3.9 in
Stroke Length
up to 60 mm | 2.4 in
Lifting Speed
up to 15 mm/s | 0.6 in/s
Weight
157 kg | 346 lbs
Payload Capacity
1 500 kg | 3 307 lbs
Service Interval
Service interval for every 200.000 cycles
Expected Lifespan
Minimum 600.000 lifts at max. payload
Article Nr
NM00113935

Minimum 600,000 lifts at maximum payload, with service only every 200,000 lifts: real figures for total cost of ownership.

Up to 1 500 kg in a single corner, so off-centre and unevenly loaded pallets are handled without derating.

Rollers running on a curved track, driven by servo motors under PLC control, keep the lift rigid and wear low.

Lift count and error codes over Modbus make service plannable and faults quick to diagnose, with a stack light showing status on the module.

A standard module with a safety-rated payload detection sensor built in, fitted without custom engineering.

Documentation
GET A QUOTE
Showcase
Explore the design, features, and real-world performance
600.000+ lifts at max. payload

Product Description

  • Standard: Included with every unit, ready to use out of the box.

  • Optional add-ons: Extend the module to your needs. Each add-on can be ordered separately.

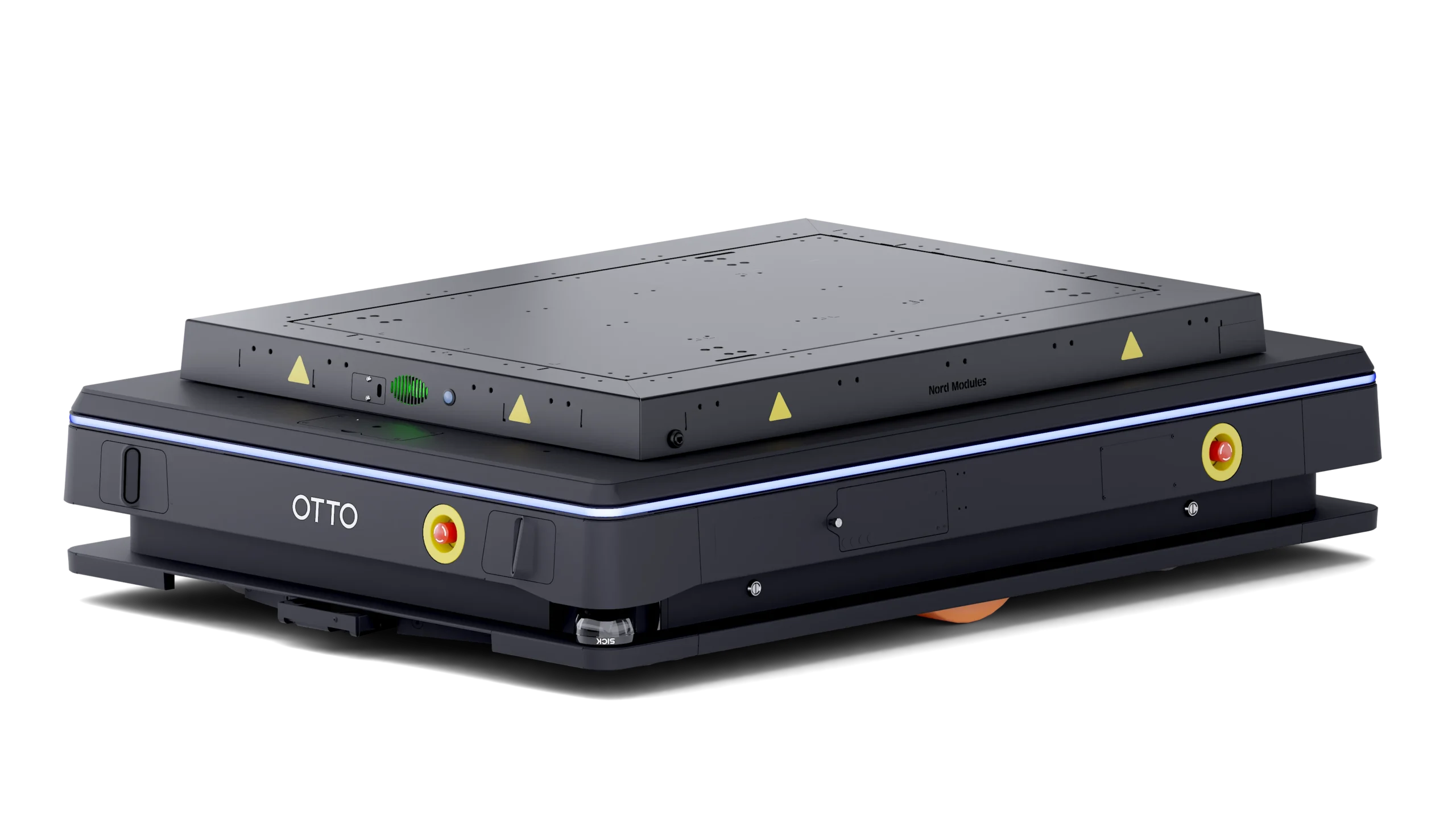

Nord Lift 60 V3 – OTTO 1500 — view 1
Nord Lift 60 V3 – OTTO 1500 — view 2

• Manual/Auto selector: switches between automatic and manual mode
• Hold to run: hold to allow manual movement
• Jog Up / Down: moves the platform up or down
• Reset: resets errors
• Continues the task after Start, no need to restart the mission

• Sends a request to enter P&D stand.
• Integrated in the Nord Lift
• Internal mounted, Front or Rear
• Plug and play
• Nord Lift prewired in front

• Receives a response that it’s okay to enter the P&D stand.
• Integrated in the Nord Lift
• Internal mounted, Front or Rear
• Plug and play
• Nord Lift prewired in front
