Handling capacity

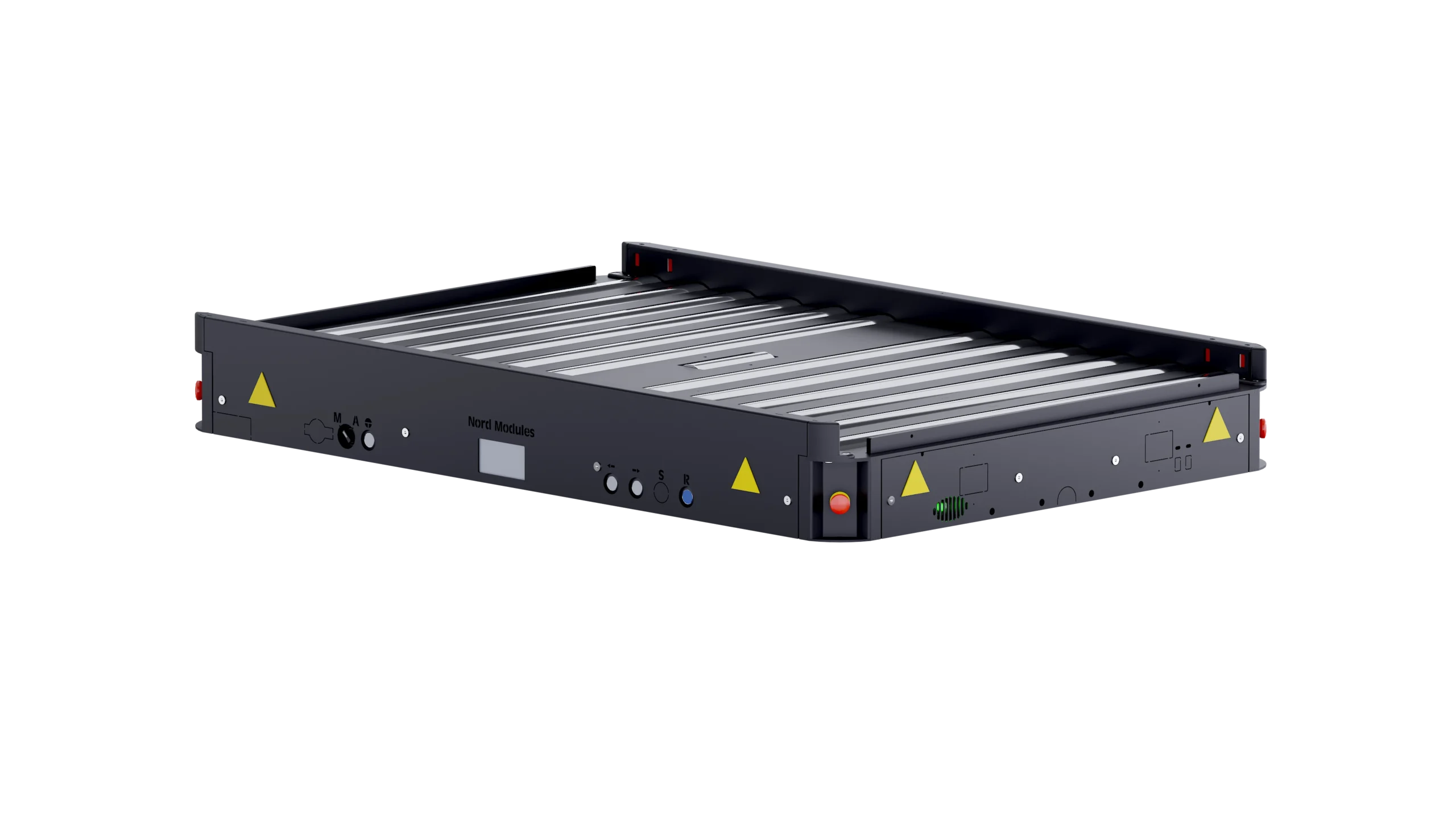

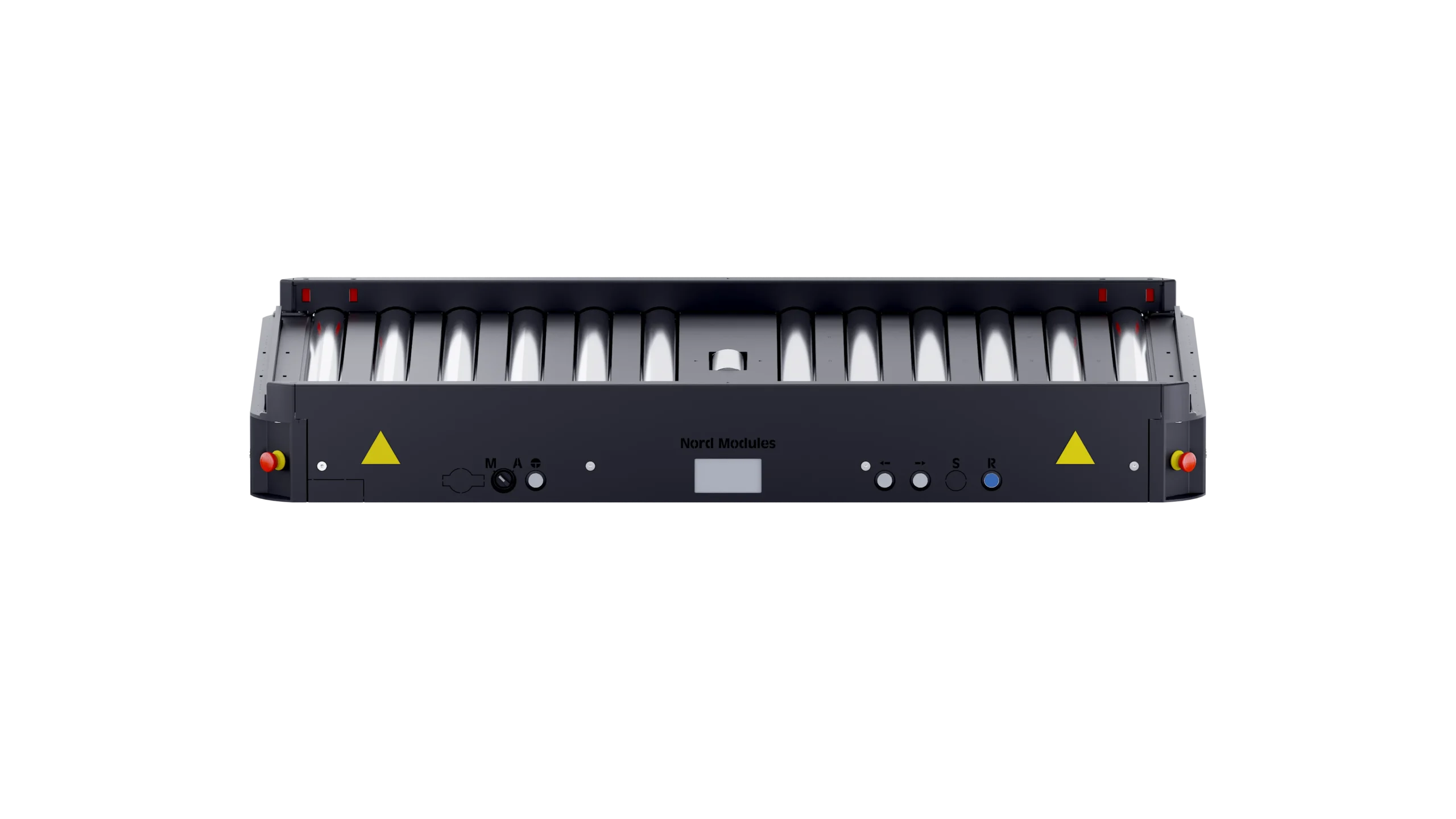

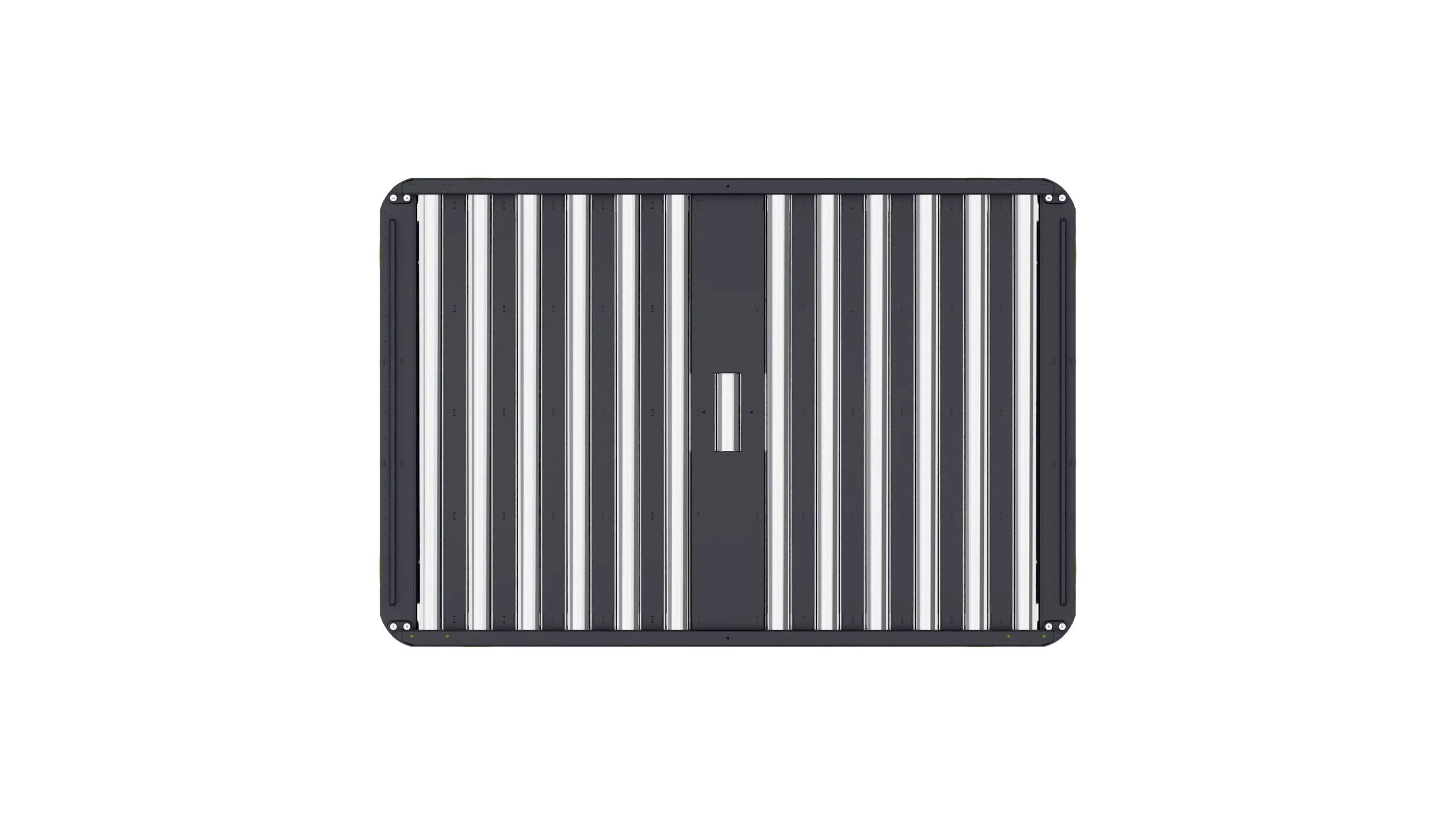

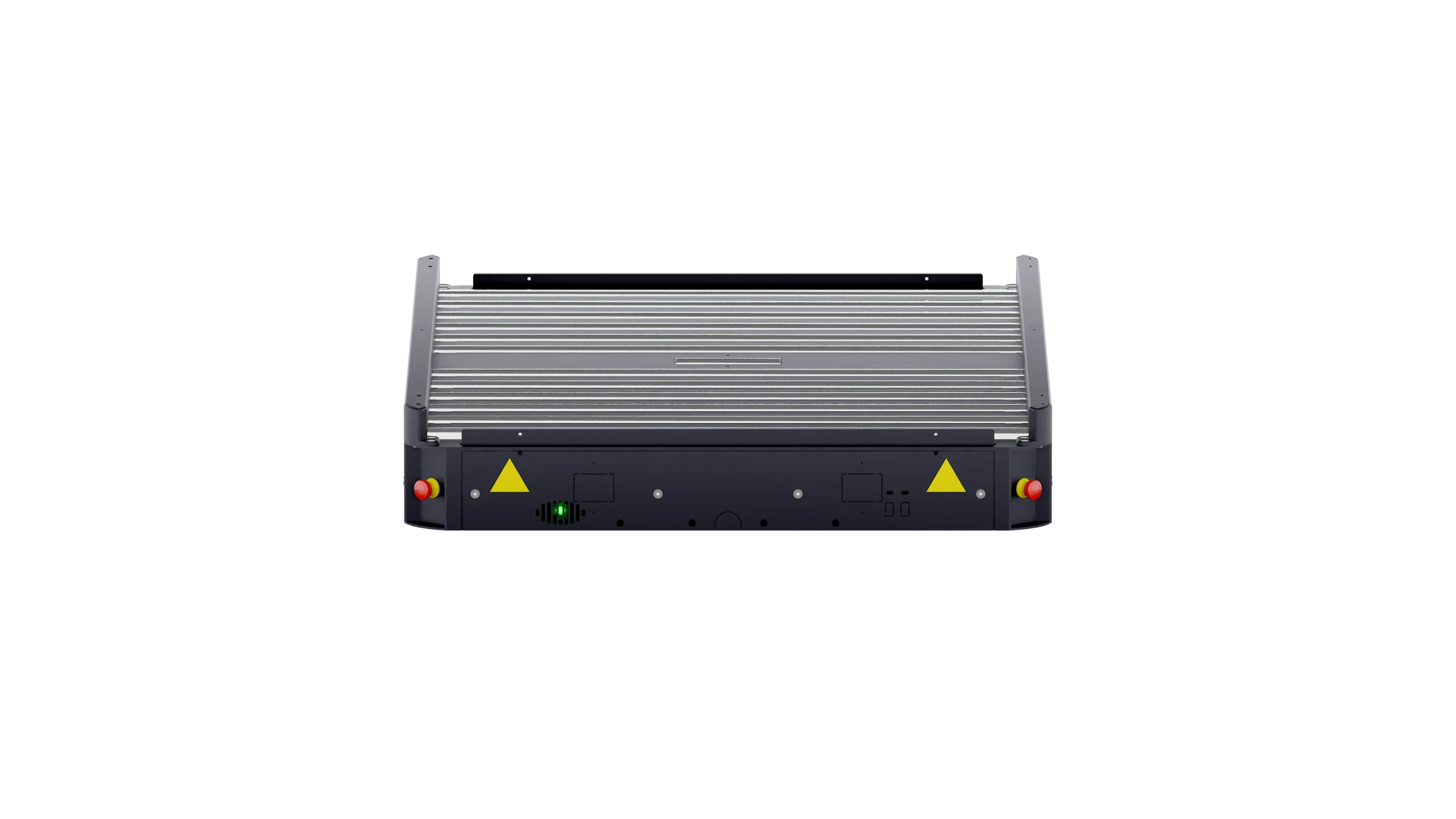

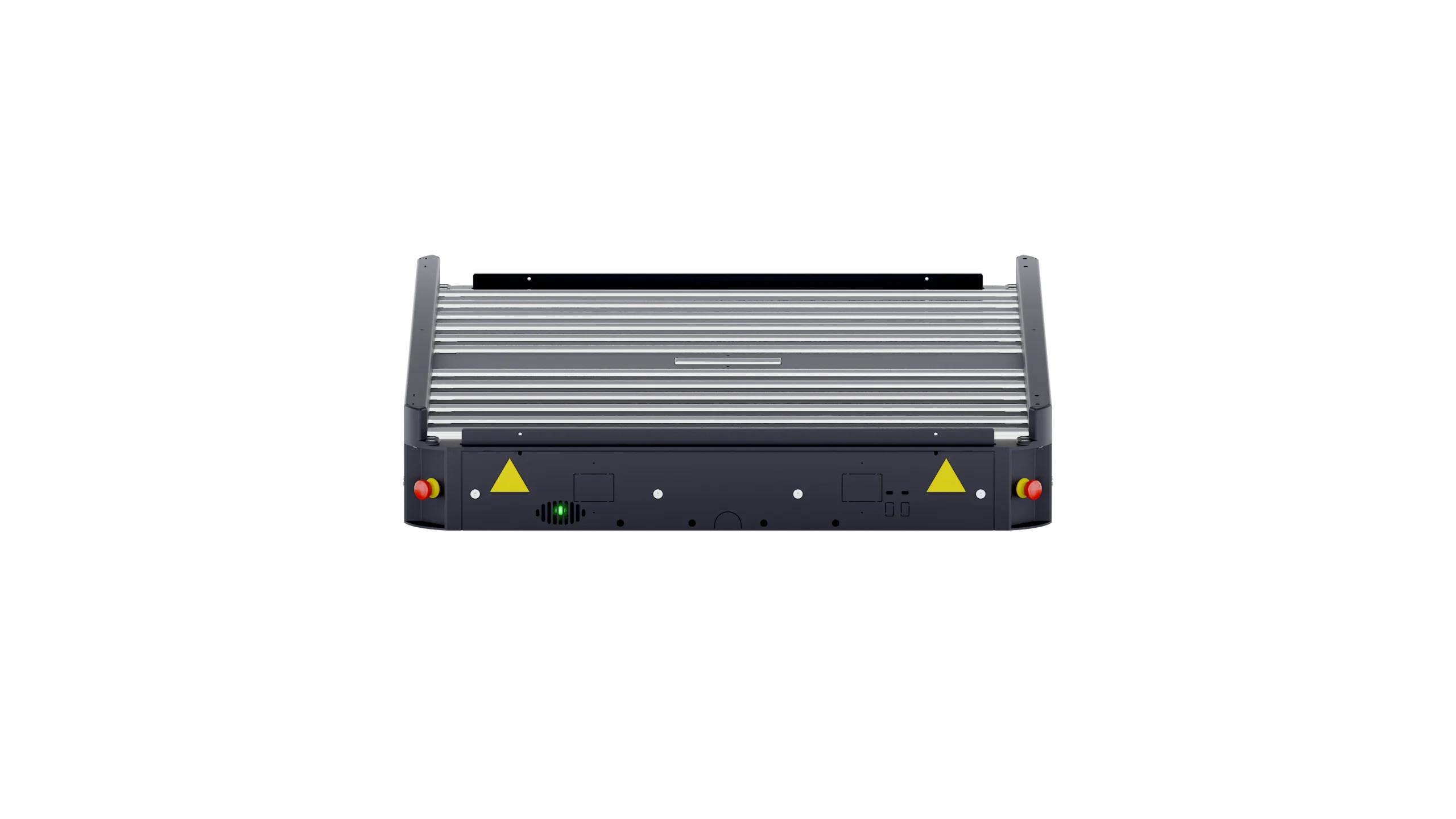

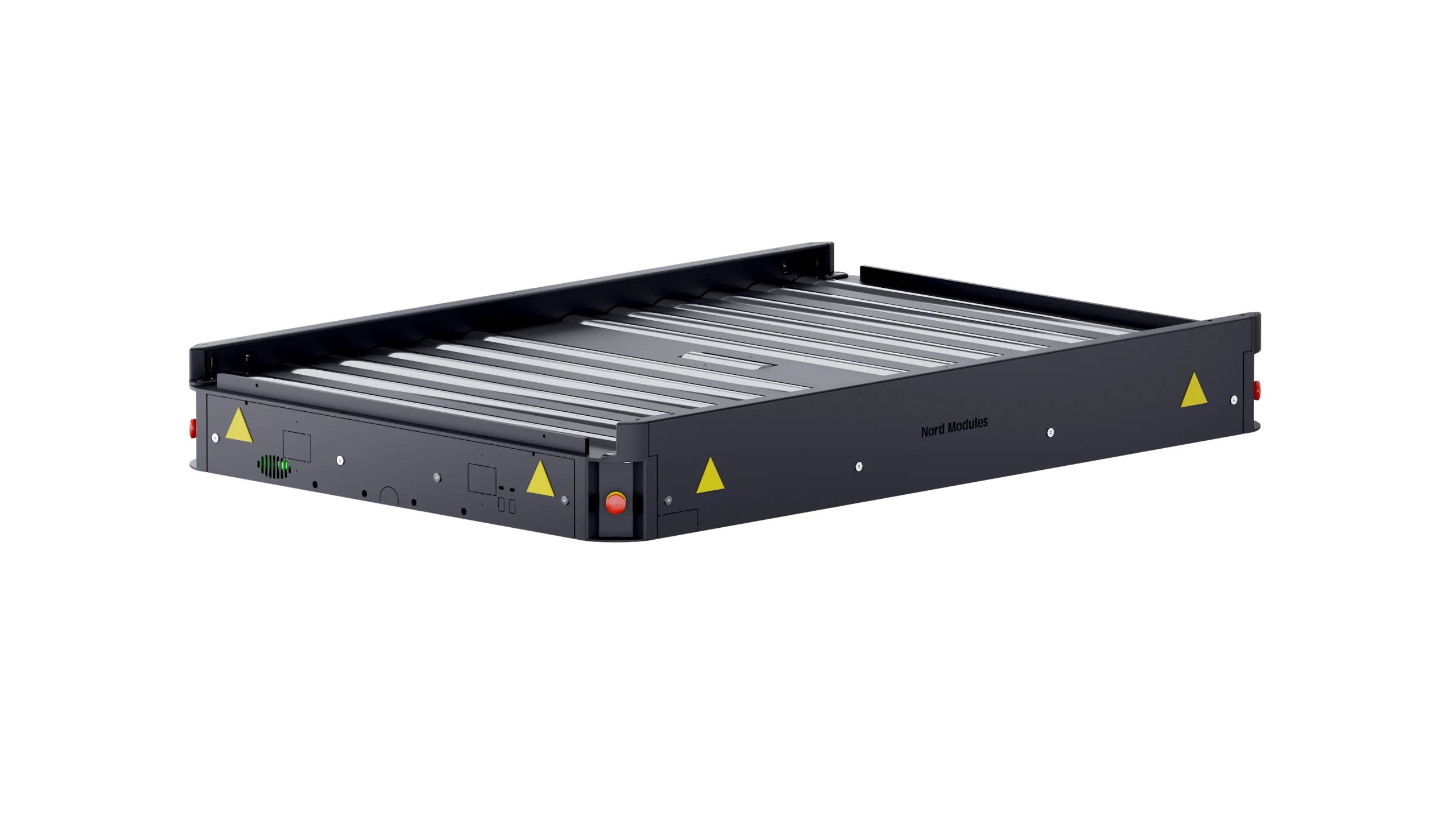

PM800-MiR
Robot compatibility:
MiR500, MiR600, MiR1000, MiR1350
Nord Modules compatibility:
Pallet Conveyor
Dimensions (LWH):
1340 x 910 x 165 mm
Max Handling capacity:
1200 kg (See AMR max load)
Speed:
200 mm/sec
Center distance between rollers:
95 mm (94,6 mm)
Transport area:
840 x 1300 mm (EU-pallets)
Weight:
150 kg
Description

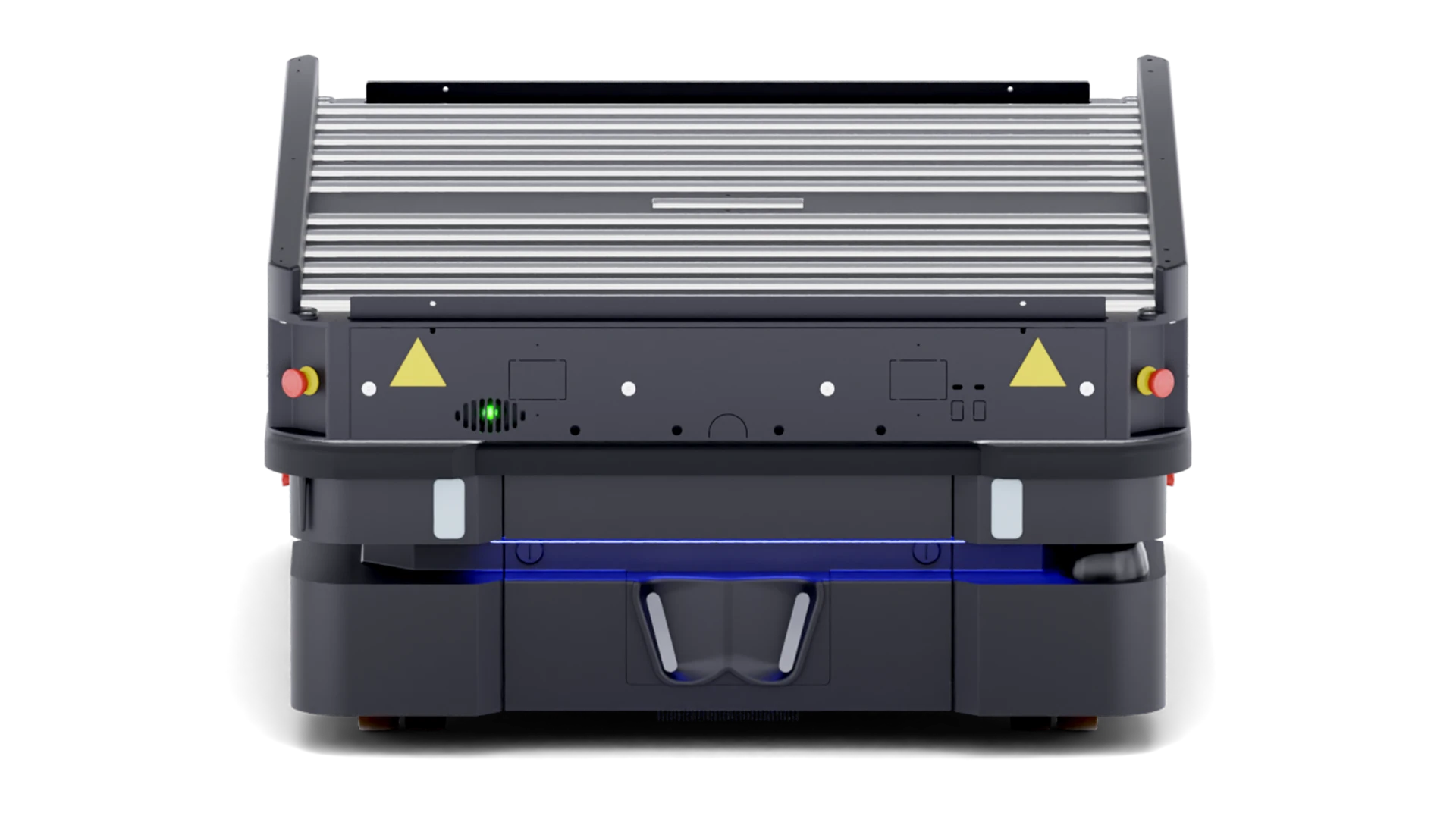

The Pallet Mover enables the Mobile Robots to pick up and deliver pallets – transporting them to e.g. production lines or packing stations, thereby enhancing internal logistics.
The Pallet Movers integrated technology enables communication to external roller conveyors by wireless signals. A Nord Modules dock target can be installed on an existing conveyor line allowing the PM800 to successfully dock and receive or deliver a pallet.
This fully automated premium solution allows heavy payload transportation of up to 1200 kg to optimize logistics and production.
Your key benefits:
• Docking is available from both sides (run-through).
• High industrial quality.
• Within footprint of MiR500 – 600 – 1000 - 1350
• Safe heavy payload transportation.
• Transport of EU- and half-size pallets. (PM800)
• Loading side, automatic mechanical stop-solution.
• PLC controller and servo technology.
• Stack-light – information on operation-level.
• High level of feedback.
• Option: rubber coating of roller
Compatible with…
Robot Compatibility
MiR500
MiR600
MiR1000
MiR1350
