Handling capacity

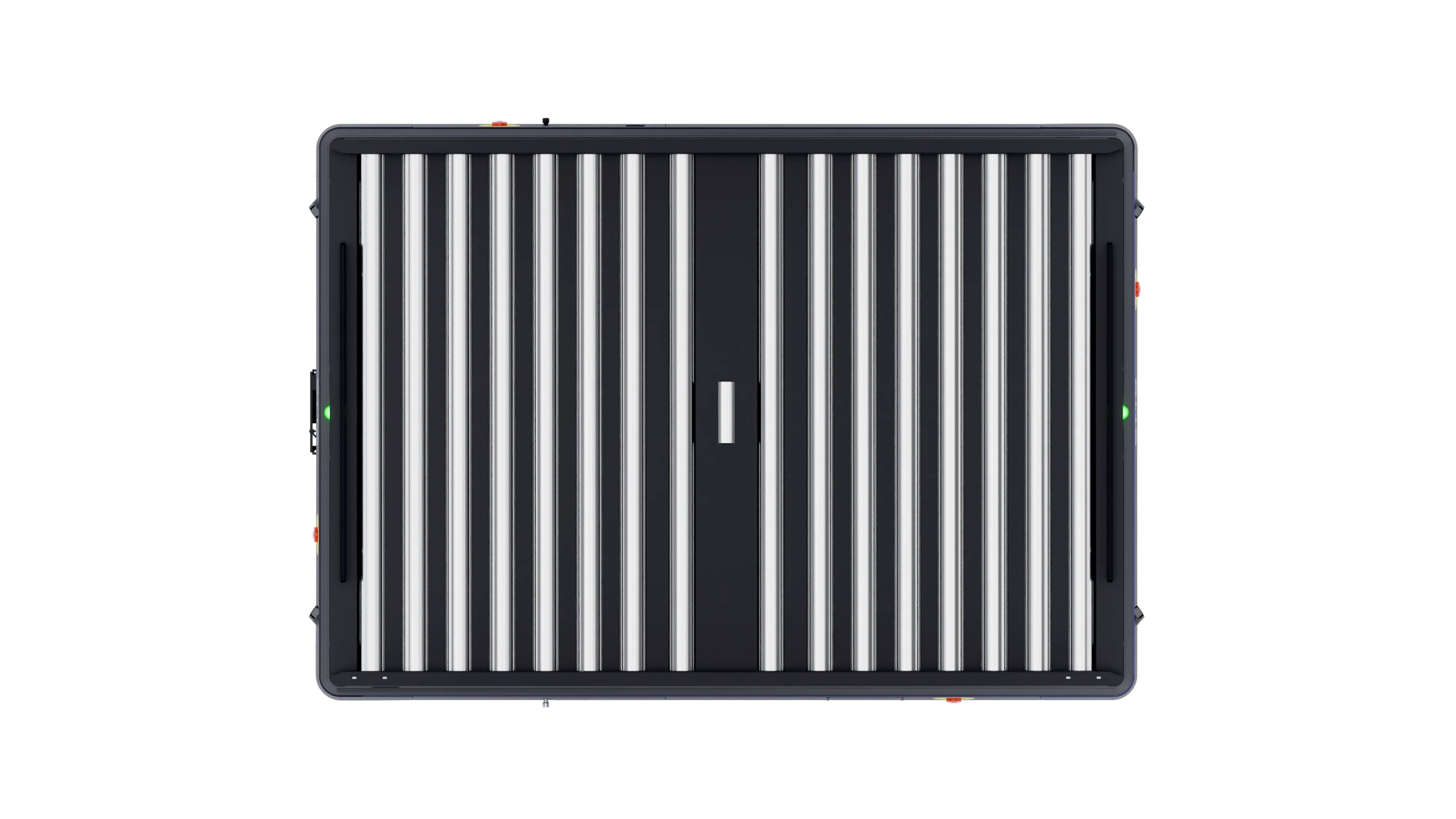

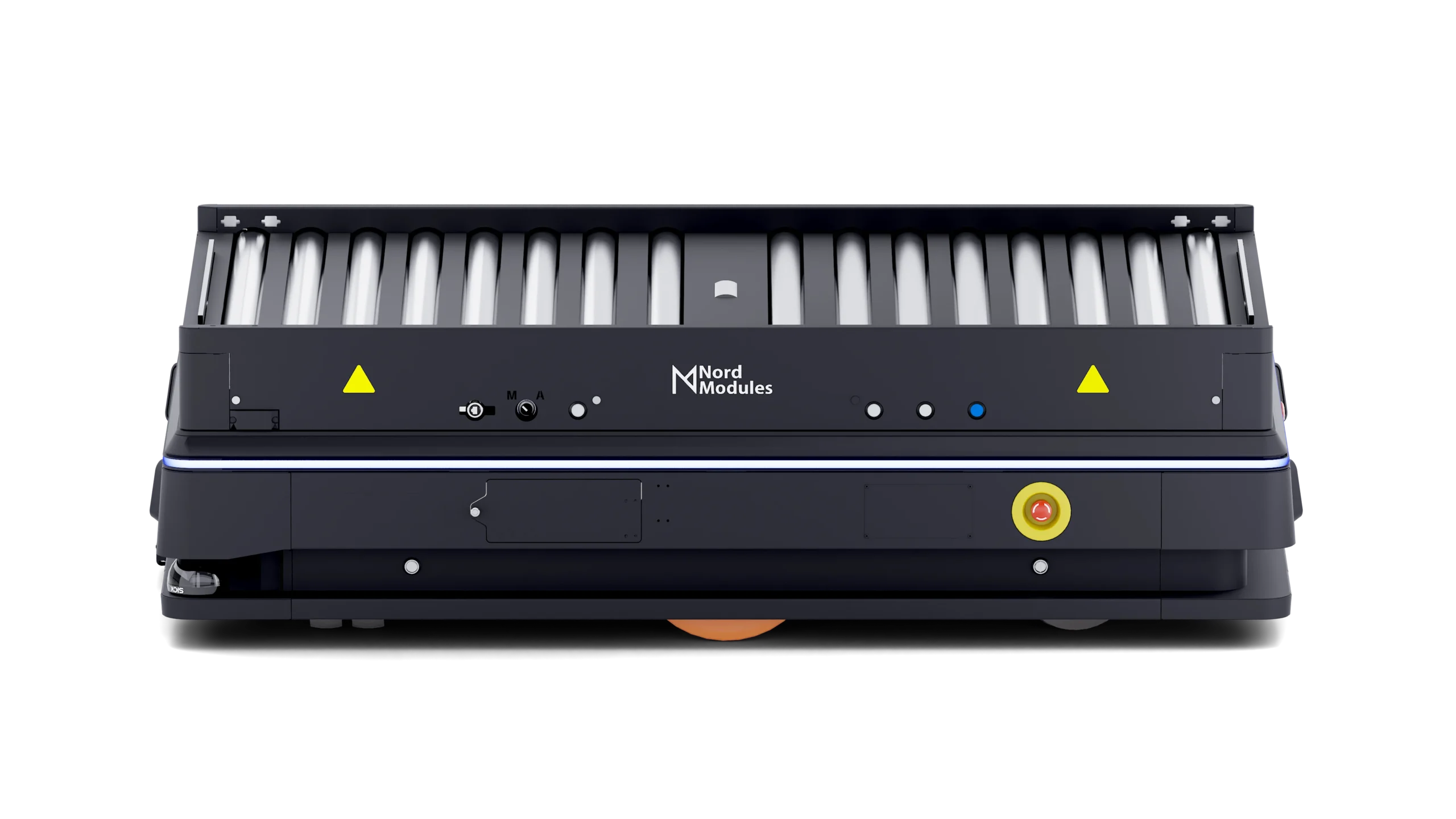

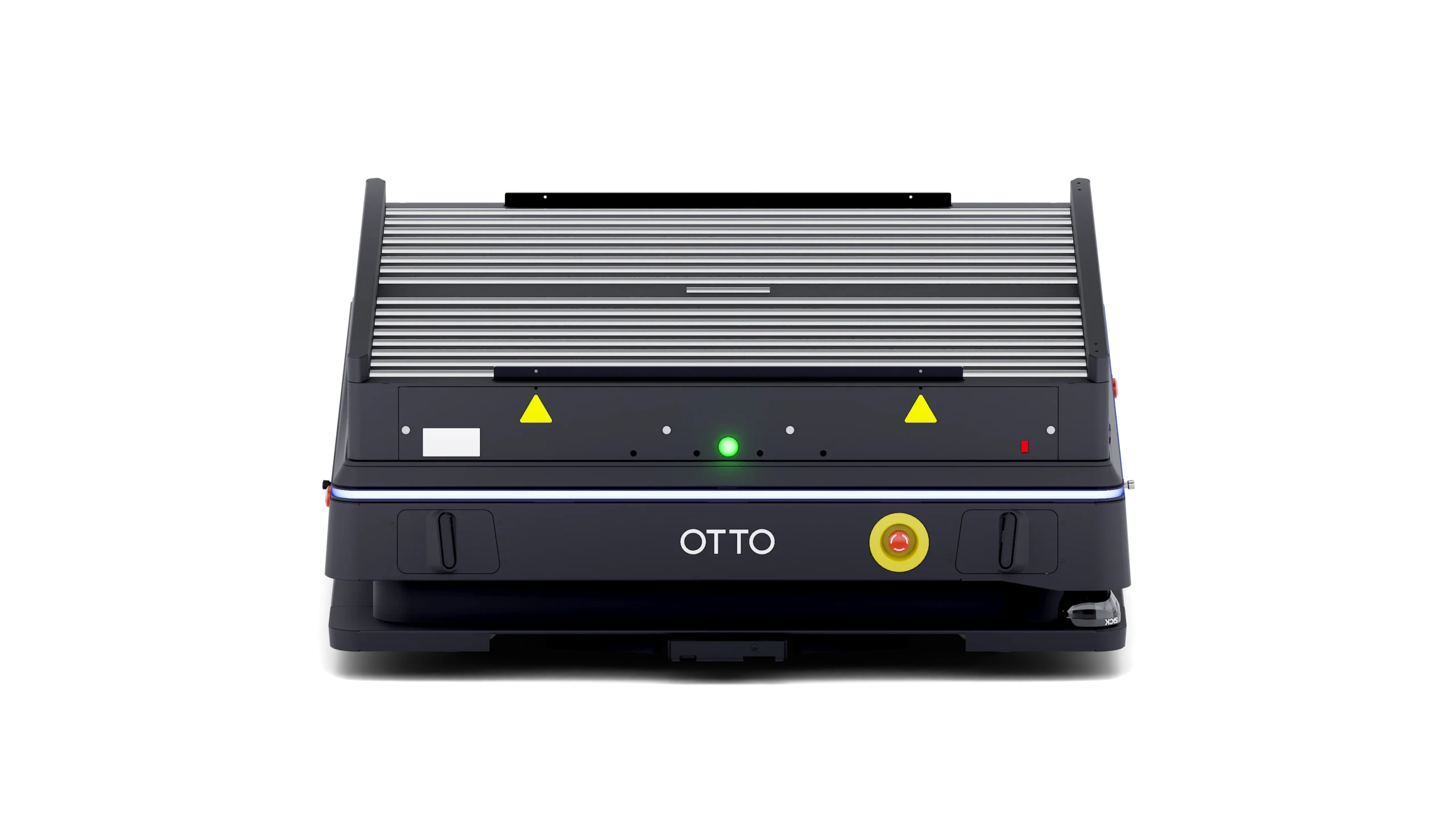

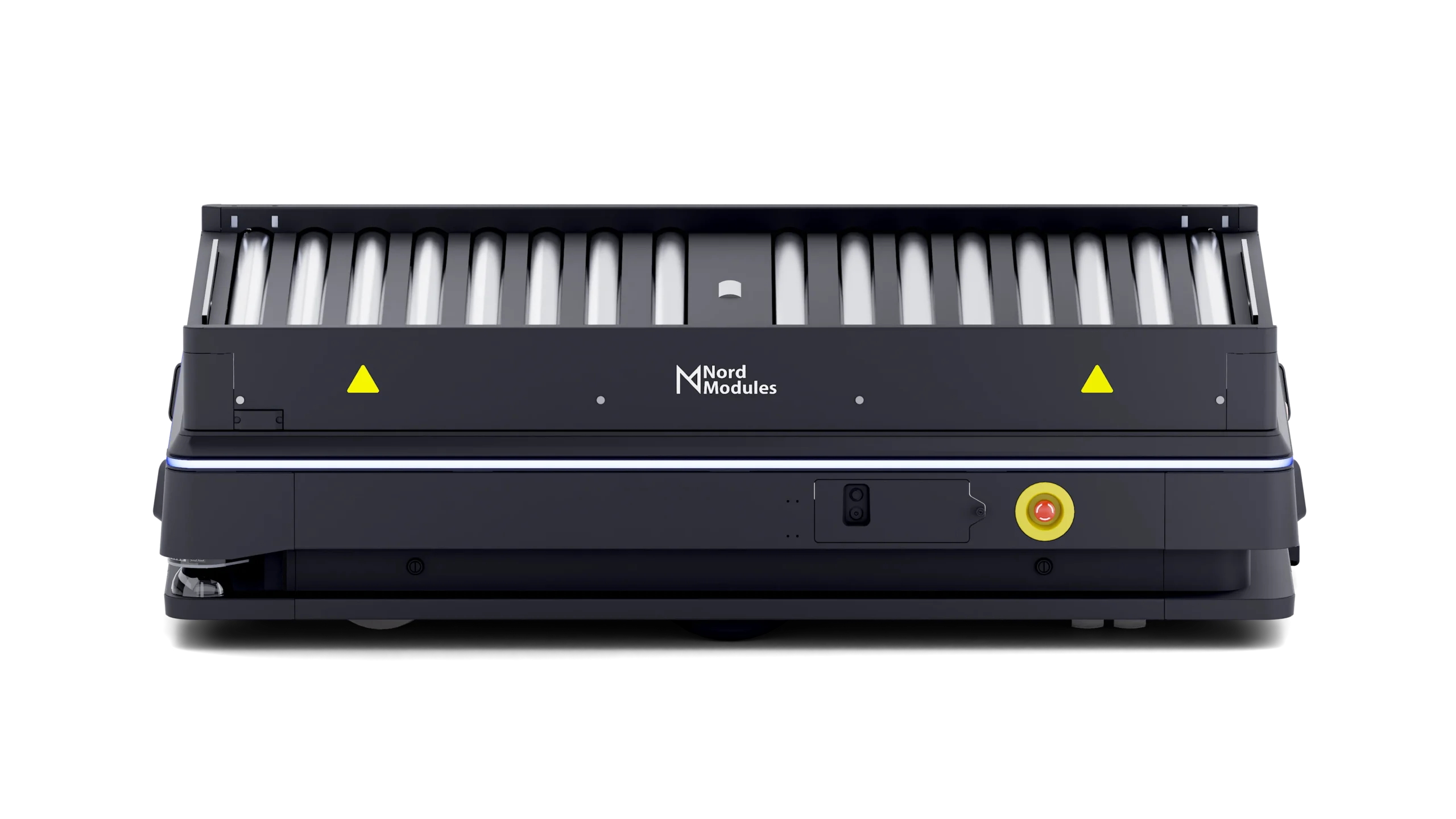

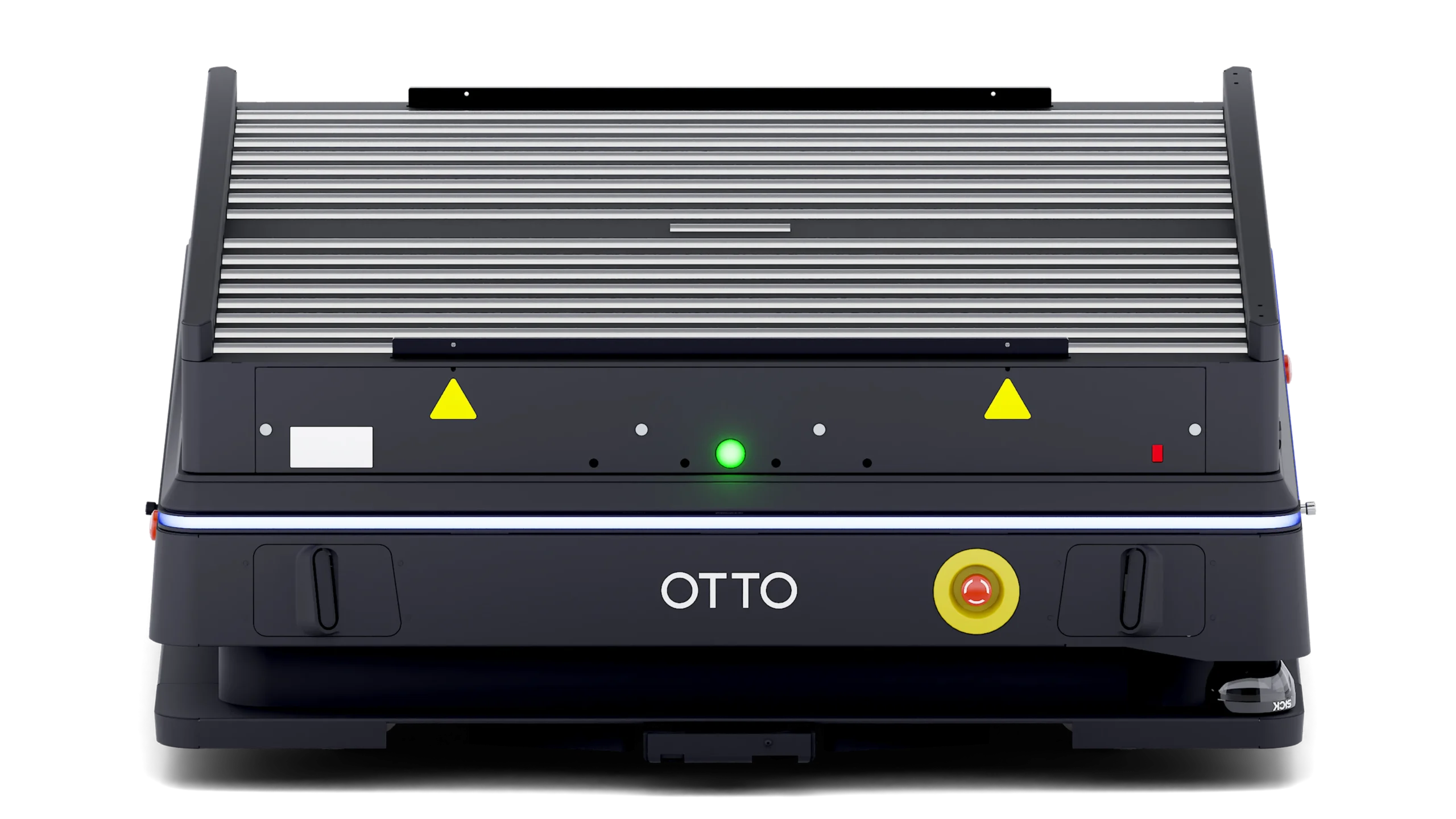

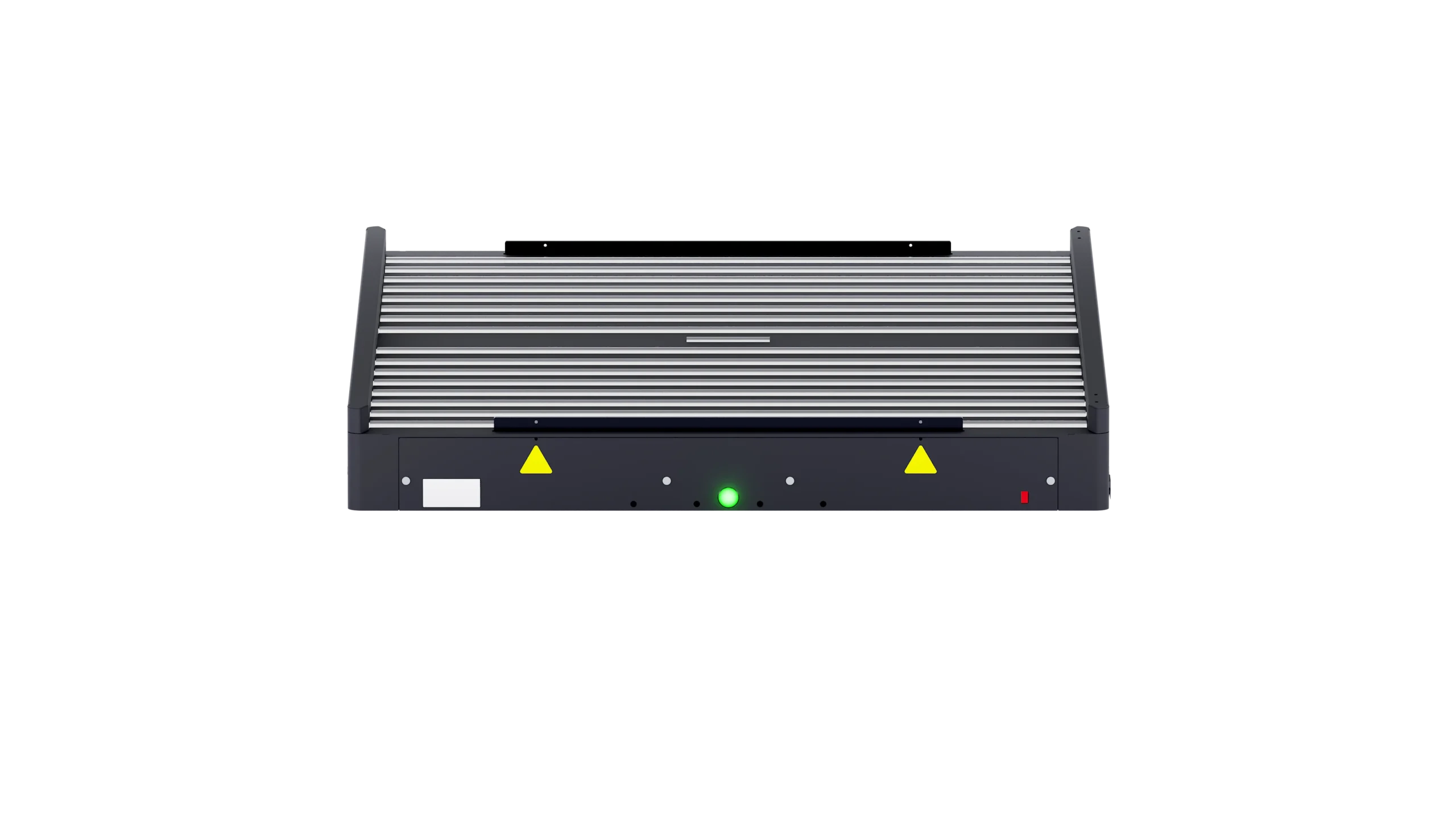

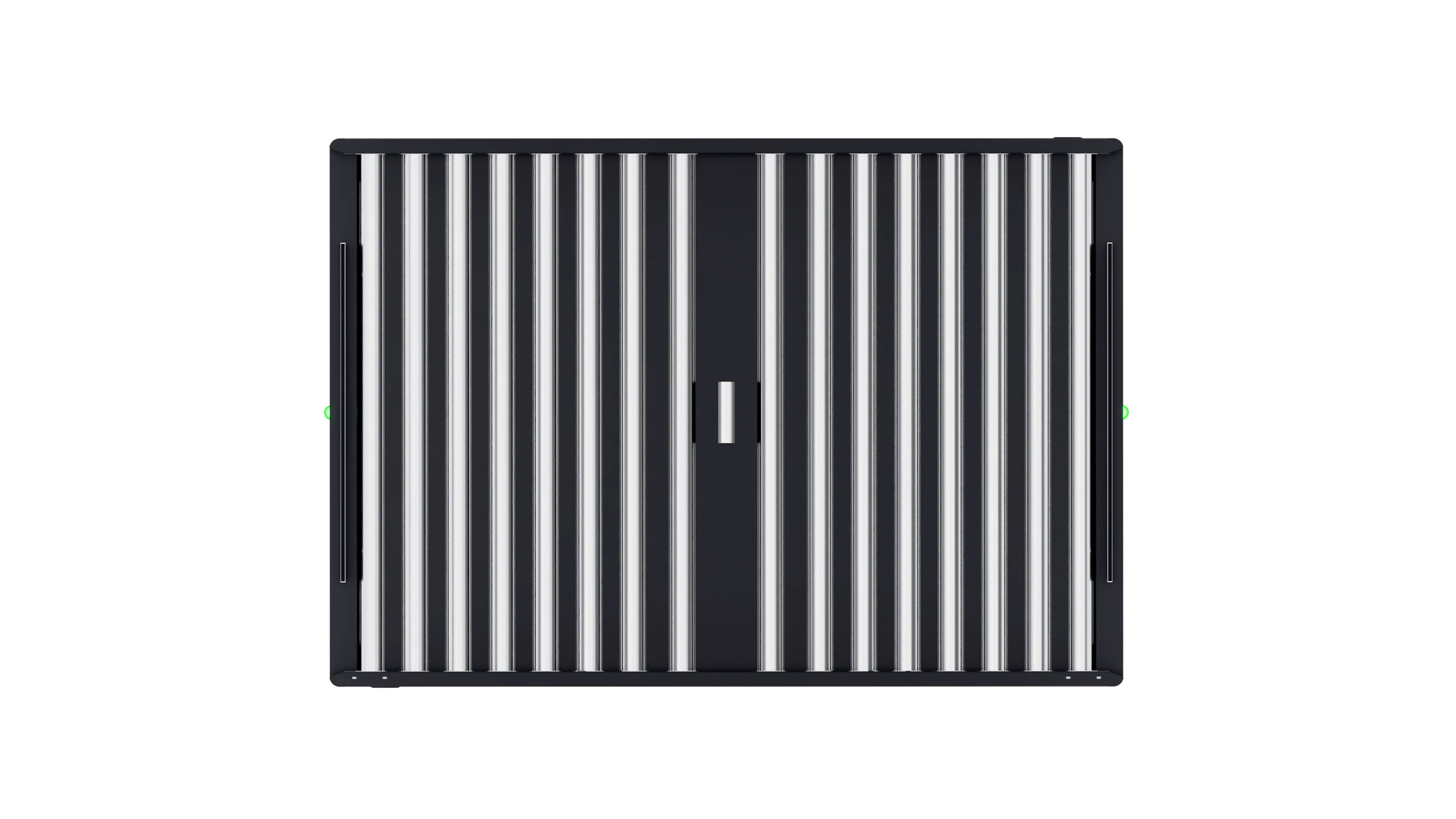

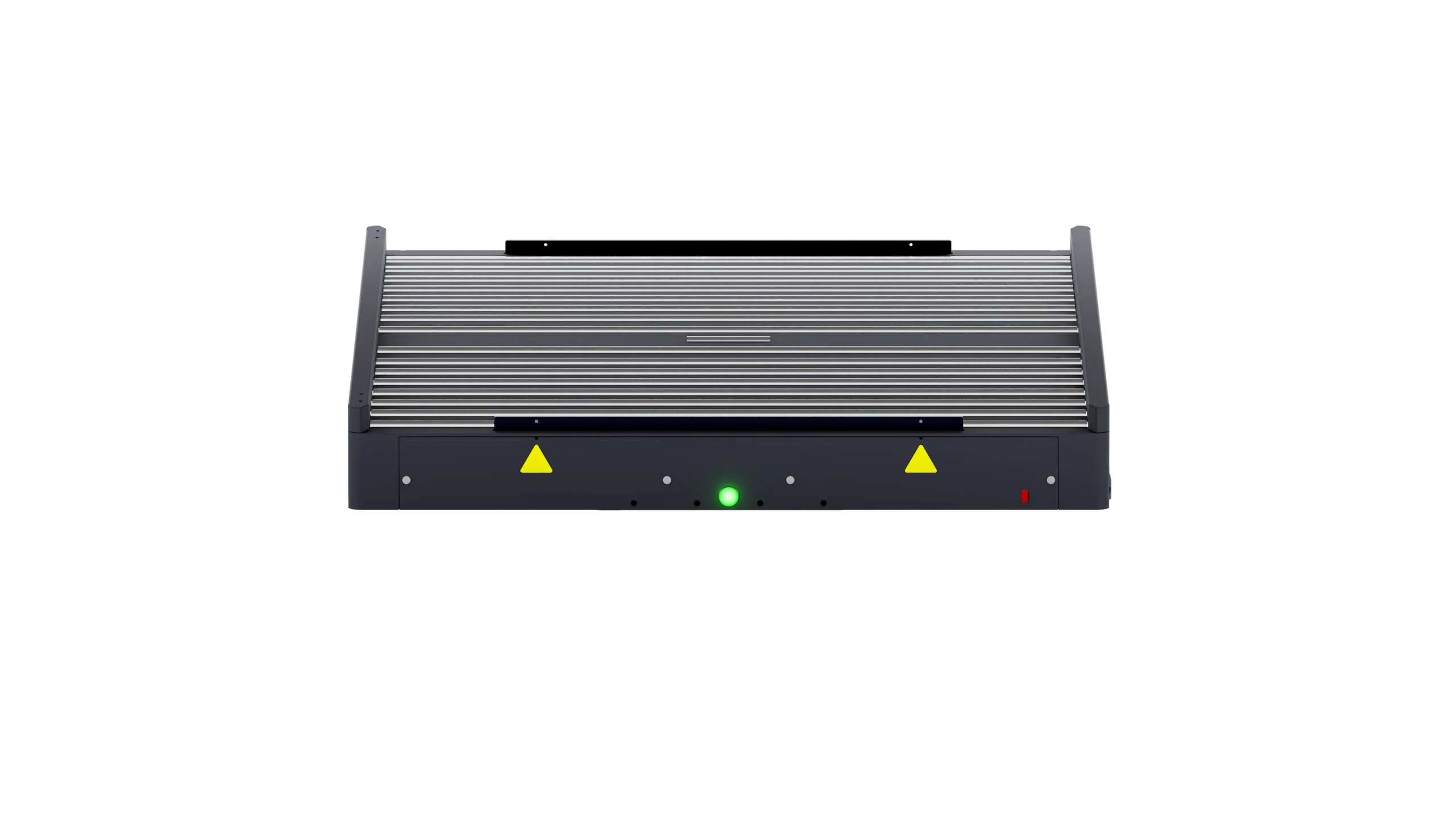

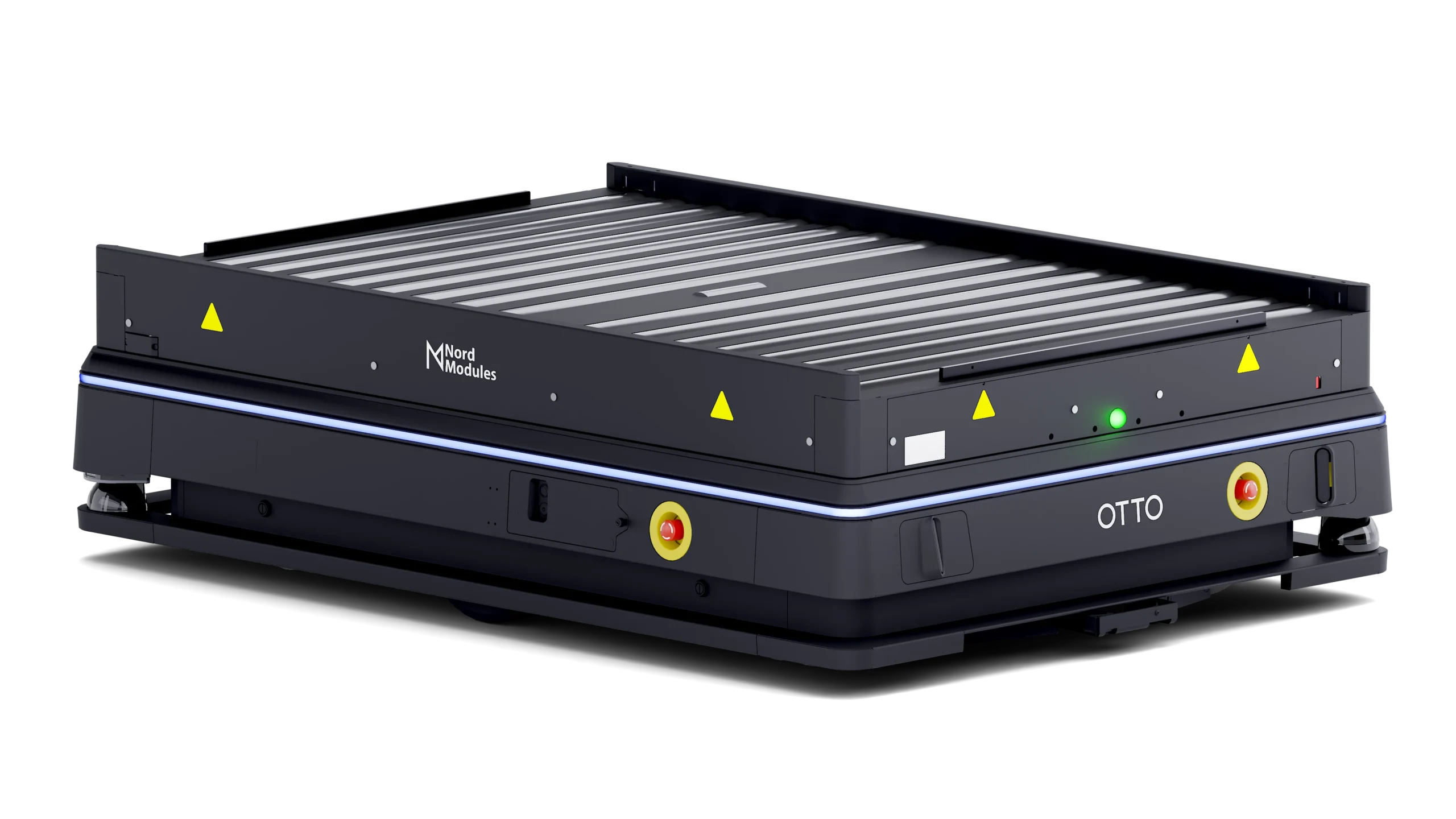

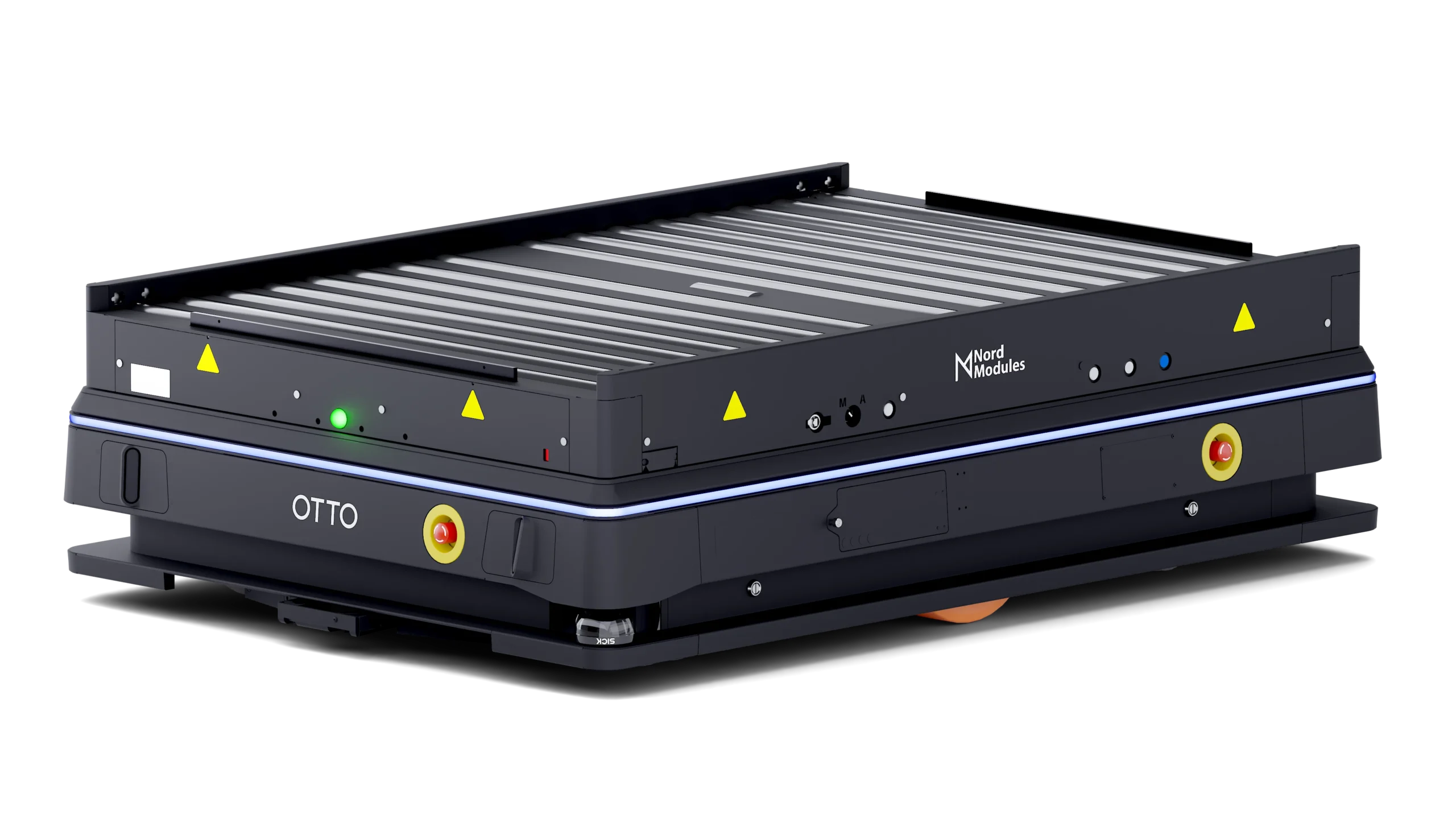

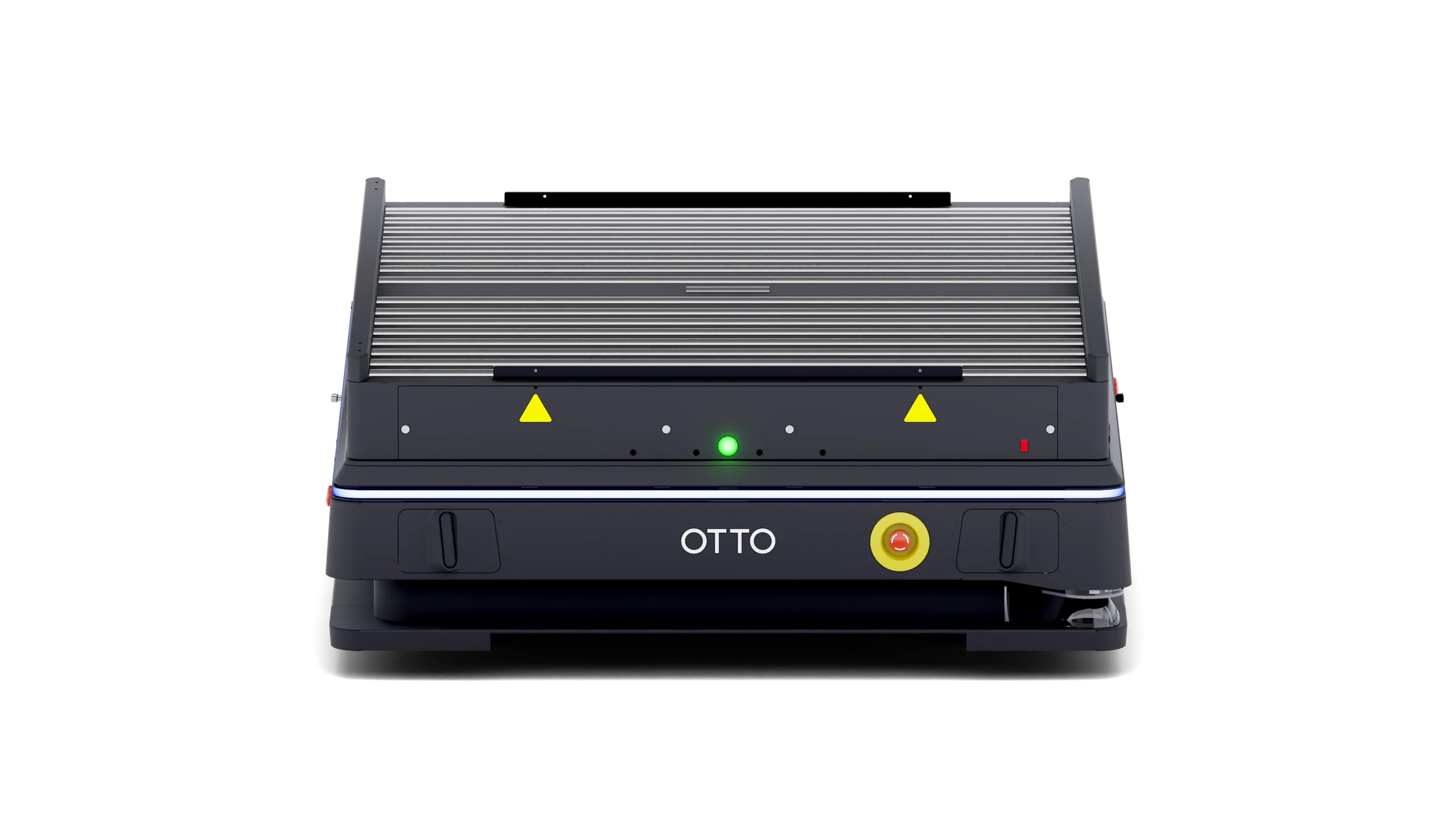

Nord Conveyor 1000 V4 – OTTO 1500

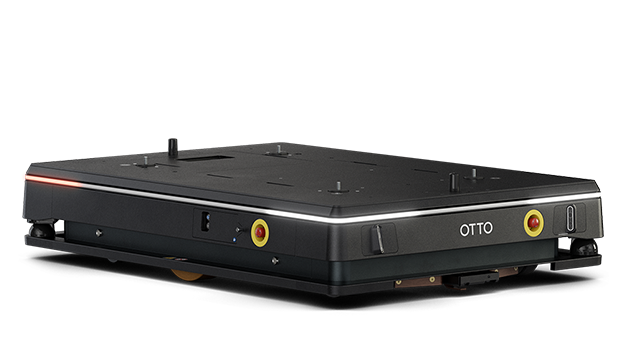

Robot compatibility:
OTTO 1500
Nord Modules compatibility:
Nord Spacer Kit
Dimensions (LWH):
1745 x 1205 x 165 mm | 68.68 x 47.42 x 6.5″
Max Handling capacity:
1645 kg | 3 627 lbs
Speed:
50 – 200 mm/sec | 1.9 – 7.9 in/sec
Center distance between rollers:
95.8 mm | 3.77″
Payload size:
Minimum: 500 x 500 mm | 19.7 x 19.7″
Maximum: 1600 x 1050 mm | 62.9 x 41.3″
Weight:
255 kg | 562 lbs
Description

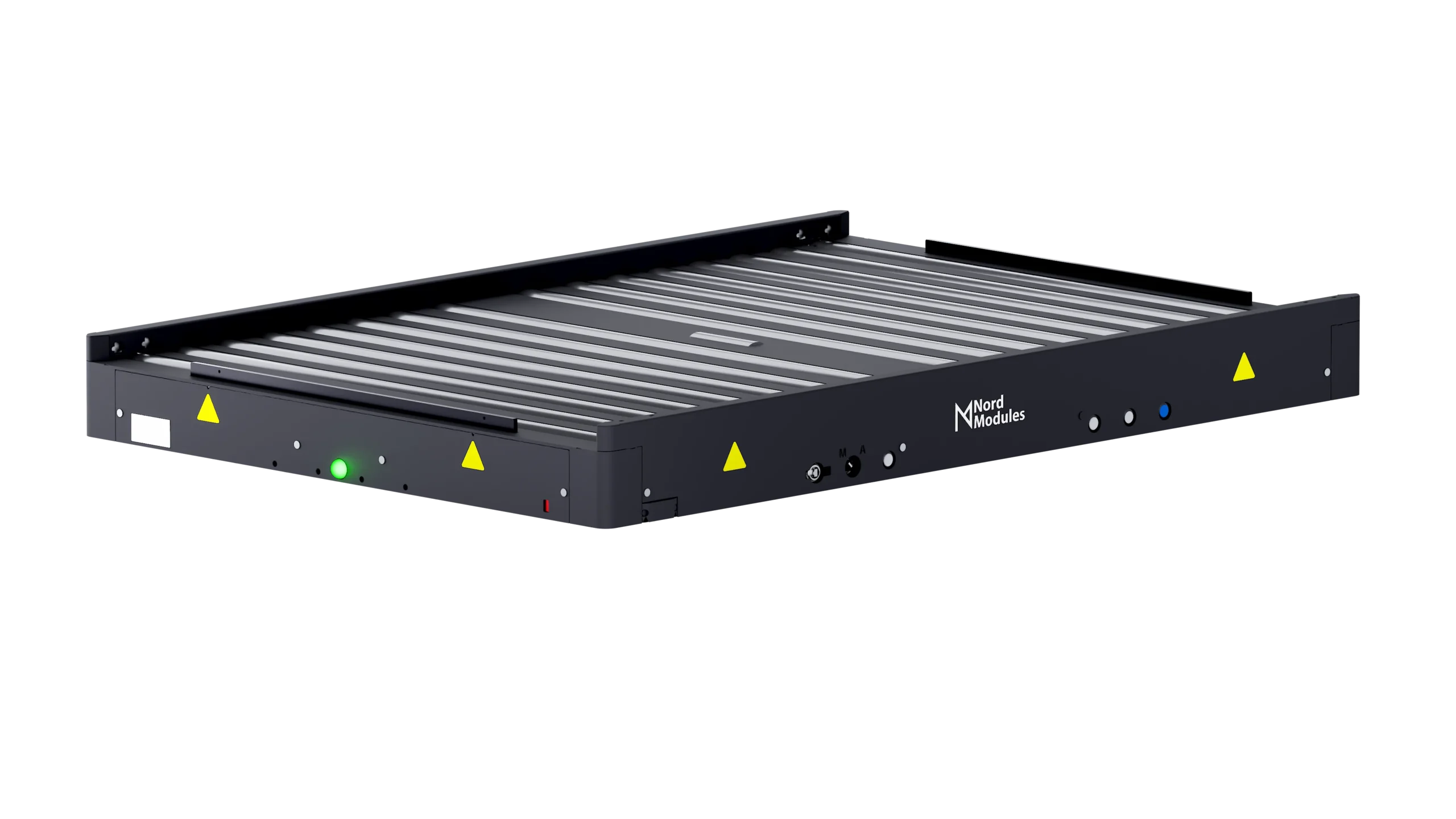

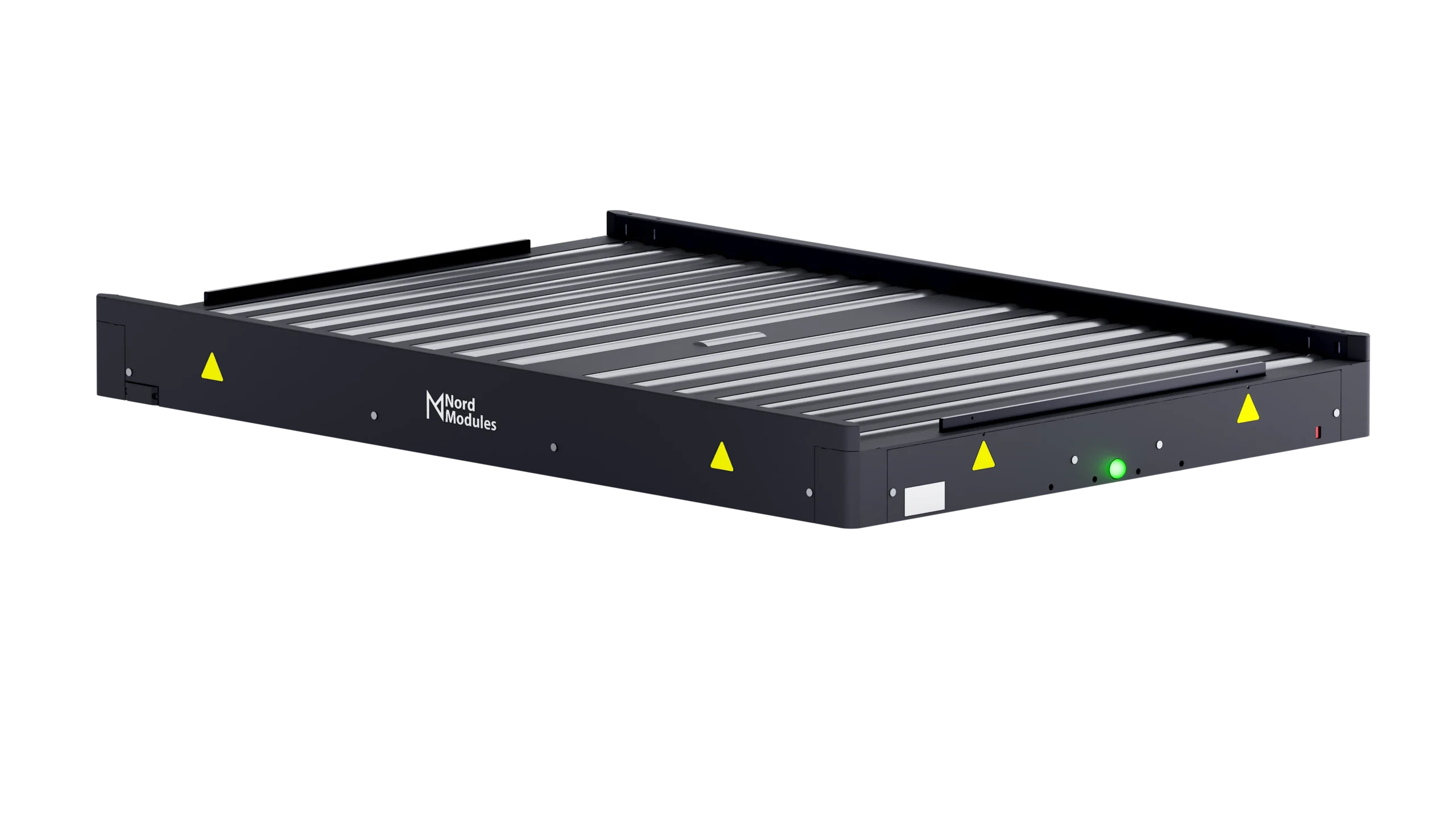

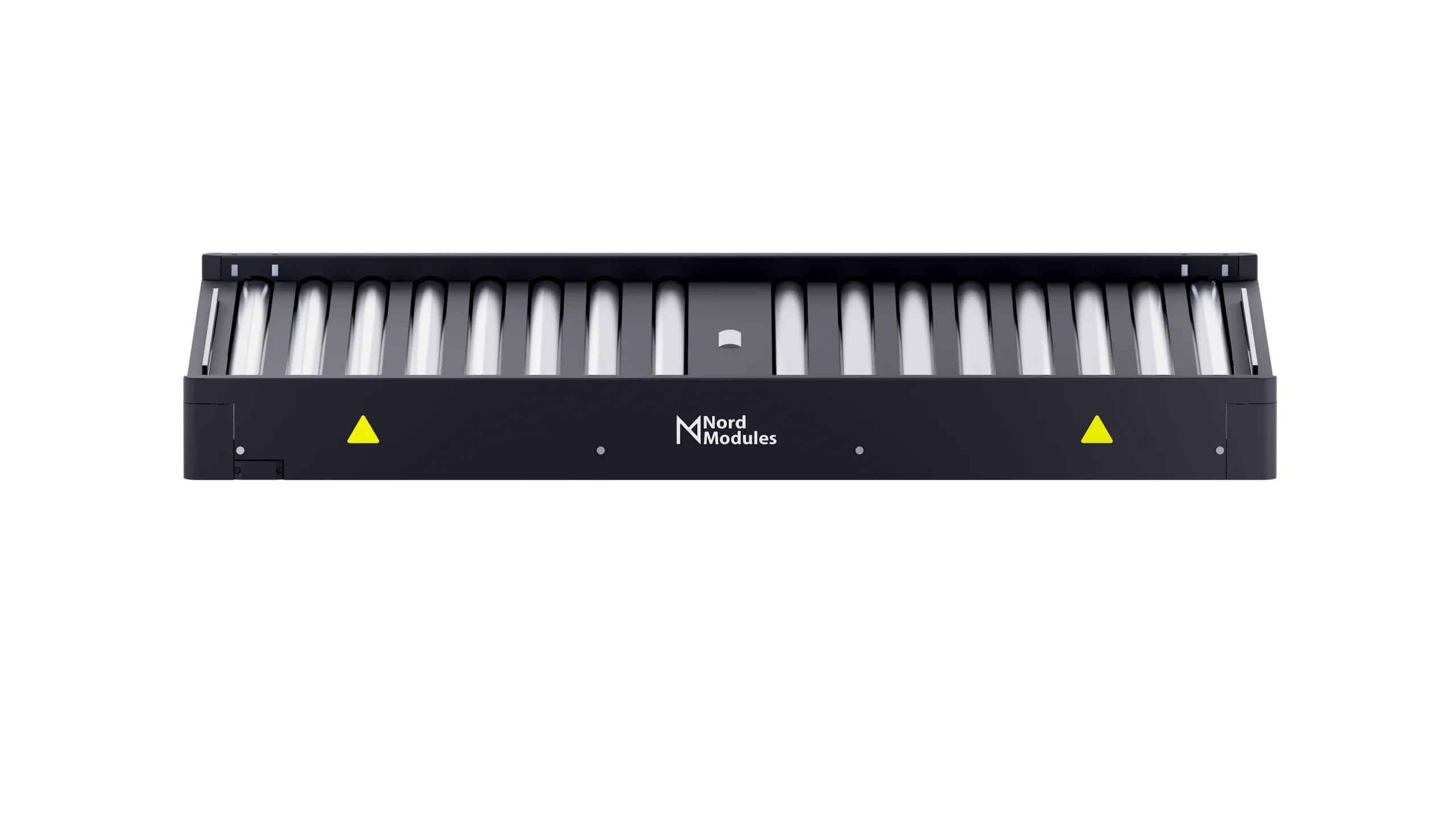

The Nord Conveyor 1000 V4 enables the OTTO AMR to load and unload goods and pallets – transporting them to e.g. production lines or packing stations, thereby enhancing internal logistics.
The Nord Conveyor’s integrated technology enables communication to external roller conveyors by wireless signals. An OTTO Standard Dock Target can be installed in front of an existing conveyor line allowing the Nord Conveyor 1000 to successfully dock and receive or deliver a pallet.
This fully automated premium solution allows heavy payload transportation of up to 1645 kg to optimize logistics and production.
Your key benefits:
• Docking is available from both sides (run-through).
• High industrial quality.
• Safe heavy payload transportation.
• Transport of US-sized pallets.
• Loading side, automatic mechanical stop-solution.
• PLC controller and servo technology.
• Stack-light – information on operation-level.
• High level of feedback.
• Option: rubber coating of roller.
