Lift Modules
Lift up your workflow.
Get to know

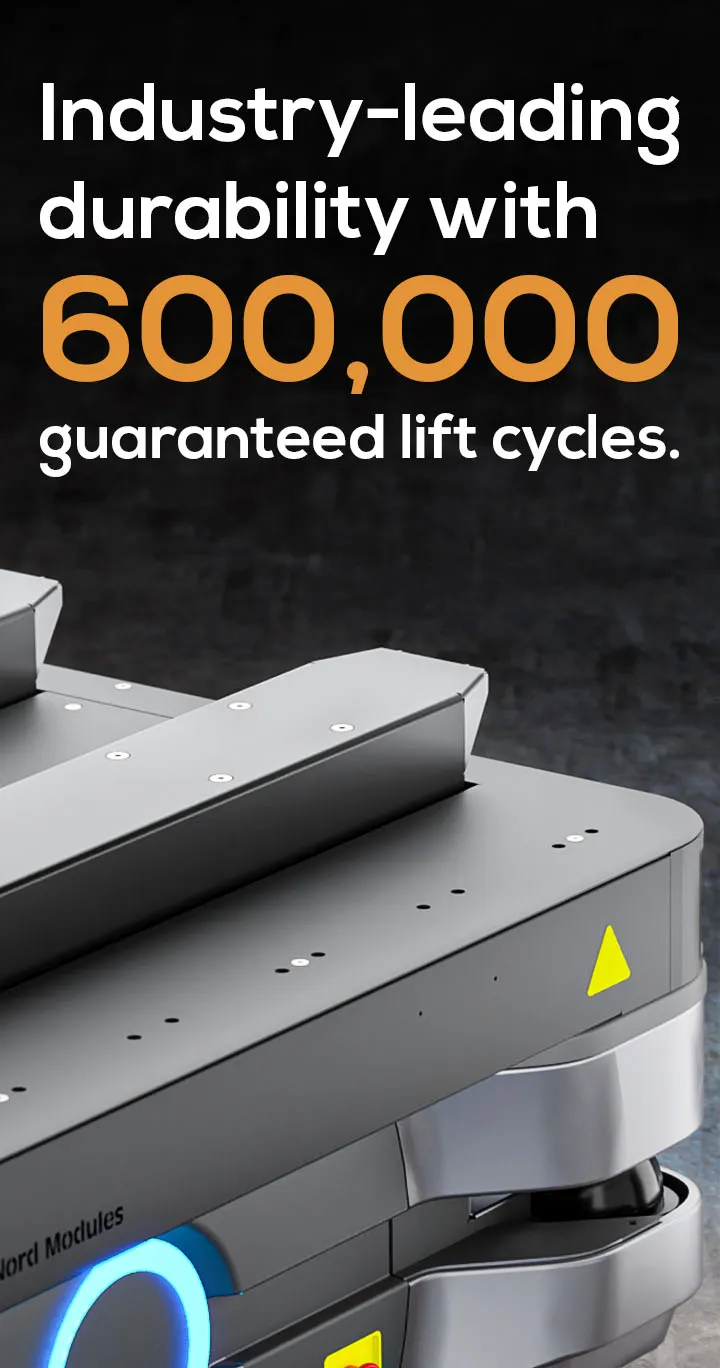

Industry-leading durability with 600,000 guaranteed lift cycles
Less downtime. More productivity. Zero compromises.
Lifters. Are engineered for high performance under pressure.
With a guaranteed 600,000 lift cycles, they’re designed to endure non-stop operation — day after day, year after year.

Every component is tested to industrial-grade standards to withstand vibrations, impacts, and daily wear in demanding factory settings.
From the robust lifting mechanism to the solid frame construction, our modules deliver uncompromising durability that minimizes downtime and maintenance costs.

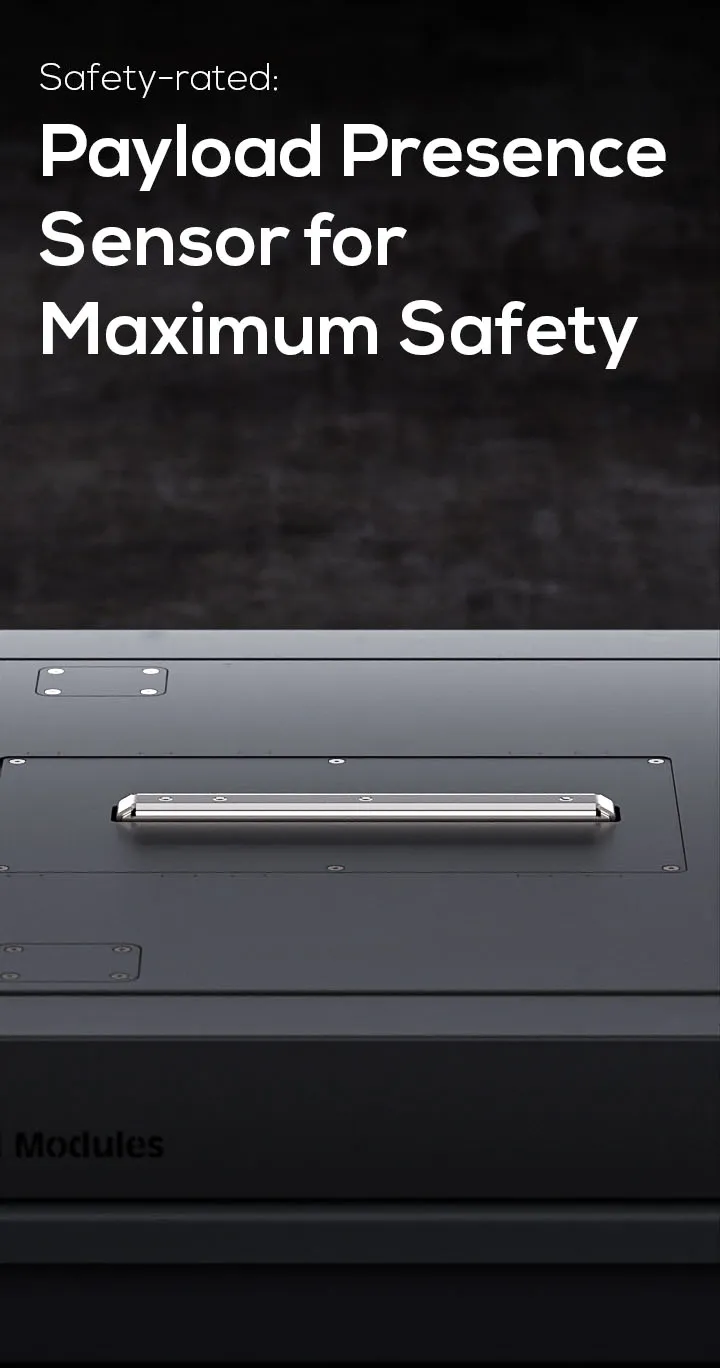

Safety-rated payload detection sensor for maximum operational safety.
Detect. Protect. Operate with confidence.
Lifters are equipped with a safety-rated payload detection bar, designed to ensure that pallets are correctly positioned before any lifting or transport operation begins.
This advanced sensing system automatically detects the presence and position of the load, preventing the AMR from operating if a pallet is missing, misaligned, or unstable. By doing so, it eliminates the risk of accidents, load drops, or mechanical strain caused by improper handling.

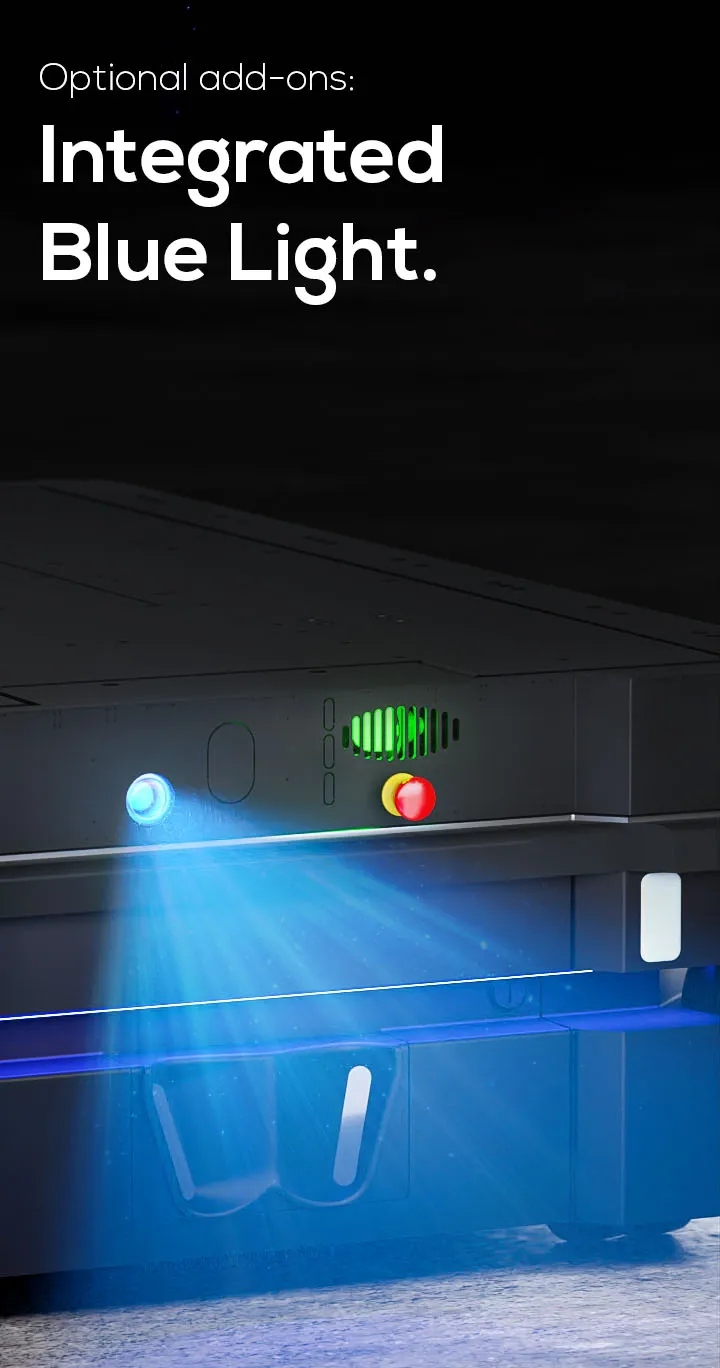

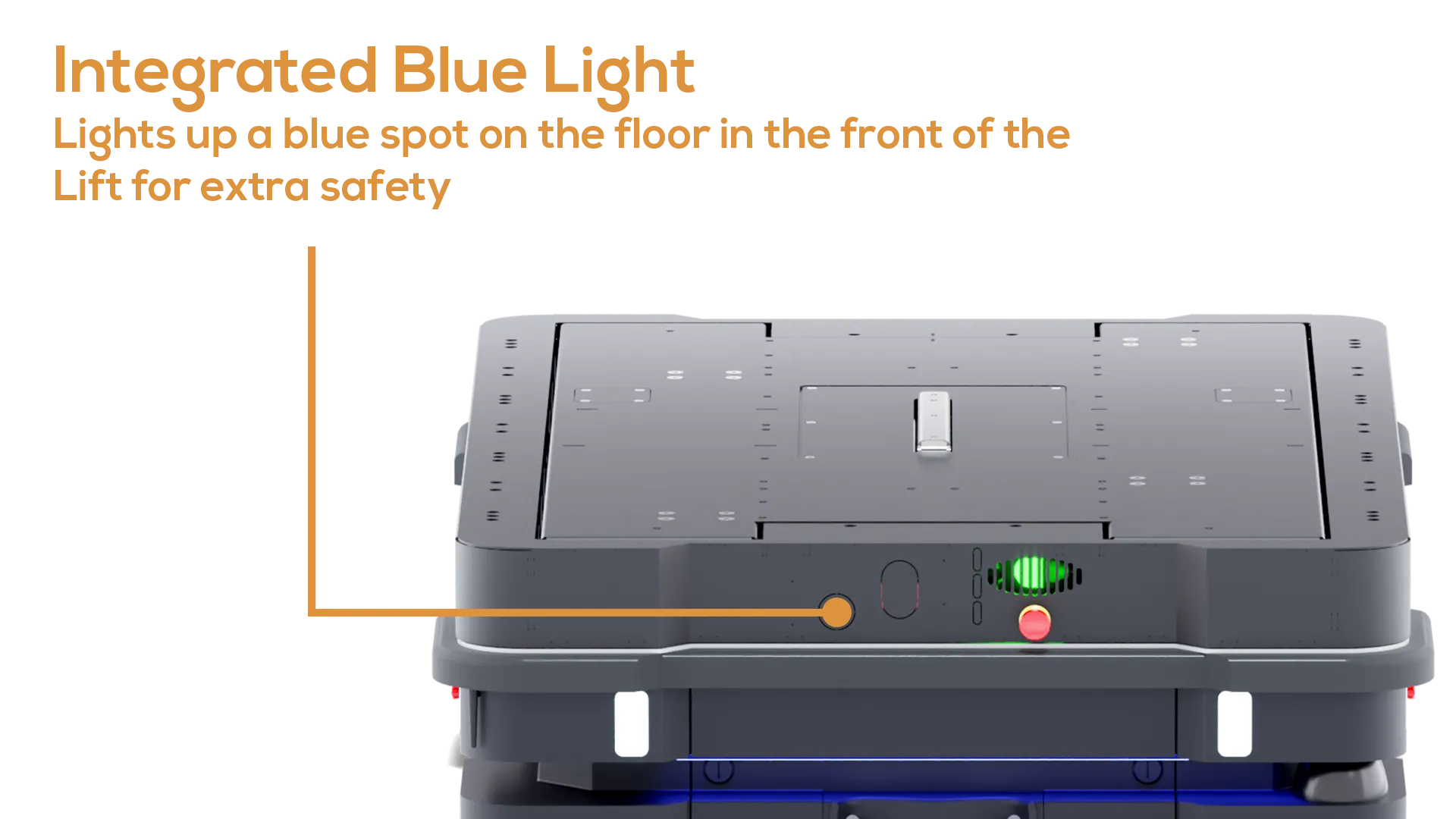

Blue Light : Optional Add-on
See it coming. Stay safe. Work smarter.
The Lifters can be equipped with an integrated Blue Light, a simple yet highly effective add-on that projects a bright blue spot onto the floor in front of the AMR.

This visual signal serves as a warning indicator for nearby workers, making the robot’s presence and movement direction clear — even in areas with low visibility, narrow corners, or high traffic.
By increasing awareness of approaching AMRs, the Blue Light reduces the risk of accidents, improves workplace safety, and supports smooth collaboration between humans and robots in shared environments.
QR/Barcode scanner: Optional Add-on
Smart Scanning for Smarter Logistics.
The Lifters can be equipped with an optional QR or Barcode Scanner, enabling the module to automatically identify goods placed on the docking station.

By scanning the attached code, the Lifters can detect different types of payloads — ensuring that each item is recognized, tracked, and routed correctly. This makes it possible to integrate product identification directly into the transport process, removing the need for manual checks and reducing the risk of errors.
The scanner supports seamless data collection, giving operators full visibility of goods flow and enabling smarter automation workflows in logistics and production.

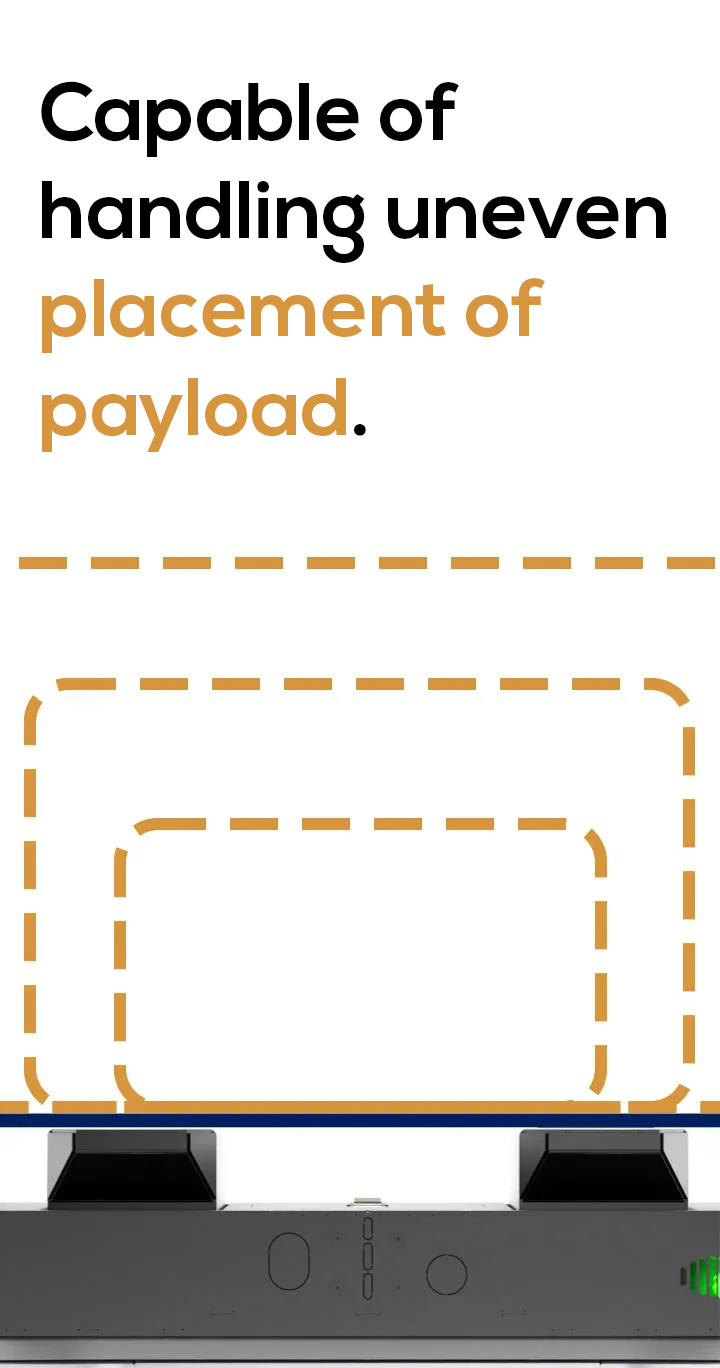

Capable of handling uneven payloads compared to others in the market.
Versatility that saves time and expands what your robot can do.
From small packages to bulky and uneven items – Lifters modules handle it all with ease.
Our flexible top modules are designed to securely lift and transport loads of various shapes and sizes, outperforming standard systems that require uniform dimensions.
Whether it’s a centered box, an offset load, or a non-standard shape – our system adjusts dynamically, ensuring stable transport every time.
Thanks to our adaptive lifting mechanism and smart load distribution, operators no longer need to worry about weight imbalances.

MiR ☰
-

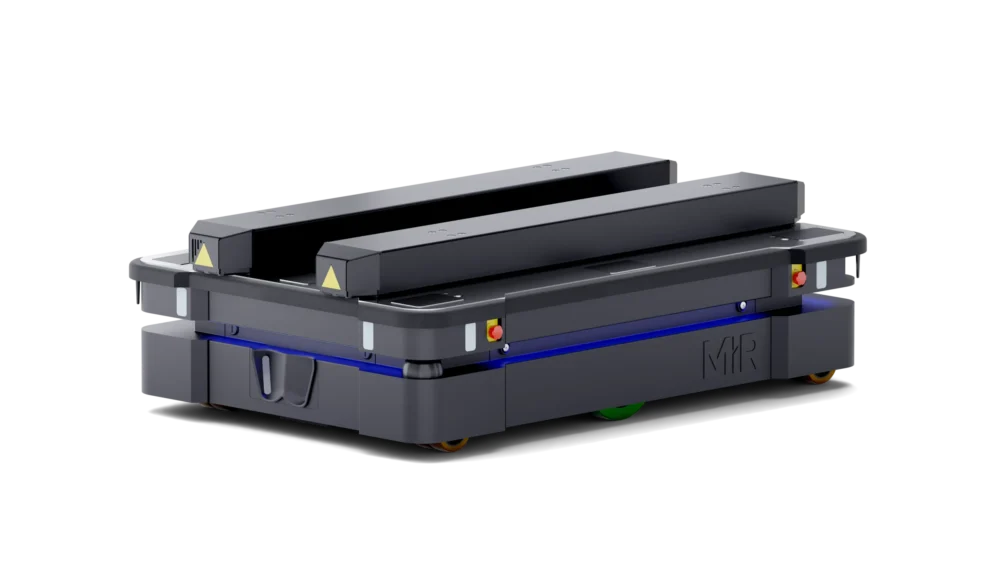

Nord Lift EU
Robot compatibility: MiR 1000, MiR 1350, MiR 500, MiR 600 Lifting Height 60 mm / 2.4 in Weight 84 kg / 185.2 lbs Lifting Capacity 1 266 kg / 2 791.1 lbs -

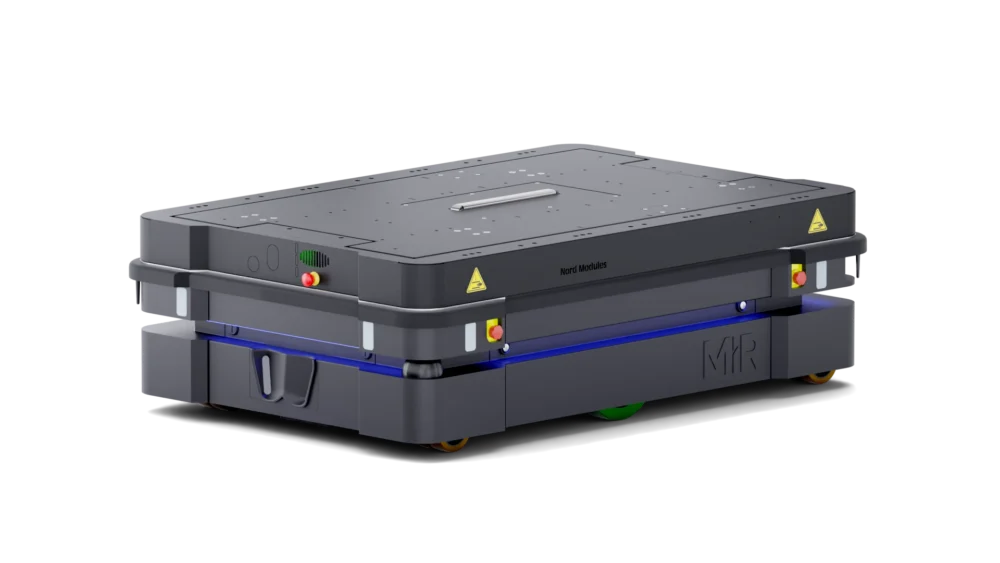

Nord Lift Platform
Robot compatibility: MiR 1000, MiR 1350, MiR 500, MiR 600 Lifting Height 60 mm / 2.4 in Weight 112 kg / 246.9 lbs Lifting Capacity 1 238 kg / 2 729.3 lbs
Omron ☰
-

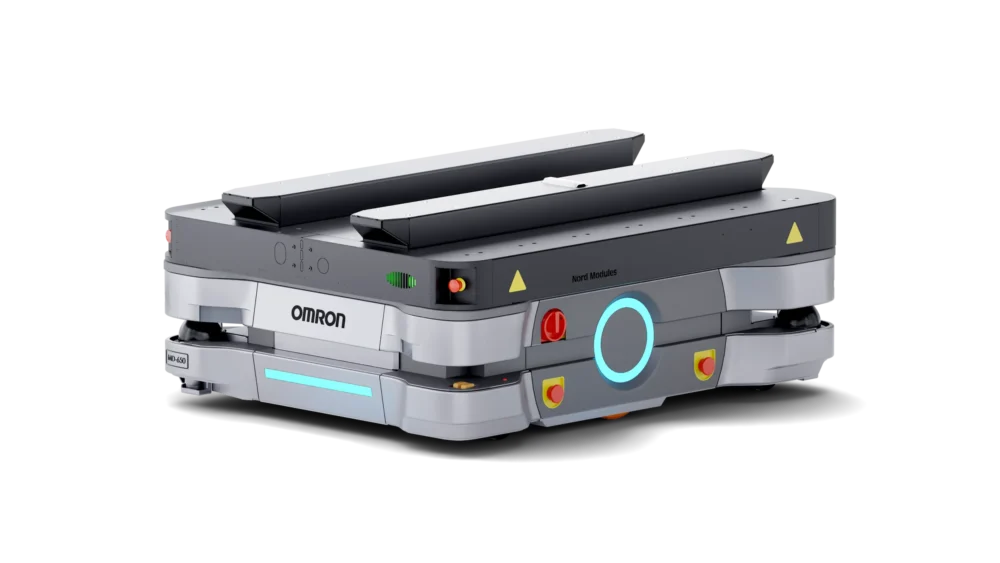

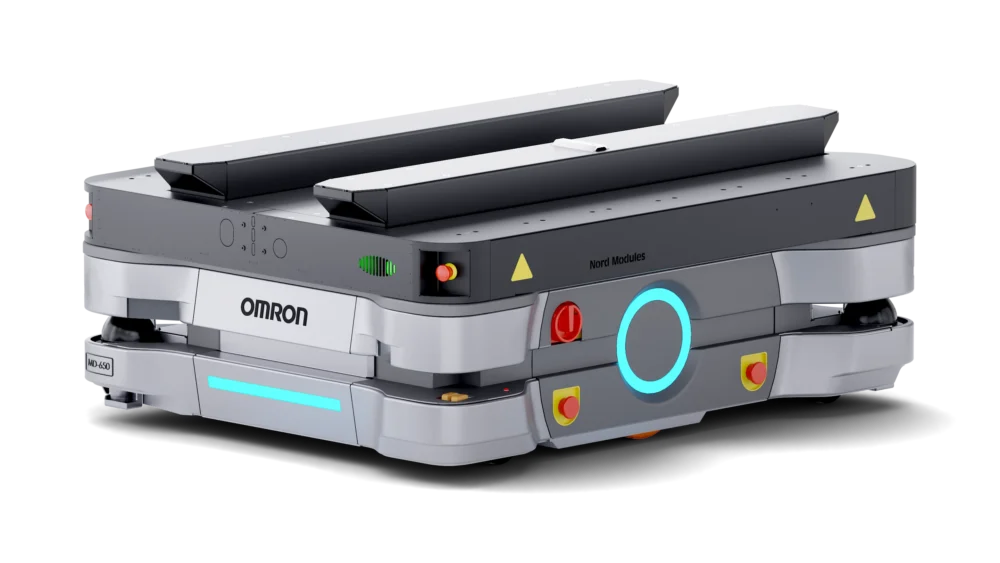

Nord Lift EU-MD
Robot compatibility: Omron MD-650, Omron MD-900 Lifting Height 80 mm / 3.2 in Weight 140 kg / 308.6 lbs Lifting Capacity max. 760 kg / 1 675 lbs -

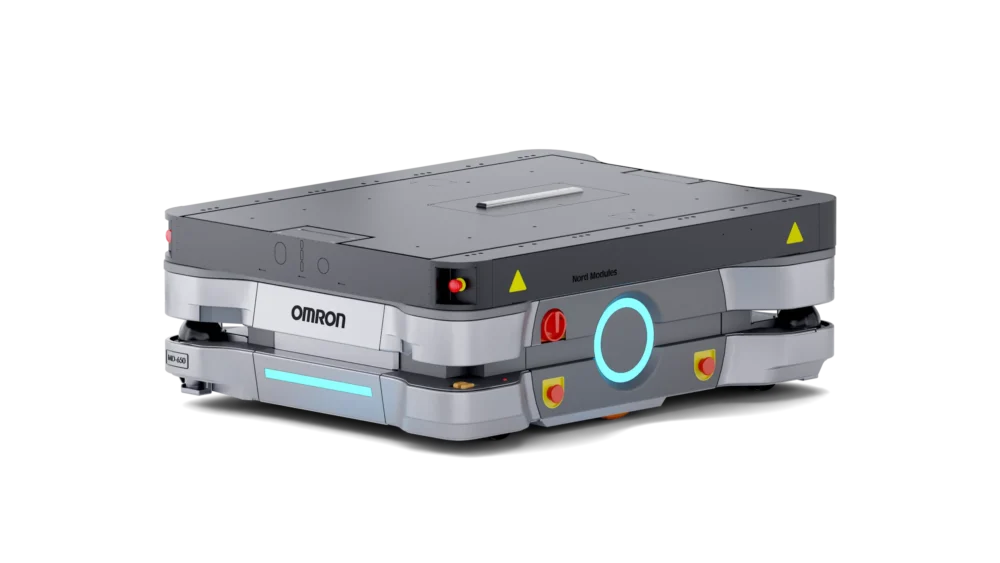

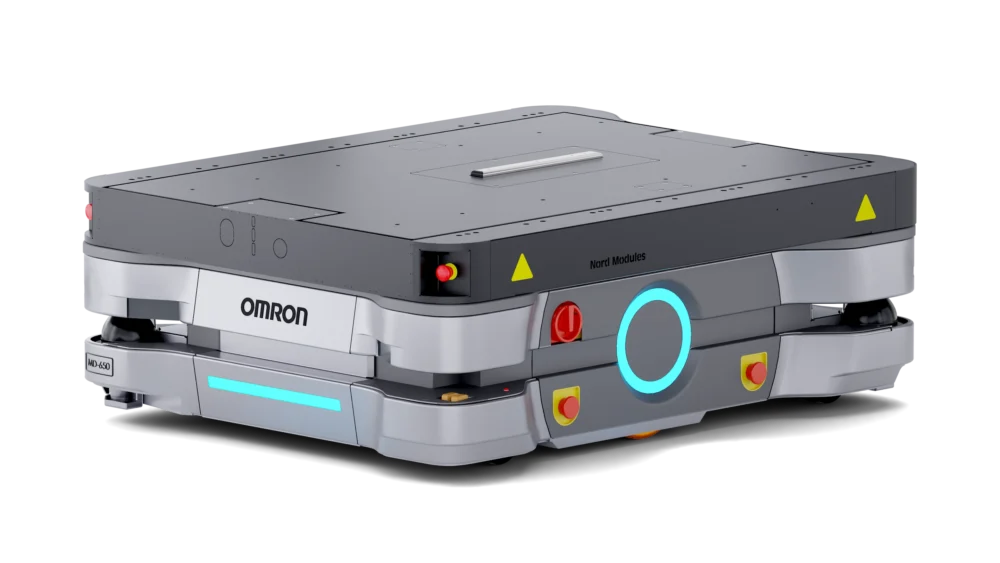

Nord Lift Platform MD
Robot compatibility: Omron MD-650, Omron MD-900 Lifting Height 80 mm / 3.2 in Weight 118 kg / 260 lbs Lifting Capacity max. 782 kg / 1 724 lbs -

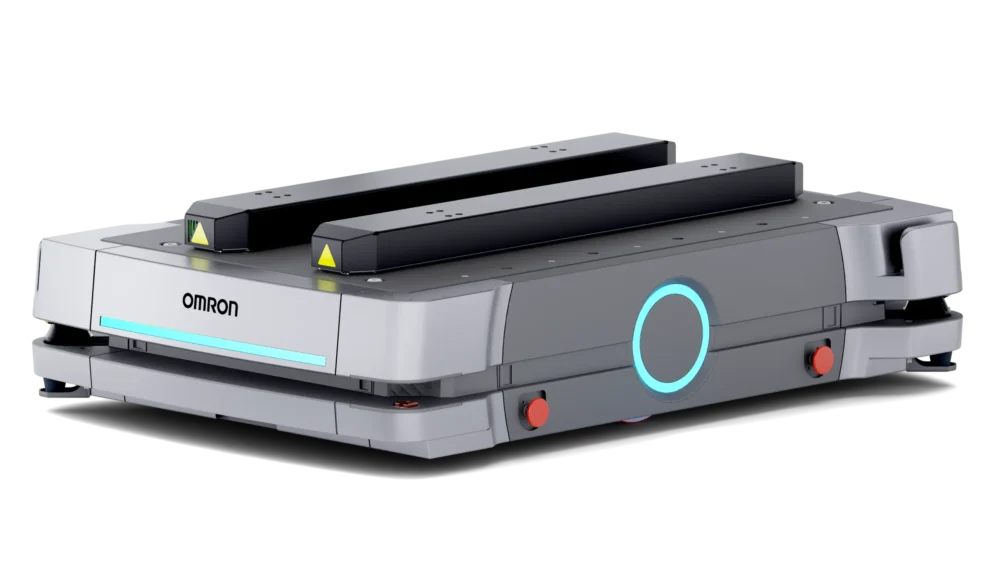

Nord Lift EU-HD
Robot compatibility: Omron HD-1500 Lifting Height 60 mm / 2.4 in Weight 100 kg / 220 lbs Lifting Capacity 1 500 kg / 3 307 lbs -

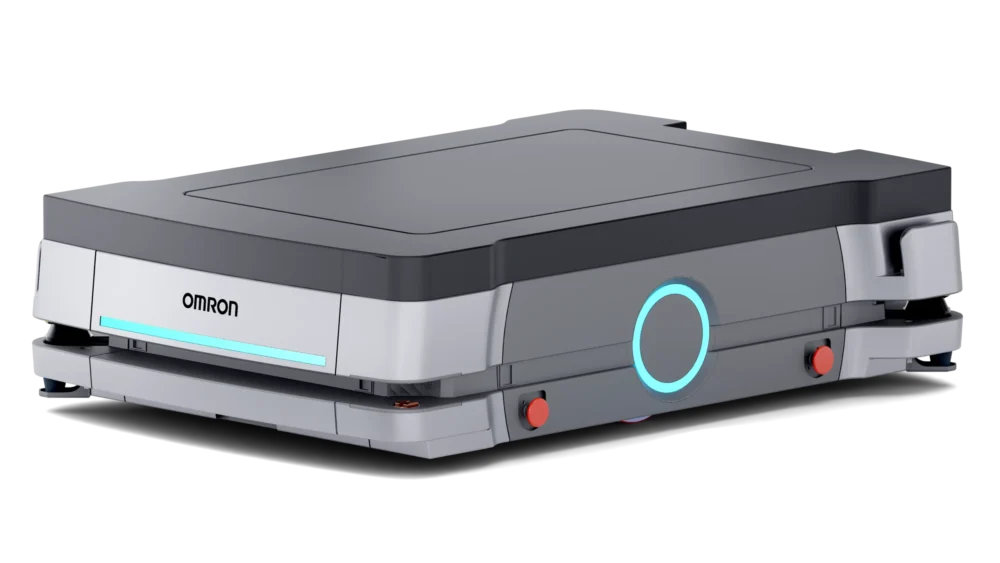

Nord Lift Platform-HD
Robot compatibility: Omron HD-1500 Lifting Height 60 mm / 2.4 in Weight 100 kg / 220 lbs Lifting Capacity 1 500 kg / 3 307 lbs
OTTO ☰
-

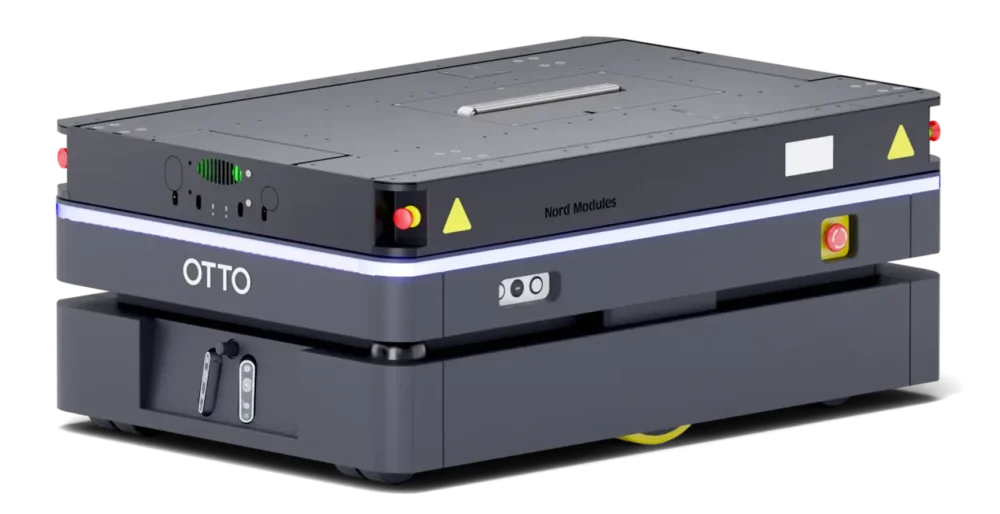

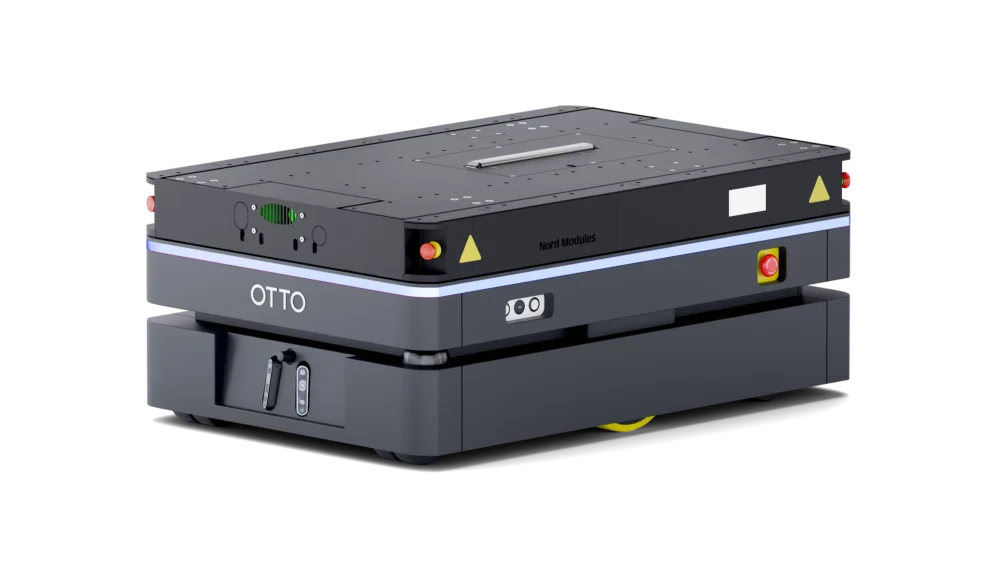

Nord Lift 80 V3 – OTTO 600
Robot compatibility: OTTO 600 Lifting Height 80 mm / 3.2 in Weight 96 kg / 211.6 lbs Lifting Capacity 500 kg / 1 102 lbs -

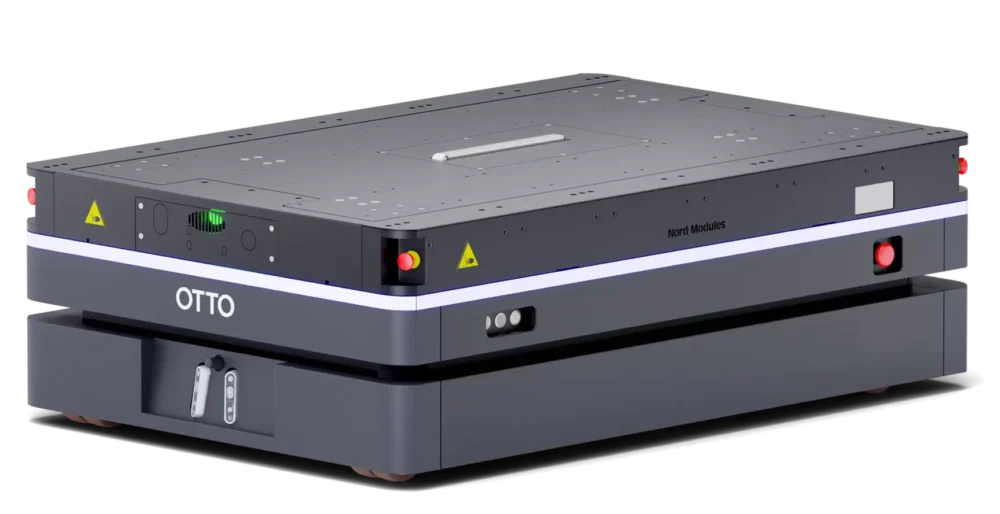

Nord Lift 100 V1 – OTTO 1200
Robot compatibility: OTTO 1200 Lifting Height 100 mm / 3.9 in Weight 156 kg / 344 lbs Lifting Capacity 1 044 kg / 2 301.6 lbs -

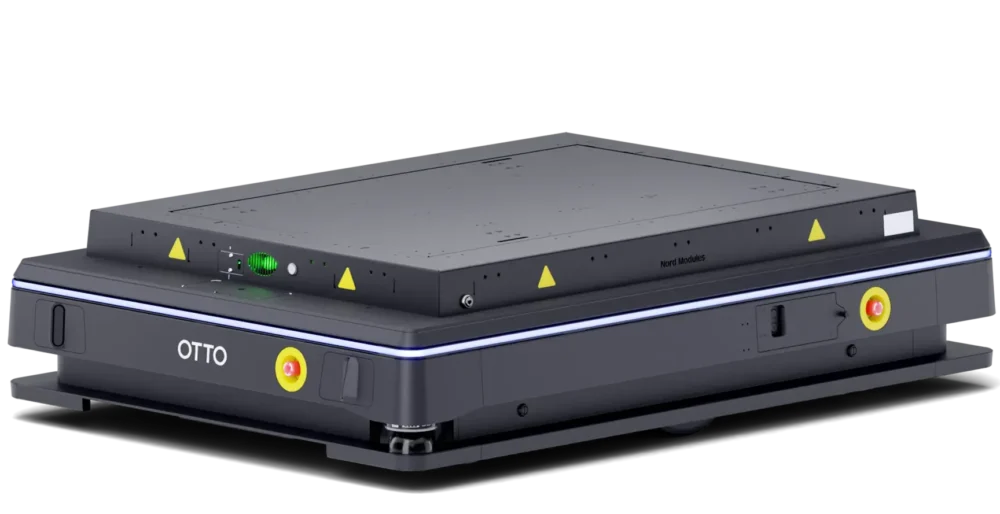

Nord Lift 60 V3 – OTTO 1500
Robot compatibility: OTTO 1500 Lifting Height 60 mm / 2.4 in Weight 150 kg / 330.7 lbs Lifting Capacity 1 500 kg / 3 306.9 lbs
