Nord Lift 80 V3 – OTTO 600

The Nord Lift 80 is a lifting top module that lets a OTTO 600 pick up and deliver payloads, pallets, carts autonomously, handling up to 500 kg. It is rated for at least 600,000 lifts at maximum payload and reports its status, lift count and error codes directly to the AMR.

Robot Compatibility
OTTO 600
Dimensions (LWH)
1 050 x 700 x 104 mm | 41.3 x 27.6 x 4.1 in
Stroke Length
up to 80 mm | 3.2 in
Lifting Speed
up to 15 mm/s | 0.6 in/s
Weight
96 kg | 211.6 lbs
Payload Capacity
500 kg | 1 102 lbs
Service Interval
Service interval for every 200.000 cycles
Expected Lifespan
Minimum 600.000 lifts at max. payload
Article Nr
NM00138328

Minimum 600,000 lifts at maximum payload, with service only every 200,000 lifts: real figures for total cost of ownership.

Up to 500 kg in a single corner, so off-centre and unevenly loaded pallets are handled without derating.

Rollers running on a curved track, driven by servo motors under PLC control, keep the lift rigid and wear low.

Lift count and error codes over Modbus make service plannable and faults quick to diagnose, with a stack light showing status on the module.

A standard module with a safety-rated payload detection sensor built in, fitted without custom engineering.
GET A QUOTE
Showcase
Explore the design, features, and real-world performance
600.000+ lifts at max. payload
Optional Add-Ons

Tailor this product to specific operational needs. Quick to set up and adaptable to various workflows, they deliver a complete and flexible automation solution for optimized efficiency.

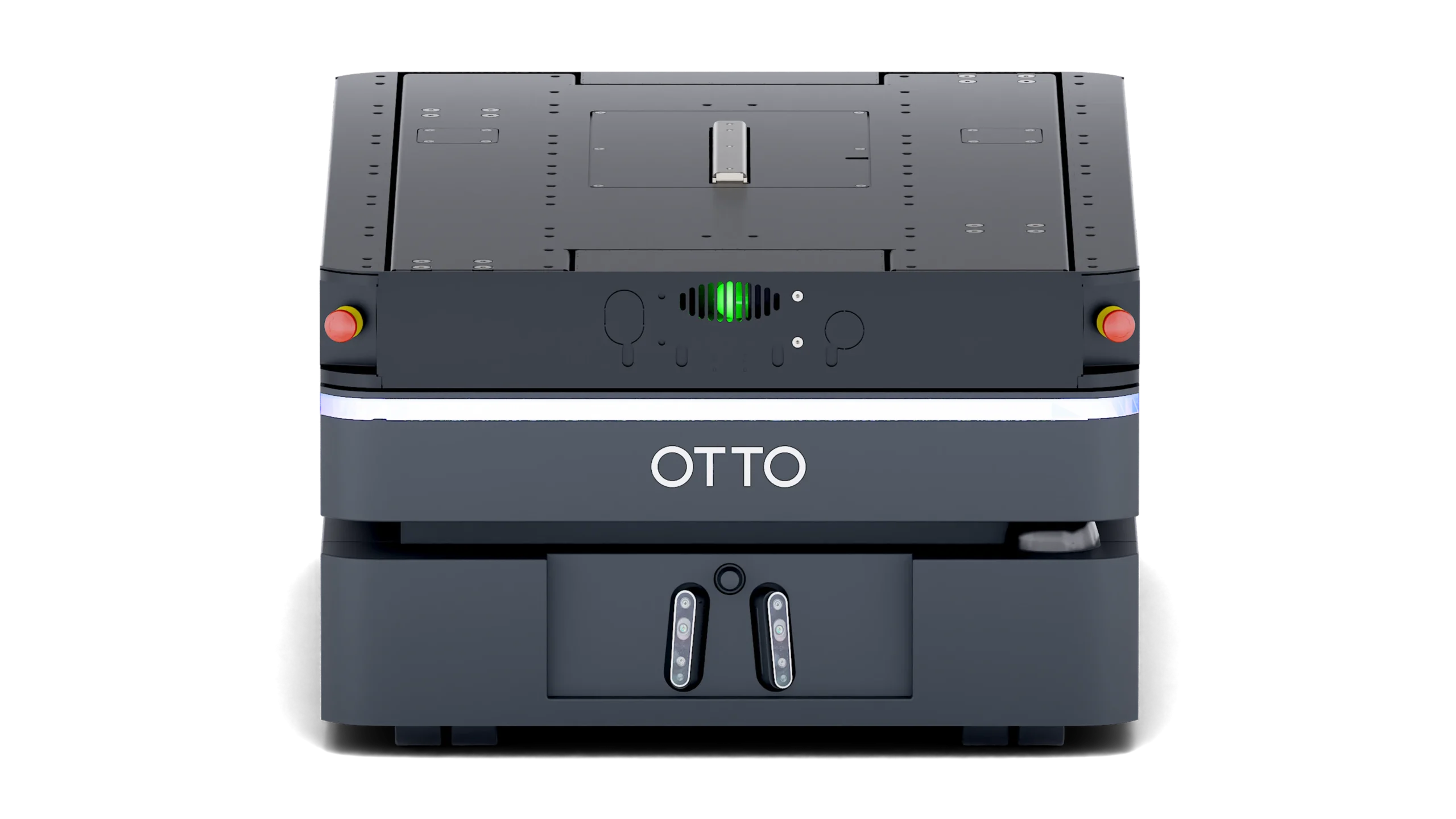

Nord Lift 80 V3 – OTTO 600 — view 1
Nord Lift 80 V3 – OTTO 600 — view 2

• Detects pallets and carts automatically
• Activates from just 3 kg
• Built into the top cover
• Switches the AMR to the payload safety zone
• Plug and play

• On the moving platform, fixed platform and sides
• Ready for custom tooling
• Extra holes can be added

• Manual/Auto selector: switches between automatic and manual mode
• Hold to run: hold to allow manual movement
• Jog Up / Down: moves the platform up or down
• Reset: resets errors
• Start: restarts the lift after a reset
• Continues the task after Start, no need to restart the mission

Manual Buttons

• Increased safety
• Blue light spot in front of the AMR
• Internal mounted, Front
• Plug and play
• Prewired

• Enables cart engagement
• 2 female cones
• Cart mode selected in the web interface
• Cart presence detected by the built-in sensor

• Mounting brackets for the most common sensor housings
• Height adjustable, front mounted
• Detect payload on the P&D stand or an OK to enter signal
