Max Payload

PL-US-Omron MD

Robot compatibility:
Omron MD-650 & MD-900

Nord Modules compatibility:
Omron P&D Cantilever Stand & Pallet Rack MD

Dimensions (LWH):
1 187 x 944 x 105 mm

Max Payload:
550 & 800 kg

Lifting Speed:
Up: 4 s – Down: 4 s

Lifetime:
600.000+ lifts at max payload

Description

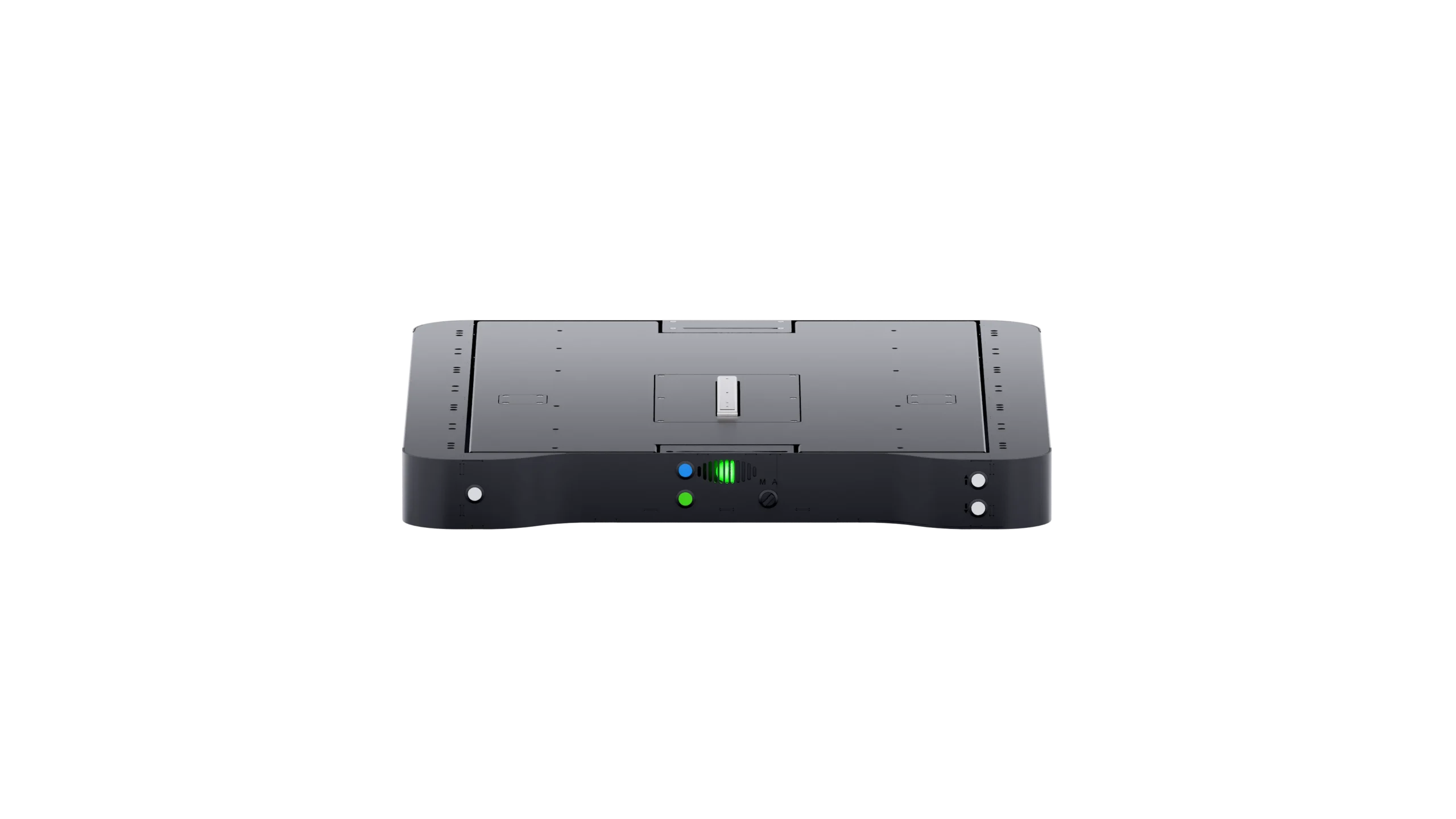

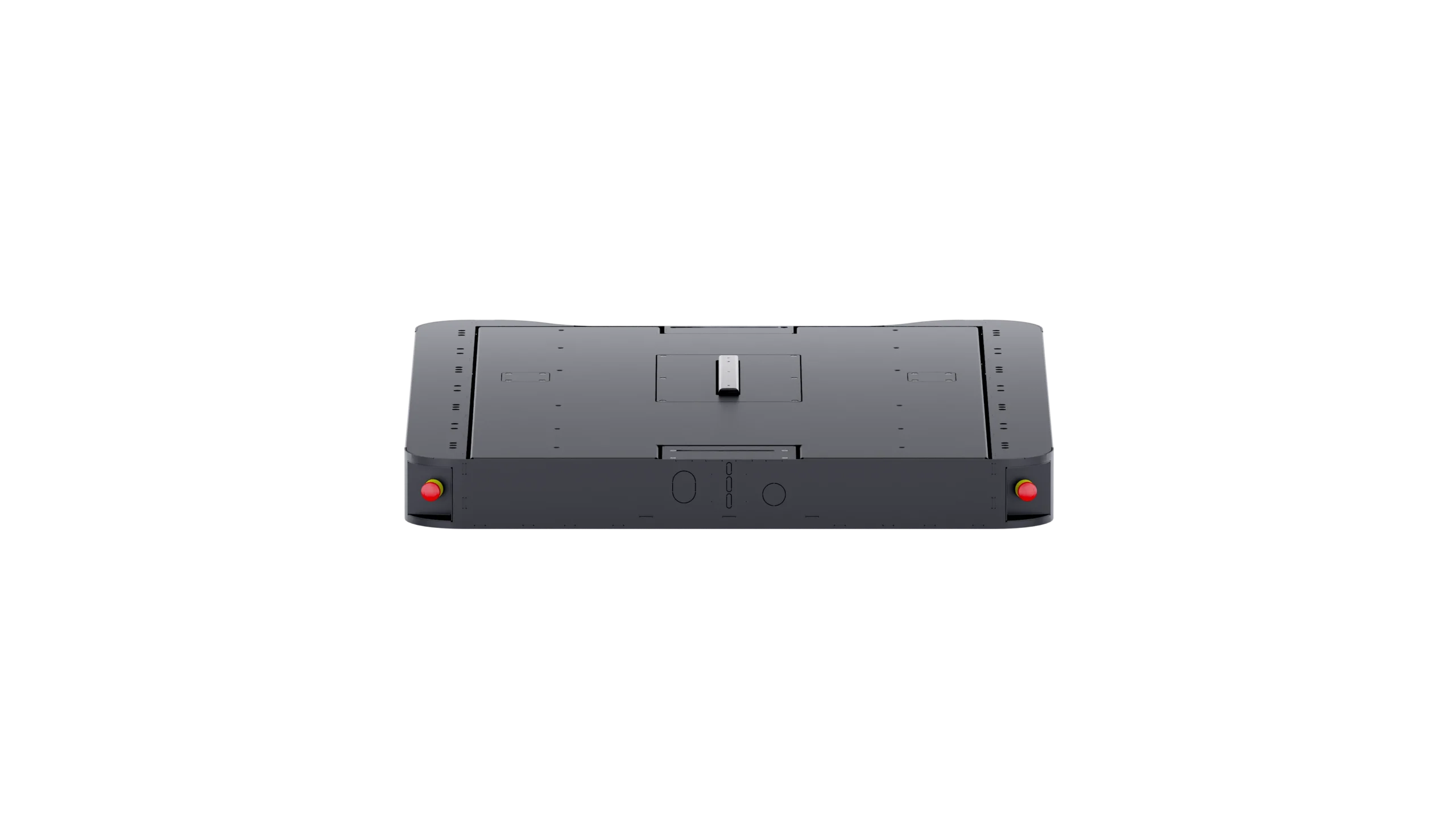

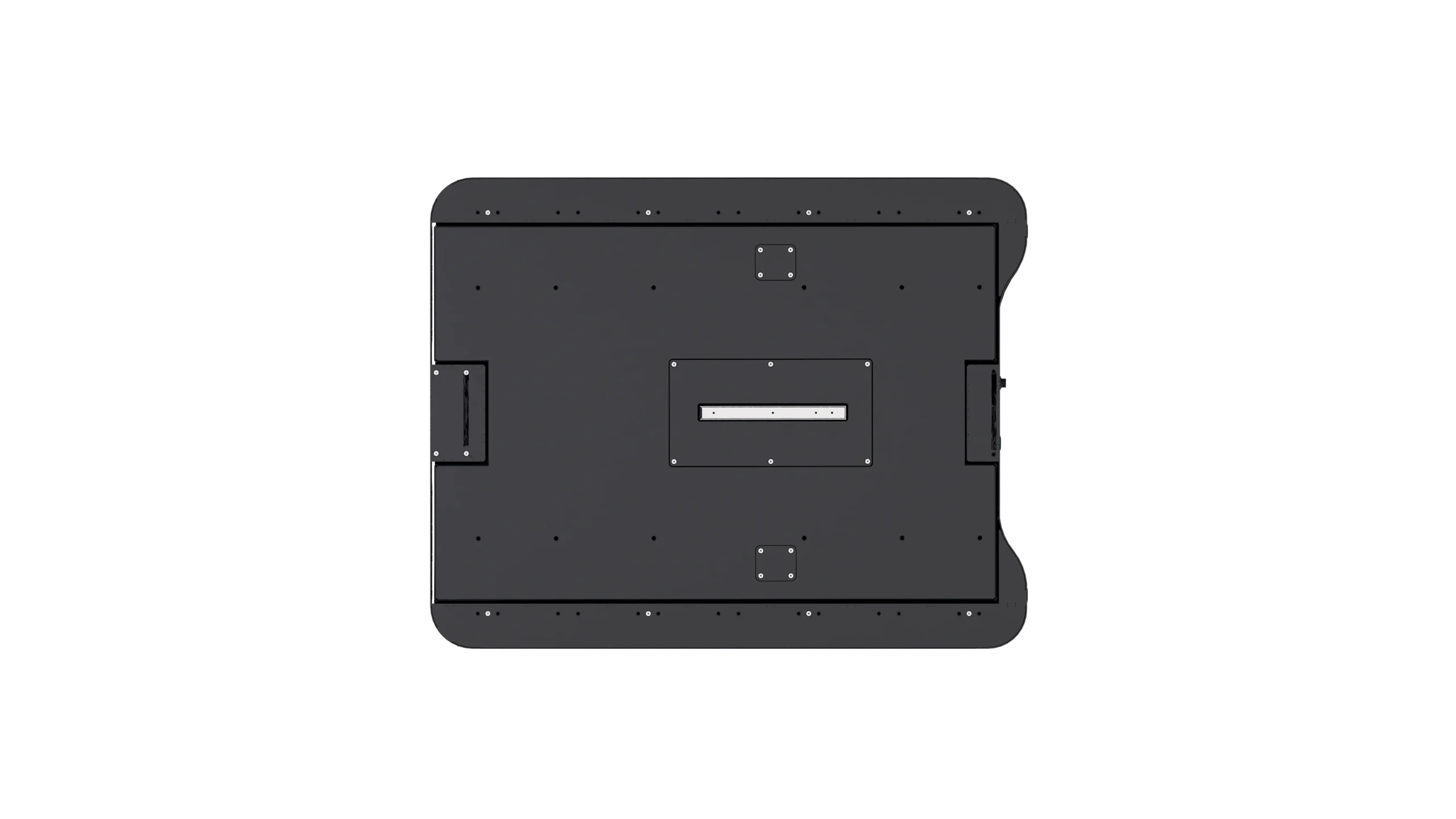

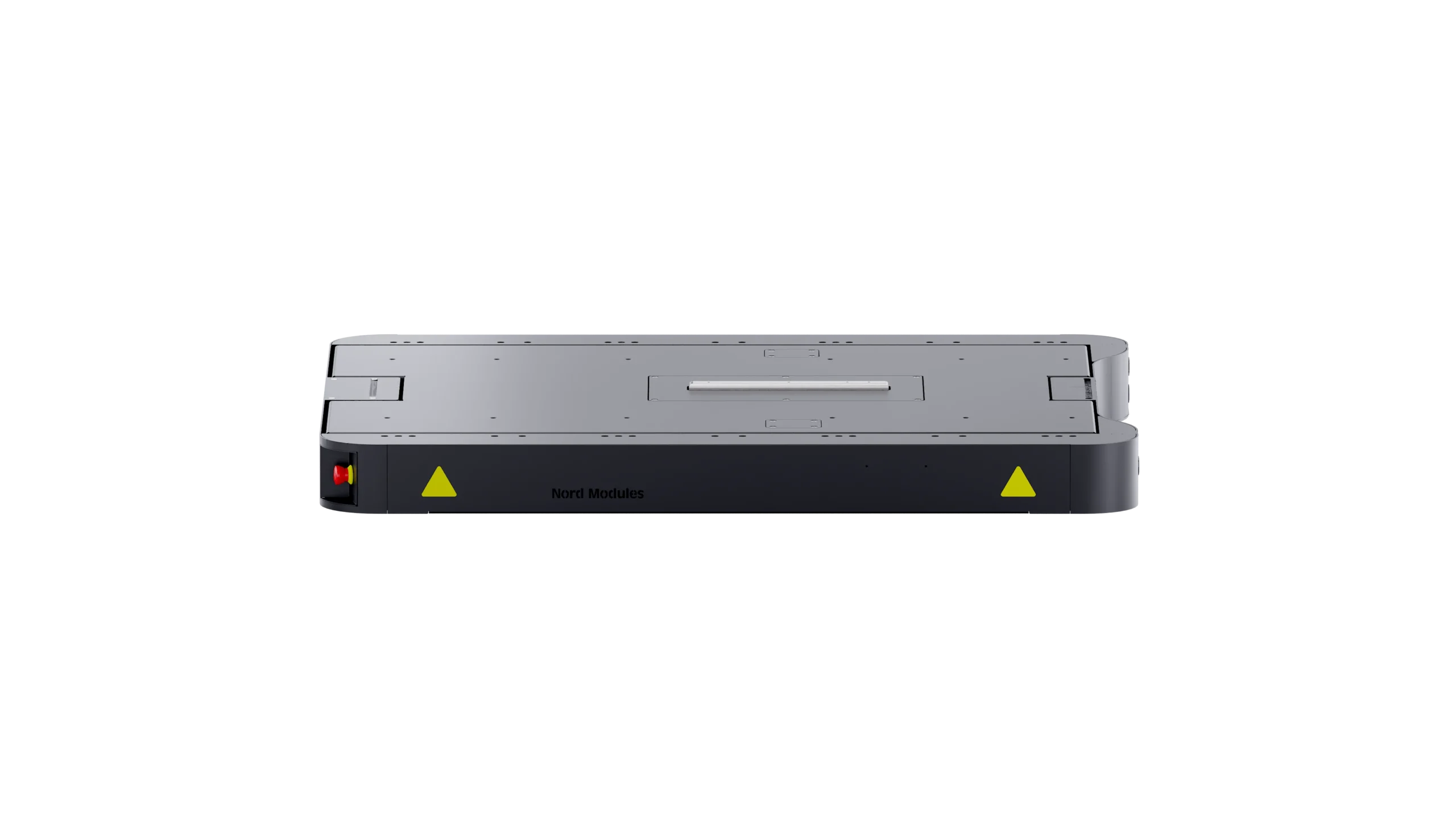

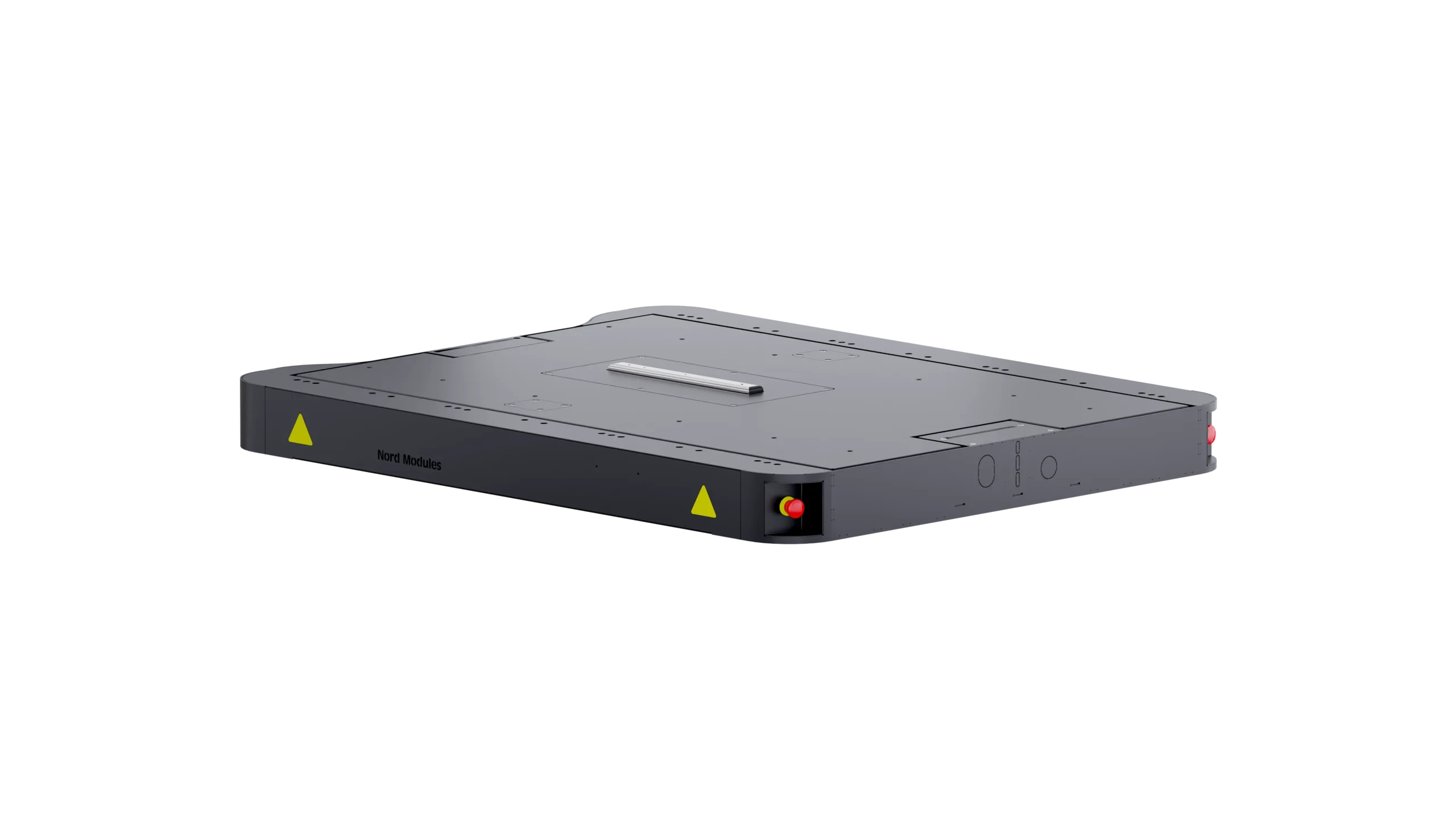

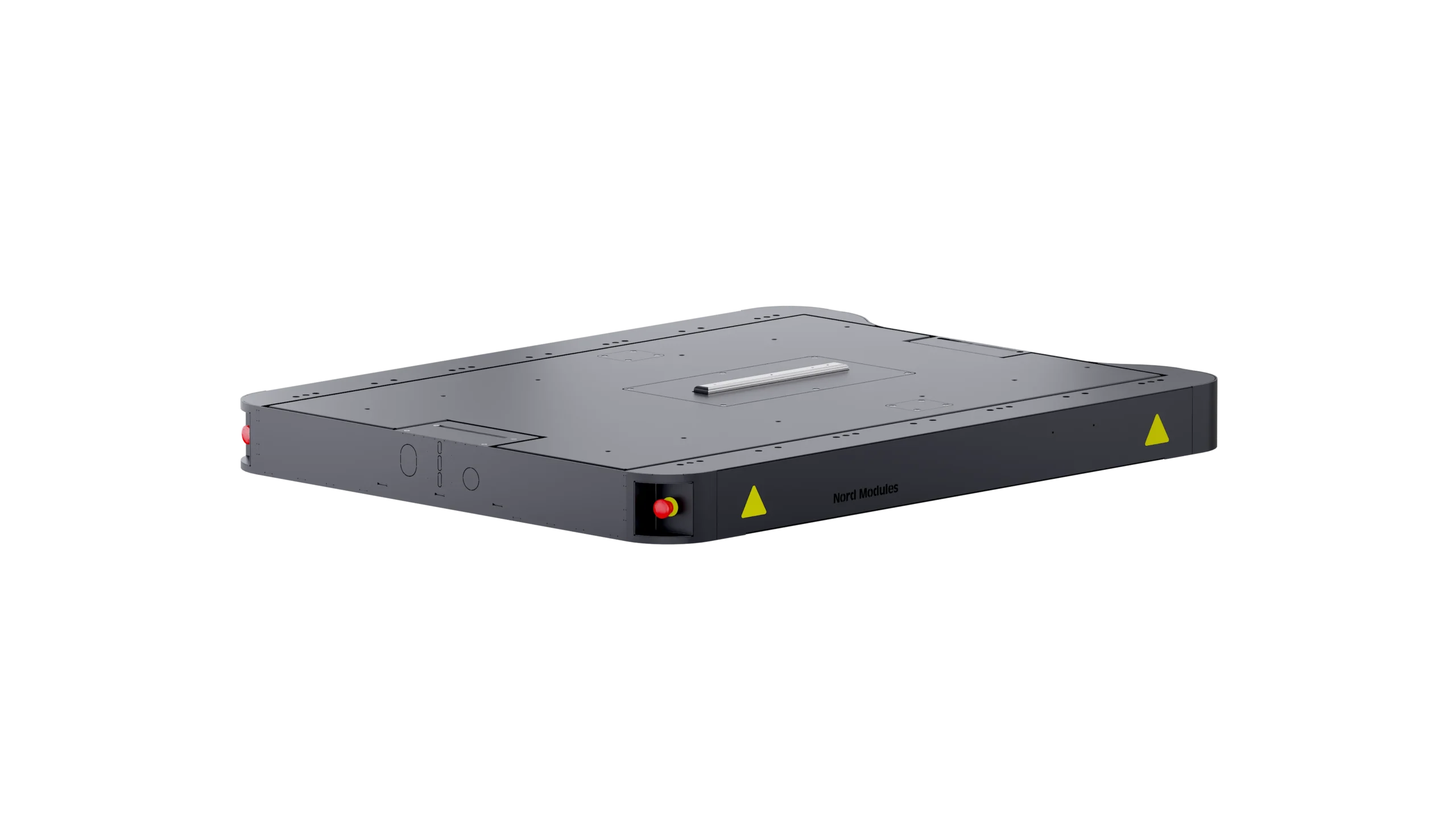

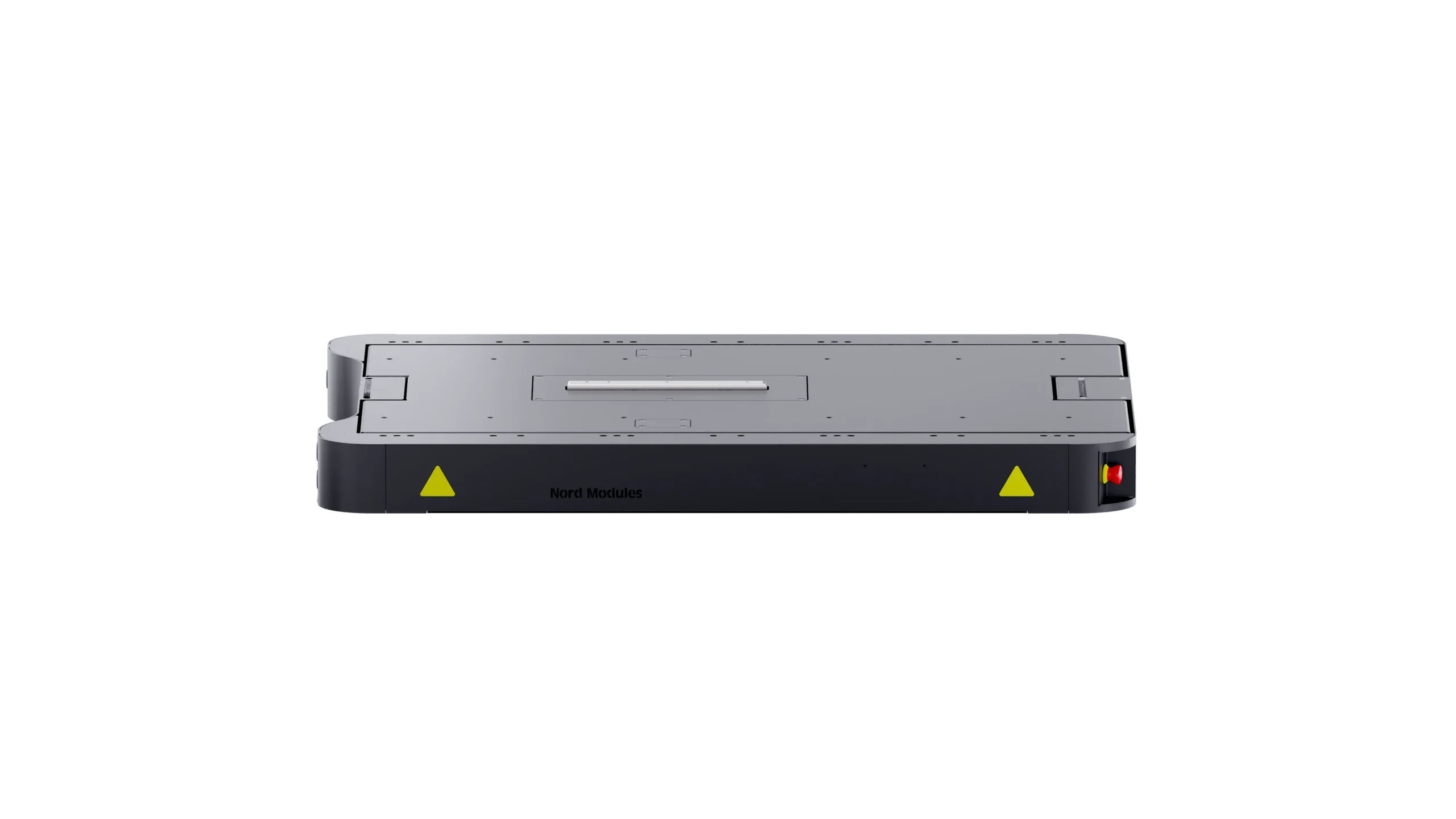

Optimize your internal logistics by automating the internal transportation of pallets with the Nord Modules US Pallet Lift top module. Nord Modules US Pallet Lift autonomously picks up and delivers pallets in the Pallet Rack MD.

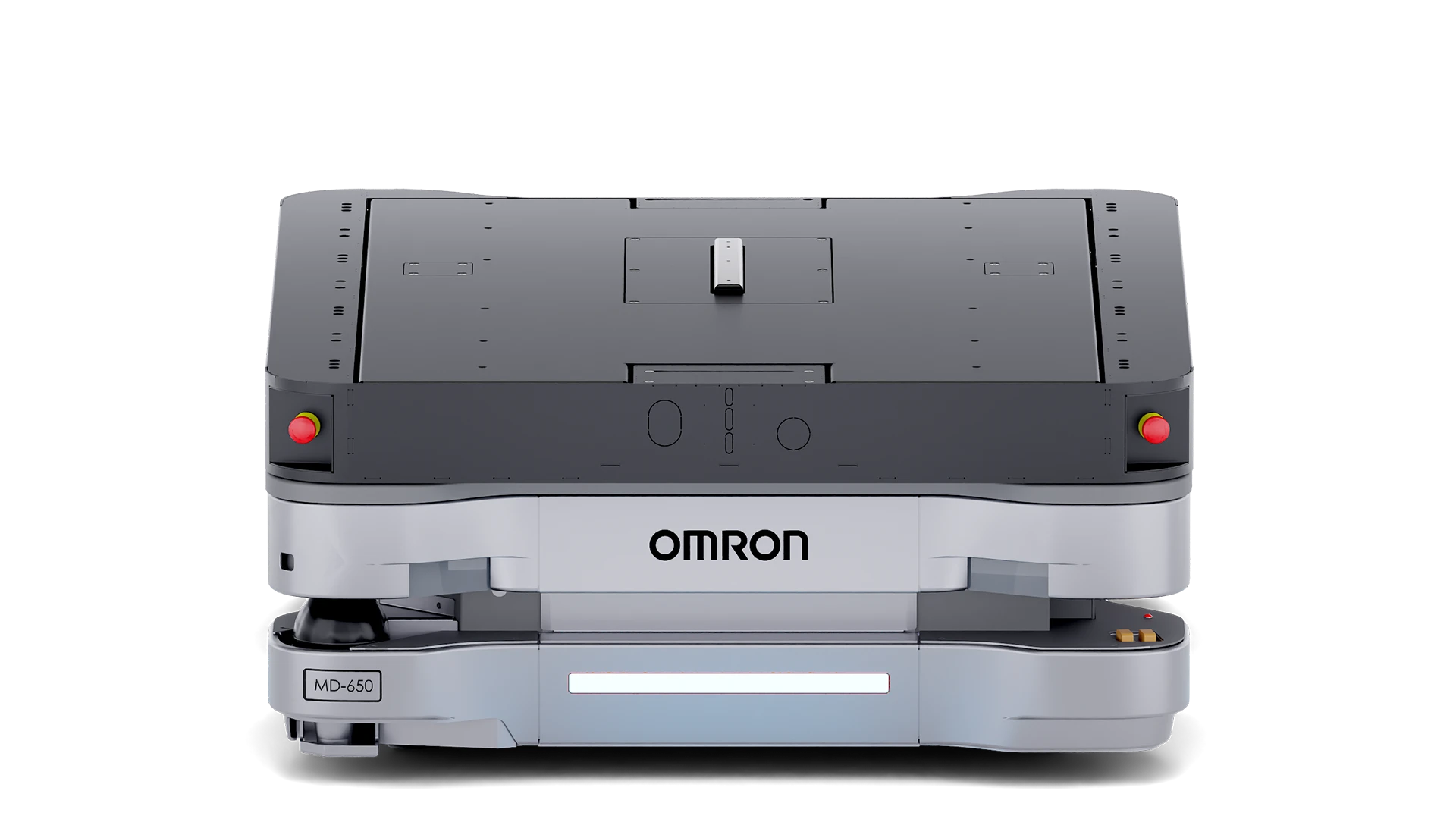

Stable handling and transport of pallets. It enables the OMRON MD-650 and MD-900 to lift pallets autonomously from the Pallet Rack and lowers the pallet for stable transportation of payloads up to 550 kg for the MD-650 model and 800 kg for the MD-900 model.

Key Benefits:

Design
• Industrial actuator with ball screw spindle, servo motor, and dynamic brake.
• Scissor lift design with cam followers.
• Allows uneven load.
• Bearings in all moving joints.
• Easy mounting on AMR - Removing 4x4 screws gives access to the 4 mounting points on the AMR.

Life expectancy
• 600 000 lift cycles at maximum payload.

Communication
• Equipped with stack light that gives feedback on the following states of the top module: Process status | Service need | Error

Power
• 48v safe power for drive
• 24v for controller

Data Collection
The top module is capable of sending essential information to the Omron AMR for data collection.
The information includes:
• Total lift count
• Error codes

Optional Add-ons
• Payload measurement
• Payload detection sensor
• Blue light signal interface
• QR-/Barcode scanner



Robot compatibility

Omron MD-650

Omron MD-650

Omron MD-650

Omron MD-900
