Max Payload

PL-EU-Omron MD

Robot compatibility:
Omron MD-650 & MD-900

Nord Modules compatibility:
P&D Cantilever Stand, Pallet Rack MD

Dimensions (LWH):
1187 x 2×162 x 145 mm

Max Payload:
575 & 825 kg

Lifting Speed:
Up: 4 s – Down: 4 s

Lifetime:
600.000+ lifts at max payload

Pallet Dimensions:
1 200 x 800 mm (EU-pallets EN 13698-1)

Description

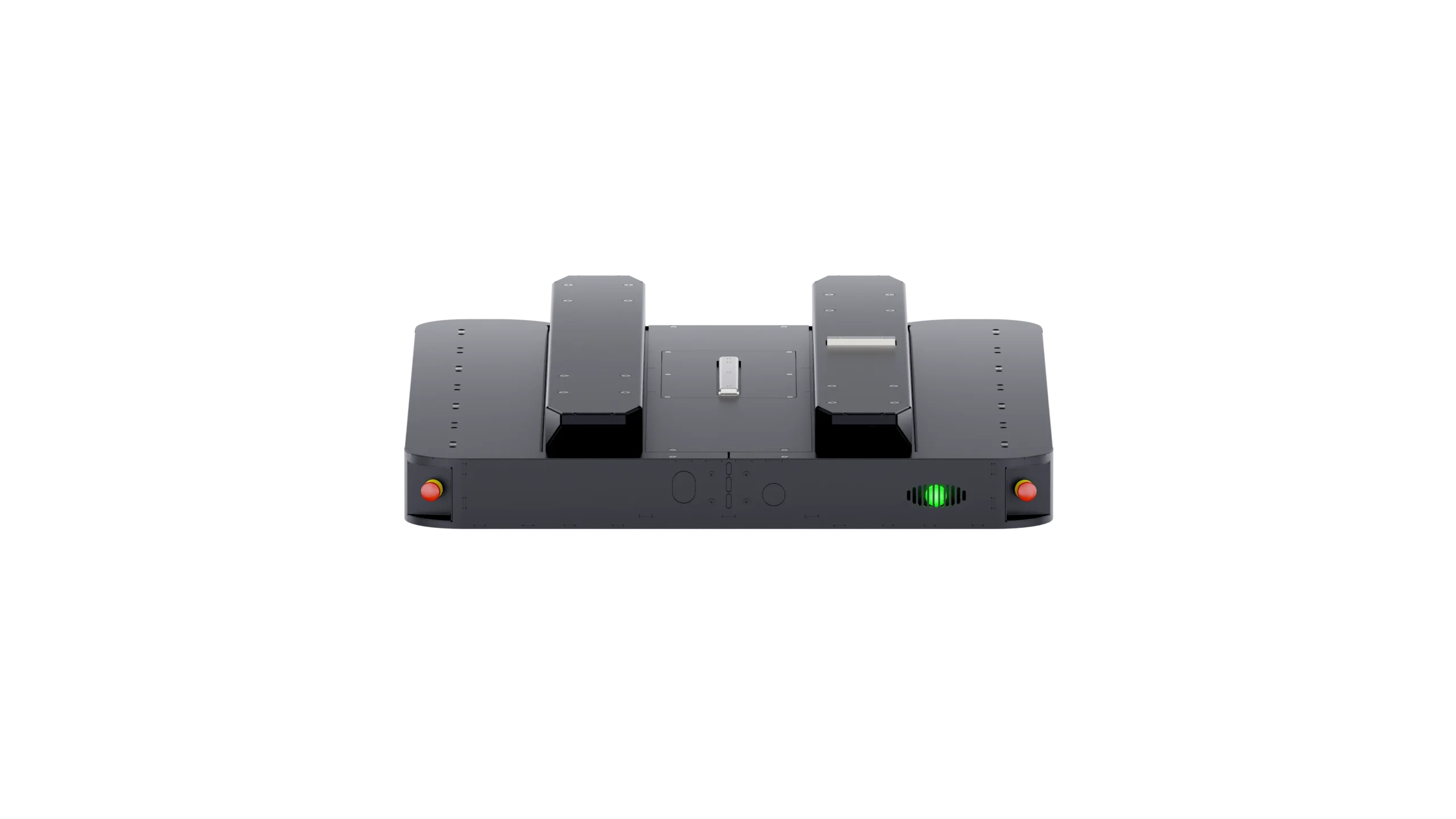

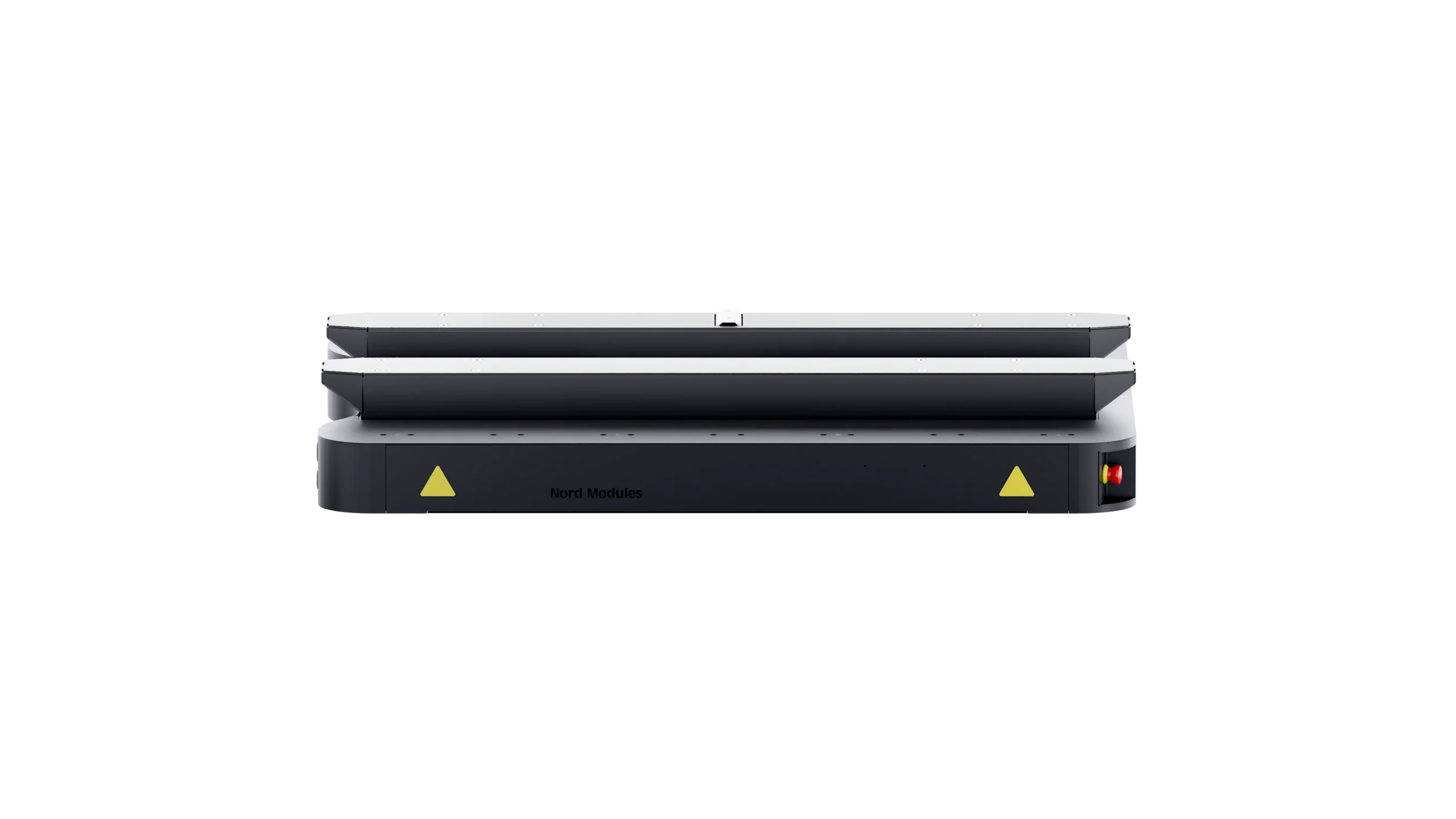

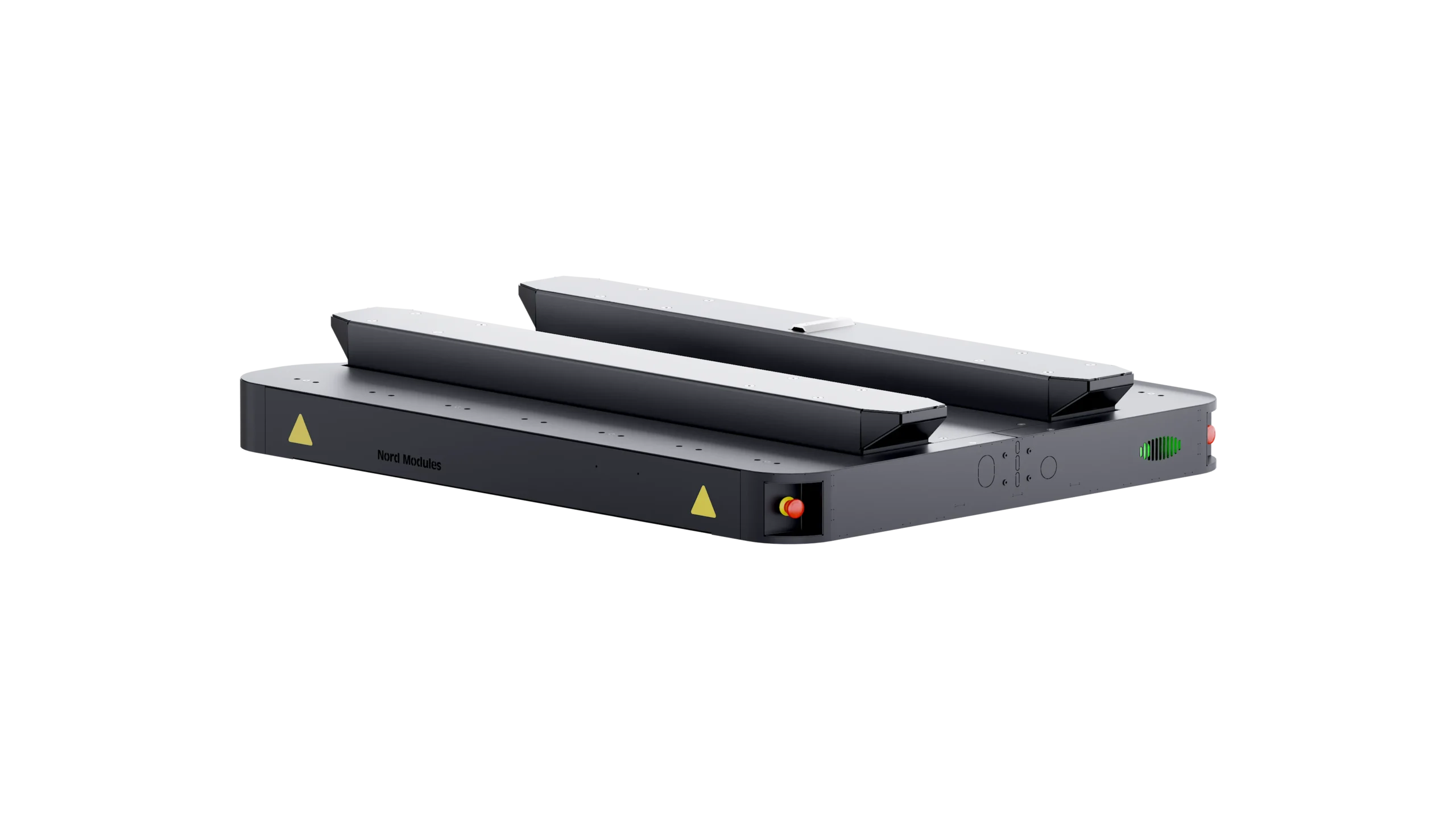

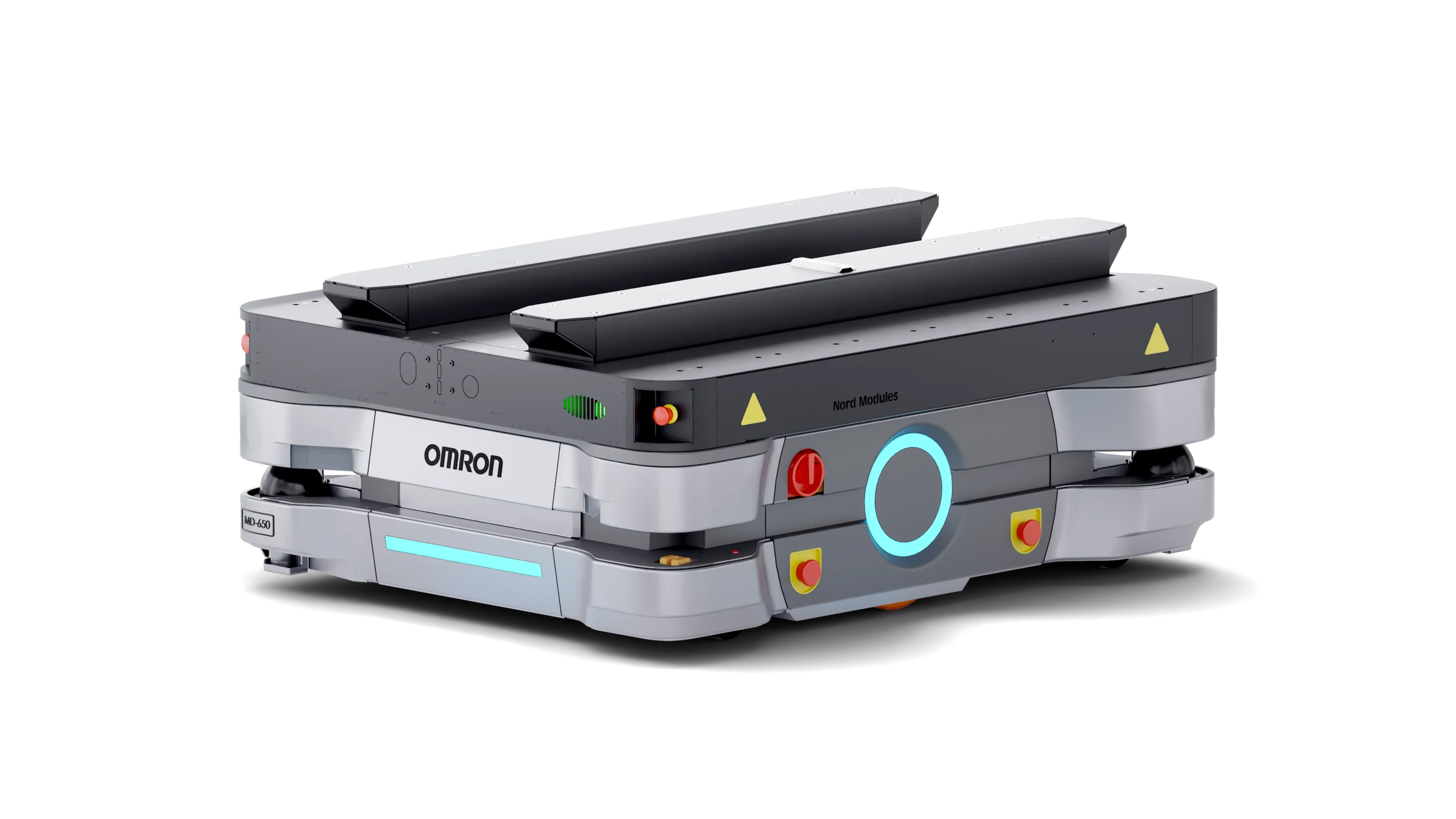

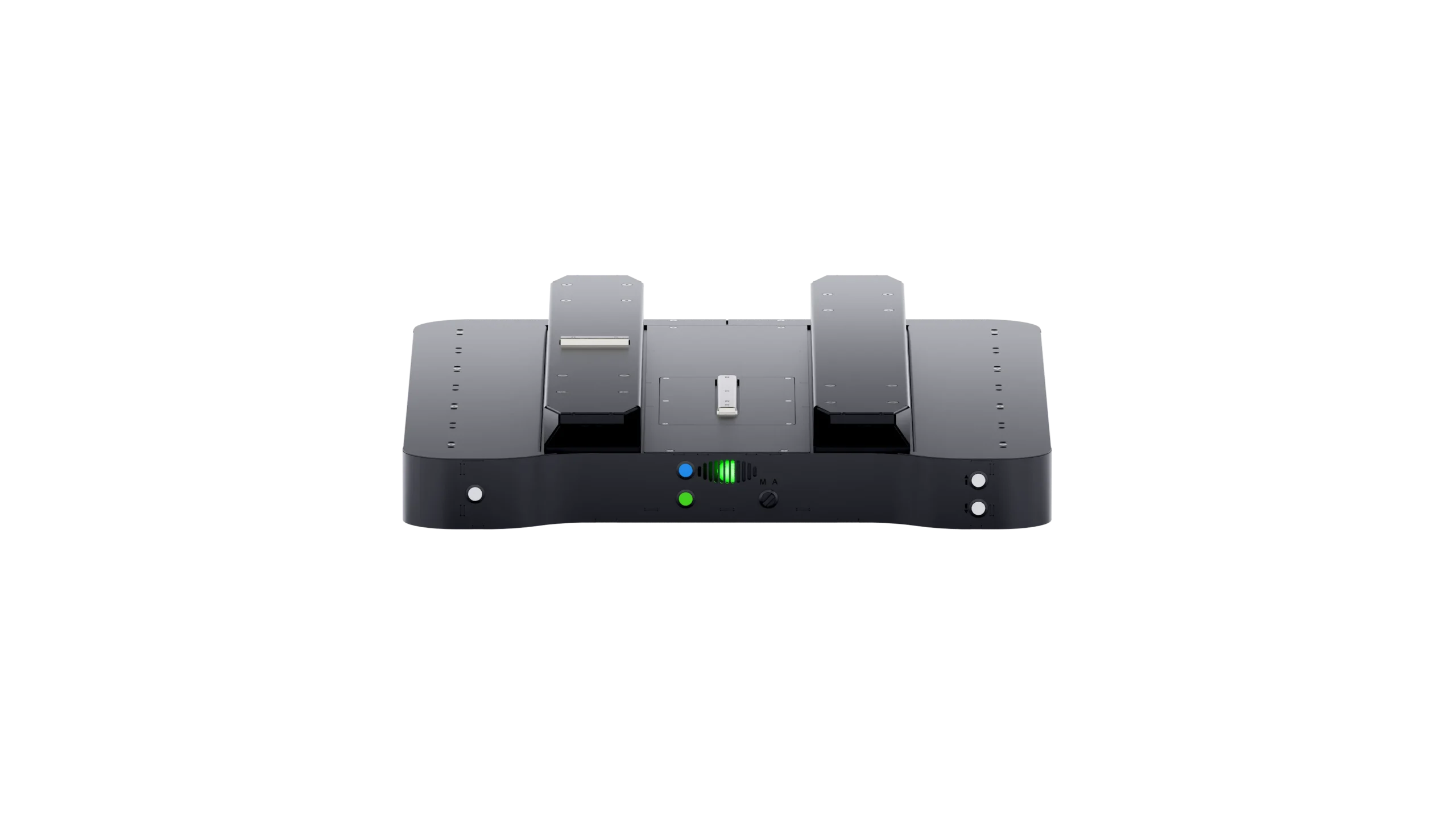

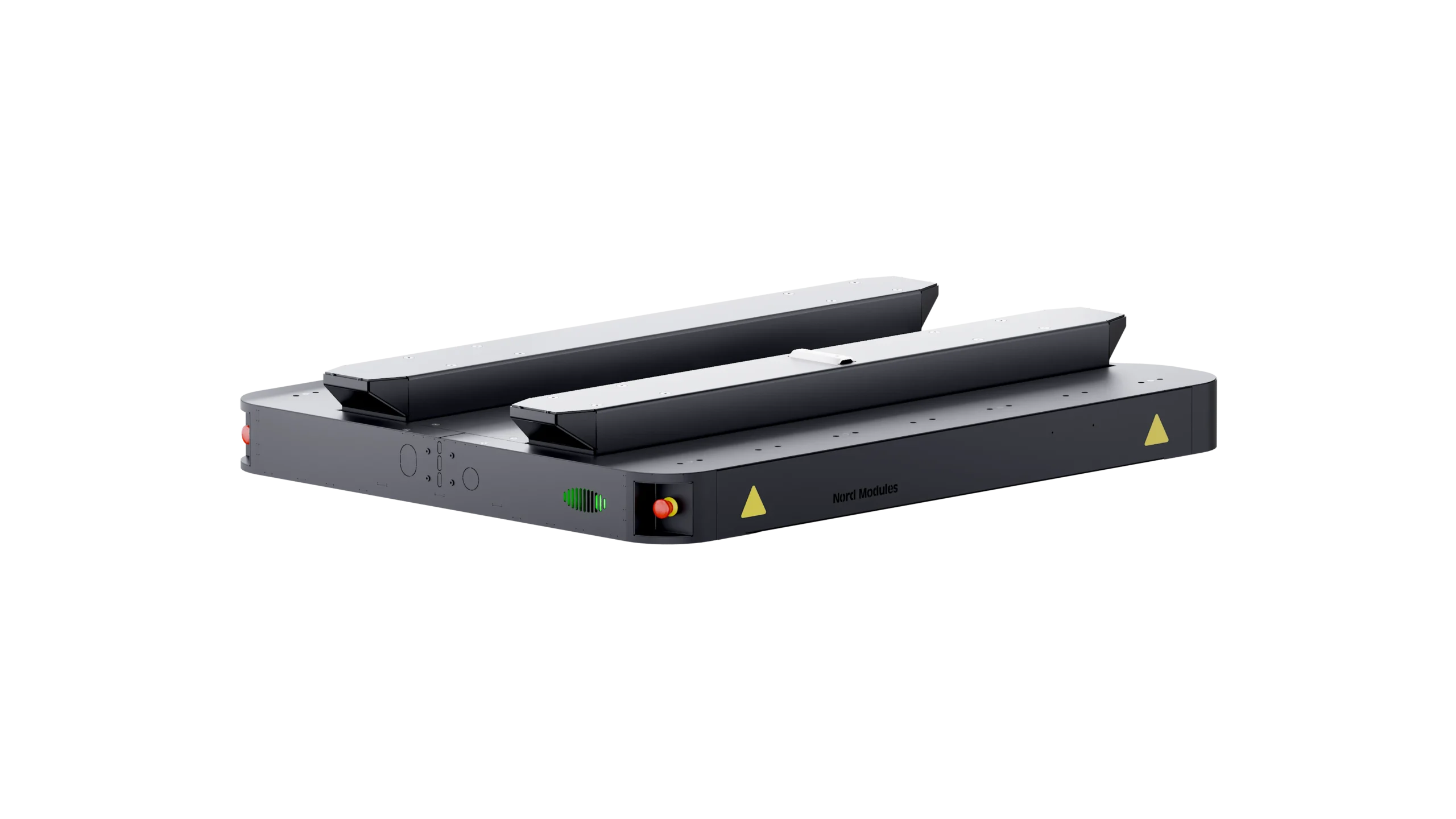

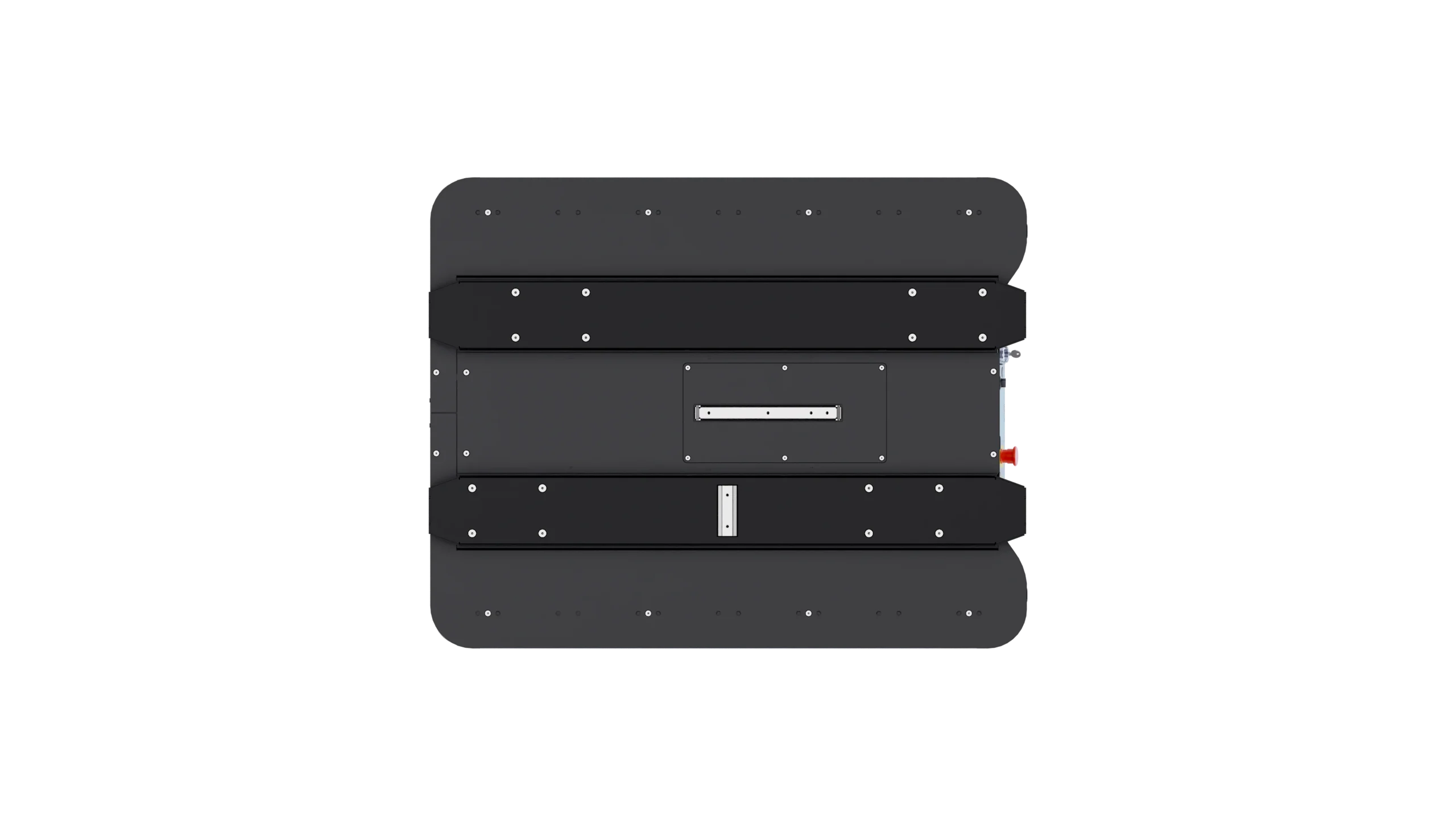

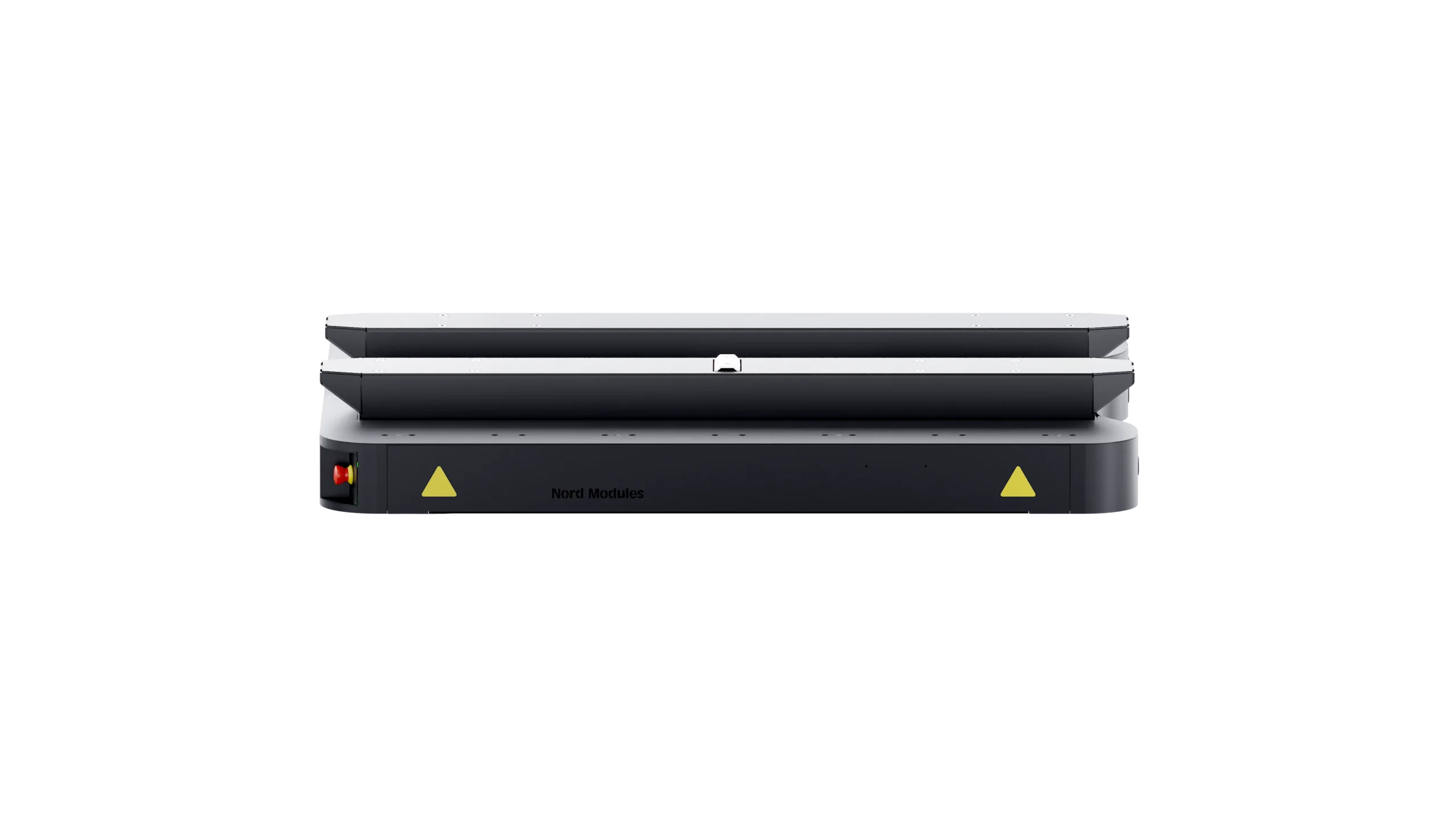

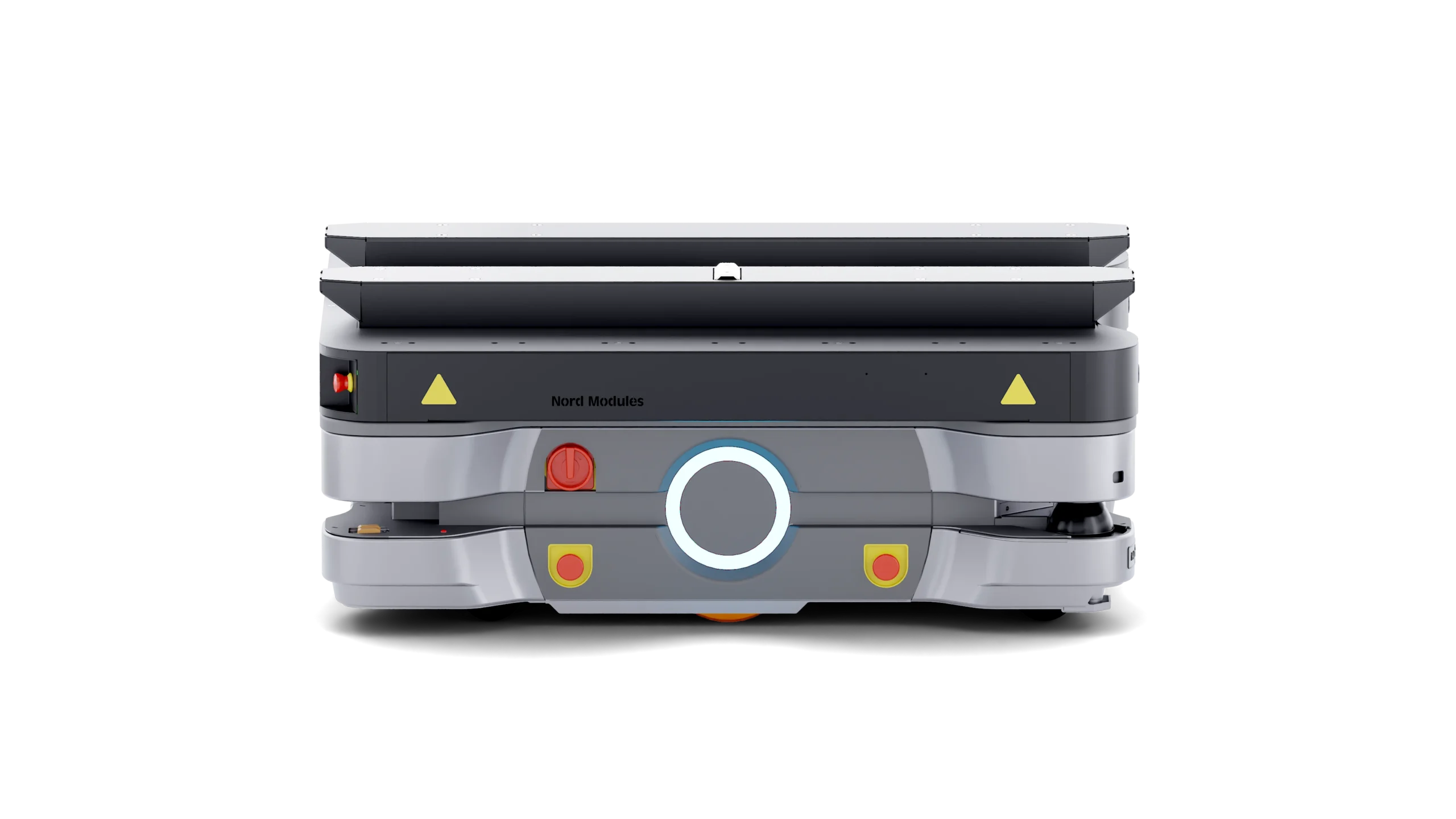

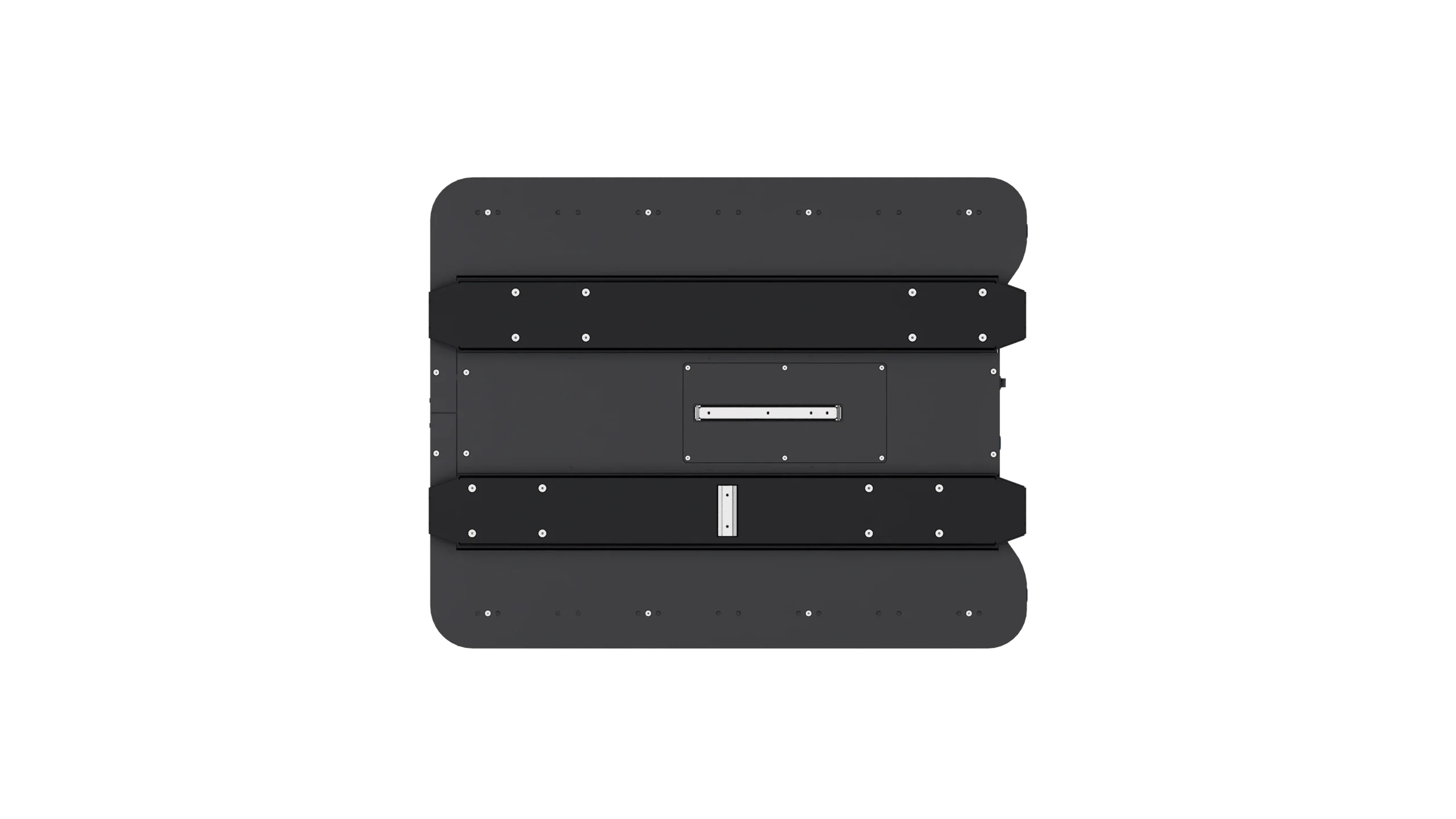

Optimize your internal logistics by automating the internal transportation of pallets with the Nord Modules EU Pallet Lift Top Module. Nord Modules EU Pallet Lift autonomously picks up and delivers pallets in the Pallet Rack MD.

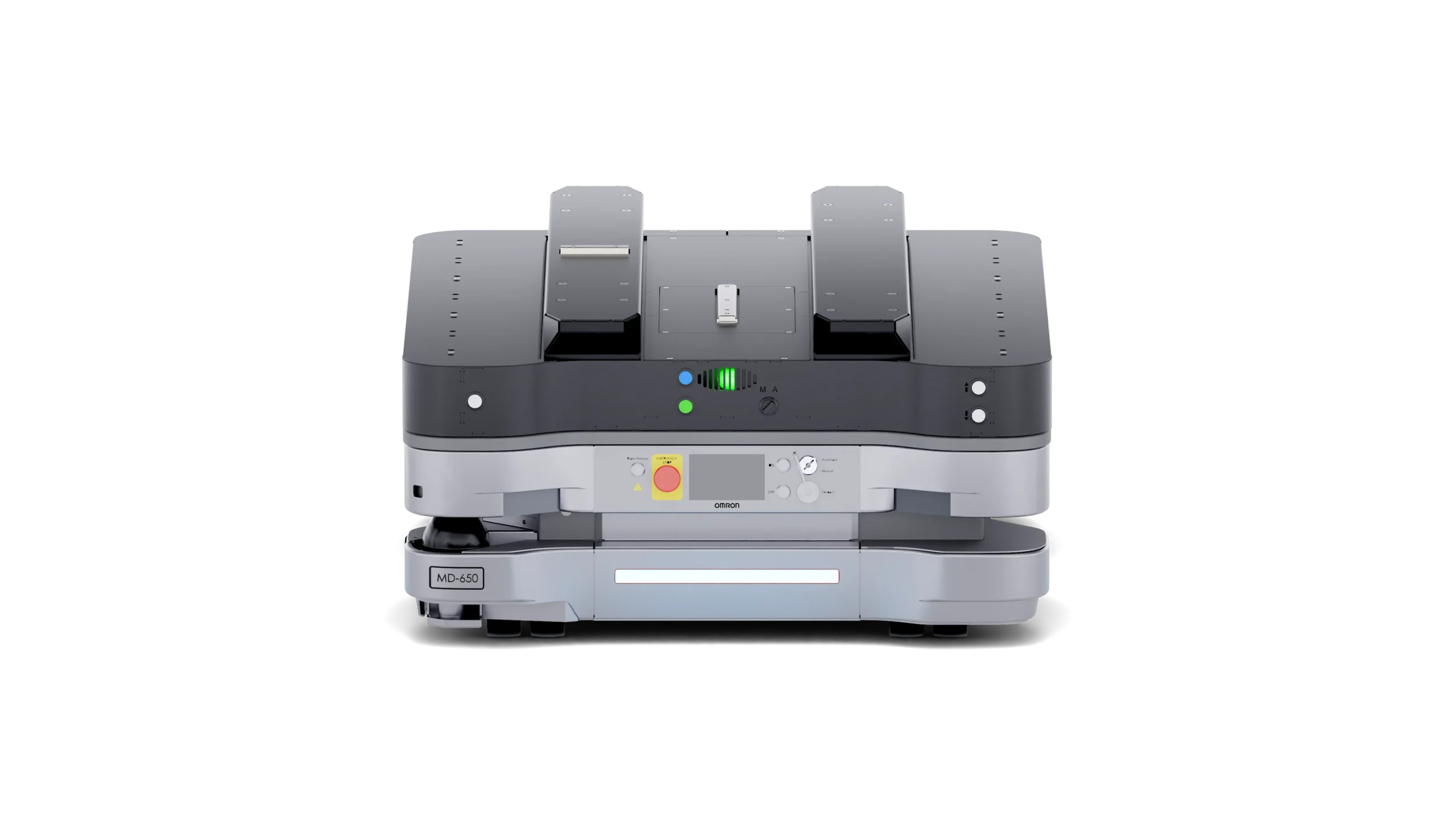

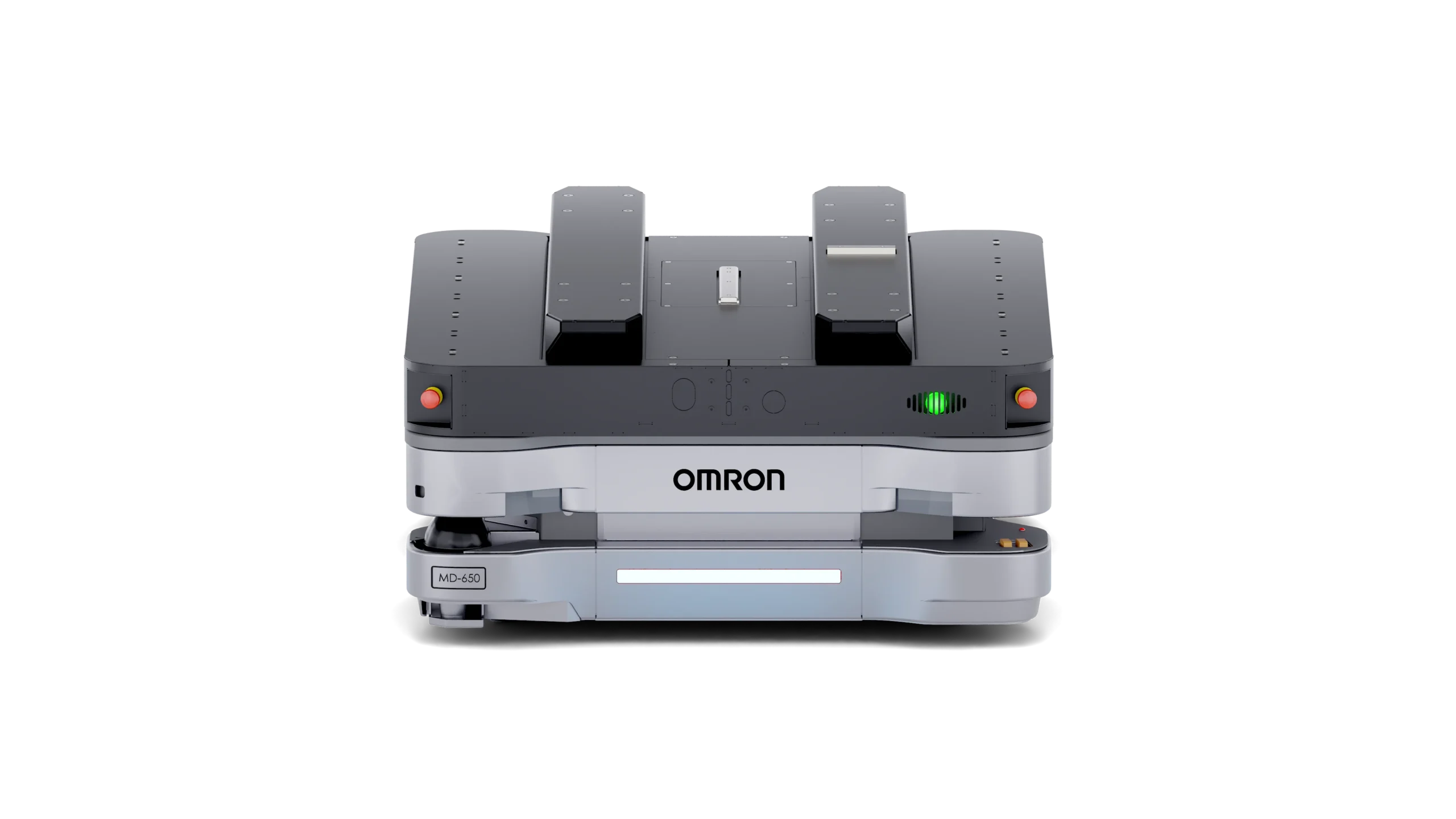

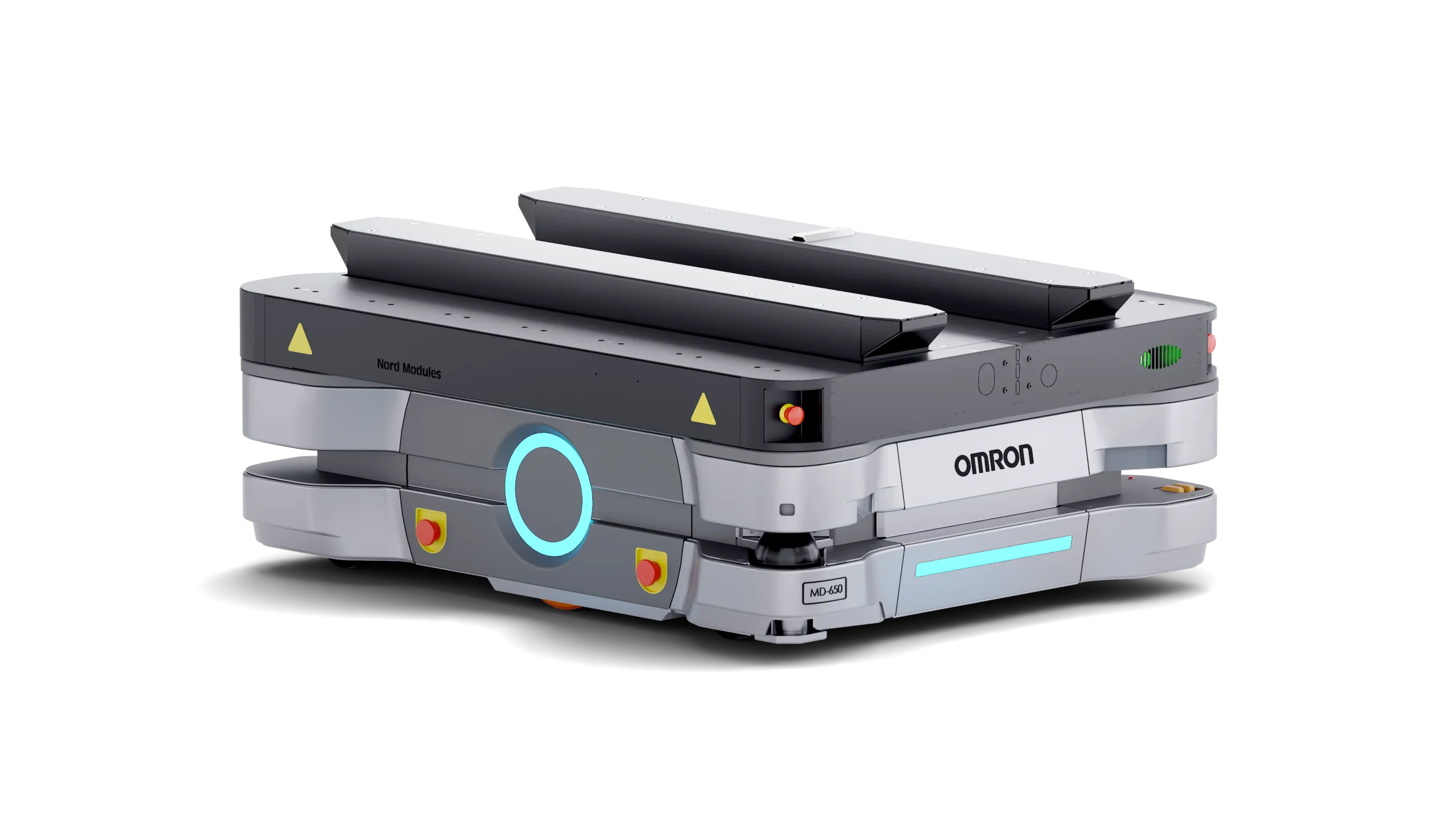

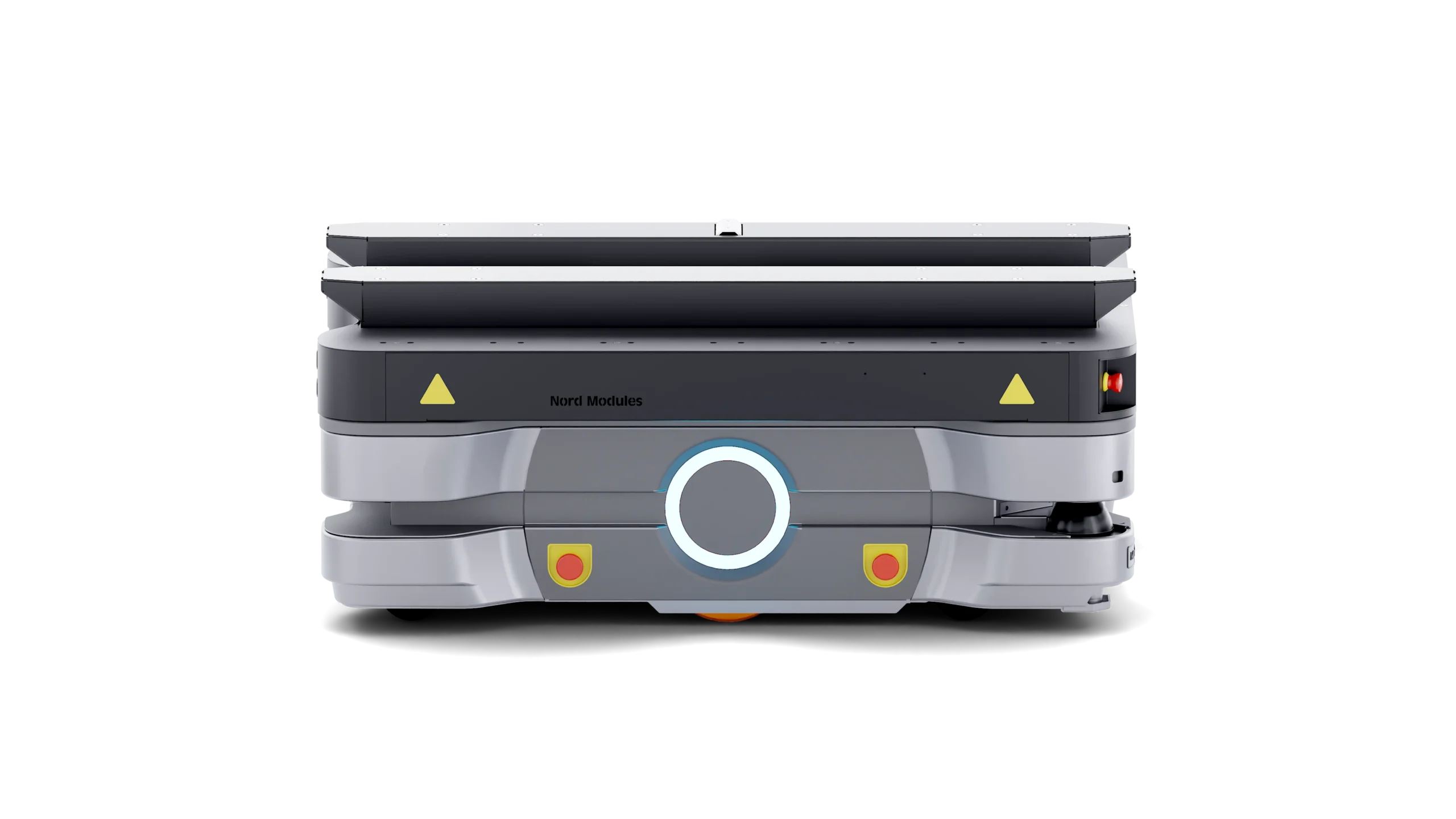

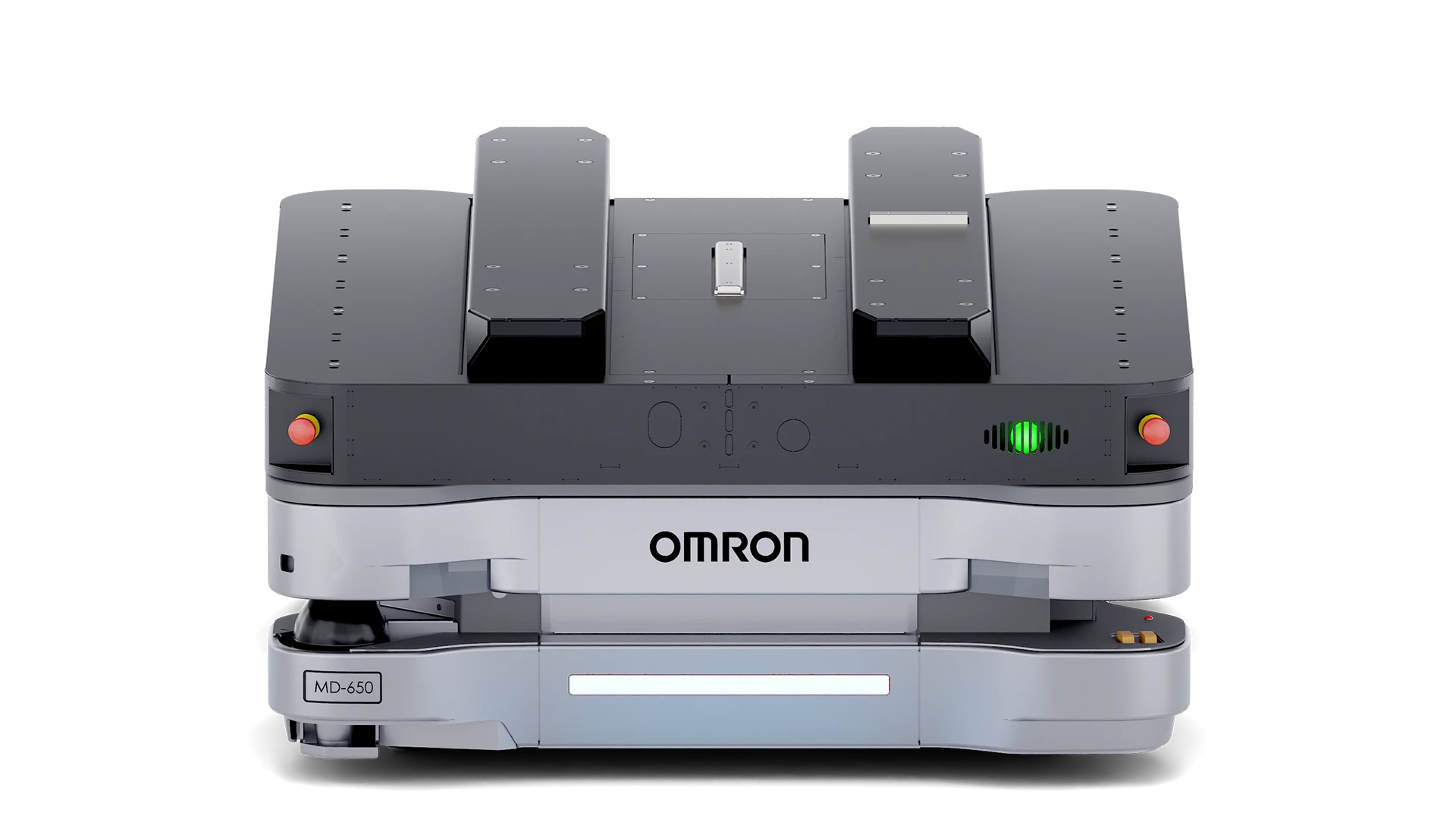

Stable handling and transport of EU size pallets. It enables the MD-650 and OMRON MD-900 to lift pallets autonomously from the Pallet Rack and lowers the pallet for stable transportation of payloads up to 575 kg for the MD-650 model or 825 kg for the MD-900 model.

Key Benefits:

Design
• Industrial actuator with ball screw spindle, servo motor, and dynamic brake.
• Scissor lift design with cam followers.
• Allows uneven load.
• Bearings in all moving joints.
• Easy mounting on AMR - Removing 4x4 screws gives access to the 4 mounting points on the AMR.

Life expectancy
• Minimum 600 000 lift cycles at maximum payload.

Communication
• Equipped with stack light that gives feedback on the following states of the top module: Process status | Service need | Error

Power
• 48v safe power for drive
• 24v for controller

Data Collection
The top module is capable of sending essential information to the Omron AMR for data collection.
The information includes:
• Total lift count
• Error codes

Opptional Add-ons
• Payload measurement
• Registration of payload on the gate
• QR-/Barcode scanner



Robot compatibility

Omron MD series AMR

Omron MD-650

Omron MD series AMR

Omron MD-900
