Max Payload
PL-EU-MiR
Robot compatibility:
MiR500, MiR600, MiR1000, MiR1350
Nord Modules compatibility:
Pallet Rack
Dimensions (LWH):
1250 x 162 x 87 mm
Max Payload:
1250 kg (See AMR max load)
Lifting Speed:
Up: 3.5 s – Down: 3.5 s
Lifetime:
600.000 lifts at max payload or 5 years
Pallet Dimensions:
1 200 x 800 mm (EU-pallets EN 13698-1)
Weight:
85 kg
Description

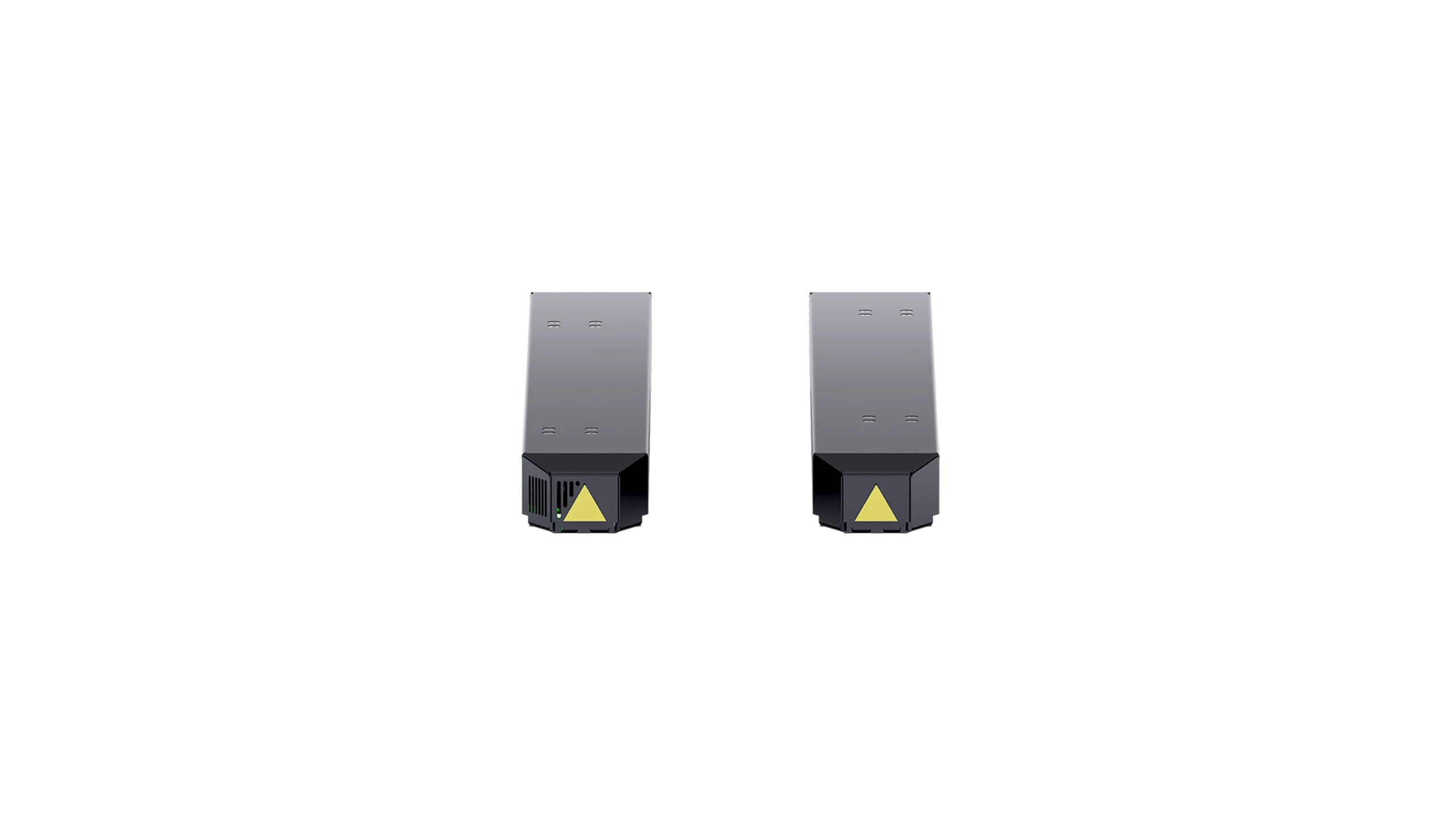

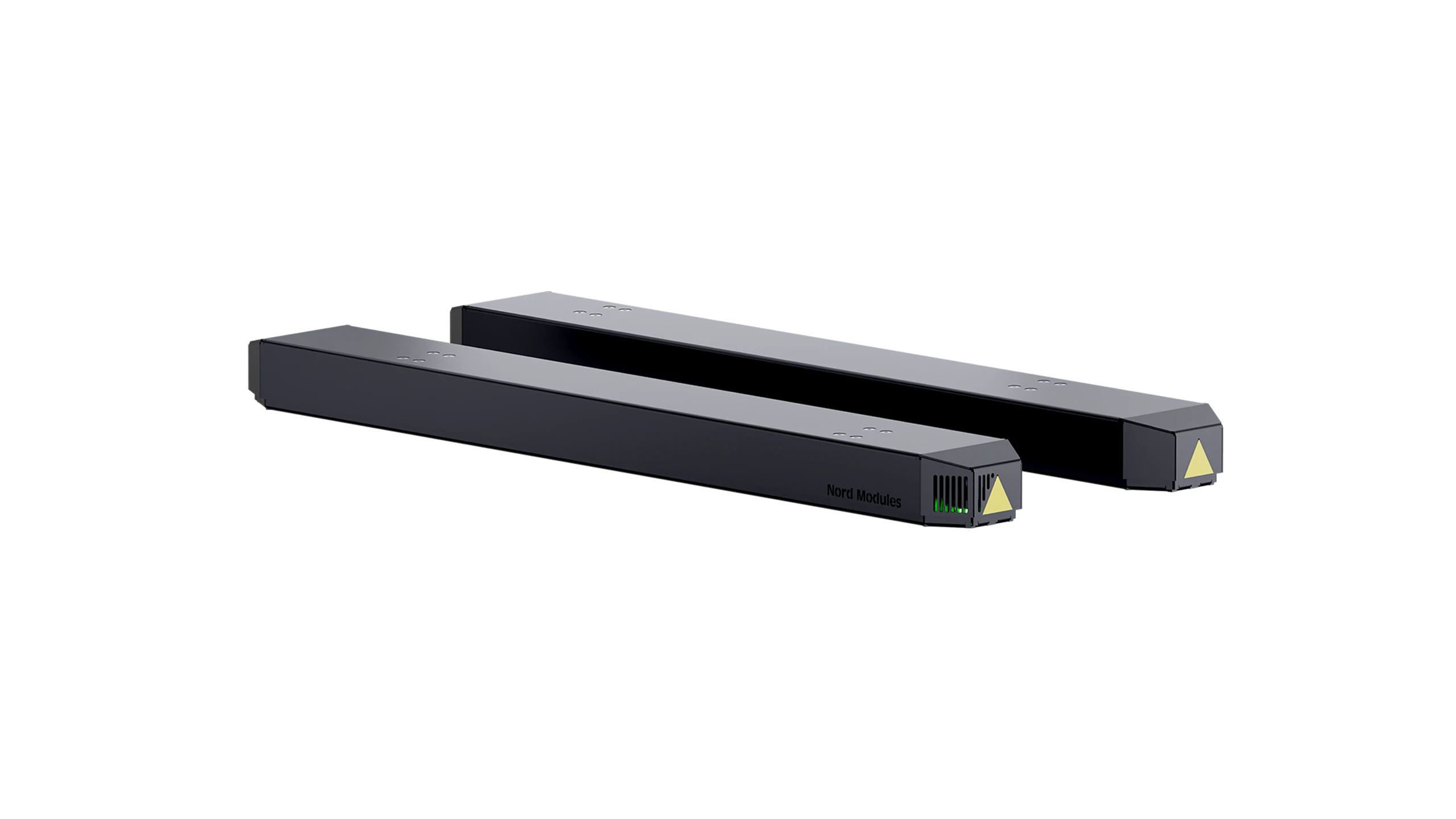

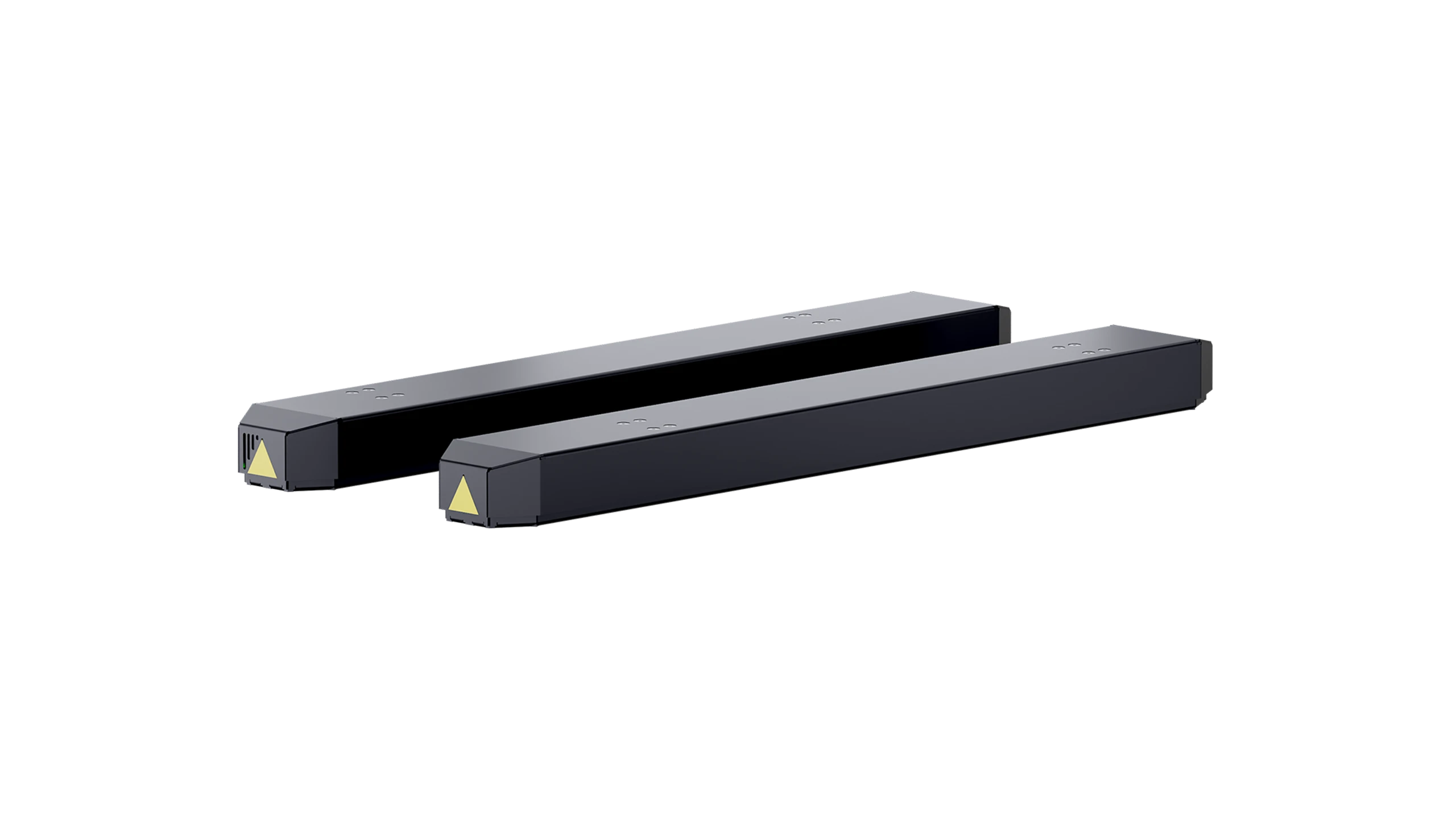

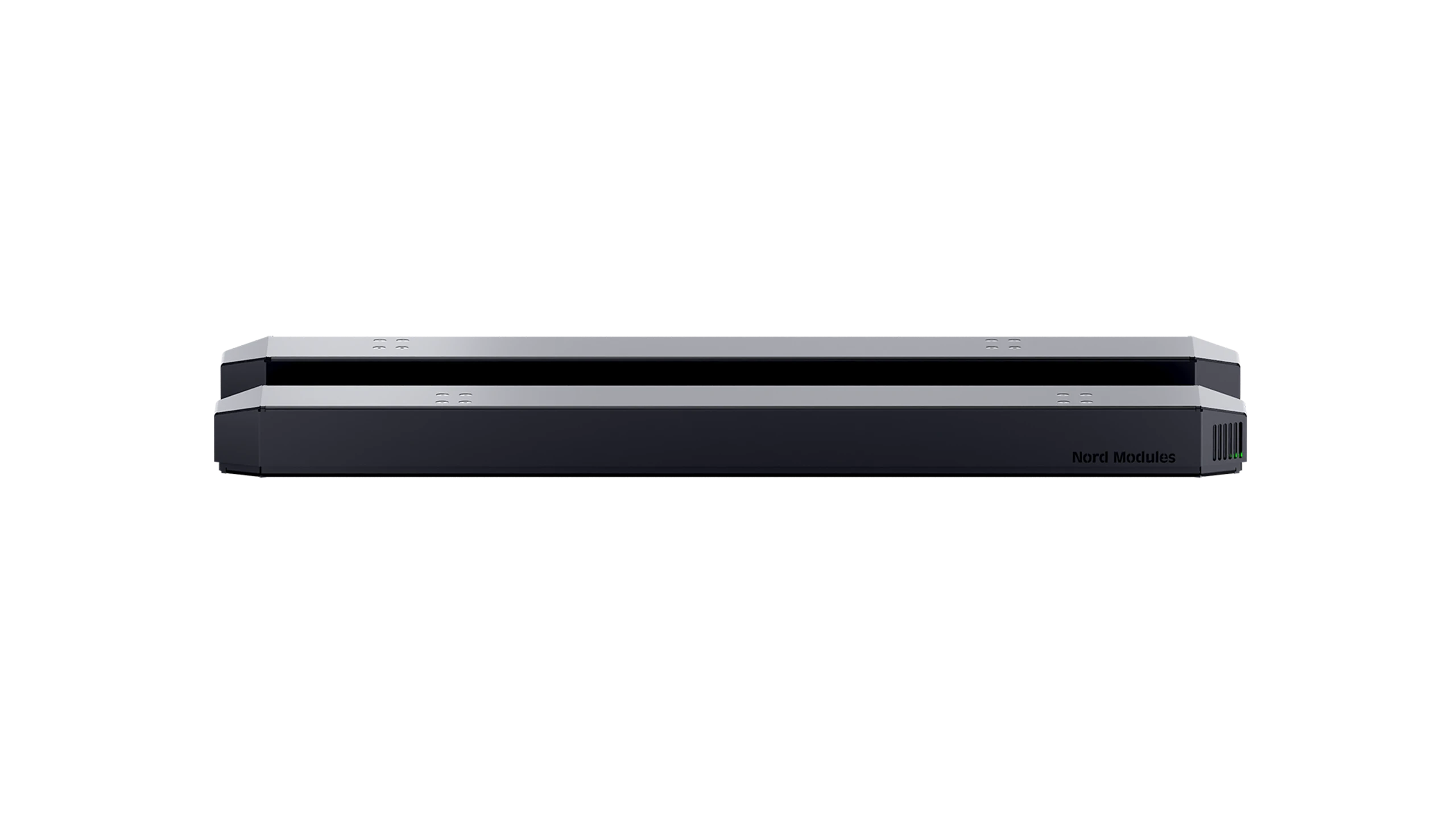

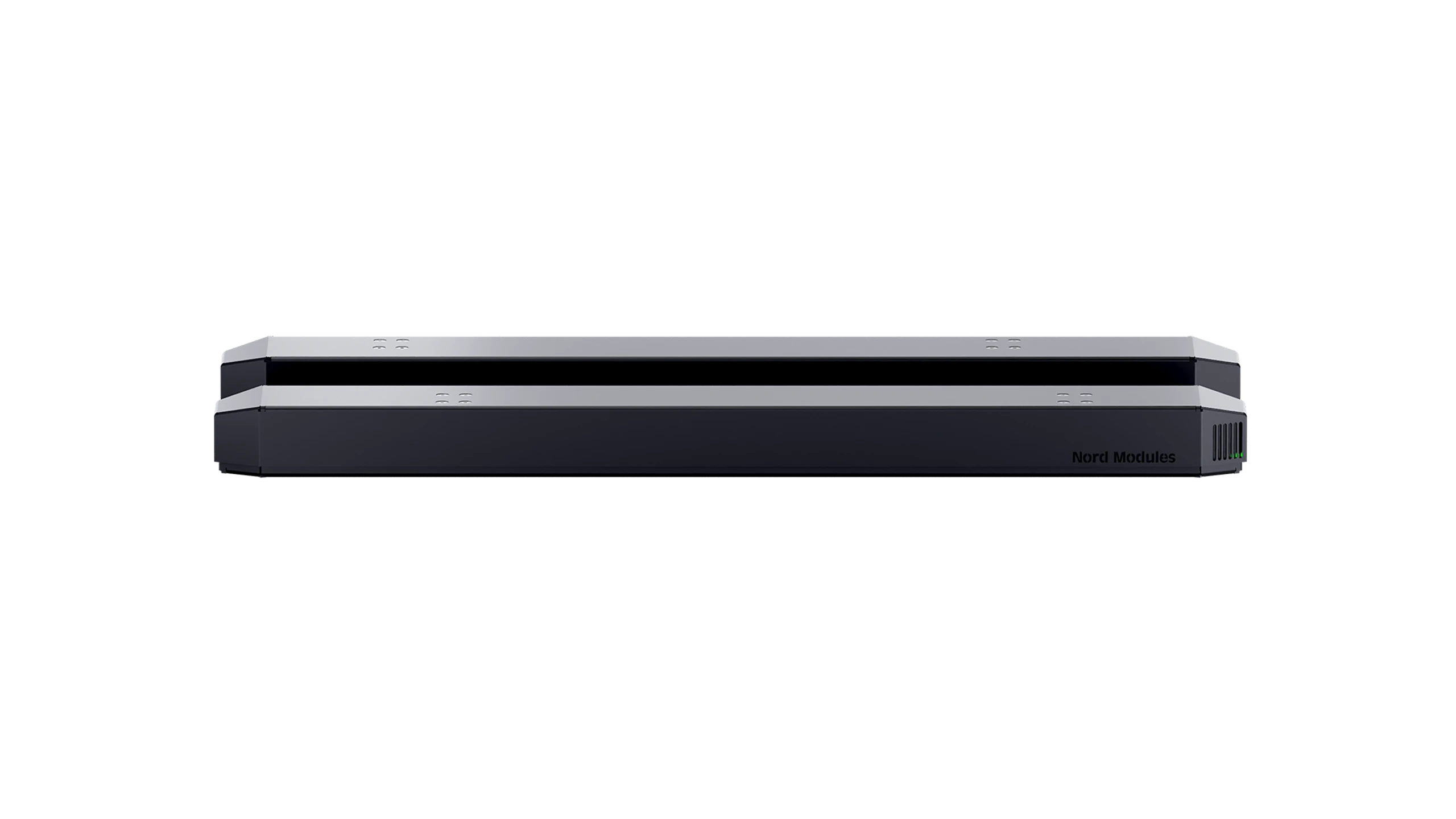

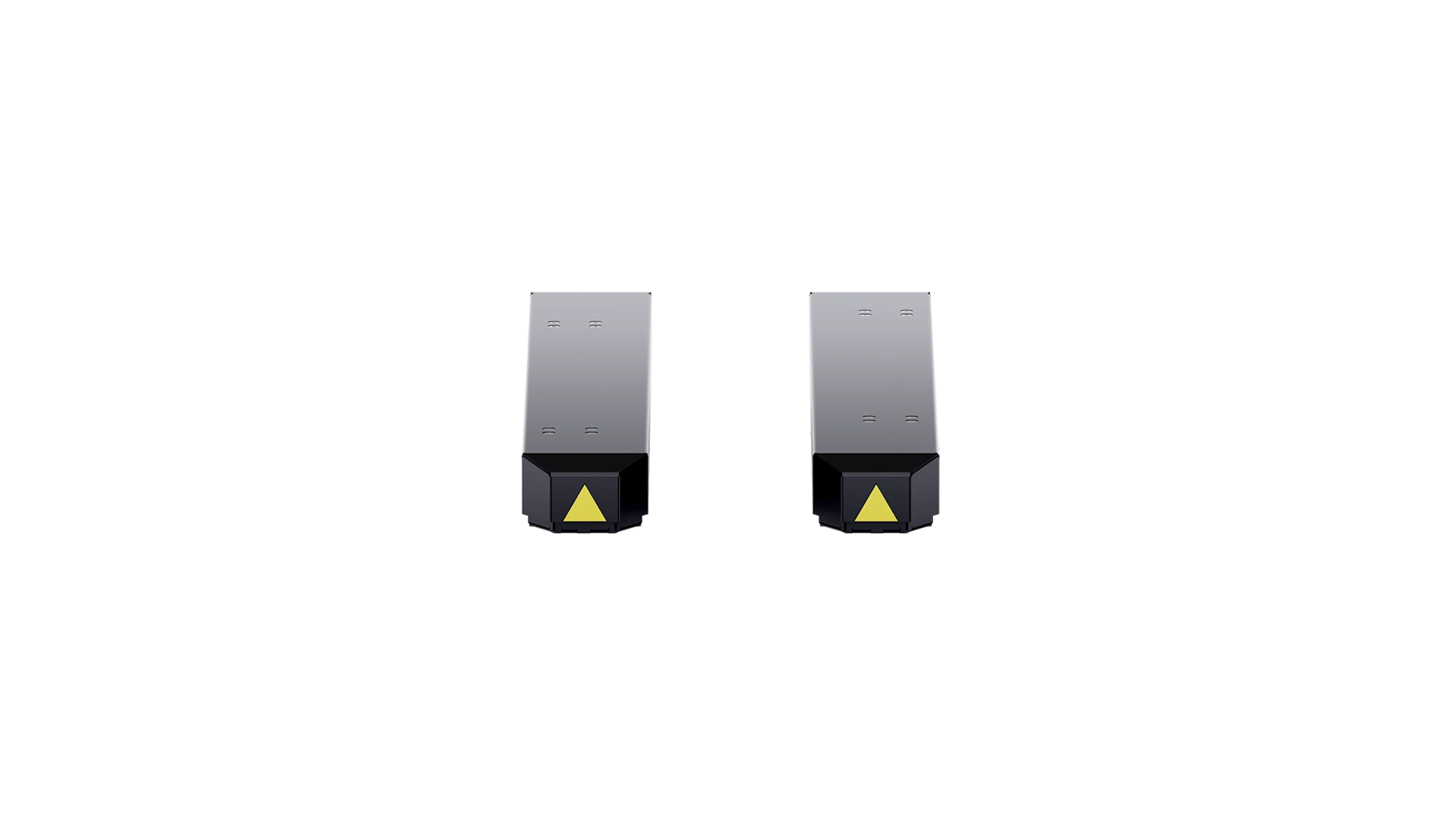

Optimize your internal logistics by automating the internal transportation of pallets with the Nord Modules EU Pallet Lift Top Module. Nord Modules EU Pallet Lift autonomously picks up and delivers pallets in the Pallet Rack.
Stable handling and transport of EU size pallets. It enables the MiR AMRs to lift pallets autonomously from the Pallet Rack and lowers the pallet for stable transportation of payloads up to 1250 kg.
This exceptional product proudly holds the MirGo Certification. This certification stands as a testament to our dedication – each product has aced rigorous tests conducted by Mobile Industrial Robots to ensure seamless functionality, utmost safety, and top-tier quality when integrated with MiR AMRs.
Design
• Industrial actuator with ball screw spindle, servo motor, and dynamic brake.
• Scissor lift design with cam followers.
• Allows uneven load - up to 850kg in one corner.
• Bearings in all moving joints.

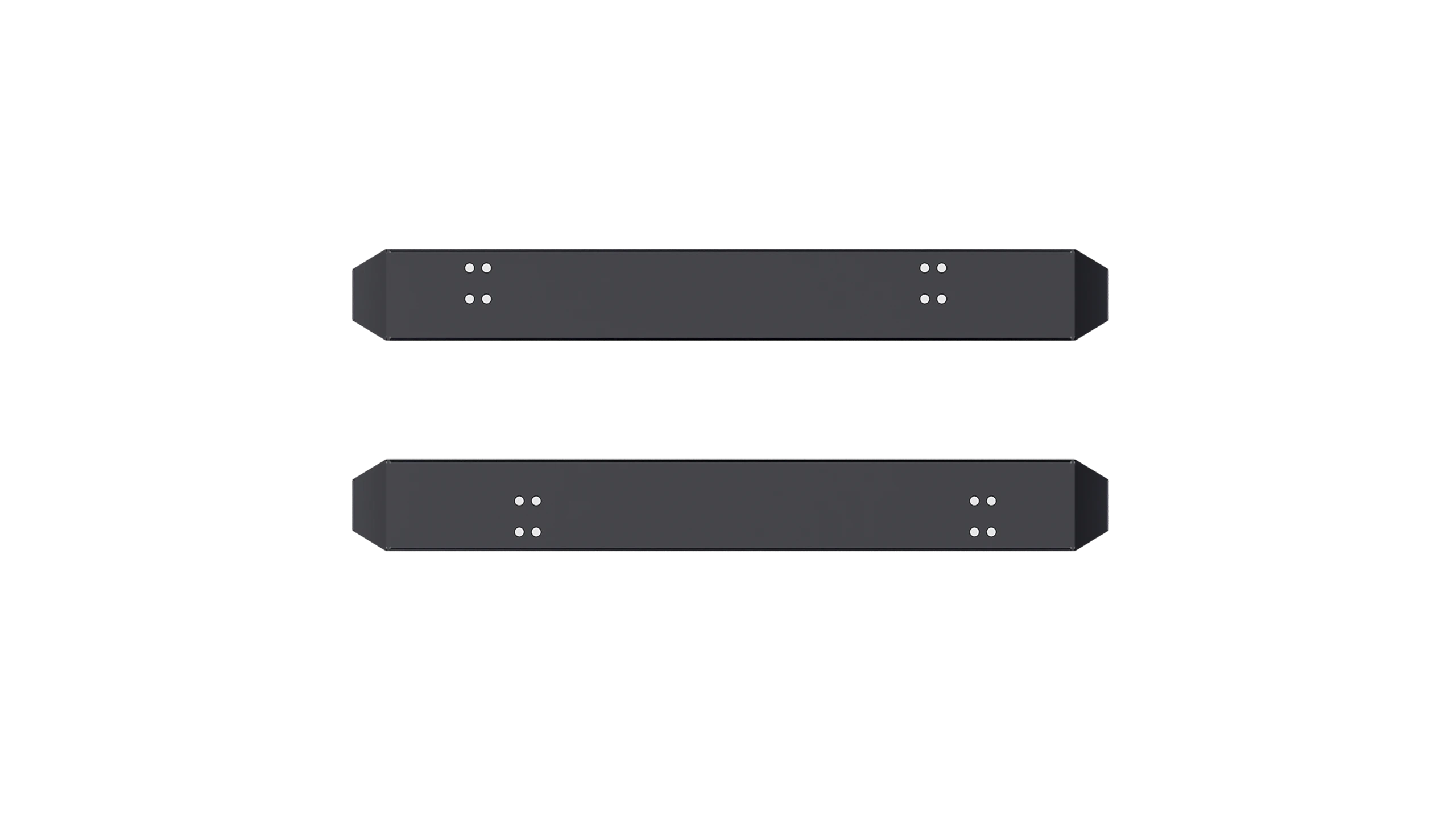

• Easy mounting on AMR - Removing 4x4 screws gives access to the 4 mounting points on the AMR.
Life expectancy
• 600 000 lift or 5 years - whatever comes first.
• 600 000 lift cycles is at maximum payload.
Communication
• Interface via modbus.
• Equipped with stack light that gives feedback on the following states of the top module: Process status | Service need | Error
Power
• 48v safe power for drive
• 24v for controller
Data Collection
The top module is capable of sending essential information to the MiR AMR for data collection.
The information includes:
• Total lift count
• Error codes
Compatible with…
Robot compatibility
MiR600
