Nord Cart Mover – MiR 250

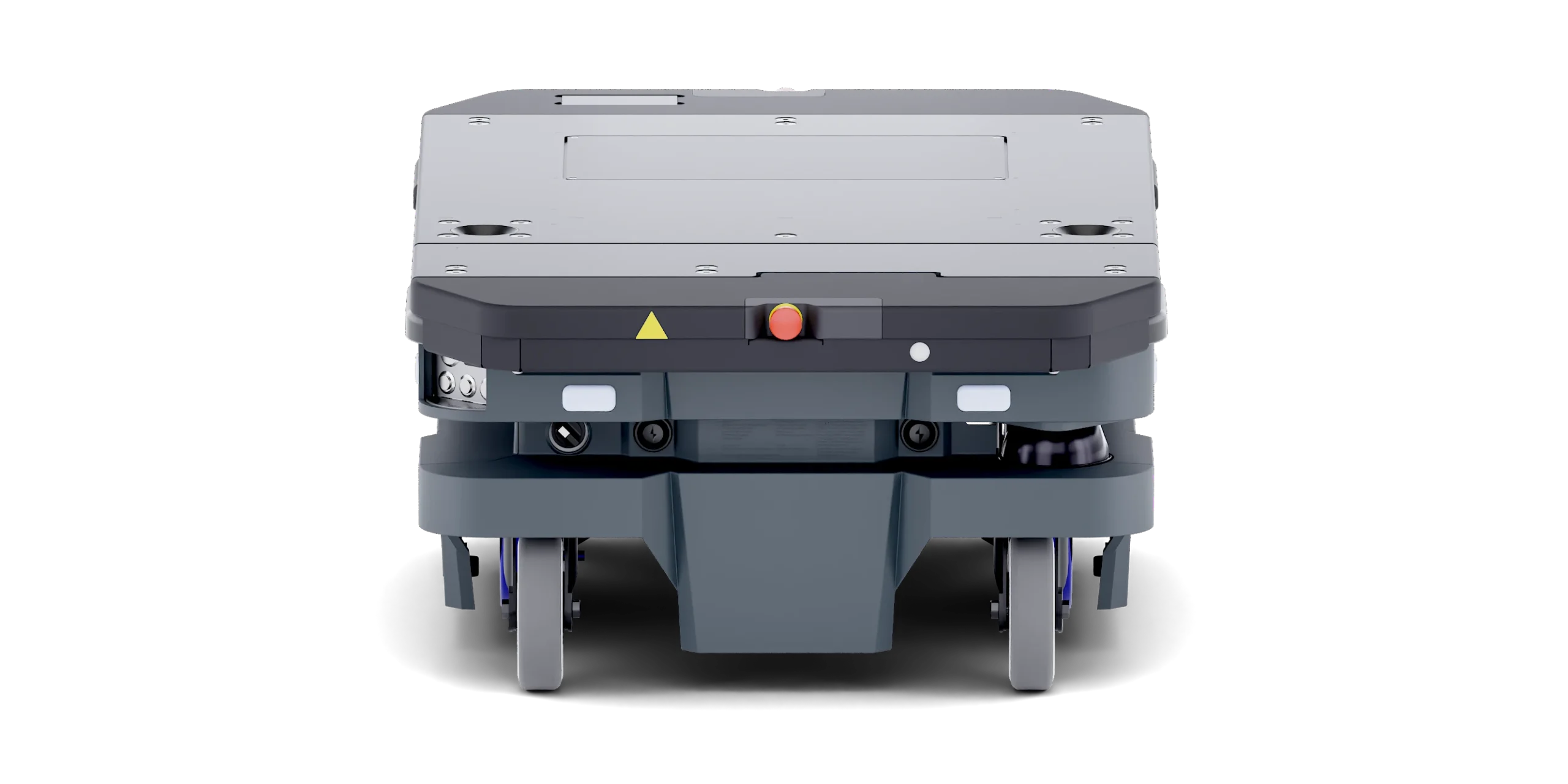

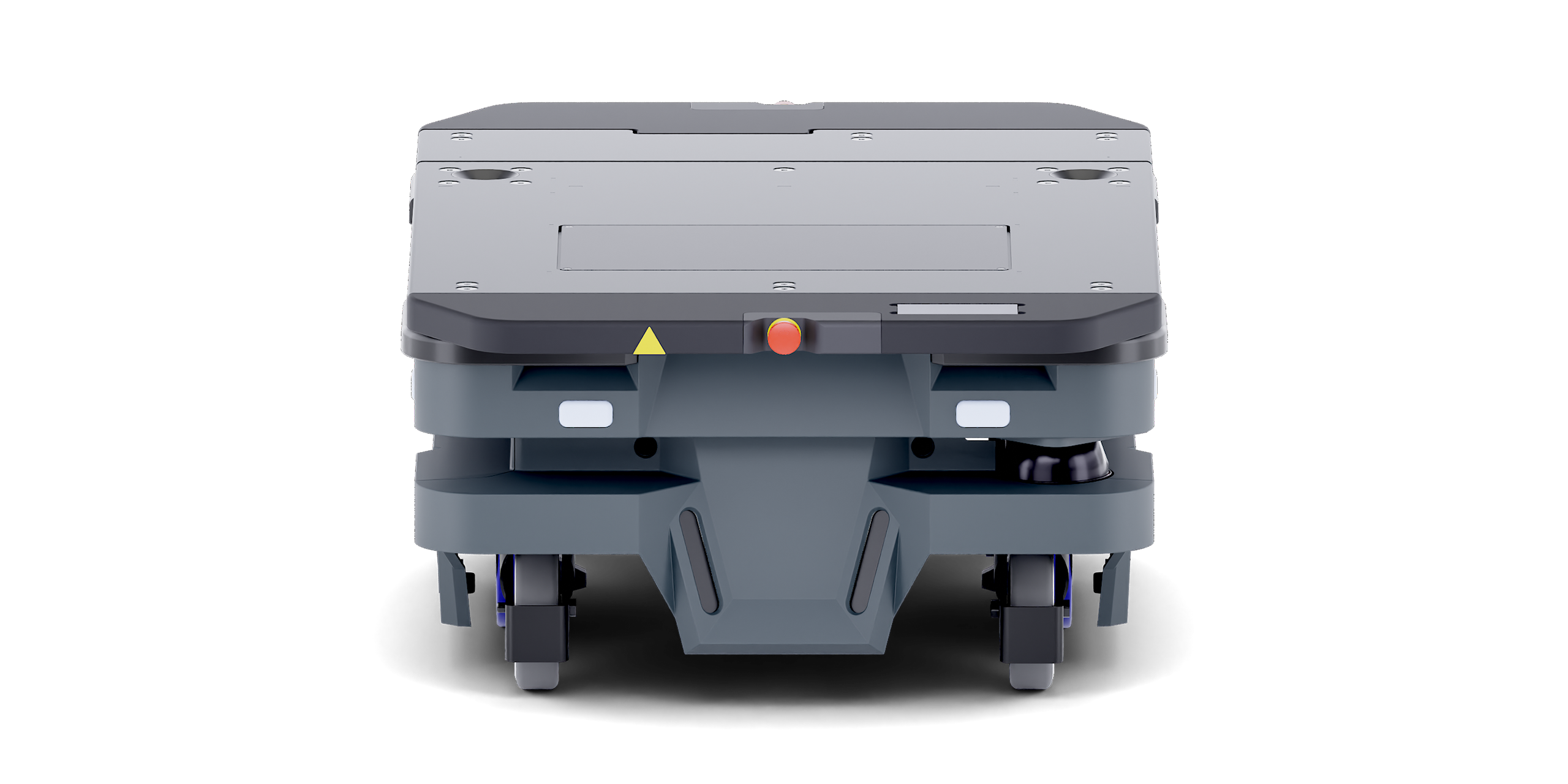

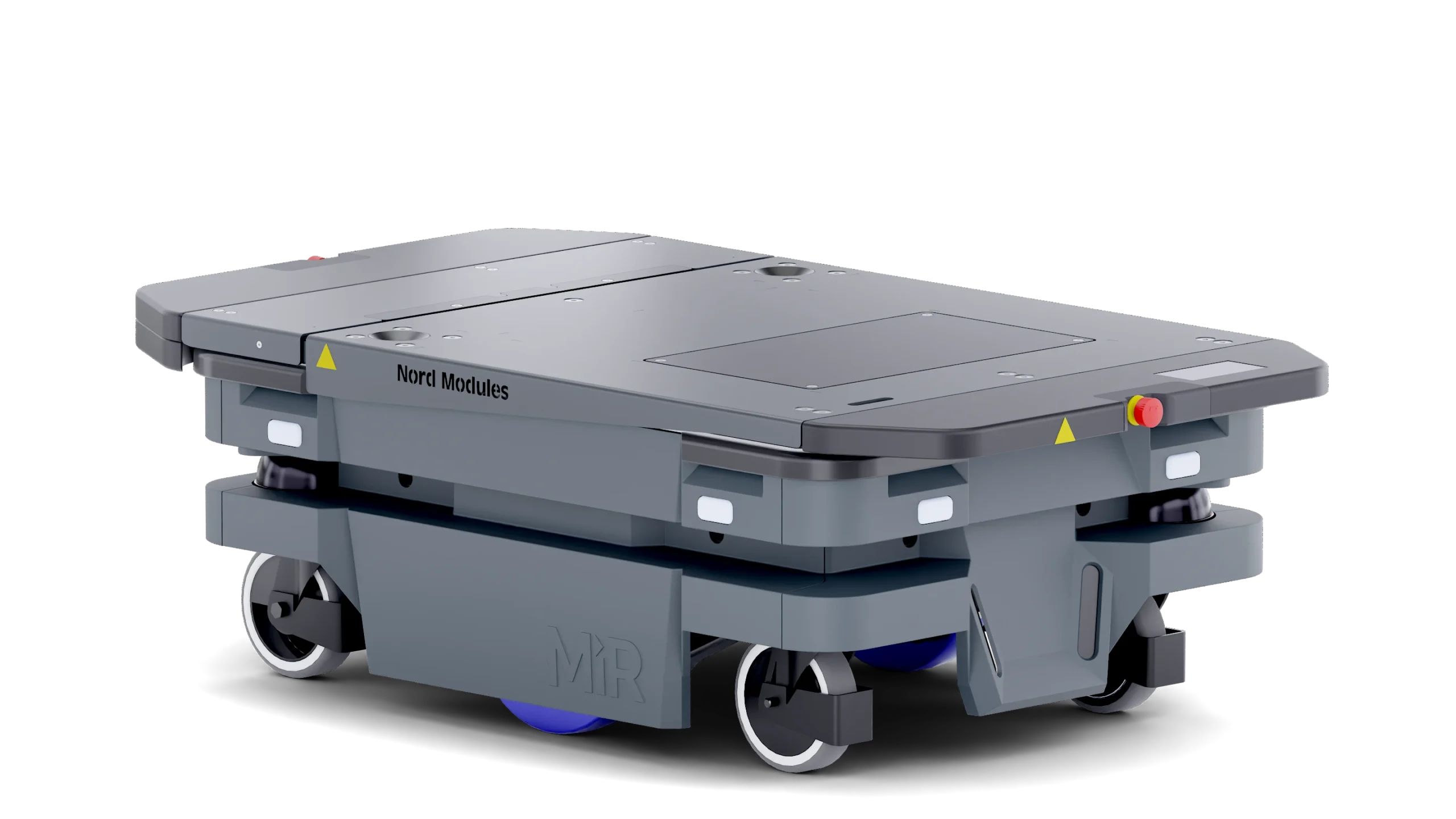

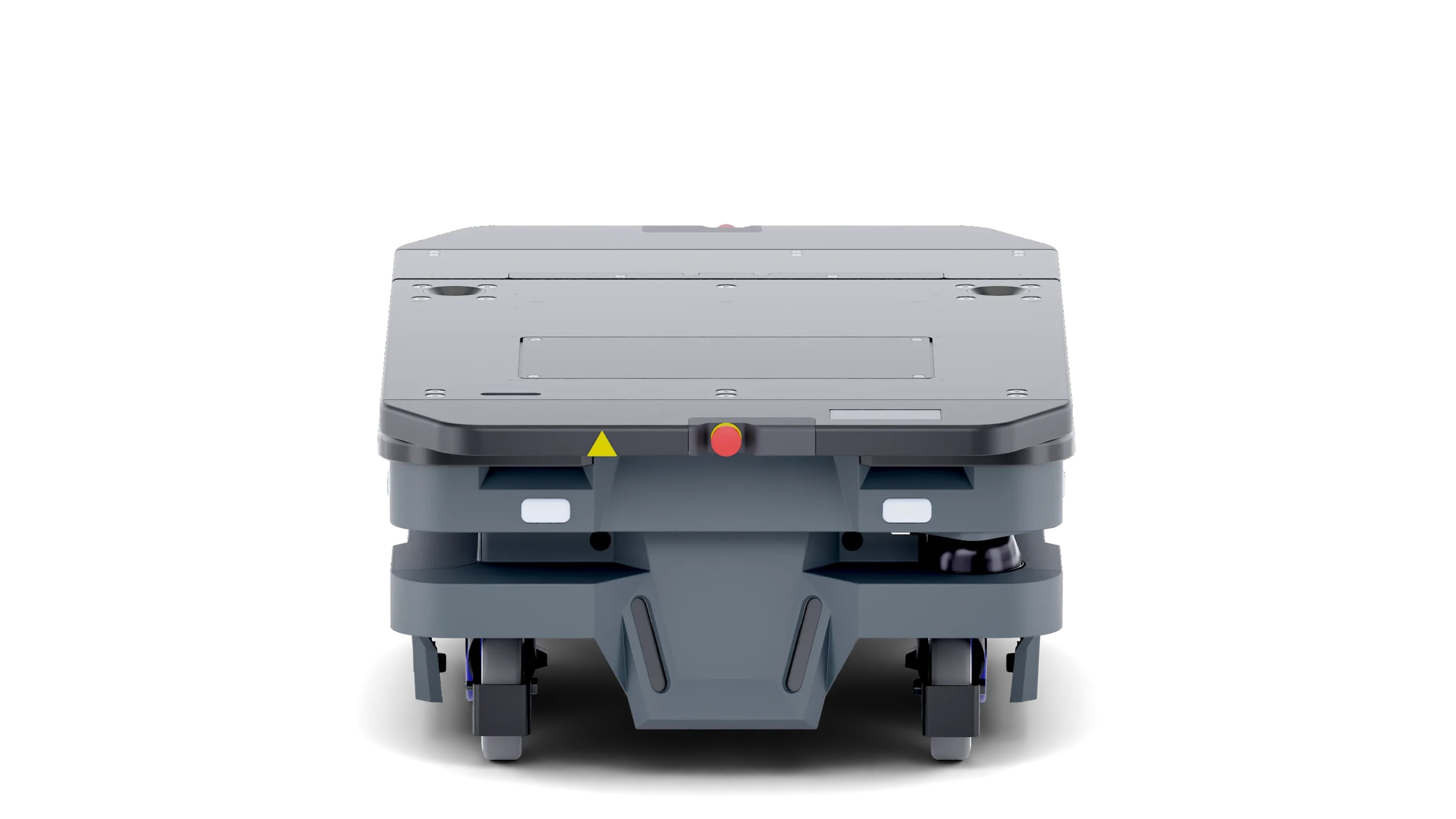

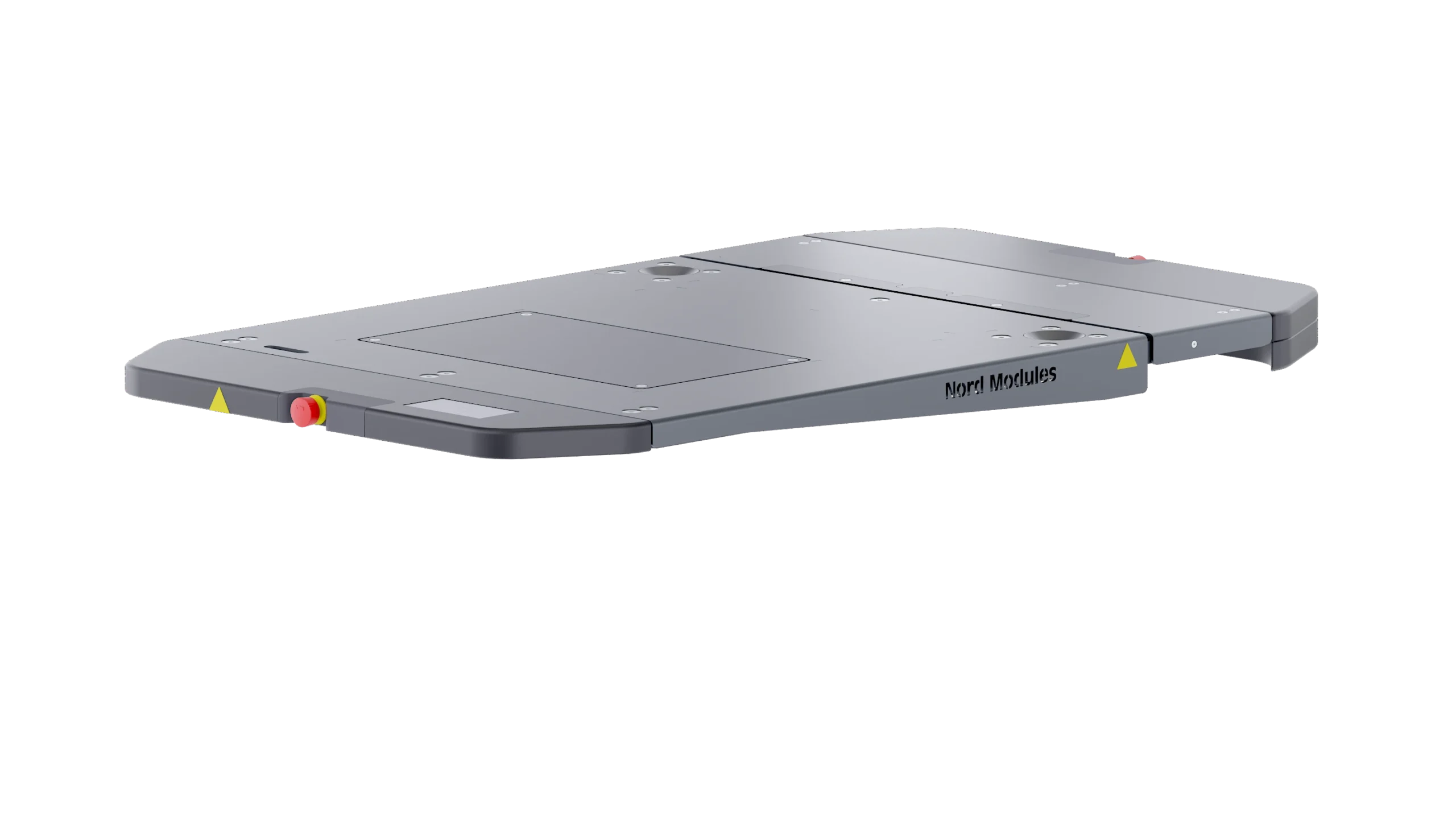

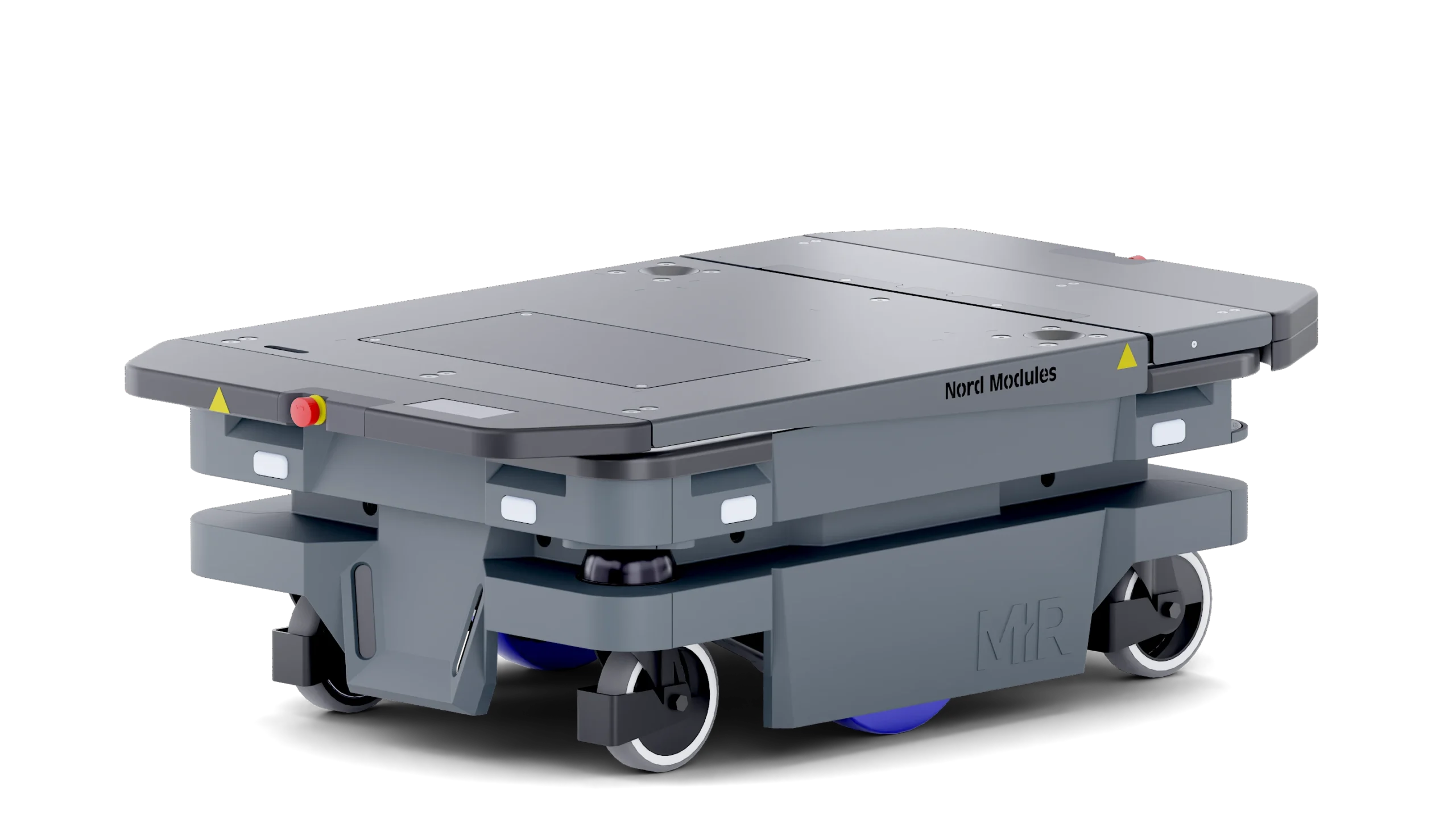

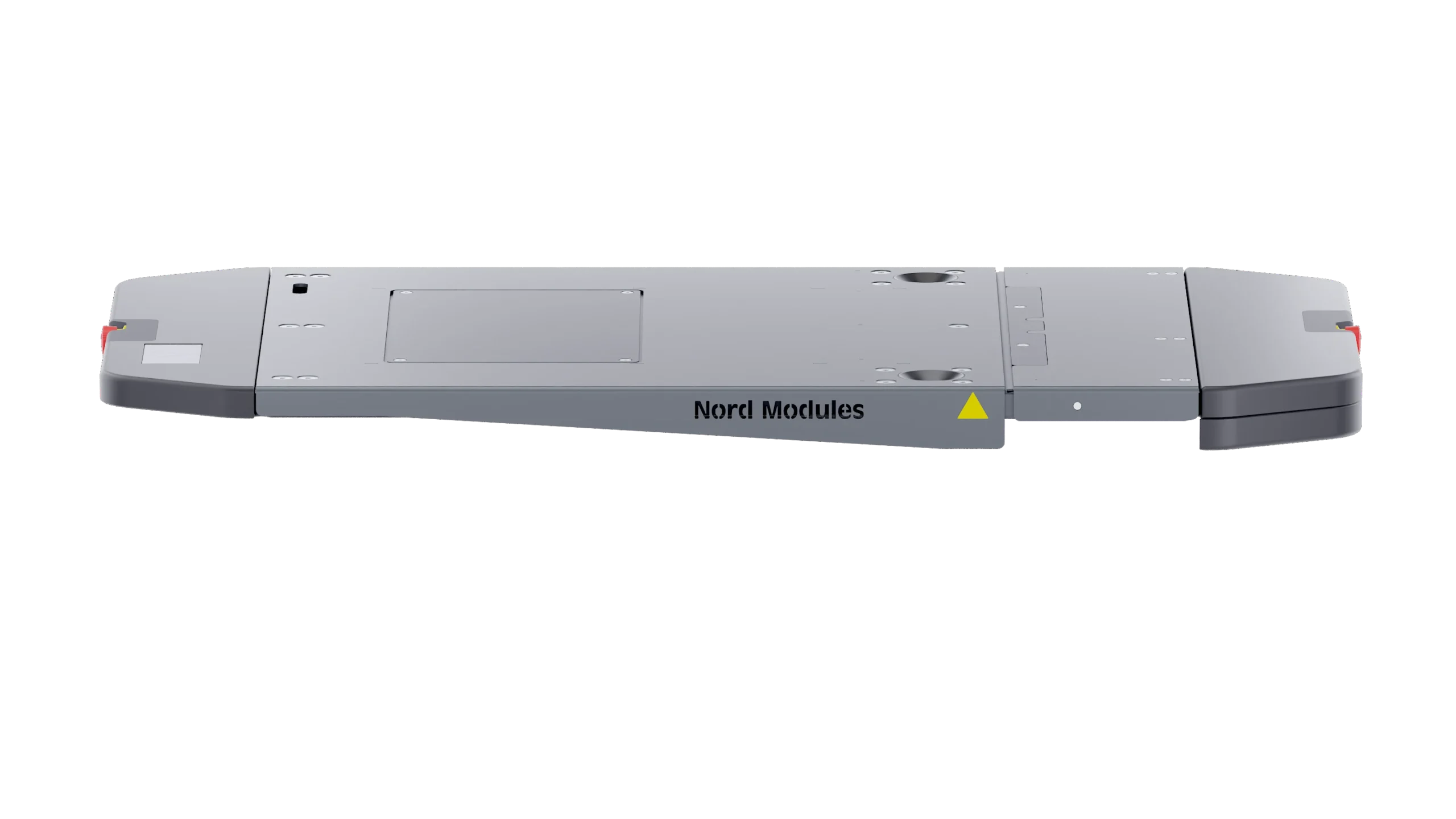

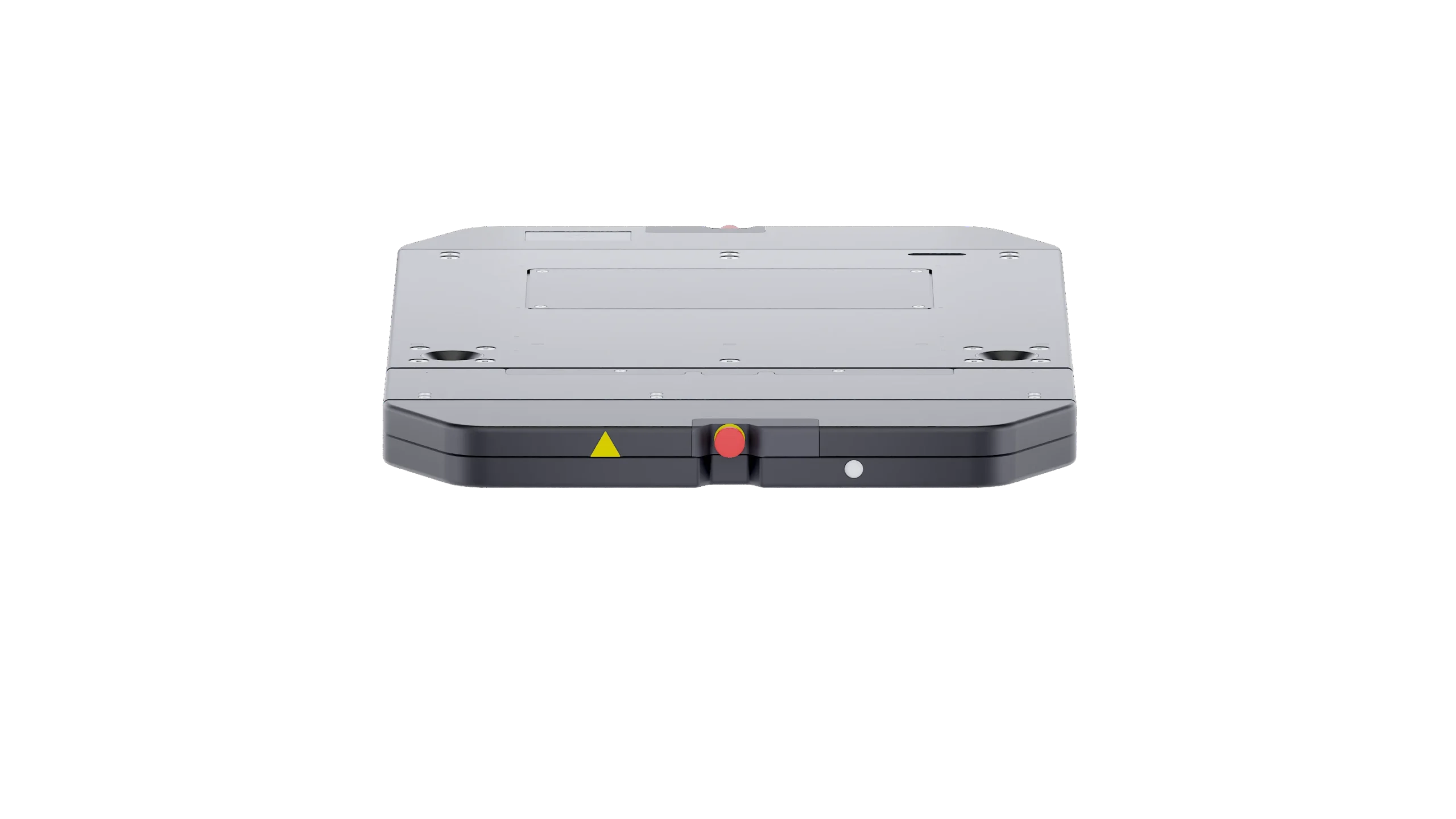

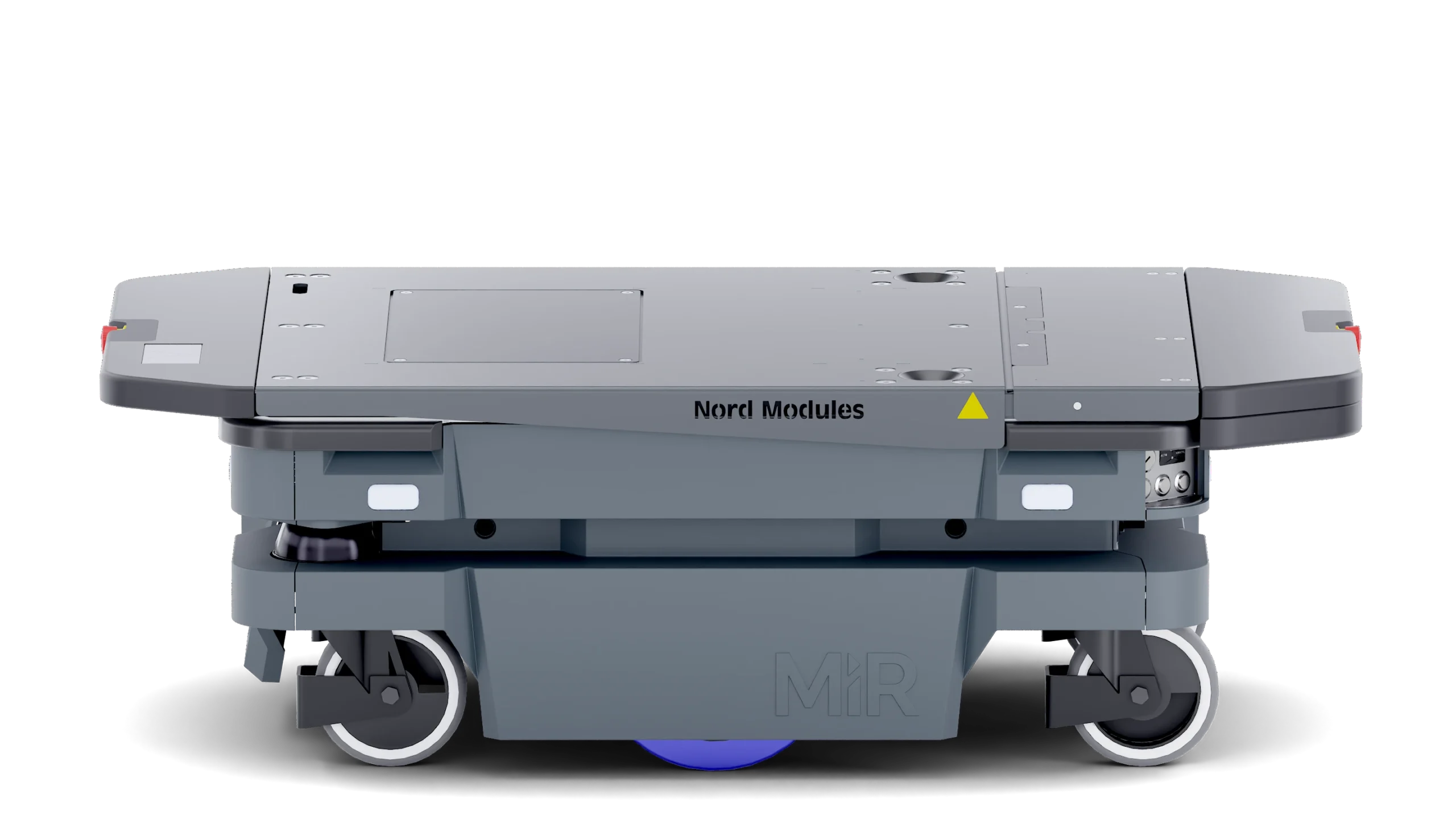

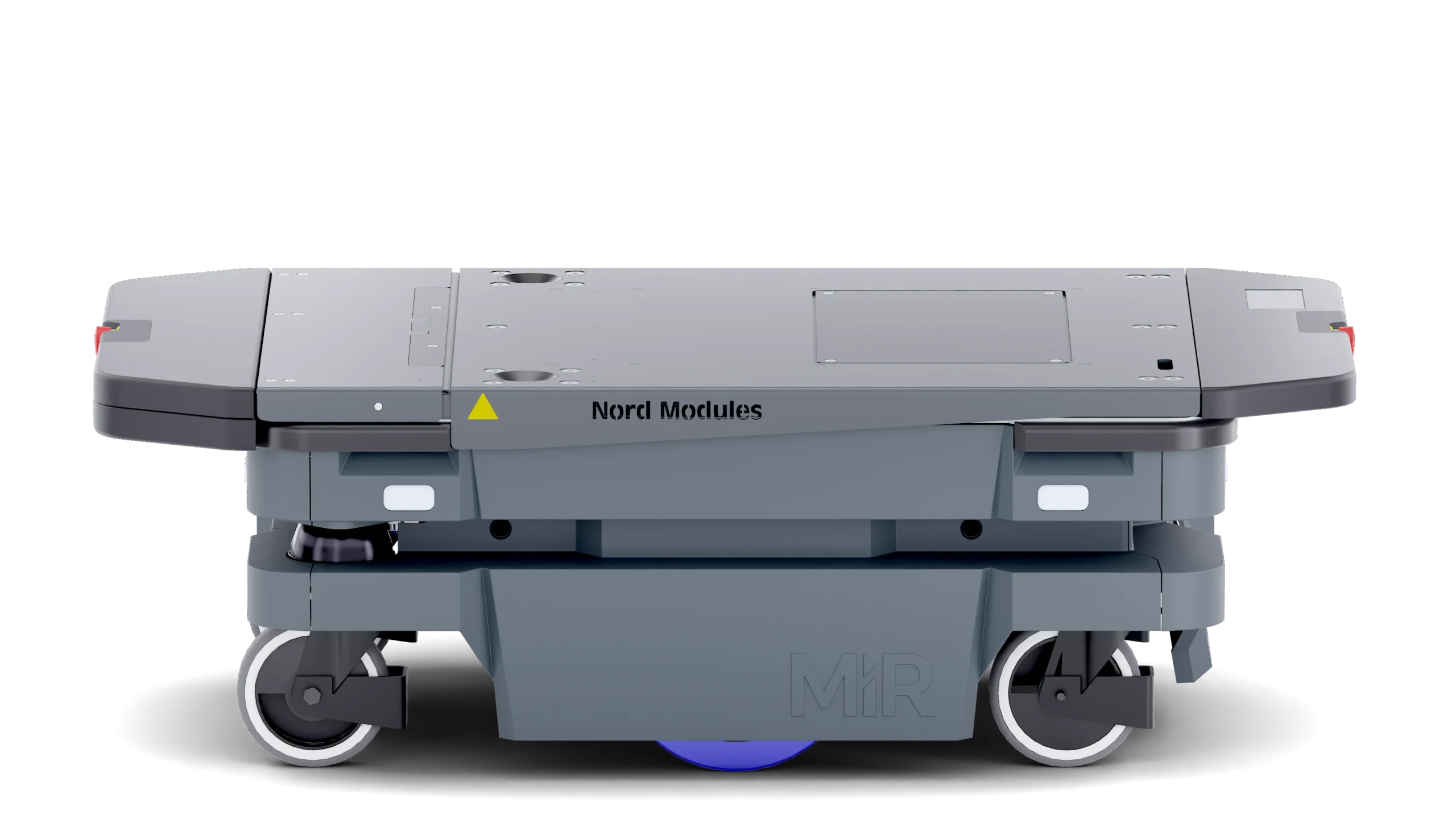

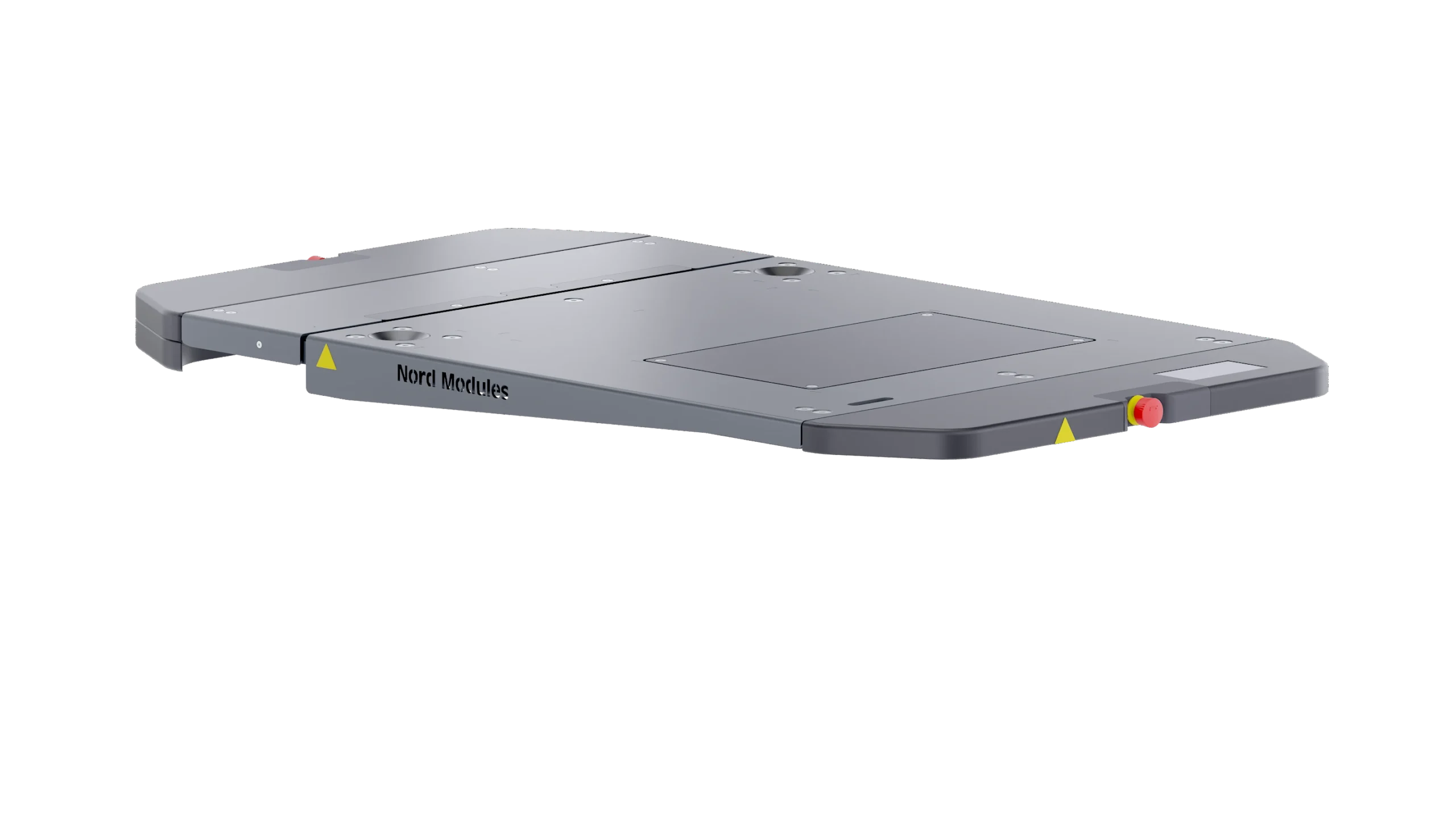

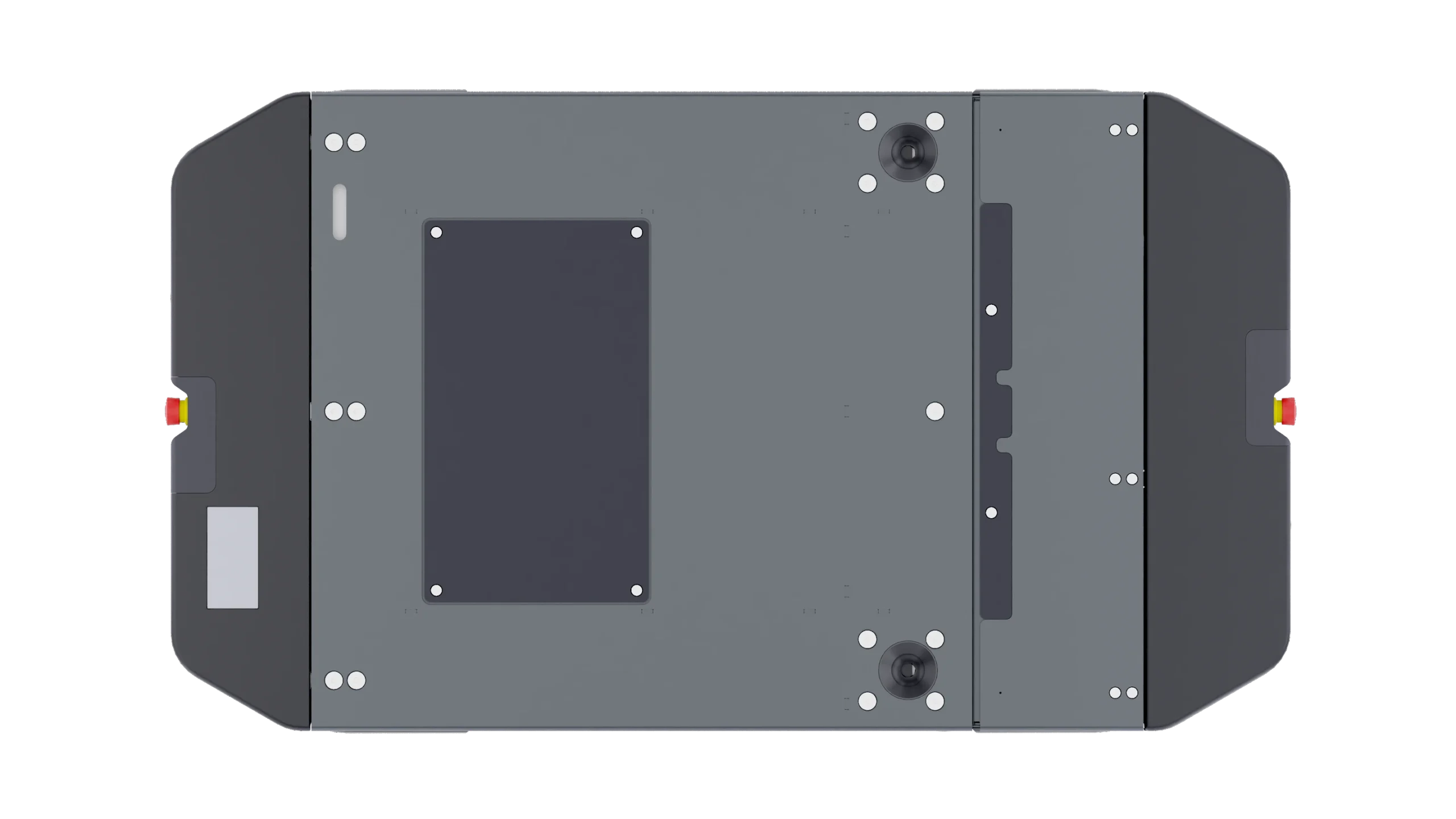

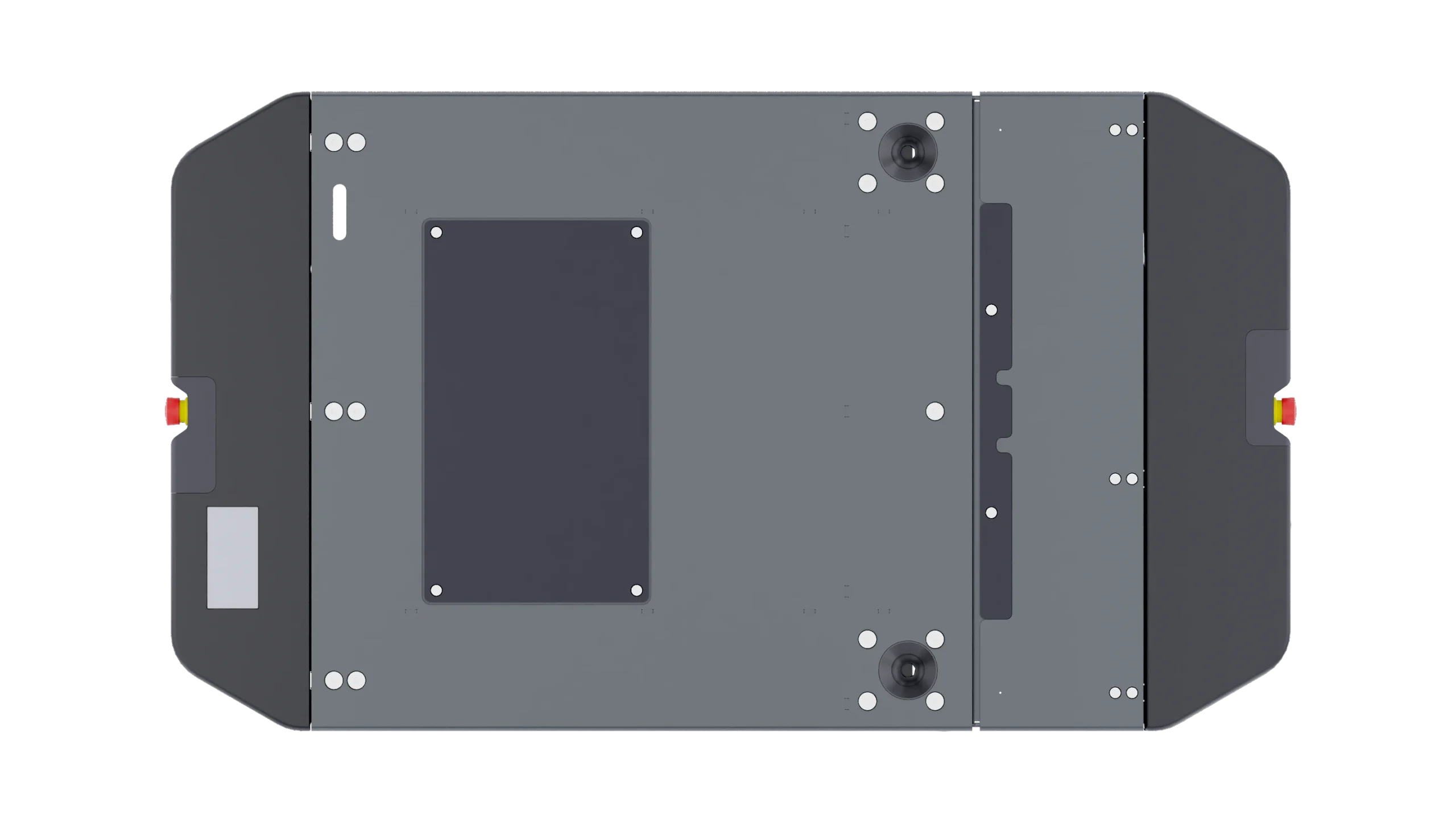

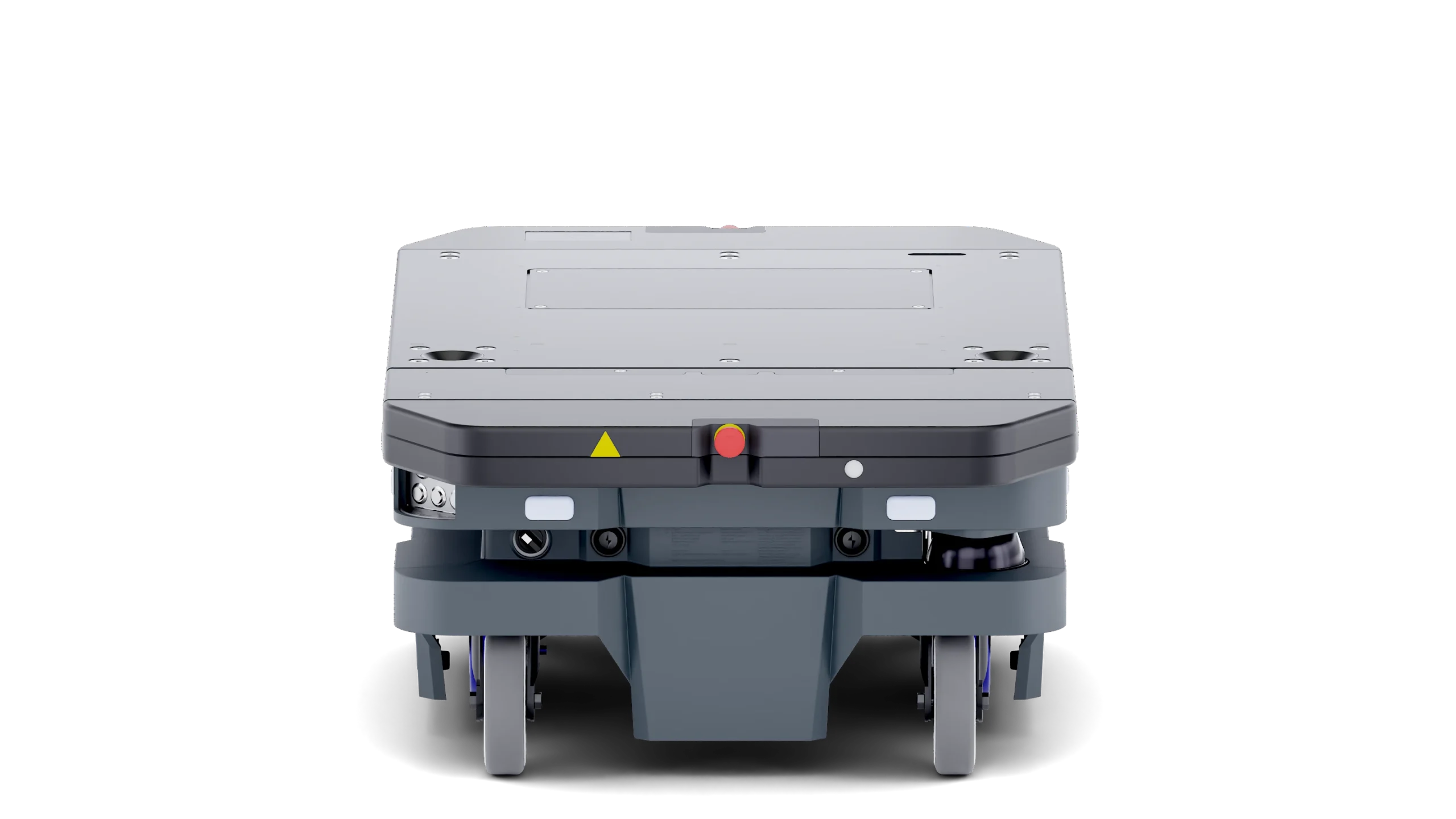

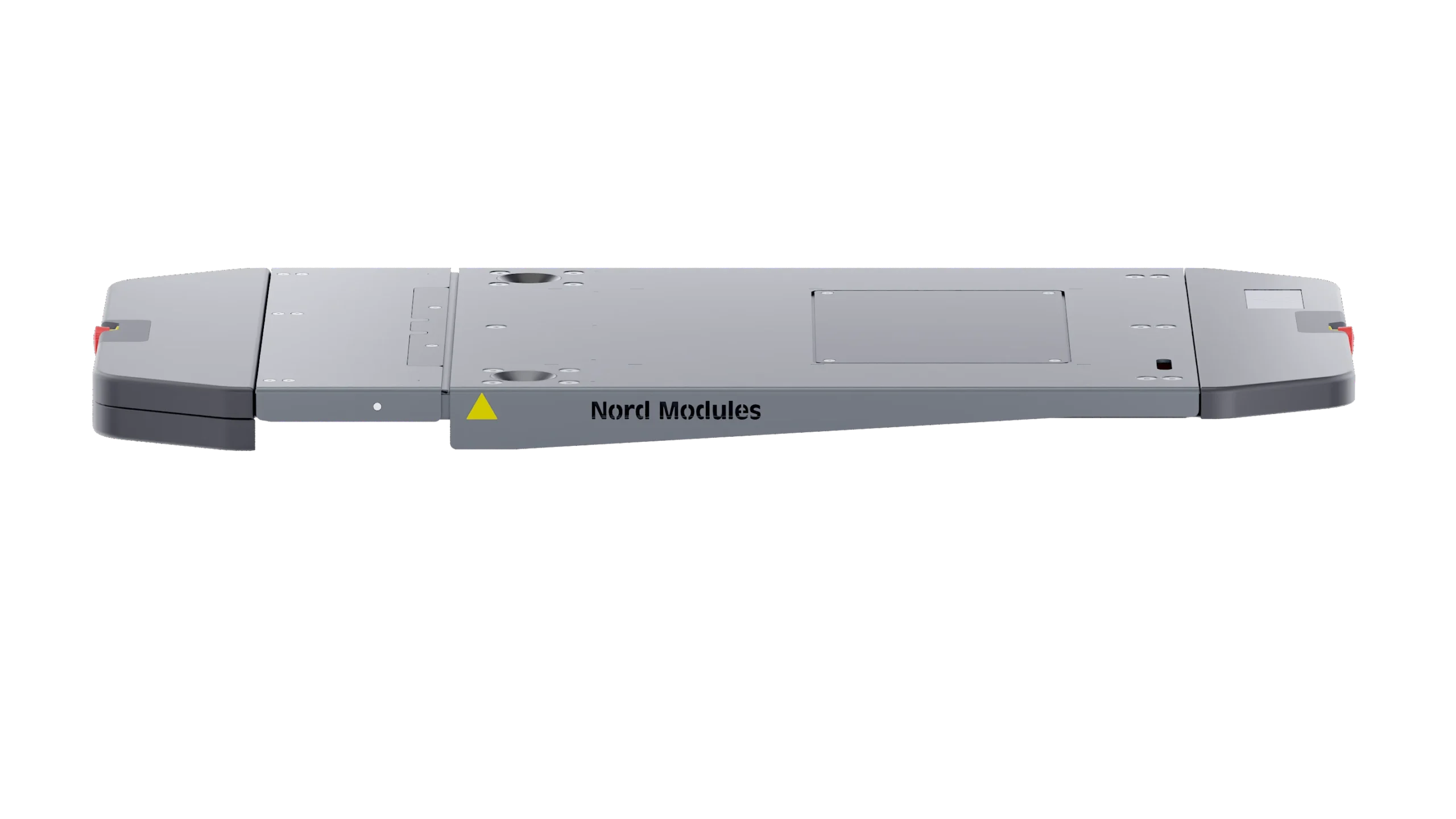

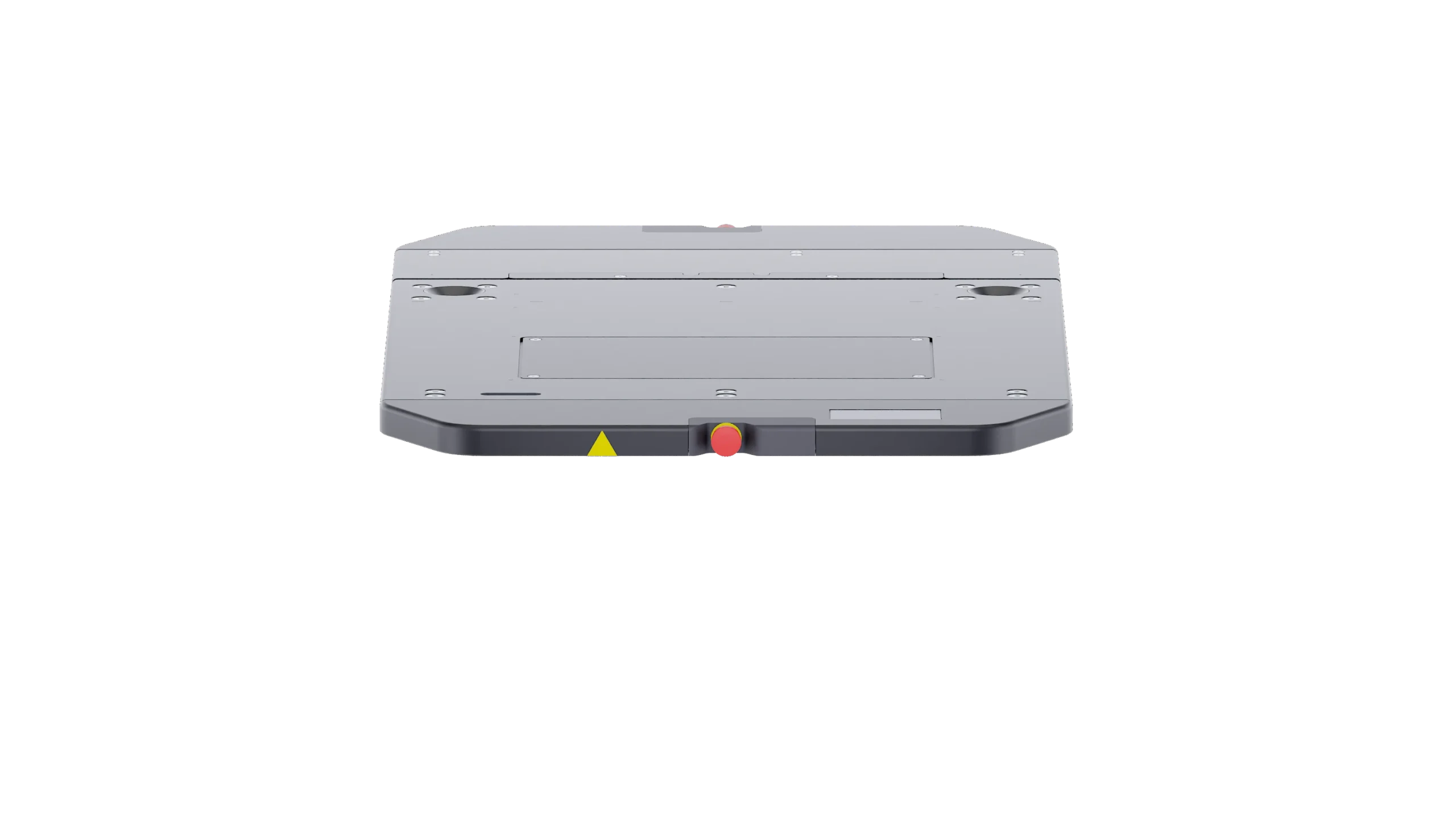

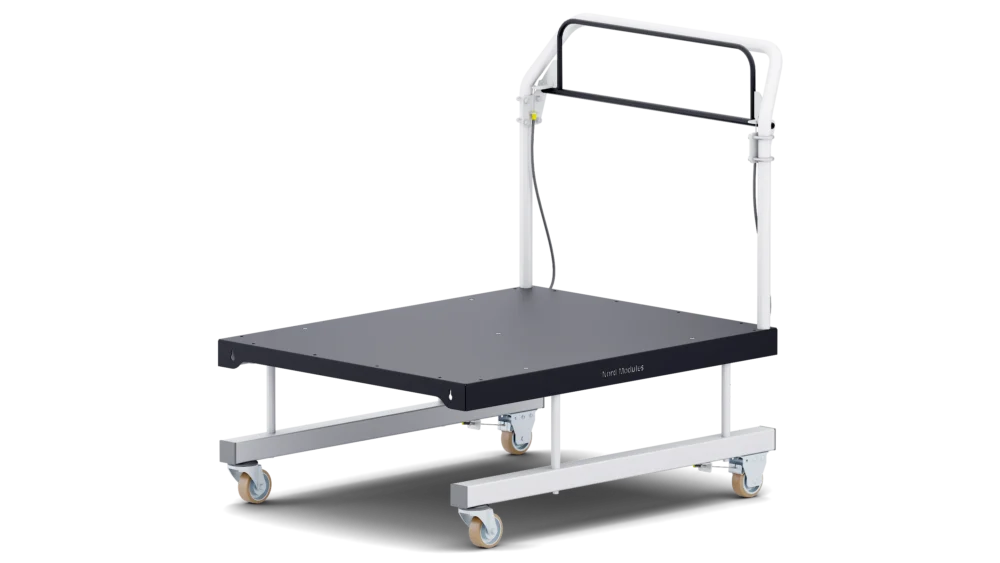

The Nord Cart Mover is a 25 mm top module that turns a MiR 250 into an automated cart transporter for the Nord Cart 300-385. It engages the cart wherever it stands and lifts only its two braked wheels, moving up to 300 kg with no floor-mounted stations to install.
Robot Compatibility
MiR 250
Dimensions (LWH)
1005 x 568 x 51 mm | 39.6 x 22.4 x 2 in
Height above Top of AMR
25 mm | 0.98 in
Stroke Length
35 mm | 1.4 in
Weight
31.8 kg | 70.1 lbs
Payload Capacity
300 kg | 661 lbs
Service Interval
Service intervall for every 100.000 cycles
Expected Lifespan
Minimum 300.000 lifts at max. payload
Article Nr
NM00394571
The lowest-profile cart handling module for the {AMR model}, so the AMR still clears machinery, conveyors and racking.
The cart's braked wheels hold it in place, so carts can be left anywhere and the layout can change without re-commissioning.
Lifting only the two braked wheels lets the remaining casters carry the load, so the cart rolls instead of being carried.
Minimum 300,000 lifts at maximum payload, with service every 100,000 cycles: a real figure for total cost of ownership.
Runs within the robot's own software and safety systems, with no parallel control layer for operators to learn.
Documentation
Showcase
Explore the design, features, and real-world performance
300.000+ lifts at max. payload

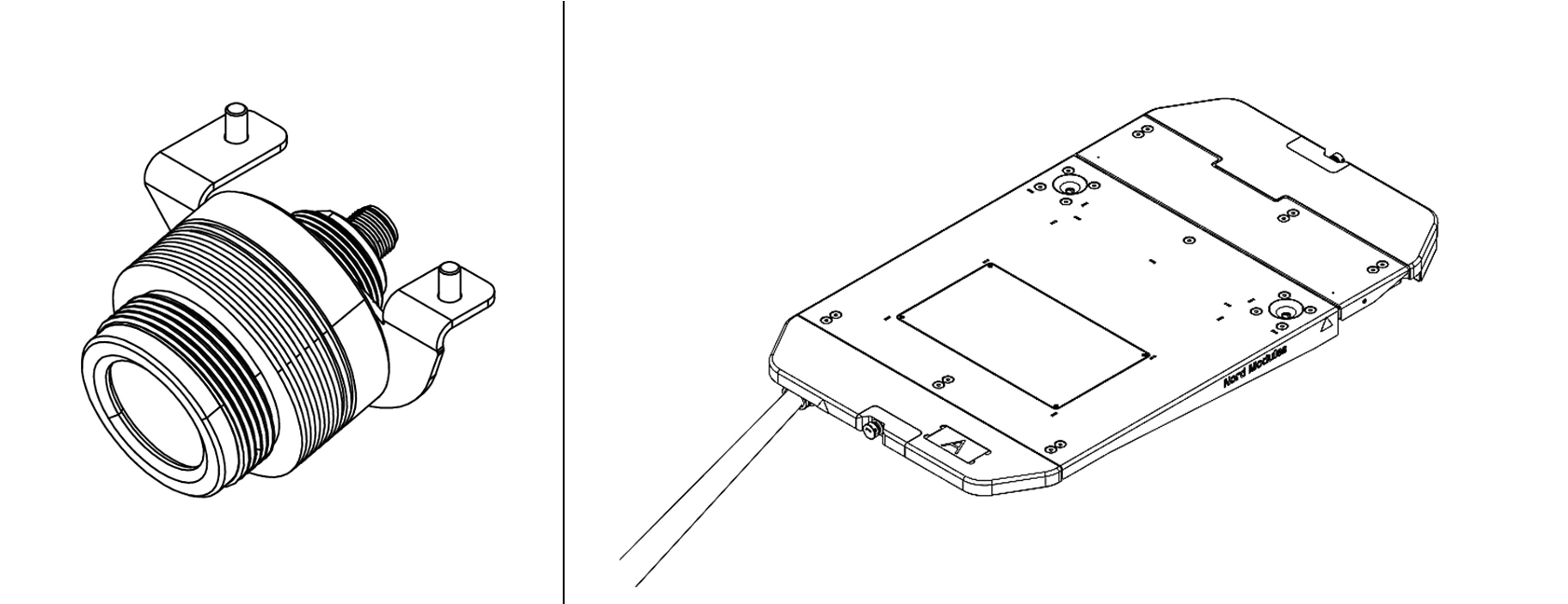

Optional Add-Ons
Tailor this product to specific operational needs. Quick to set up and adaptable to various workflows, they deliver a complete and flexible automation solution for optimized efficiency.
• Increased safety
• Integrated in the Nord Cart Mover
• Easy installation
• Plug and play
• Nord Cart Mover prewired
• Blue Light spot center on the floor in front of the AMR
