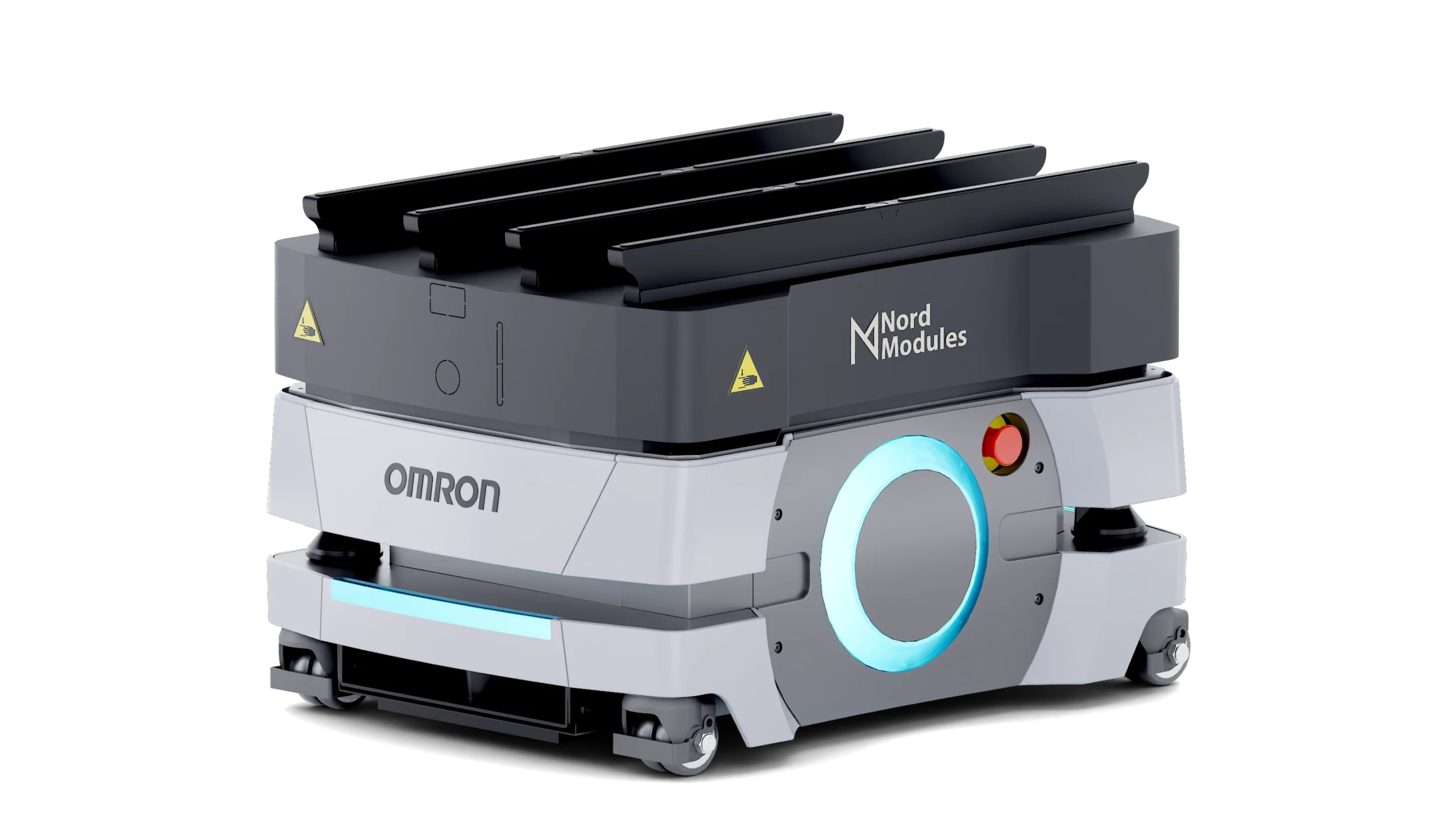

Nord Quick Mover 260 – Omron LD-300

Nord Quick Mover 260 – Omron LD-300

The Nord Quick Mover is a lifting top module that turns a Omron LD-300 into an automated transport link between stations. It picks up and delivers loads at Nord Gates, which can sit at either end of an existing conveyor, feeding the line or taking goods off it, or work as standalone pickup and drop-off points.
Robot Compatibility
Omron LD-300
Dimensions (LWH)
765 x 580 x 200 mm | 30.1x 22.8 x 7.9 in
Stroke Length
80 mm | 3.15 in
Lifting Speed
To be announced
Weight
To be announced
Payload Capacity
260 kg | 573.2 lbs
Expected Lifespan
Minimum 600.000 lifts at max. payload
Gates mount at the end of stationary conveyors, so the AMR plugs into your line without a rebuild.
The same Quick Mover serves conveyor ends, workstations and simple floor-level pickup and drop-off points.
Fixed pricing and short deployment instead of a one-off engineering project.
Rated for 600,000 lift cycles, with components tested for vibration, impact and daily wear.
Documentation
Product Sheet
GET A QUOTE
Showcase
Explore the design, features, and real-world performance
600.000+ lifts at max. payload
Optional Add-Ons

Tailor this product to specific operational needs. Quick to set up and adaptable to various workflows, they deliver a complete and flexible automation solution for optimized efficiency.

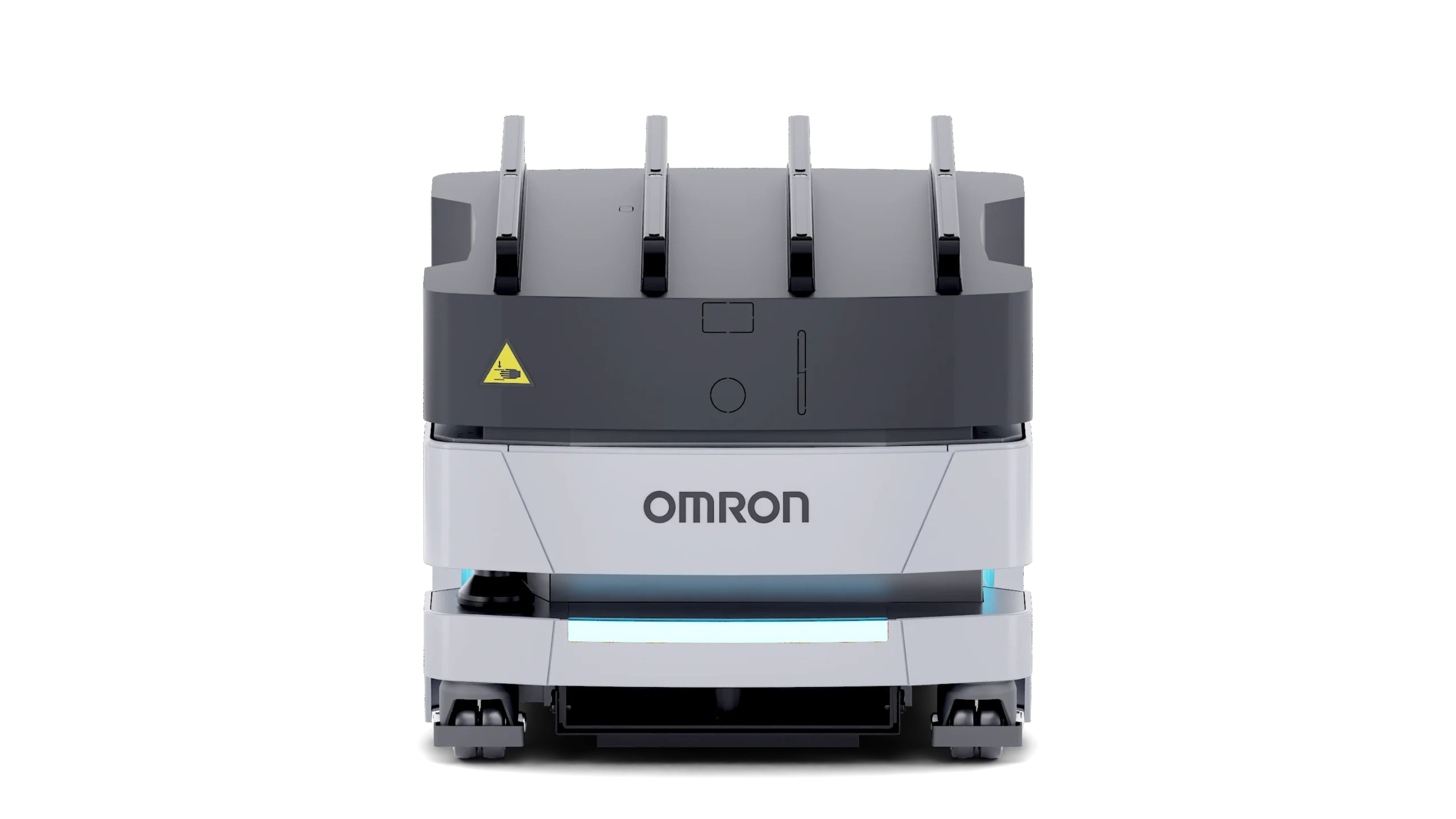

Nord Quick Mover 260 – Omron LD-300 — view 1

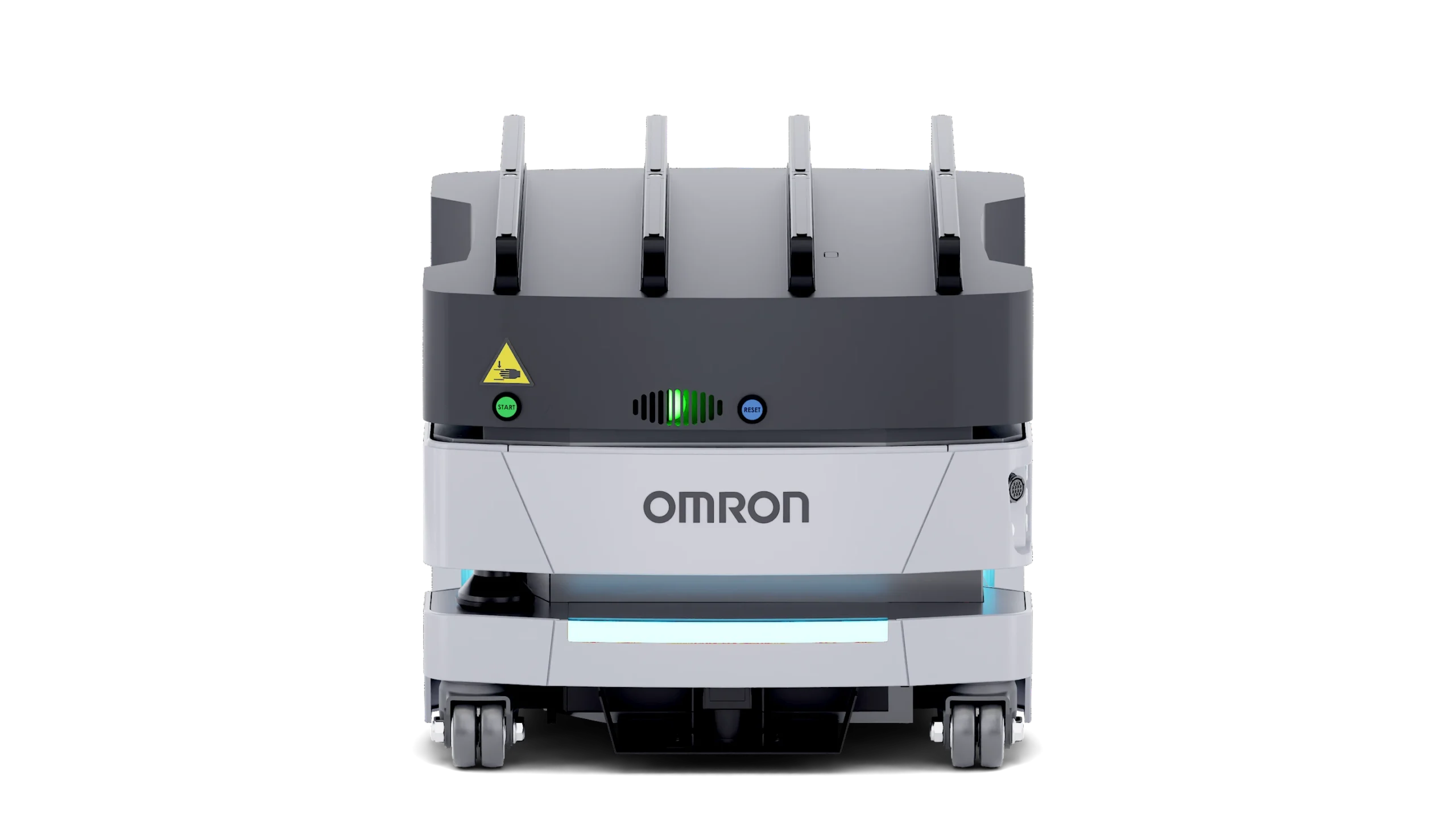

Nord Quick Mover 260 – Omron LD-300 — view 2

• Increased safety
• Blue light spot center on the floor 1200mm in front of the AMR
• Internal mounted, Front
• Plug and play
• QM Prewired

• Recognize different types of goods placed on P&D station. Enabling Quick Mover to track different goods.
• Barcode scanning
• QR-Code scanning
• 300mm range
• Adjustable scanner
• Scanning in bright and dark surroundings

• Detects on P&D Station
• QM mounted
• Internal mounted, Front
• Adjustable sensor
• Plug and play
• QM prewired
• Photoelectrical sensor
• 1000mm sensor range

• Detects on Quick Mover
• Internal mounted
• Plug and play
• QM prewired
• Photoelectrical sensor
• 1000mm sensor range

• Increased safety
• Increased visibility
• Stack light indicator check
• Plug and play
• QM Prewired

• ±2% off 260kg
• Patented solution
• TBA

Retroreflective sensor
Compatible with "On the Flight Gate"
TBA

Compatible AMRs

Built for select autonomous mobile robots, making it easy to enhance performance in even the most demanding applications.
