Handling capacity

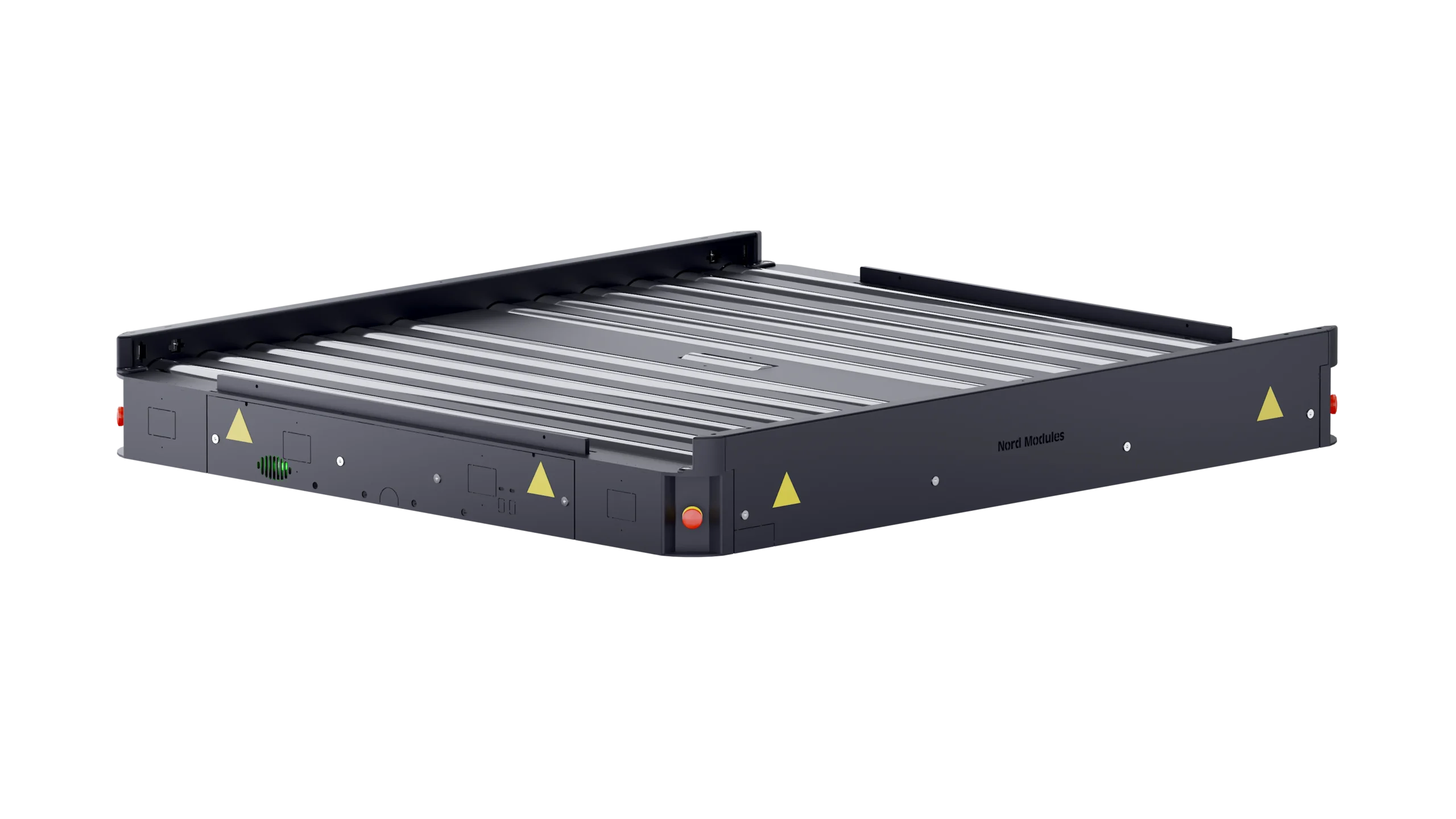

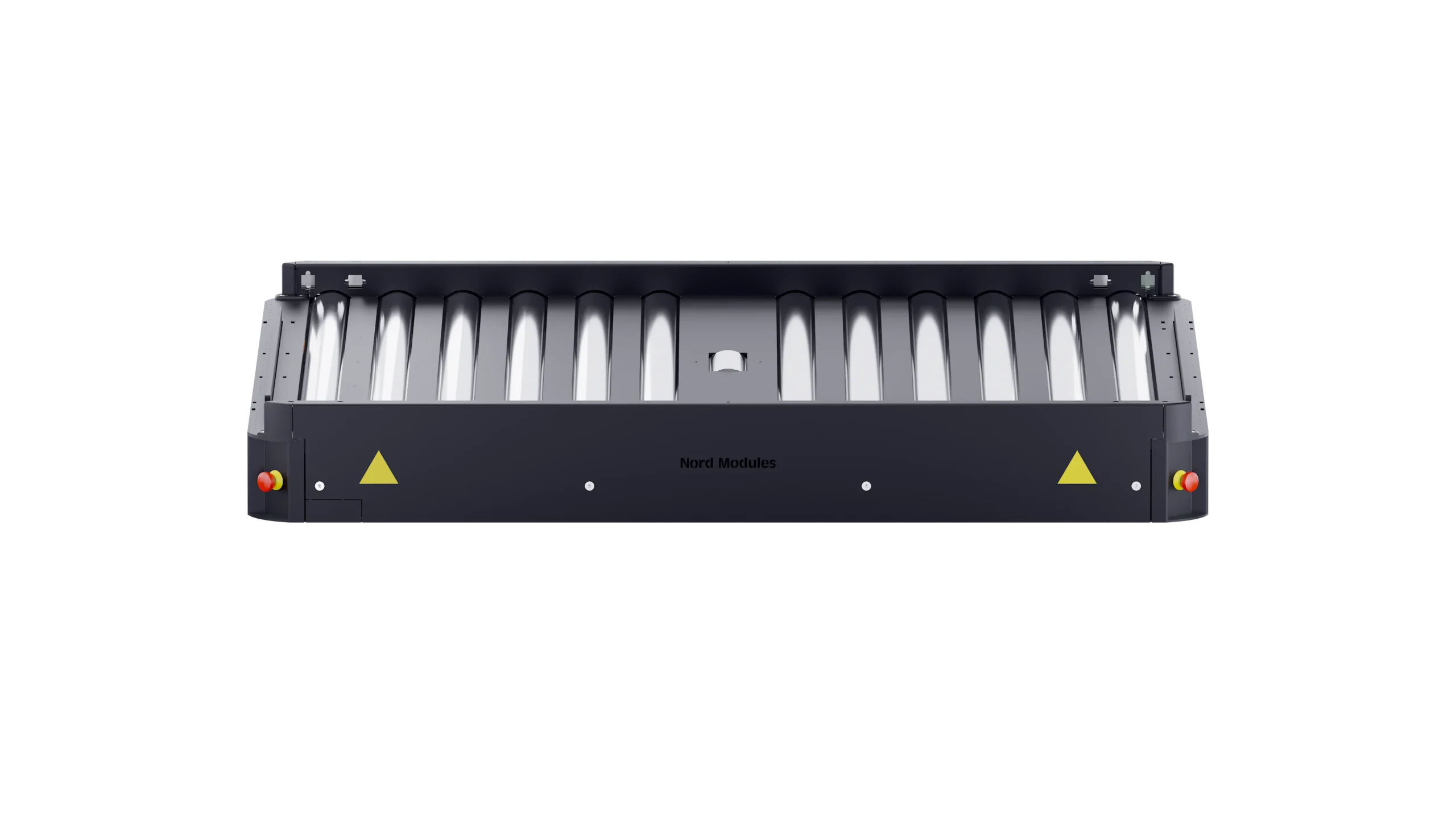

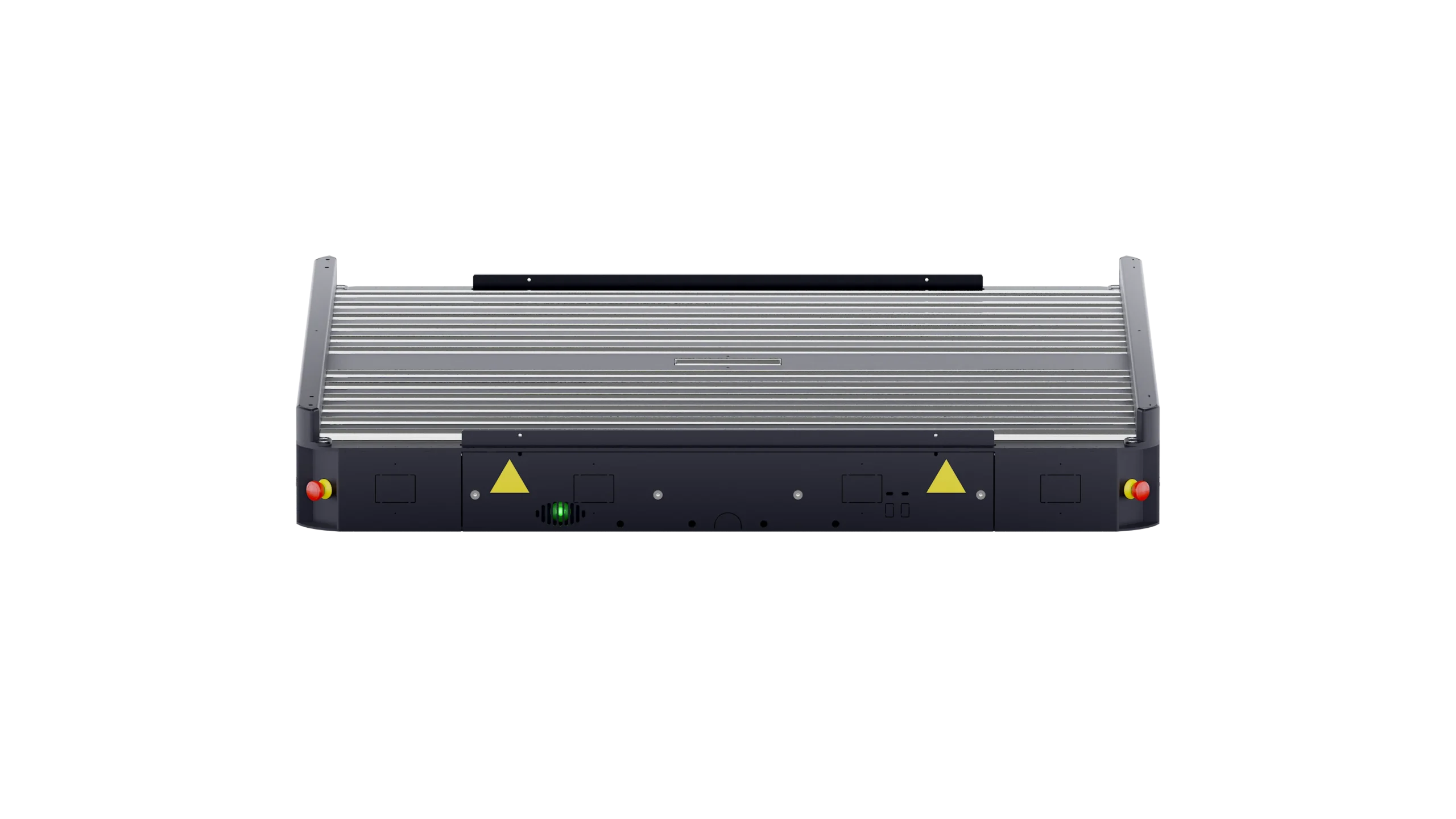

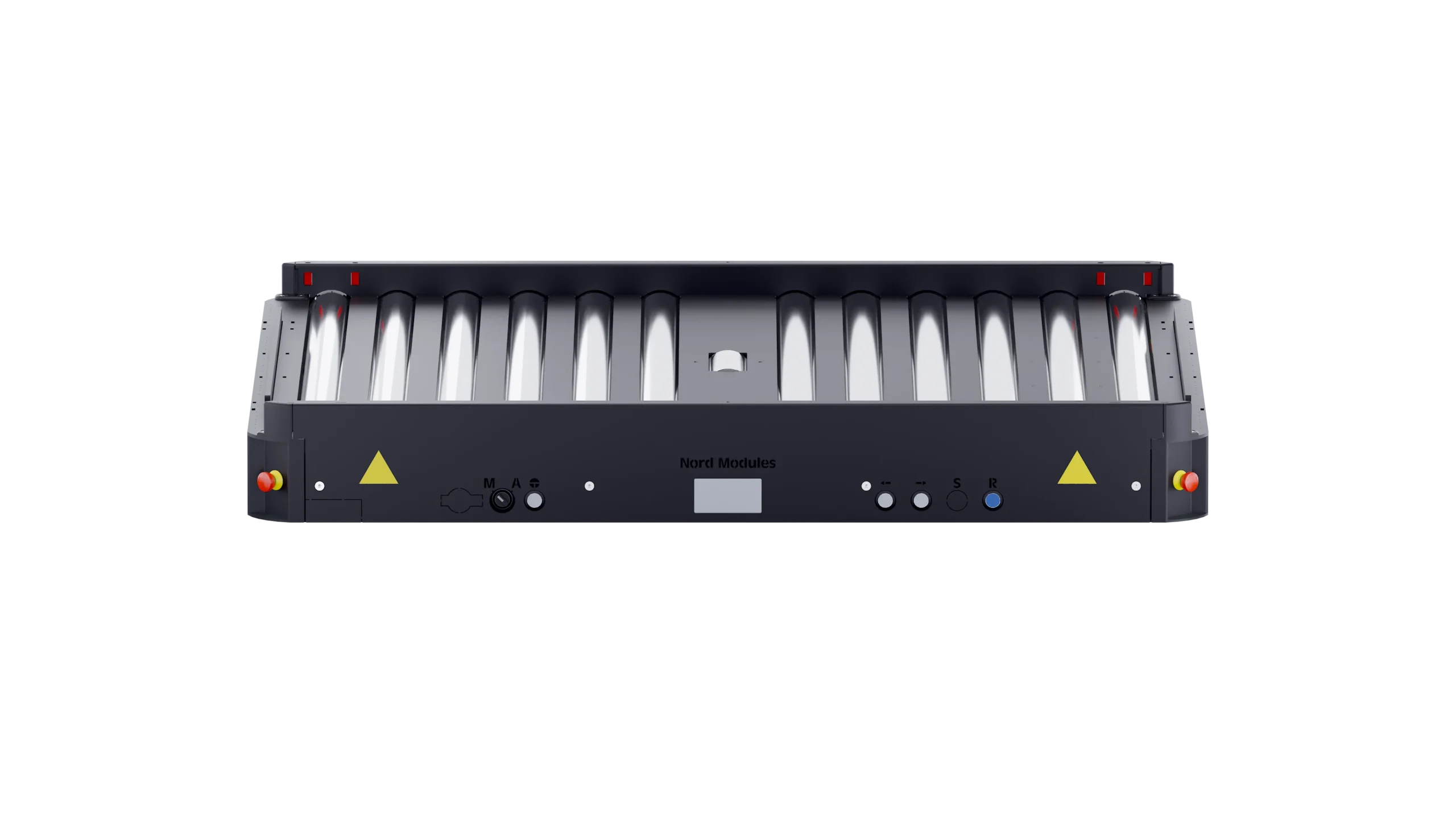

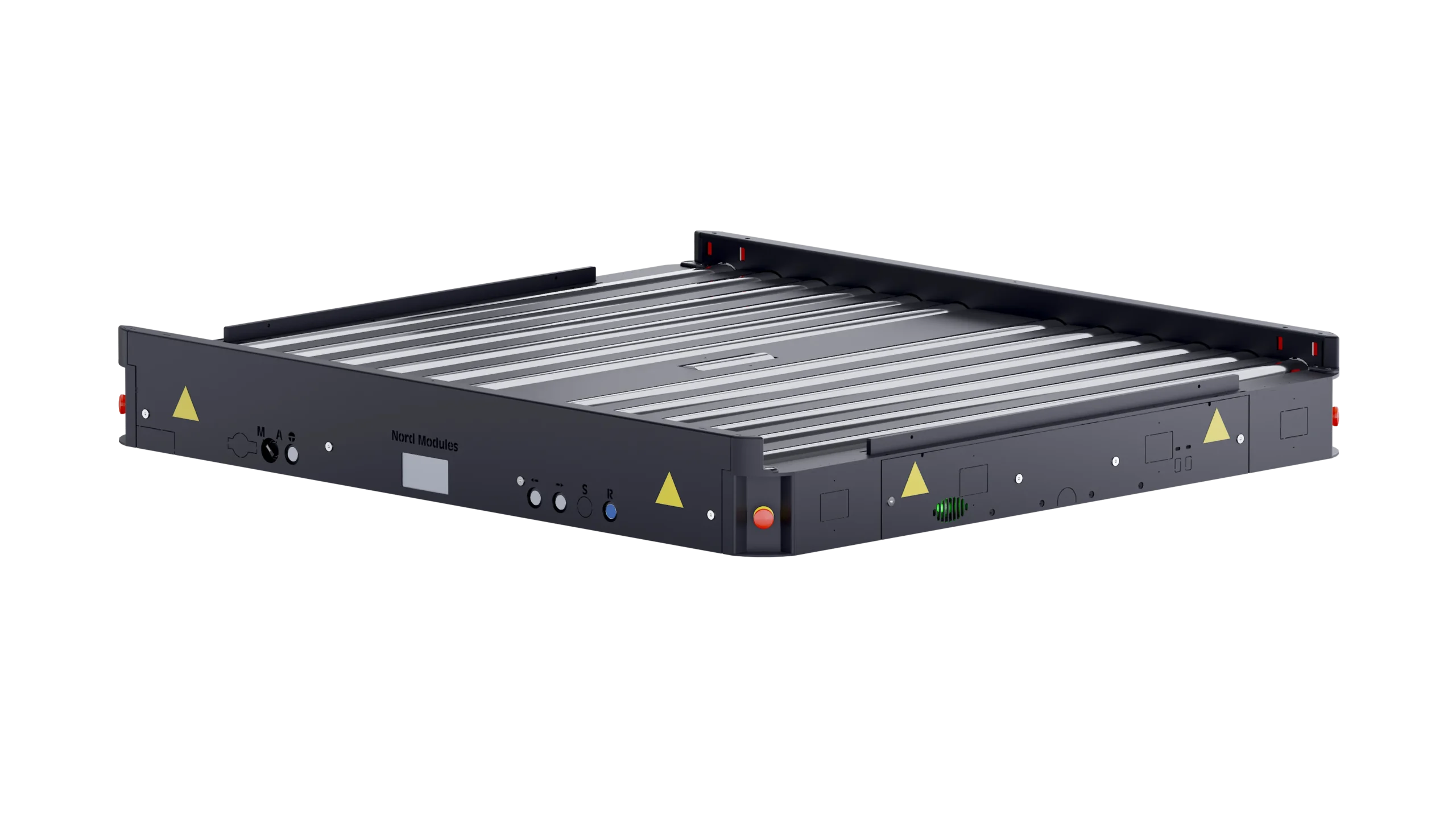

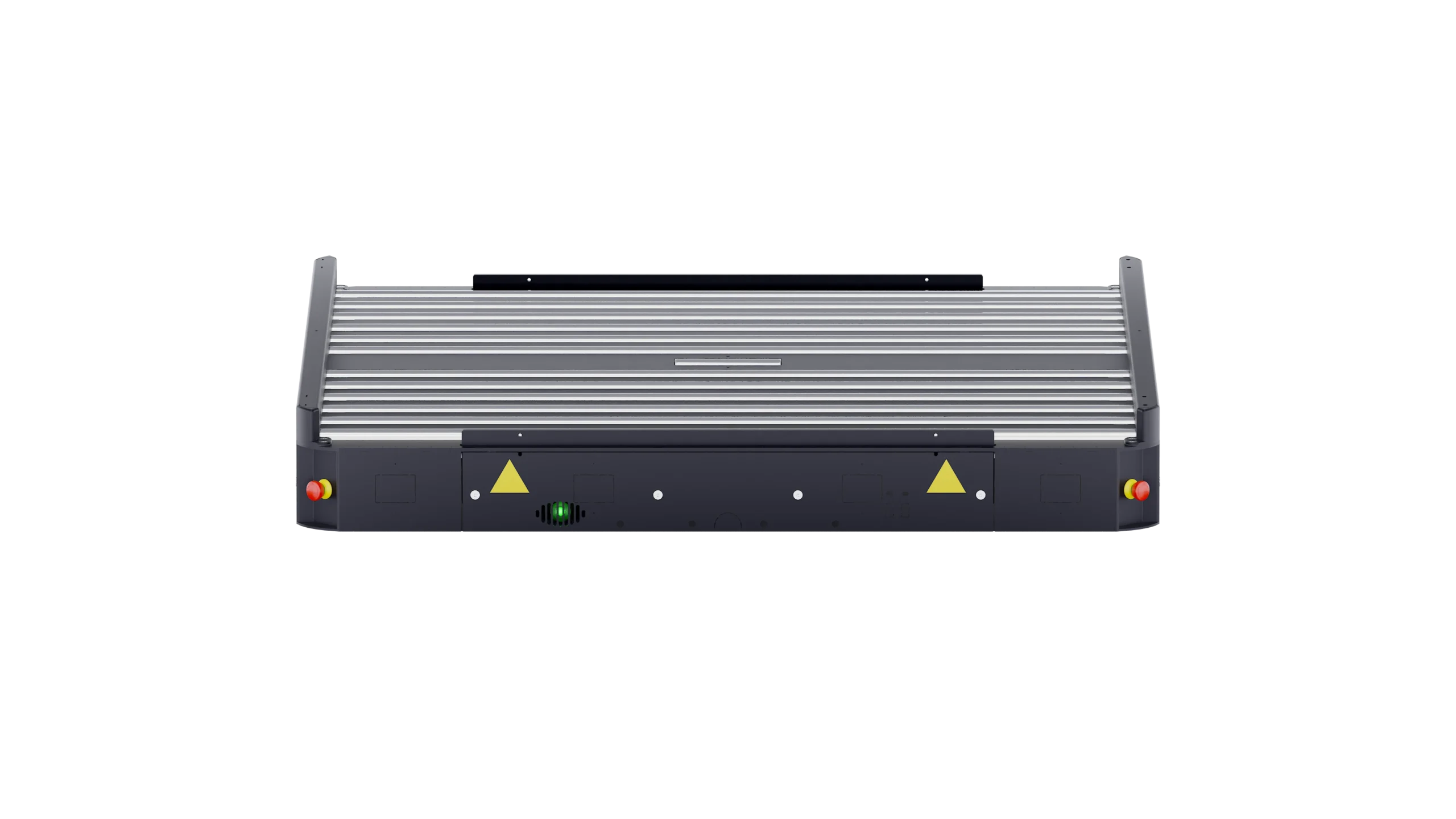

PM1000-MiR

Robot compatibility:
MiR500, MiR600, MiR1000, MiR1350

Nord Modules compatibility:
Pallet Conveyor, Dock Target

Dimensions (LWH):
1340 x 1120 x 165 mm

Max Handling capacity:
1180 kg (See AMR max load)

Speed:
200 mm/sec

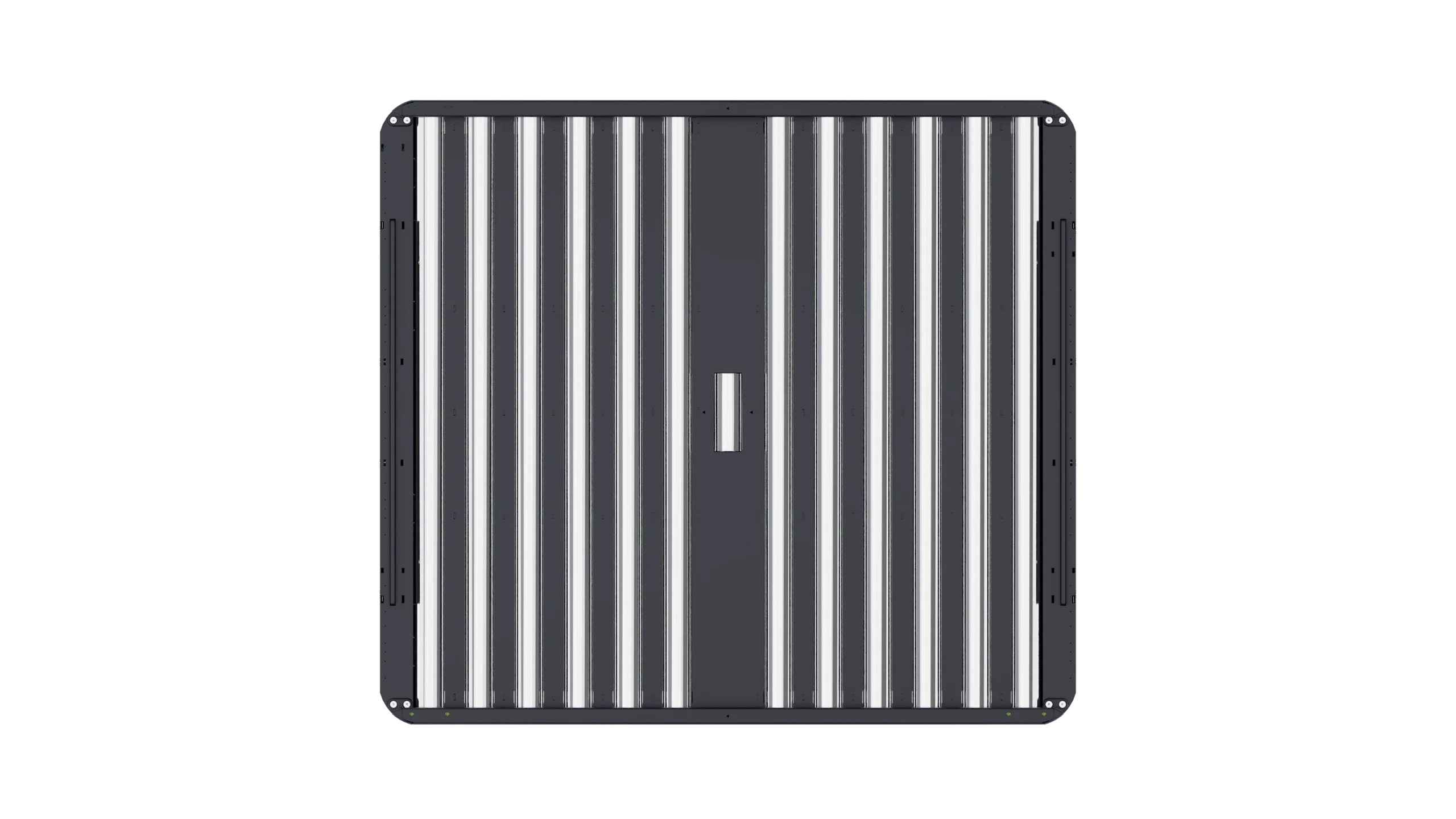

Center distance between rollers:
95 mm (94,6 mm)

Transport area:
1060 x 1300 mm (EU-pallets)

Weight:
170 kg

Description

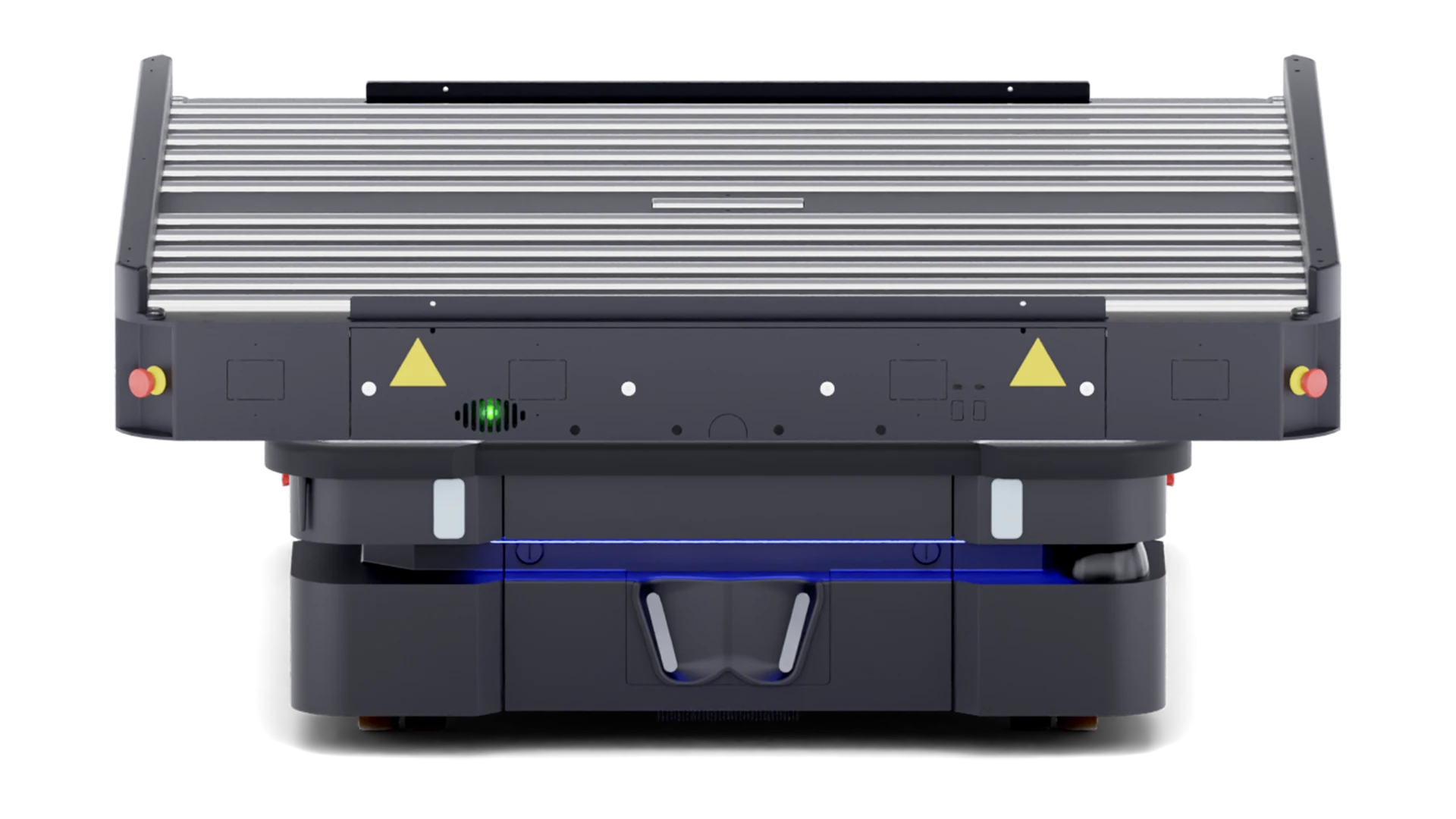

The Pallet Mover enables the Mobile Robots to pick up and deliver pallets – transporting them to e.g. production lines or packing stations, thereby enhancing internal logistics.

The Pallet Movers integrated technology enables communication to external roller conveyors by wireless signals. A Nord Modules dock target can be installed on an existing conveyor line allowing the PM1000 to successfully dock and receive or deliver a pallet.

This fully automated premium solution allows heavy payload transportation of up to 1180 kg to optimize logistics and production.

Your key benefits:
• Docking is available from both sides (run-through).
• High industrial quality.
• Safe heavy payload transportation.
• Transport of US-sized pallets.
• Loading side, automatic mechanical stop-solution.
• PLC controller and servo technology.
• Stack-light – information on operation-level.
• High level of feedback.
• Option: rubber coating of roller

Compatible with…

Robot Compatibility

MiR500

MiR500

MiR600

MiR600

MiR1000

MiR1000

MiR1350

MiR1350
