Nord Quick Lift 200-588-LD250

Nord Quick Lift 200-588-LD250

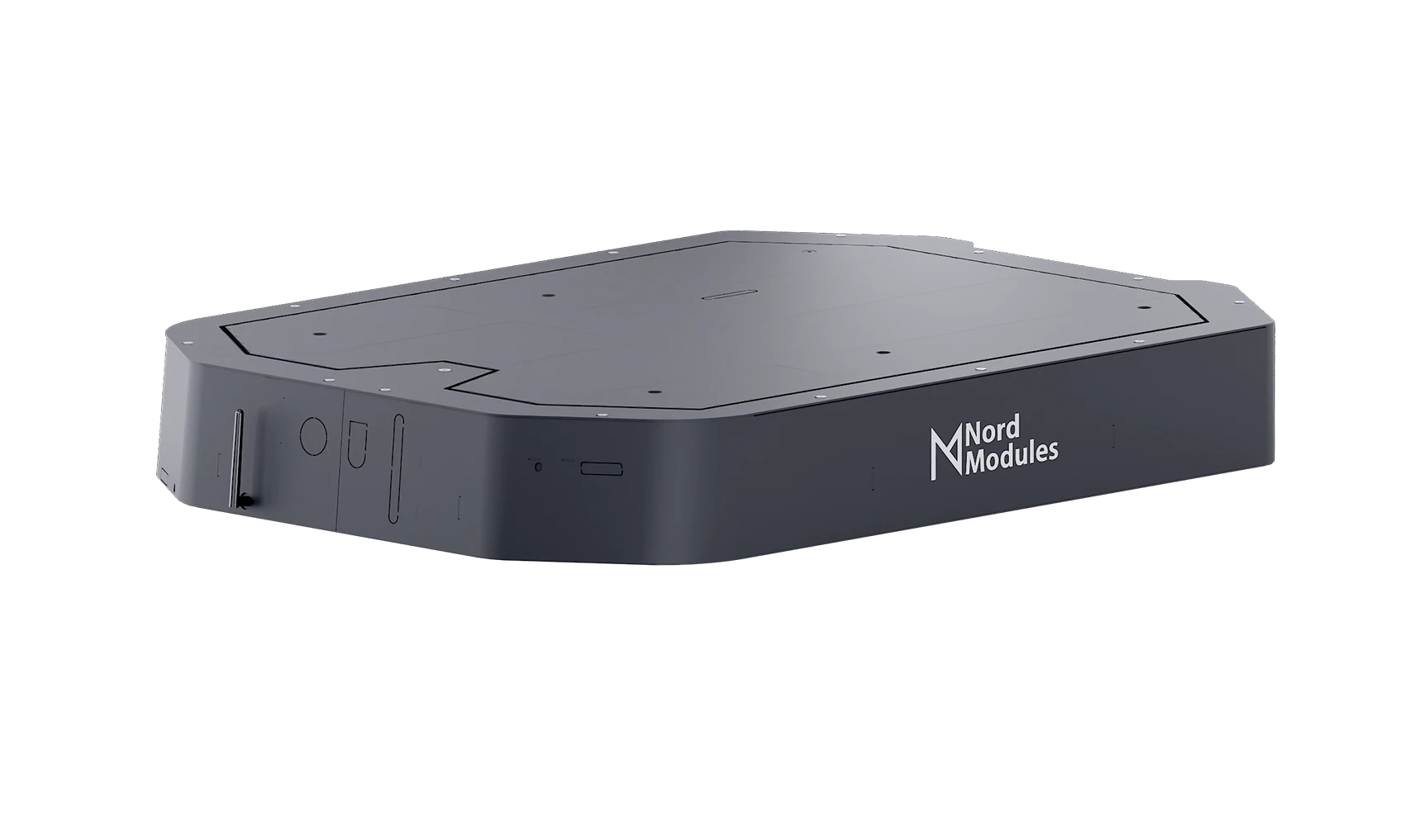

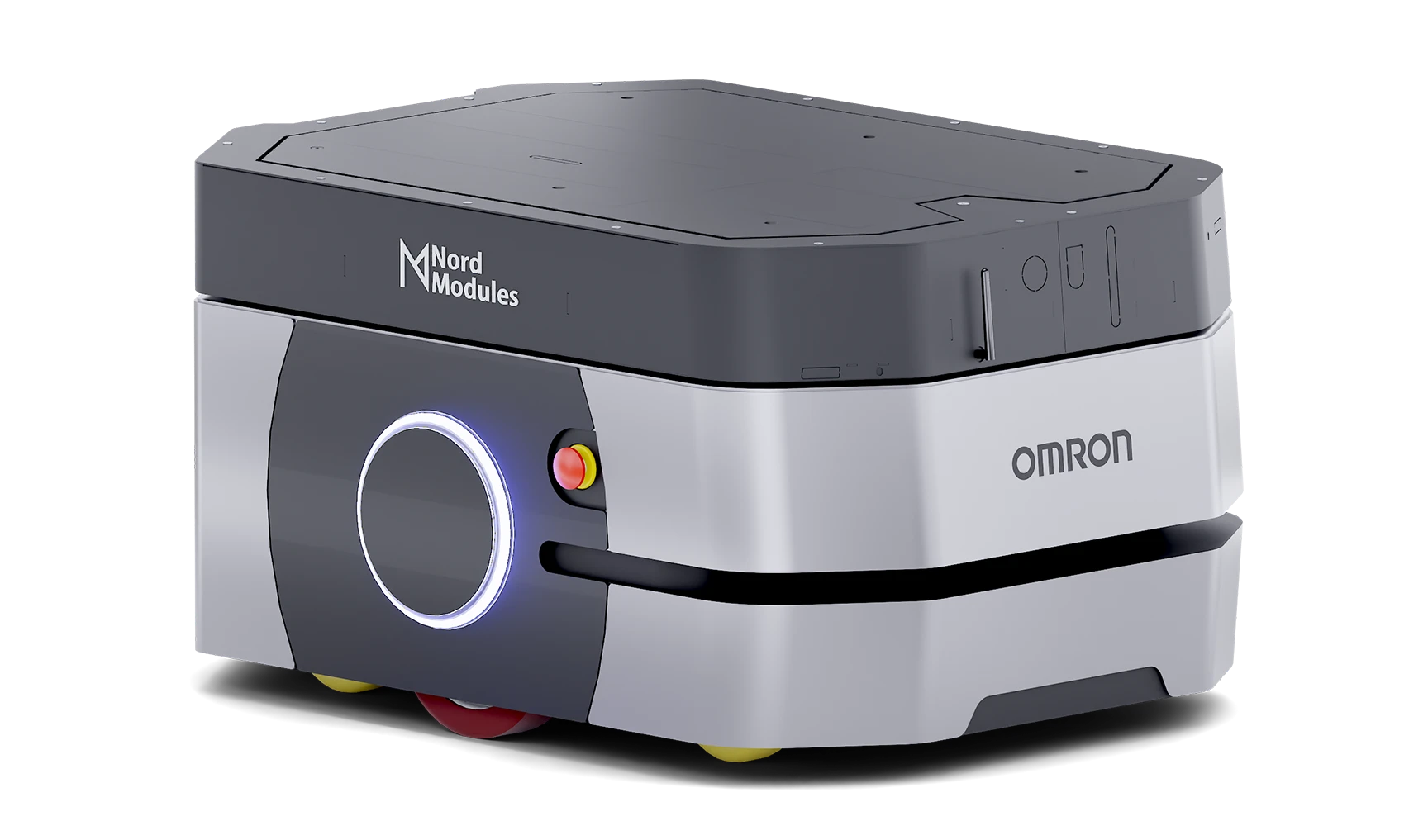

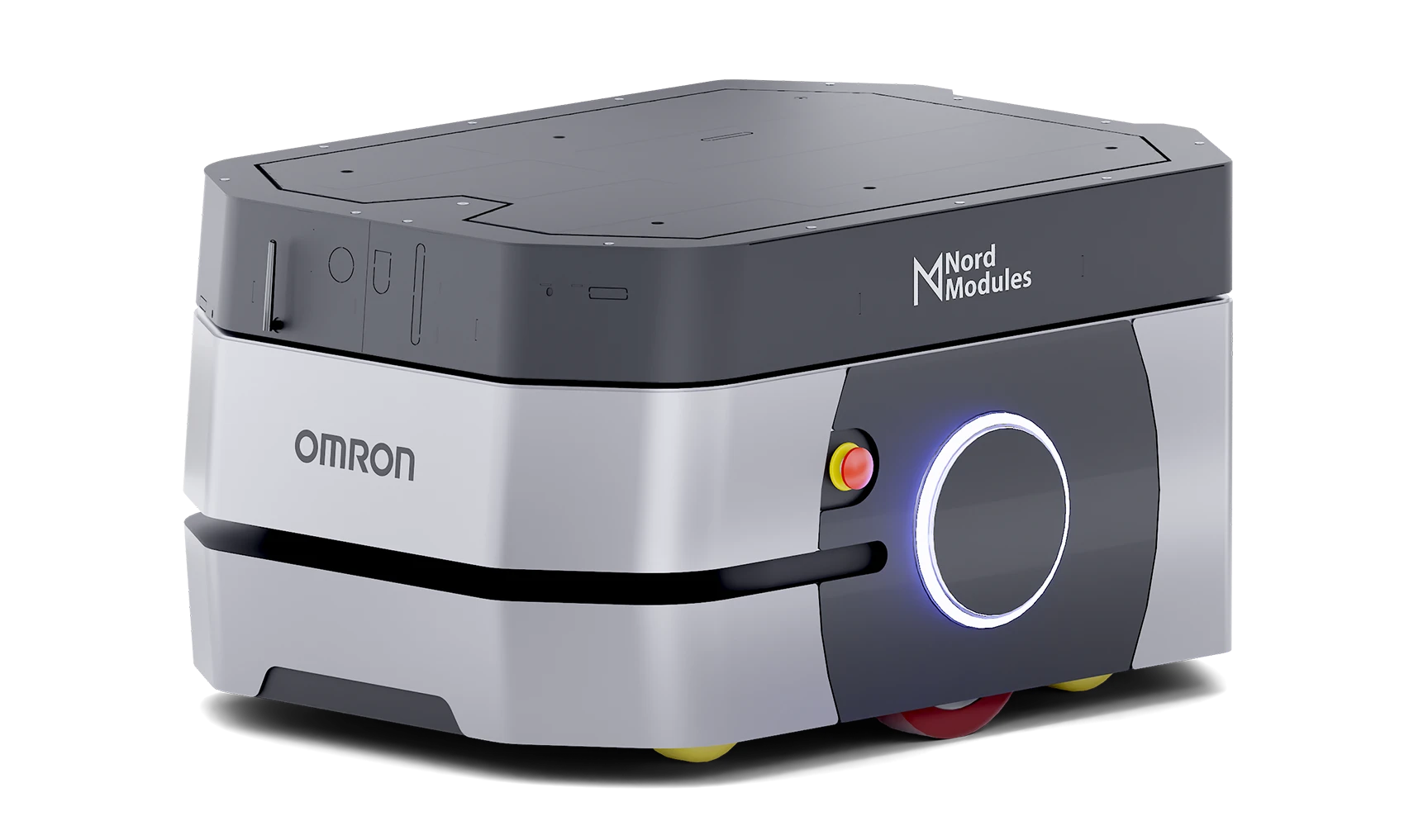

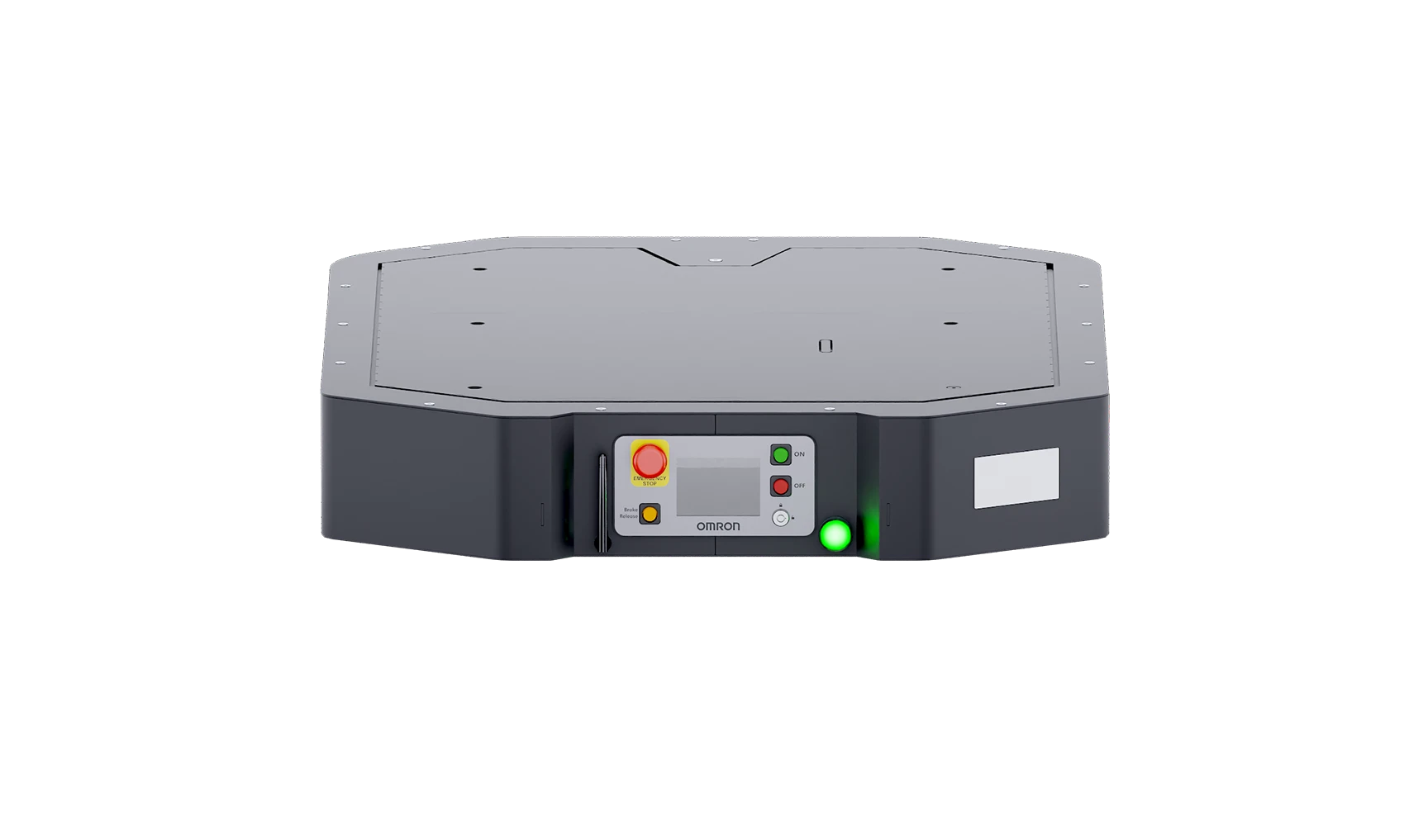

The Nord Quick Lift is a platform lift top module that lets a Omron LD-250 lift and carry pallets, crates, racks and custom load carriers of up to 200 kg. It is built for applications where the pick-up and drop-off points are designed around the customer's own load and stations, rather than around standard Nord Gates.
Robot Compatibility
Omron LD-250
Dimensions (LWH)
944 x 691 x 150 mm | 37 x 27.2 x 5.9 in
Stroke Length
80 mm | 3.15 in
Lifting Speed
up to 14 mm/s | 0.6 in/s
Weight
42 kg | 92.6 lbs
Payload Capacity
200 kg | 411 lbs
Service Interval
Service interval for every 200.000 cycles
Expected Lifespan
Minimum 600.000 lifts at max. payload
Article Nr
NM00075733
A metal lifting platform carries pallets, crates, racks and custom load carriers, with stations built around the load.
Up to 200 kg, rated for a minimum of 600,000 lifts at maximum payload.
Optional payload presence sensor and payload measurement kit confirm the load and its weight before the AMR moves.
The optional code reader shares QR/barcode data with WMS and ERP over Ethernet/IP.
Documentation
Product Sheet Dimension Drawings
3D Files
STEP-file (Nord Quick Lift 200-588)
GET A QUOTE
600.000+ lifts at max. payload
Optional Add-Ons

Tailor this product to specific operational needs. Quick to set up and adaptable to various workflows, they deliver a complete and flexible automation solution for optimized efficiency.

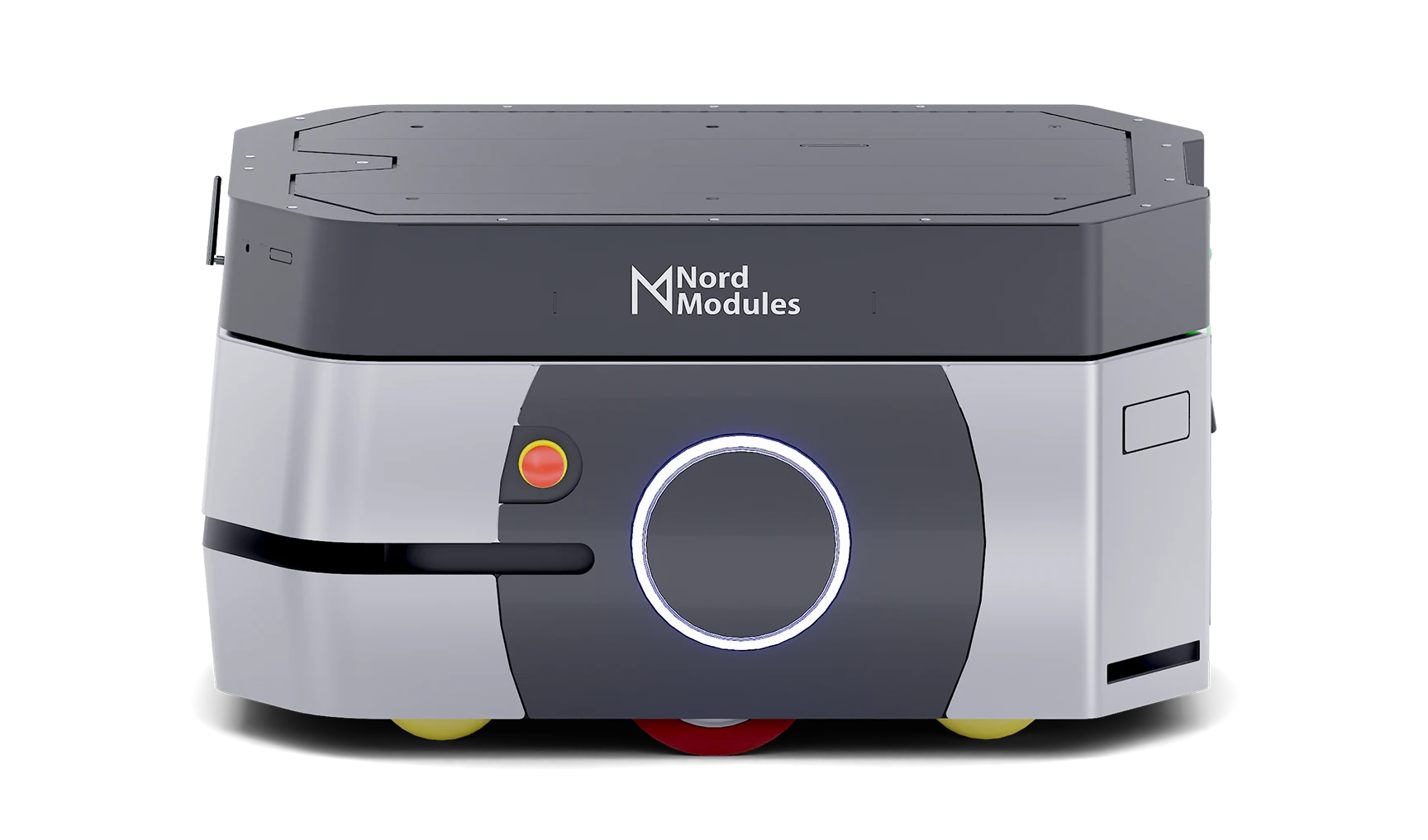

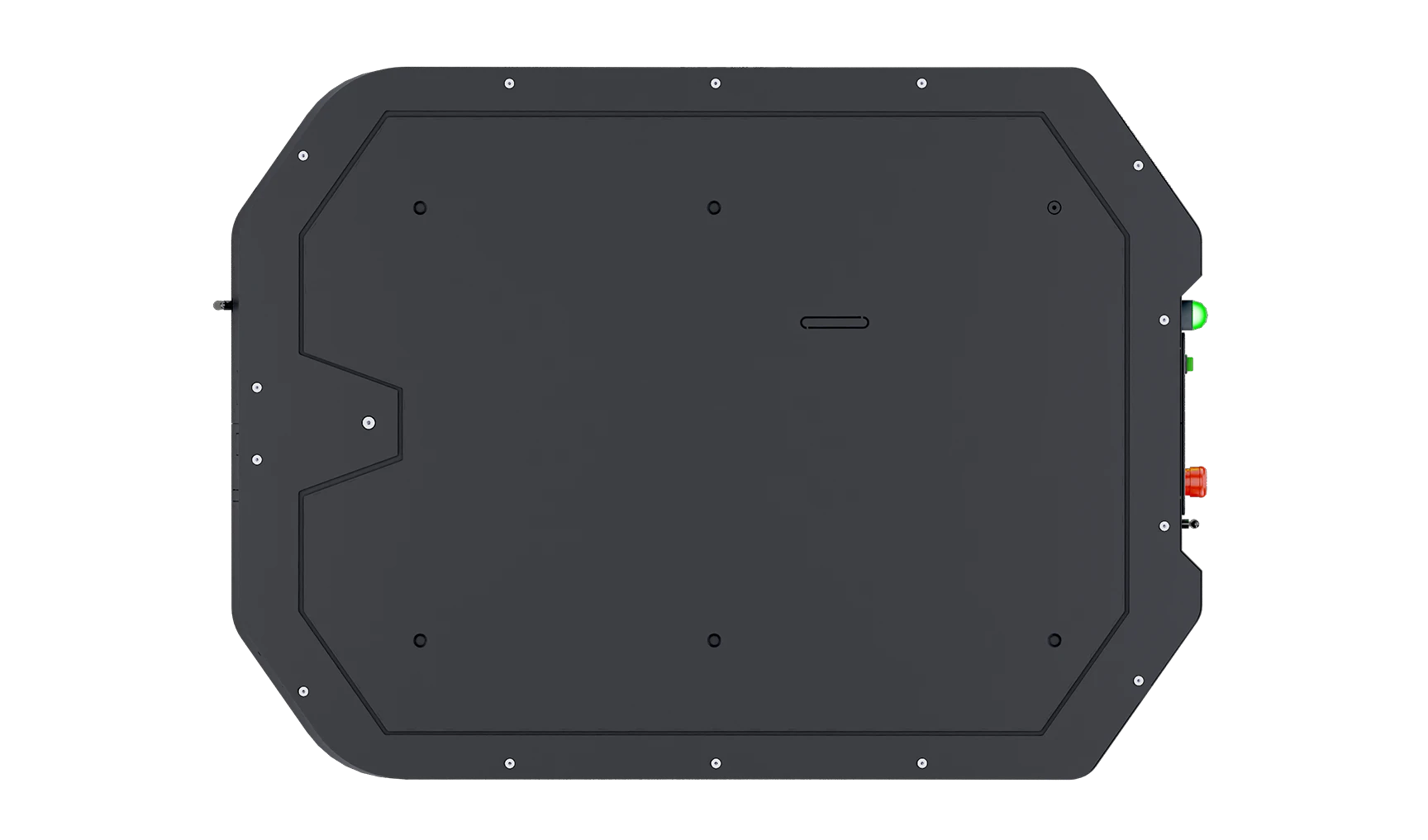

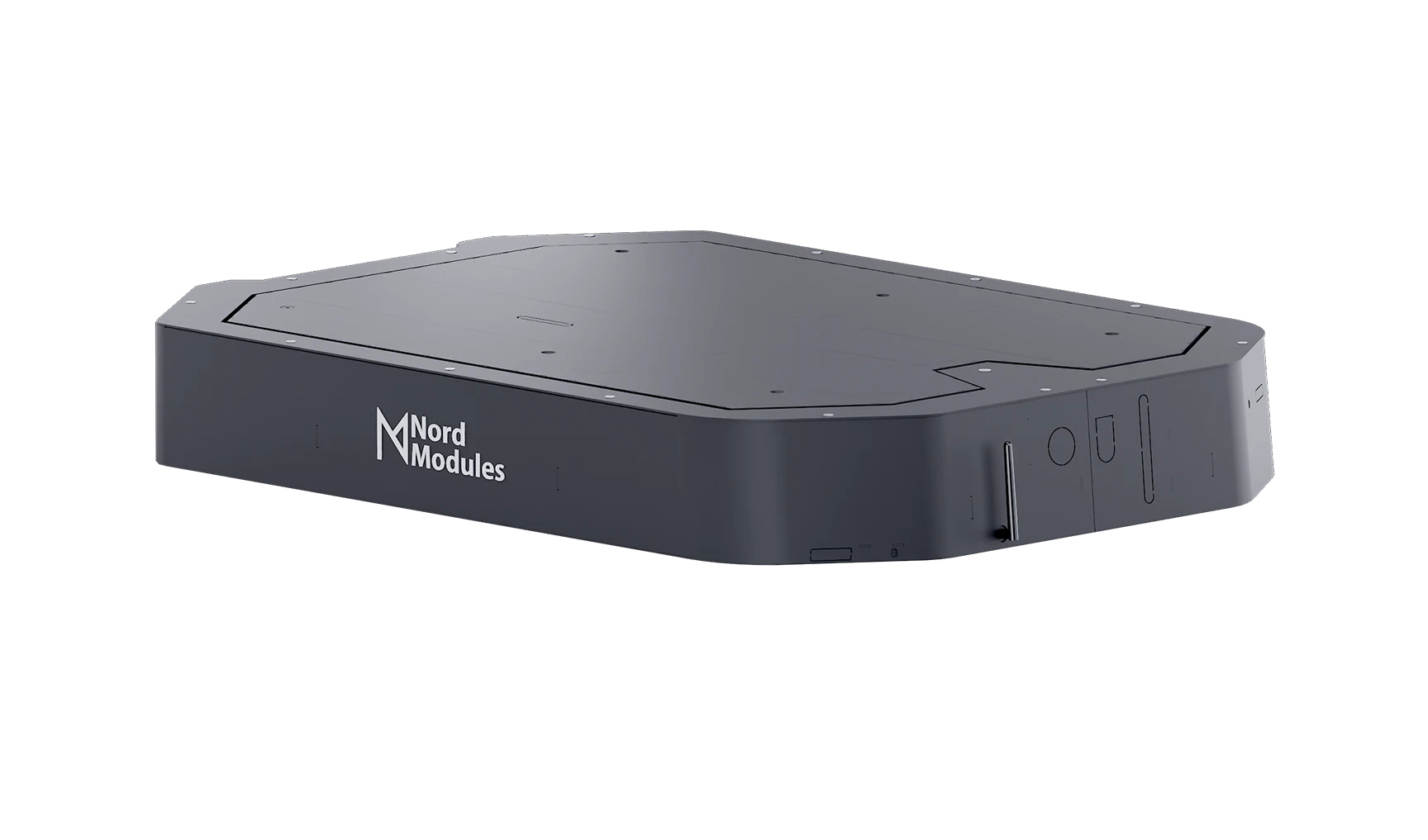

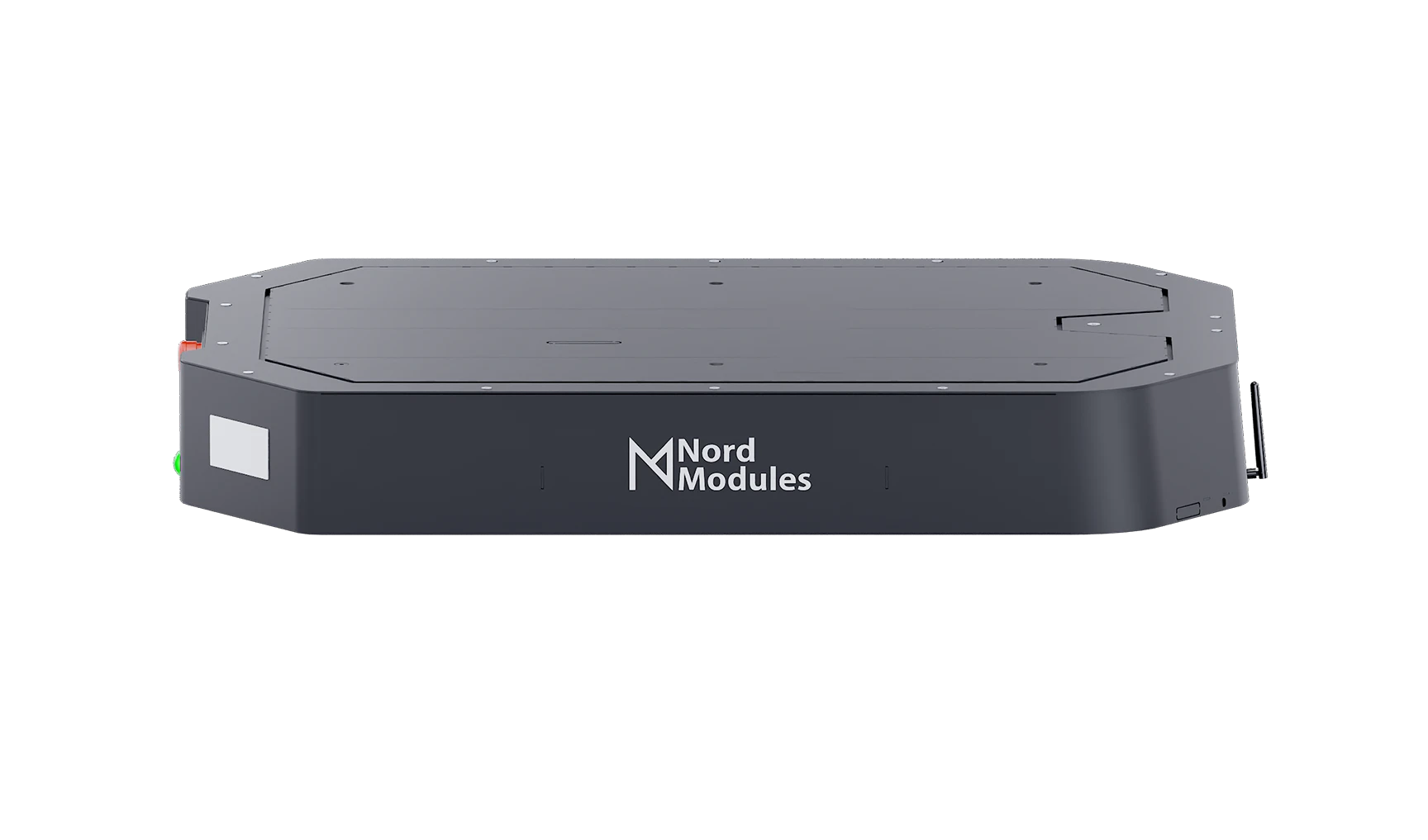

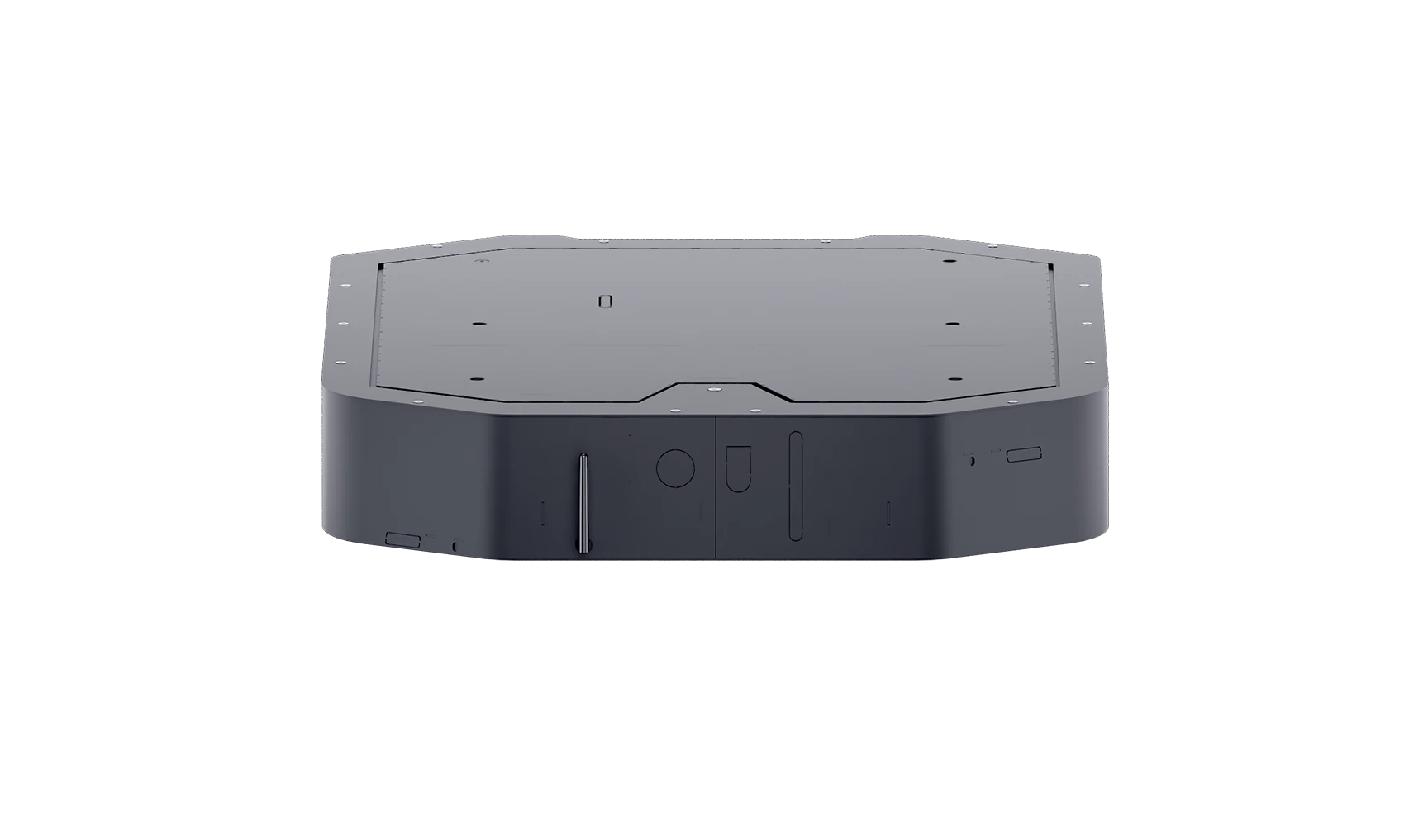

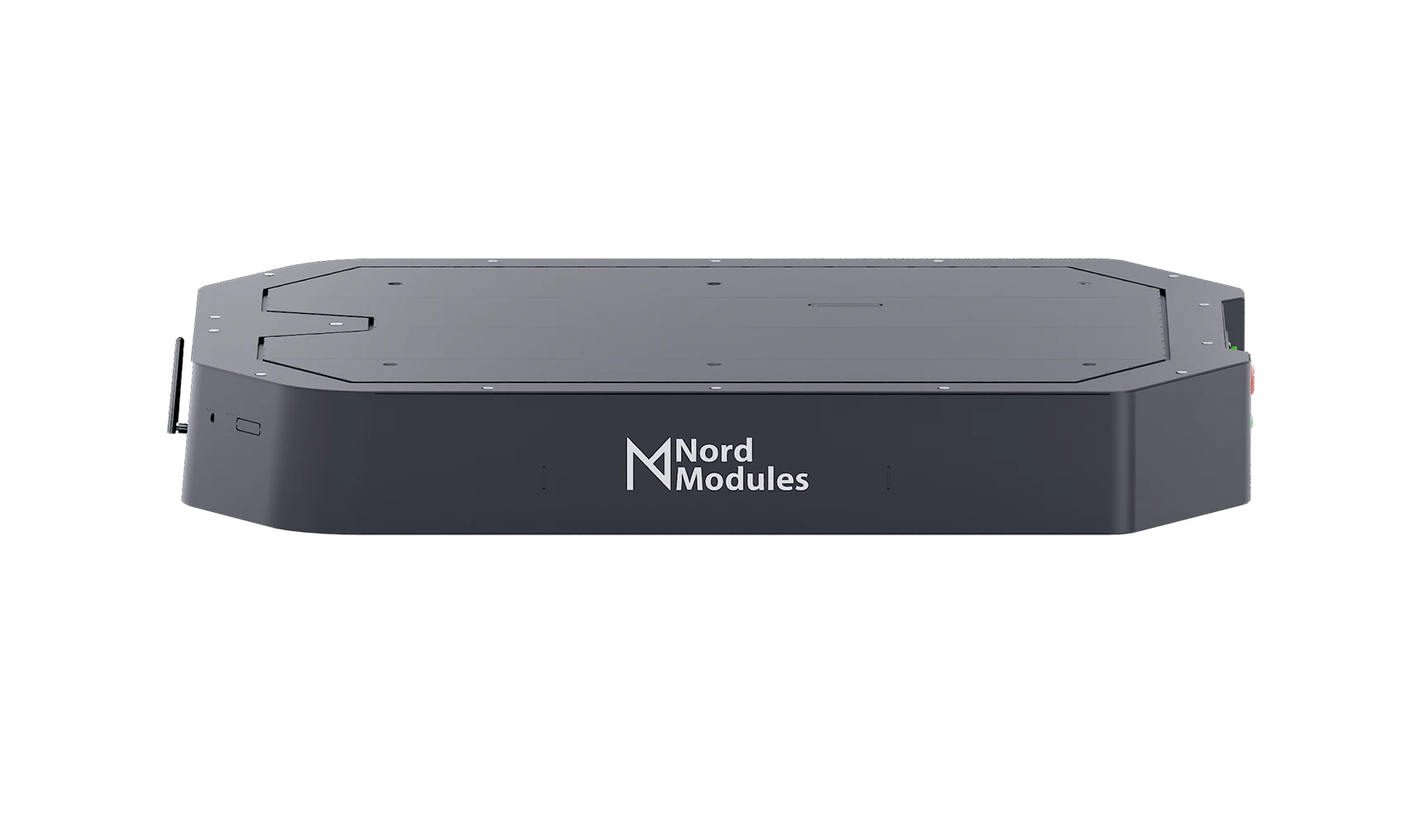

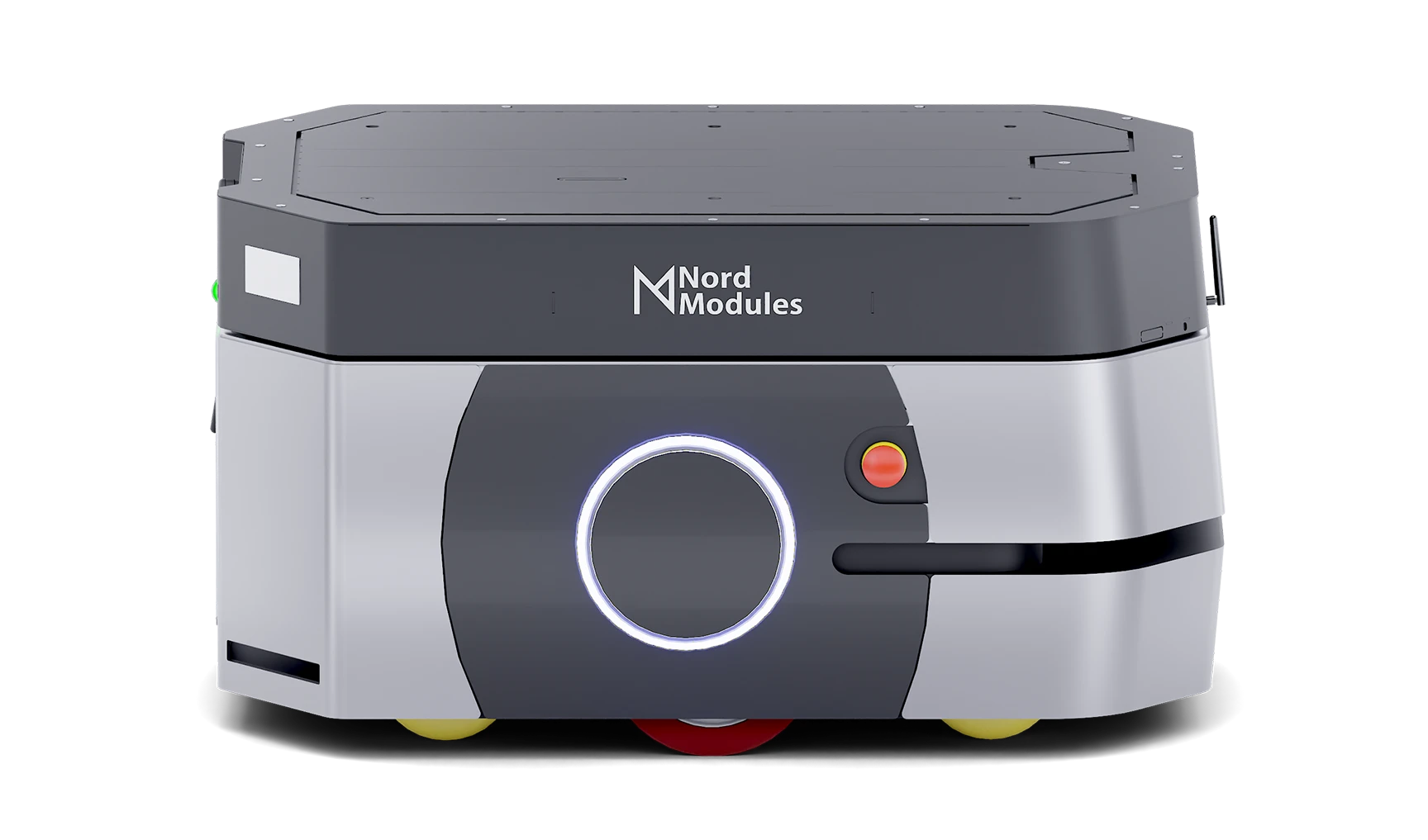

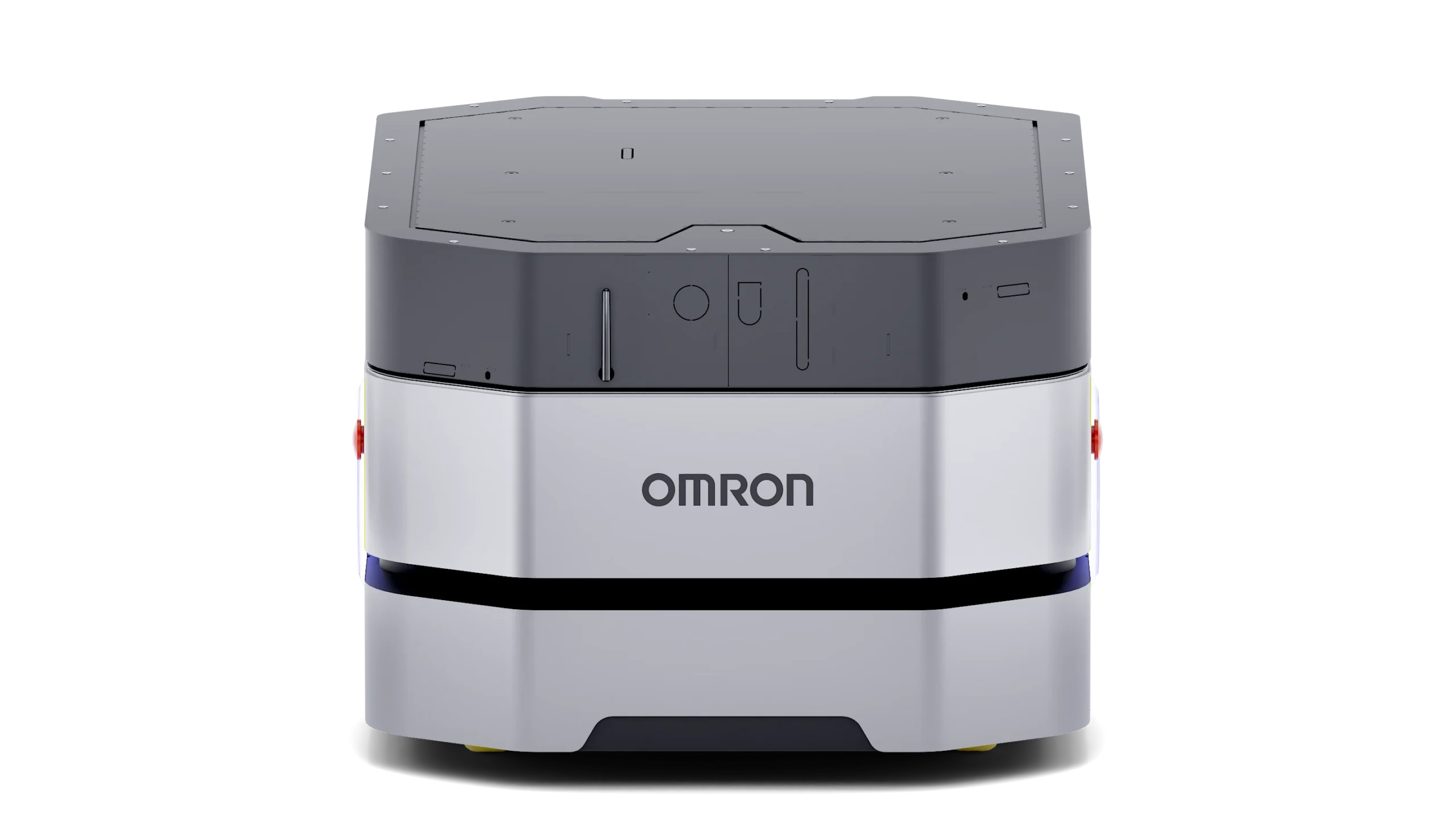

Nord Quick Lift 200-588-LD250 — view 1

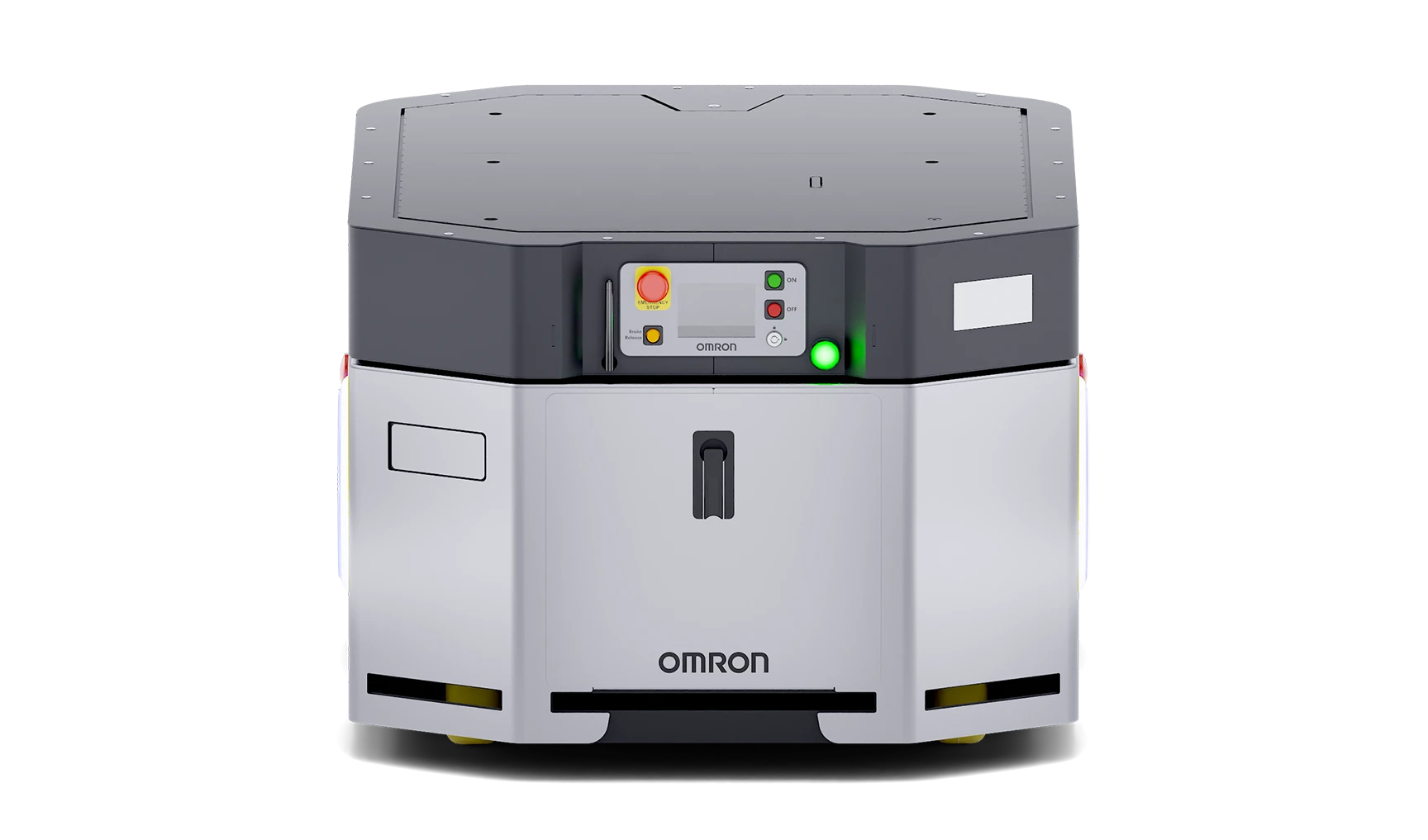

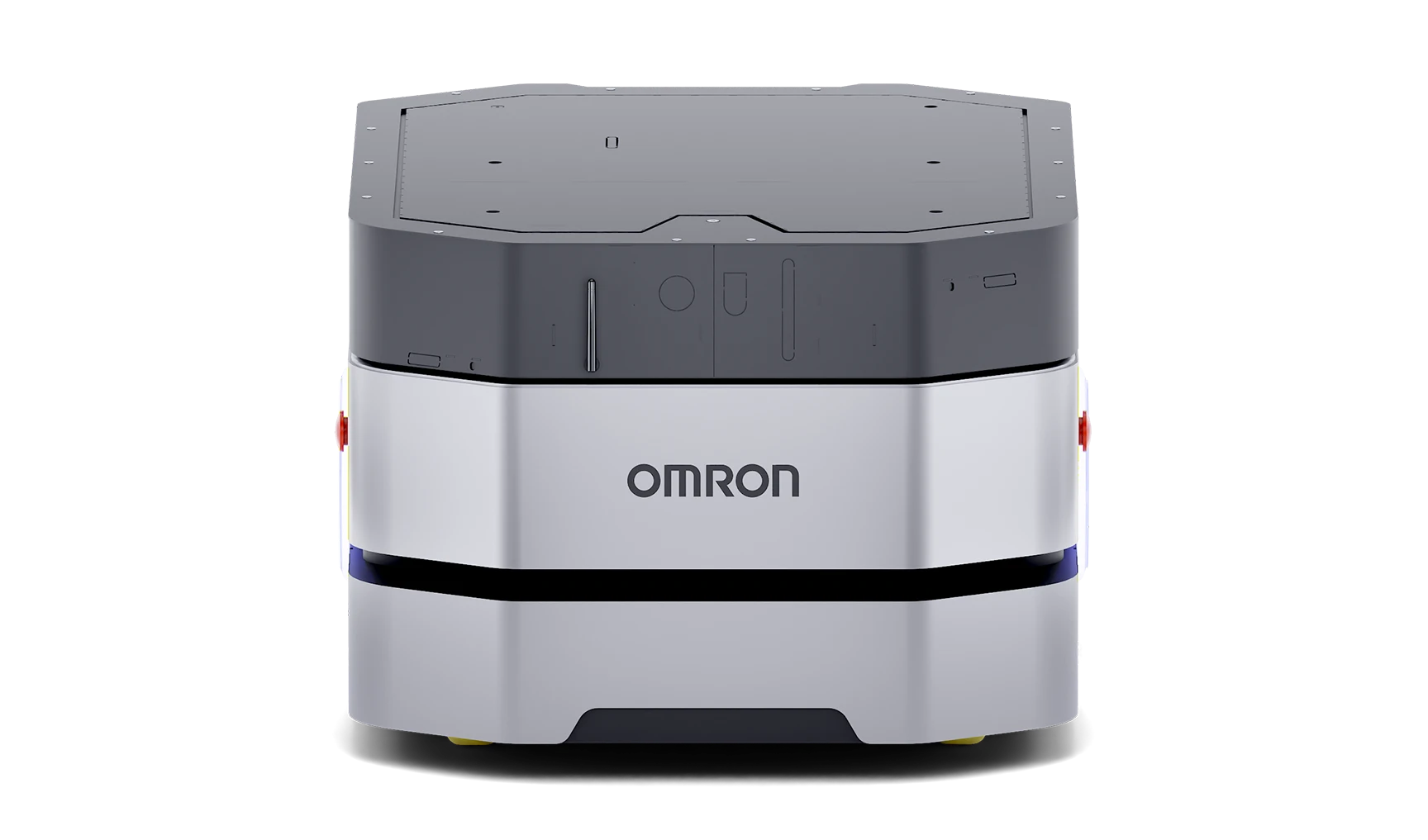

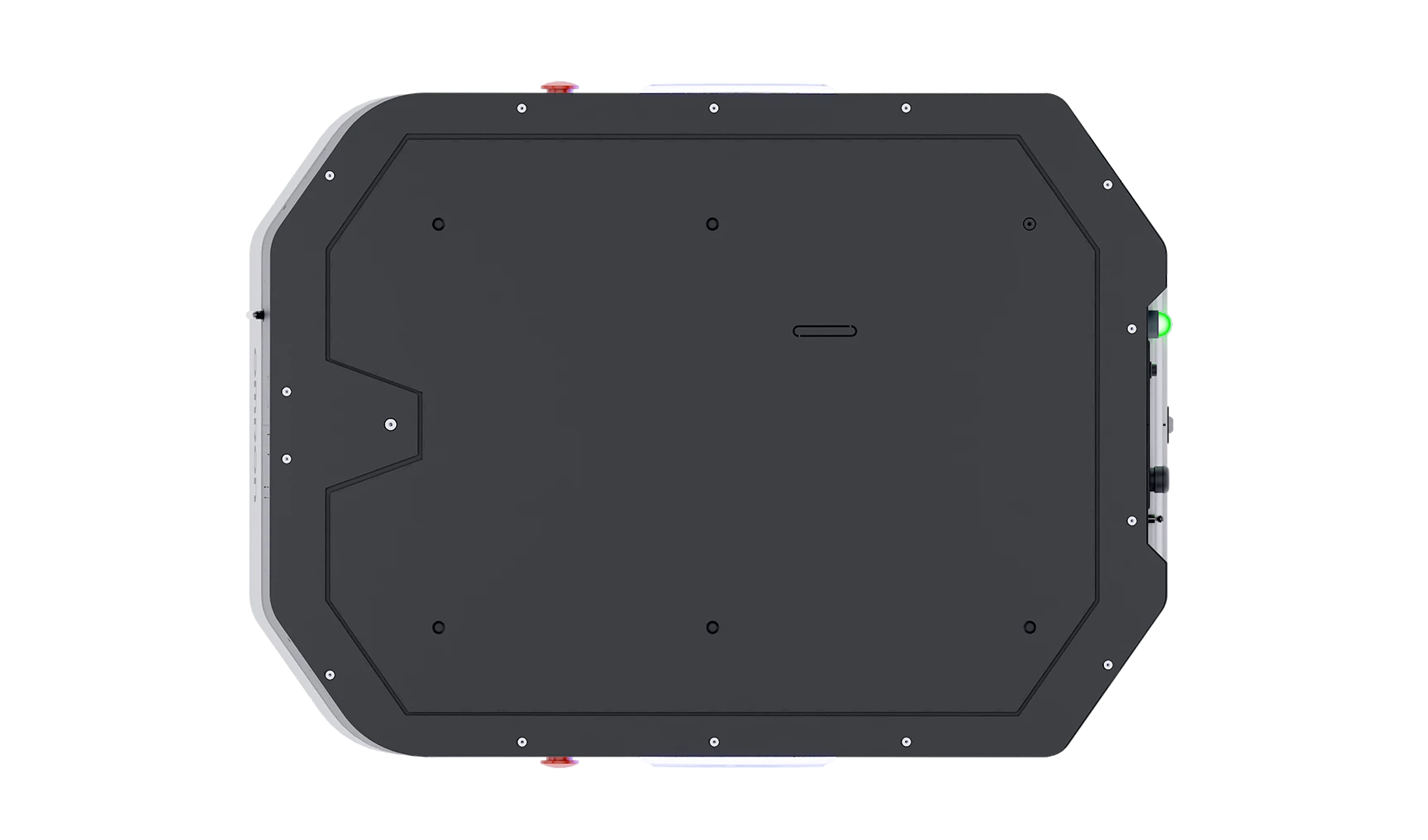

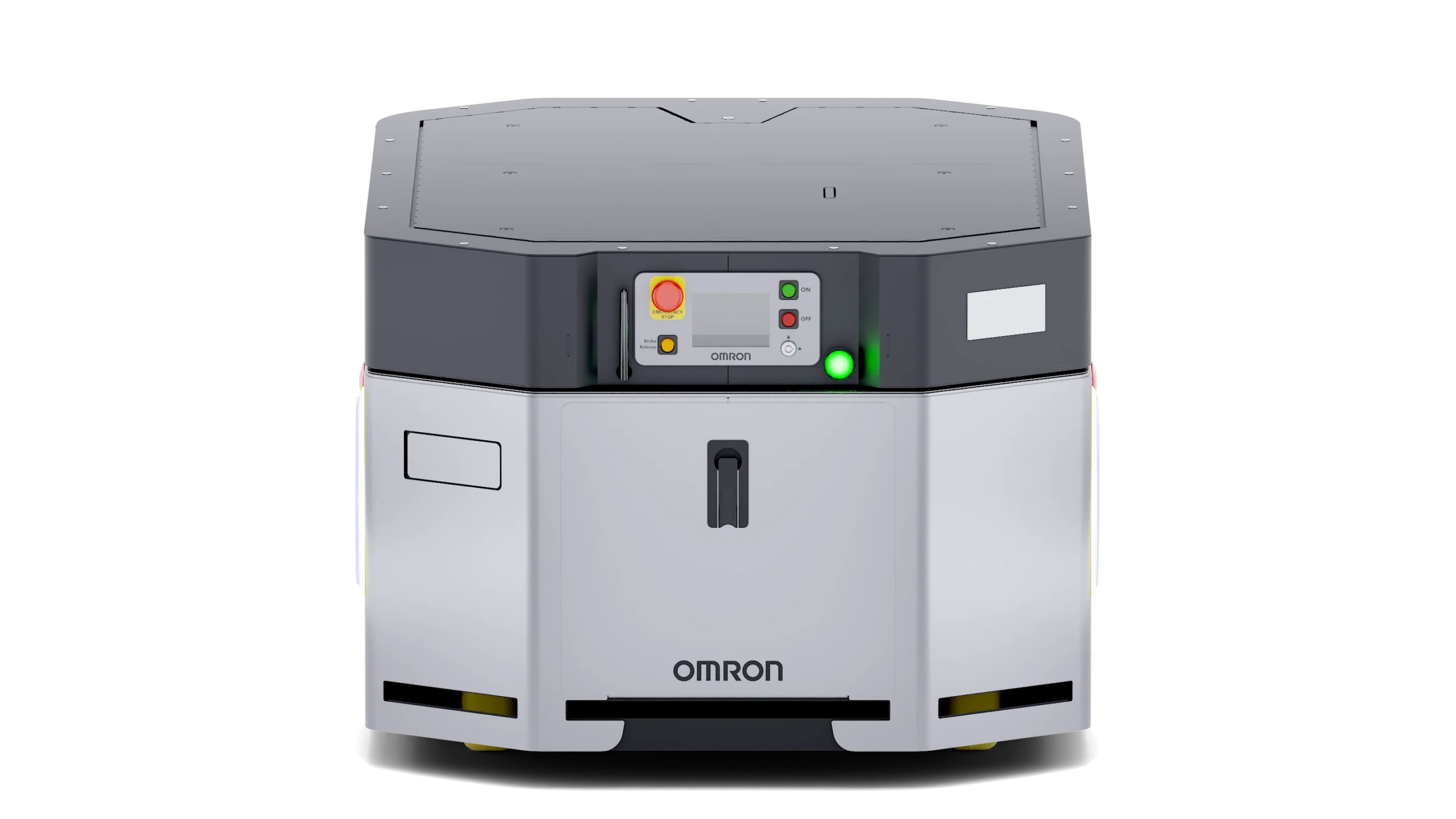

Nord Quick Lift 200-588-LD250 — view 2

• Increased safety
• Blue light spot center on the floor 1200mm in front of the AMR
• Internal mounted, Front
• Plug and play
• QM Prewired

Article Nr - NM00111498

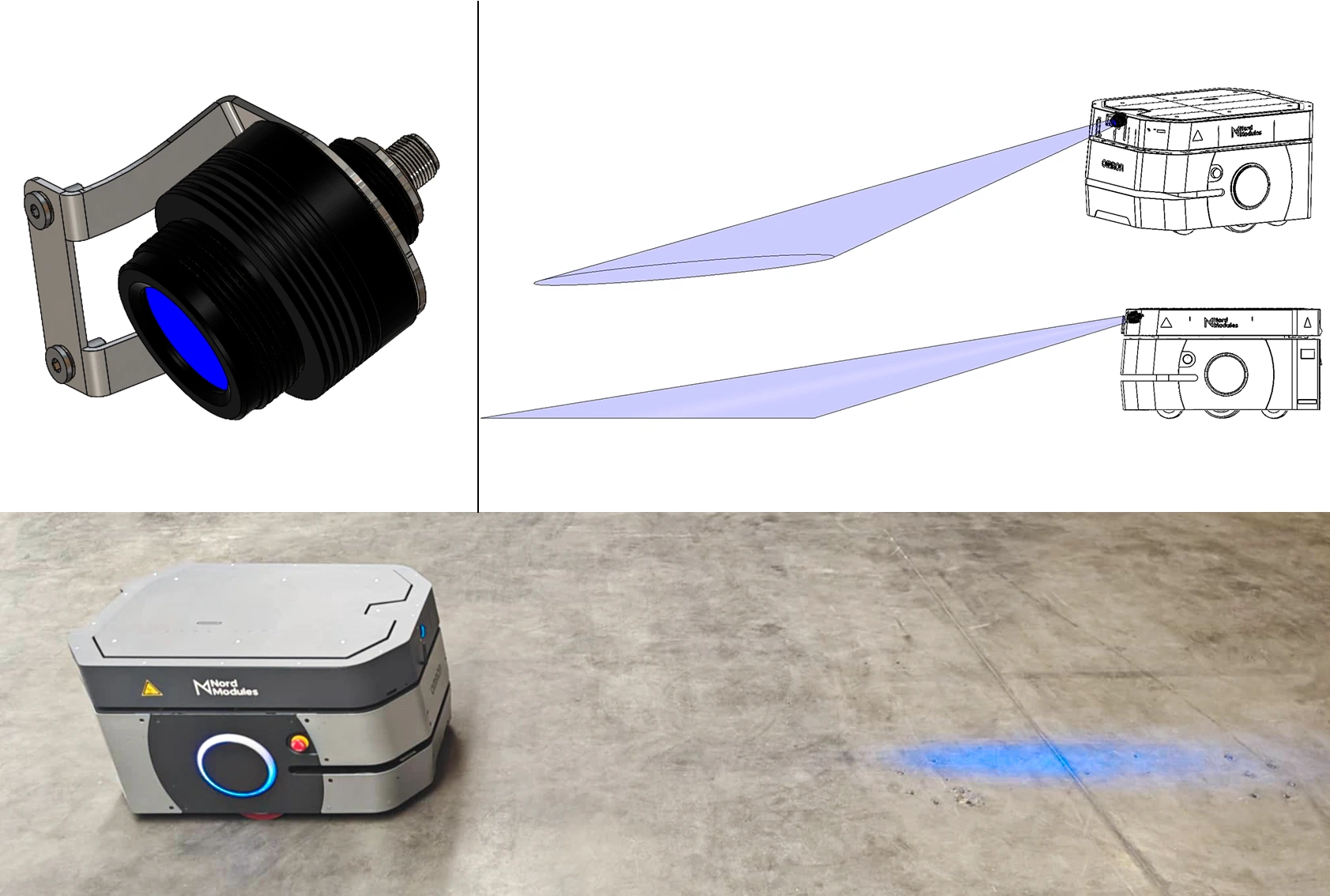

Integrated Blue Light Kit - NM00111498

• Recognize different types of goods placed on P&D station. Enabling Quick Mover to track different goods.
• Barcode scanning
• QR-Code scanning
• 300mm range
• Adjustable scanner
• Scanning in bright and dark surroundings

Article Nr - NM00306536

Integrated Code Reader Kit - NM00306536

• Detects on P&D Station
• QM mounted
• Internal mounted, Front
• Adjustable sensor
• Plug and play
• QM prewired
• Photoelectrical sensor
• 1000mm sensor range

Article Nr - NM00038841

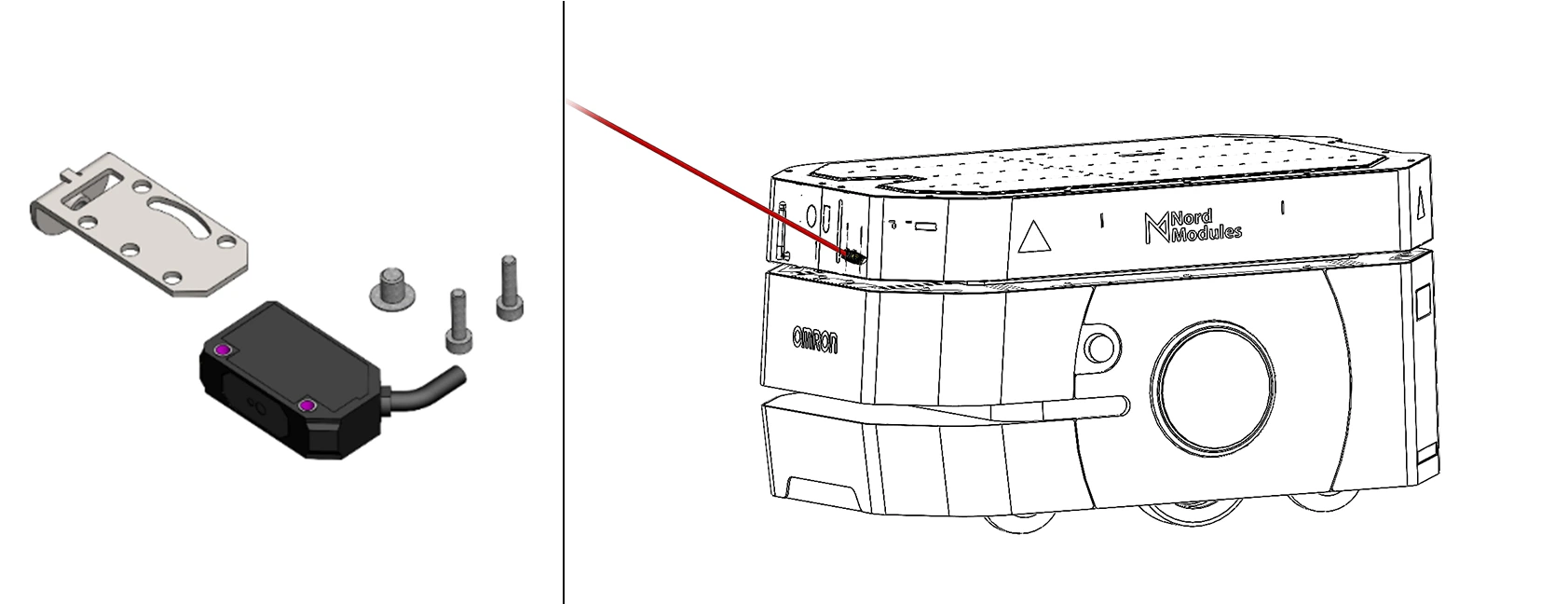

Sensor Dimension Drawings Payload Presence sensor P&D - NM00038841

• Detects on Quick Mover
• Internal mounted
• Plug and play
• QM prewired
• Photoelectrical sensor
• 1000mm sensor range

Article Nr - NM00088637

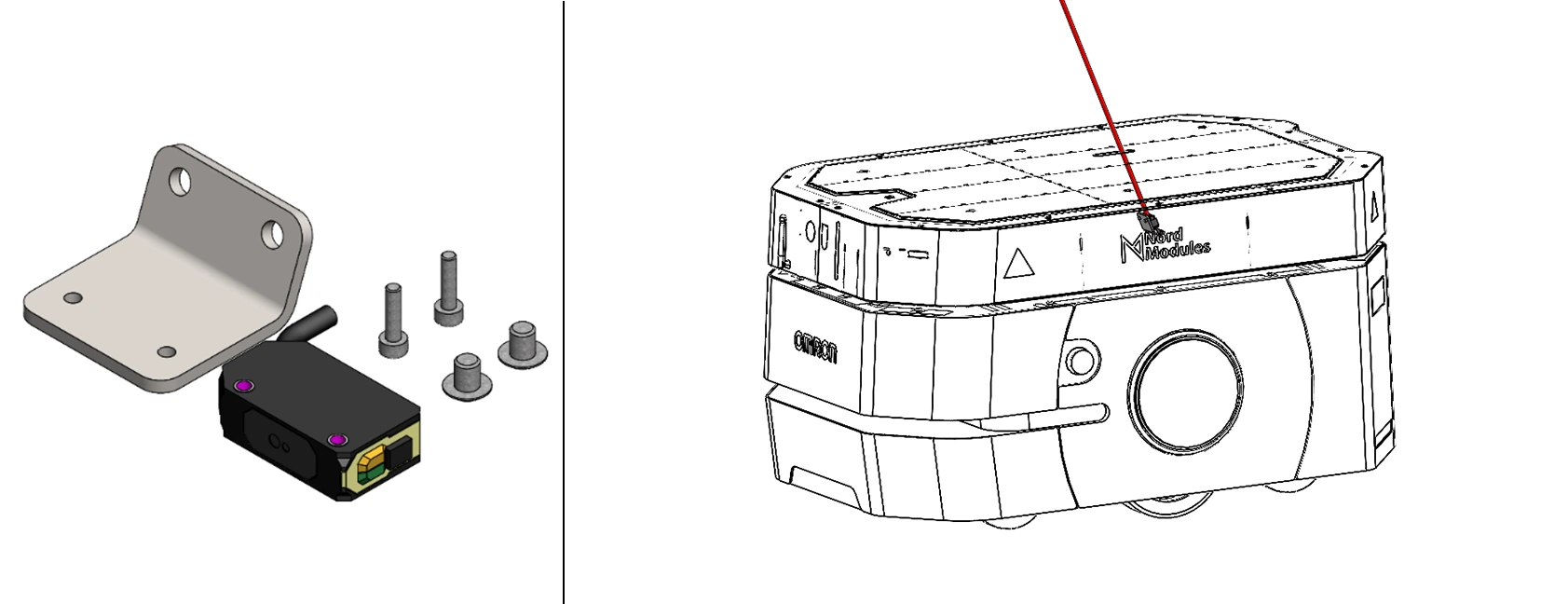

Sensor Dimension Drawings Payload detection sensor QM - NM00088637

• ±2% off 200kg
• Patented solution
• TBA

• Increased safety
• Increased visibility
• Stack light indicator check
• Plug and play
• QM Prewired
• Height from ground: 1045mm

Article Nr - NM00046386

Sensor Dimension Drawings

• Standard solution suitable for docking to a P&D with 600-800mm from ground in 50mm intervals
• For custom heights contact Nord Modules sales department

Retroreflective sensor
Compatible with "On the Flight Gate"
TBA
