Nord Quick Mover 220-510

Nord Quick Mover 220-510

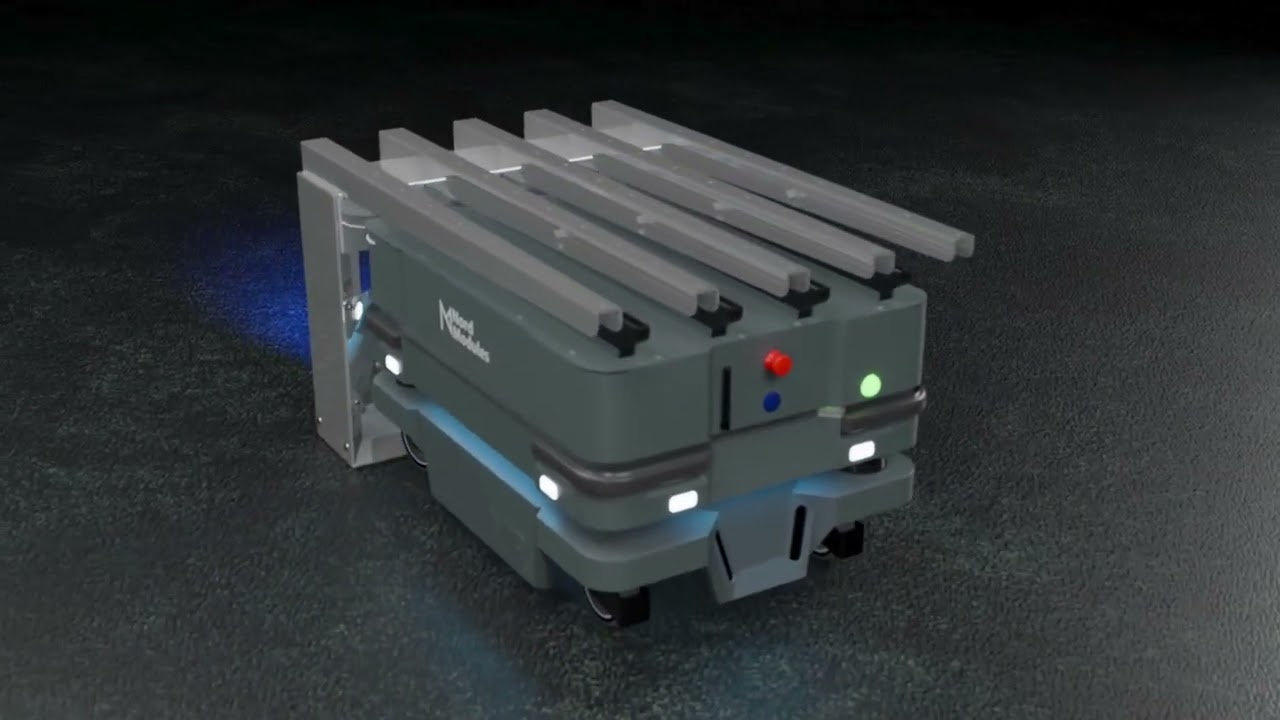

The Nord Quick Mover is a lifting top module that turns a MiR 250 into an automated transport link between stations. It picks up and delivers loads at Nord Gates, which can sit at either end of an existing conveyor, feeding the line or taking goods off it, or work as standalone pickup and drop-off points.
Robot Compatibility
MiR250
Dimensions (LWH)
780 x 560 x 199 mm | 30.7 x 22.05 x 7.8 in
Stroke Length
80 mm | 3.15 in
Lifting Speed
up to 23 mm/s | 0.9 in/s
Weight
36.5 kg | 80.5 lbs
Payload Capacity
210 kg | 463 lbs
Service Interval
Service interval for every 200.000 cycles
Expected Lifespan
Minimum 600.000 lifts at max. payload
Article Nr
NM00286533
Gates mount at the end of stationary conveyors, so the AMR plugs into your line without a rebuild.
The same Quick Mover serves conveyor ends, workstations and simple floor-level pickup and drop-off points.
Multiple sizes plus horizontal, +5° and −5° versions match the height and flow of each station.
Fixed pricing and short deployment instead of a one-off engineering project.
Rated for 600,000 lift cycles, with components tested for vibration, impact and daily wear
Documentation
Product Sheet Dimension Drawings
3D Files
STEP-file (Nord Quick Mover 220-510)
GET A QUOTE
Showcase
Explore the design, features, and real-world performance
600.000+ lifts at max. payload
Optional Add-Ons

Tailor this product to specific operational needs. Quick to set up and adaptable to various workflows, they deliver a complete and flexible automation solution for optimized efficiency.

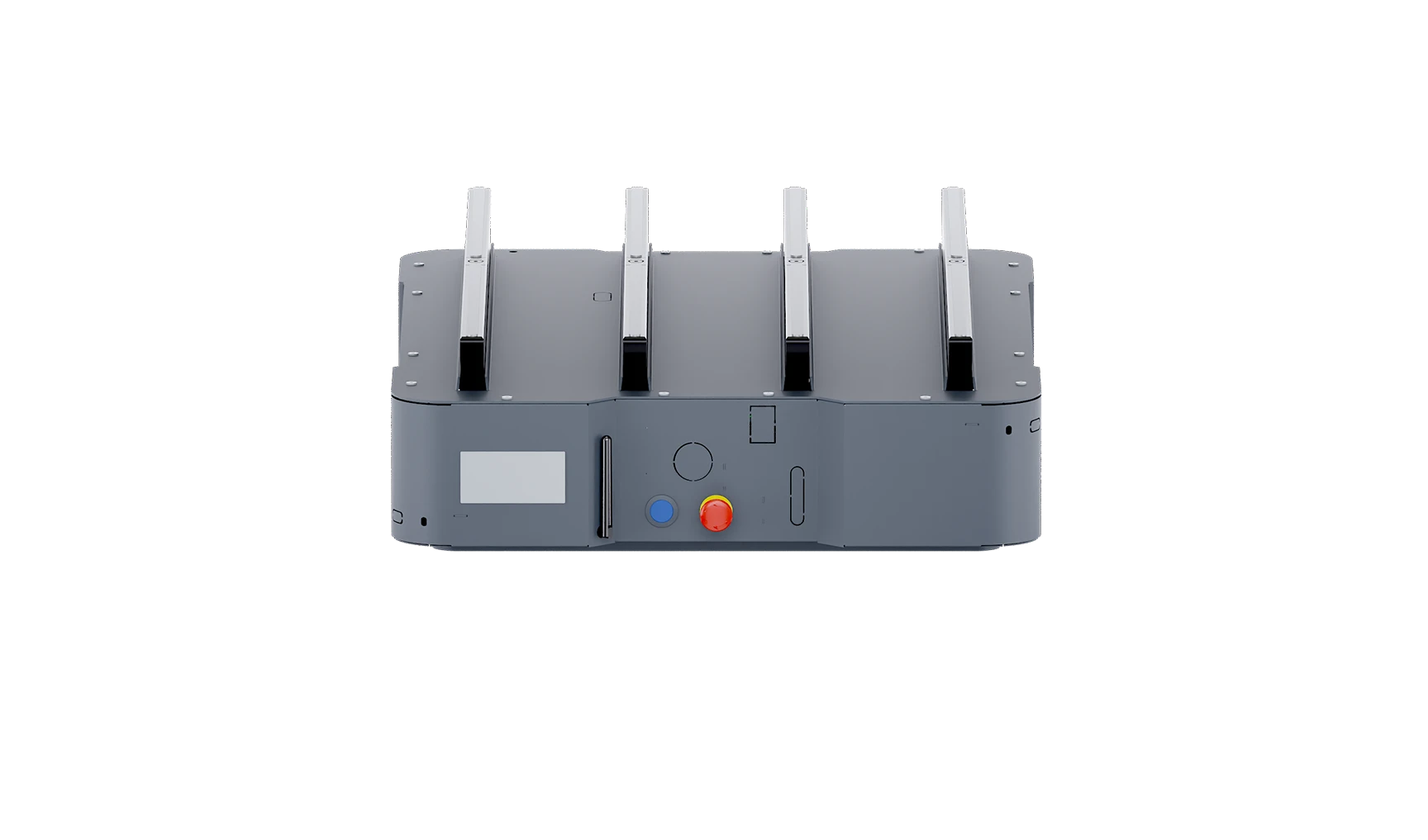

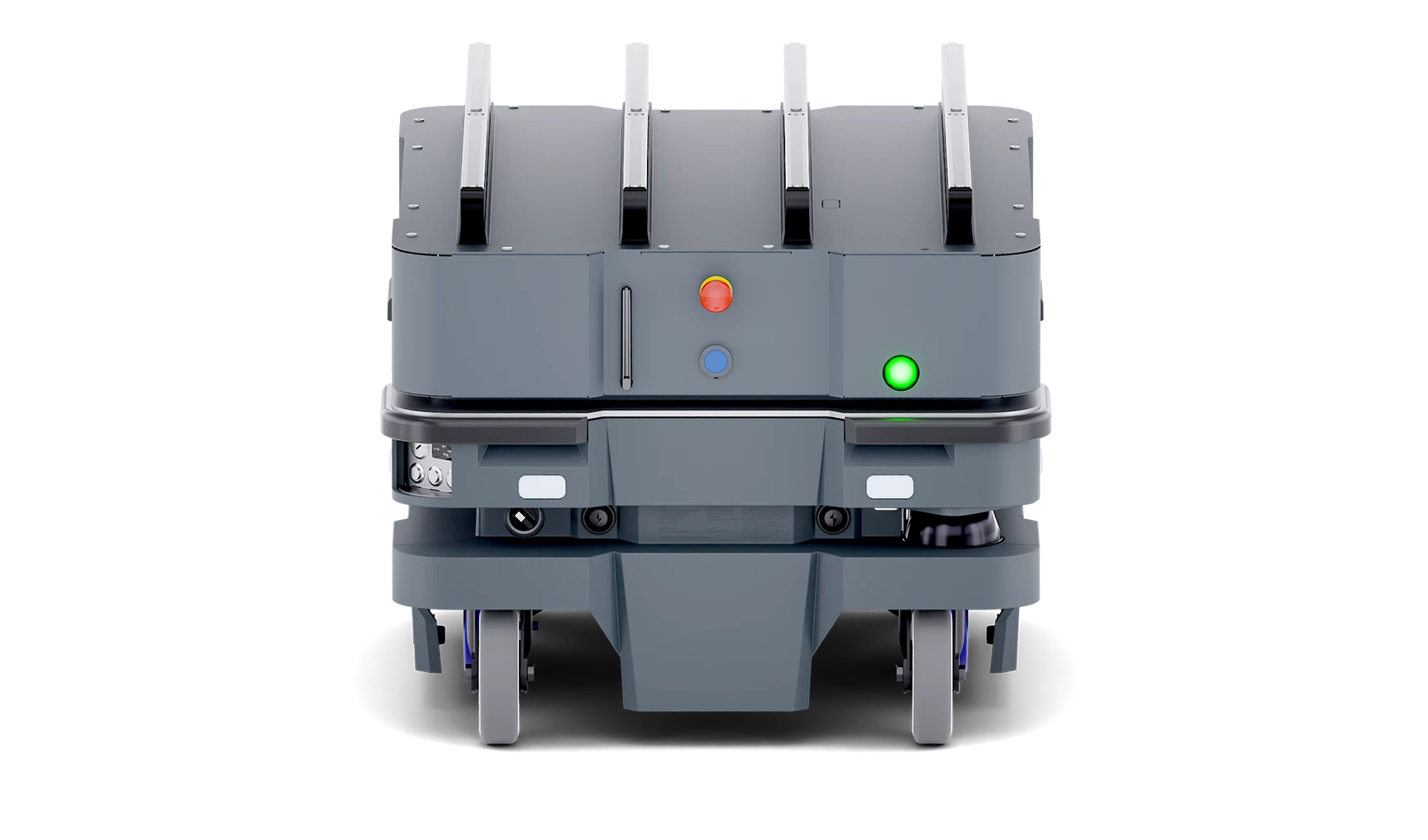

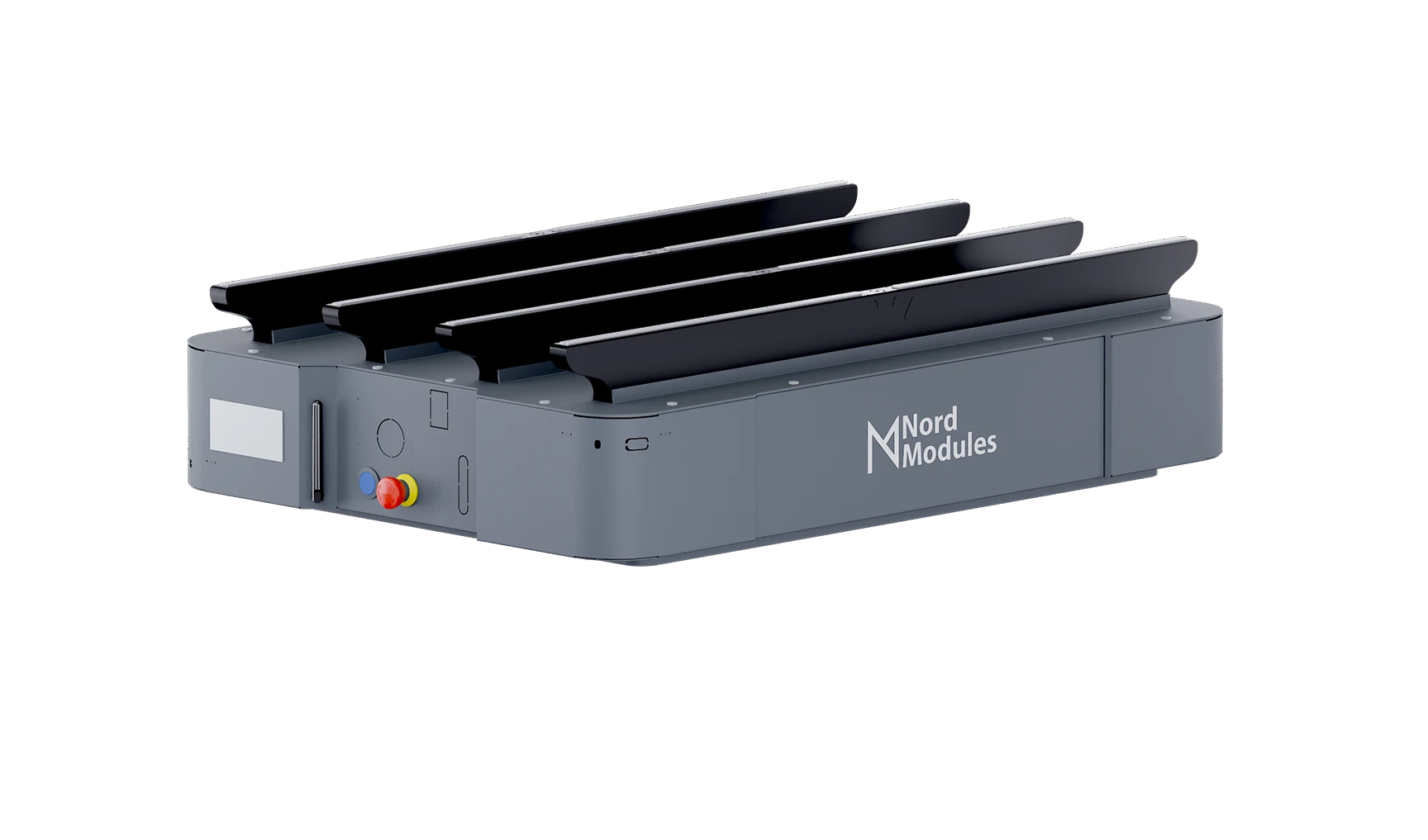

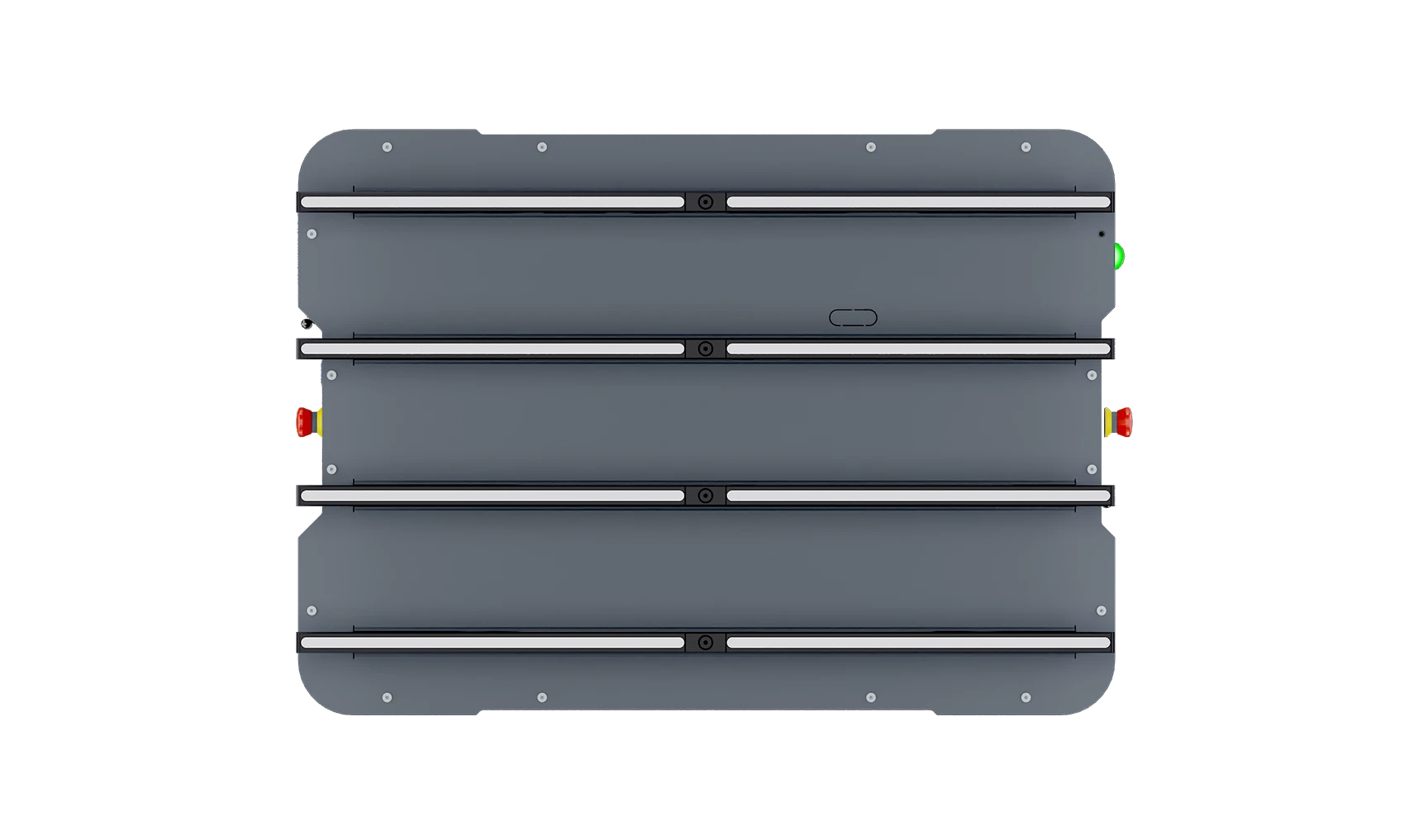

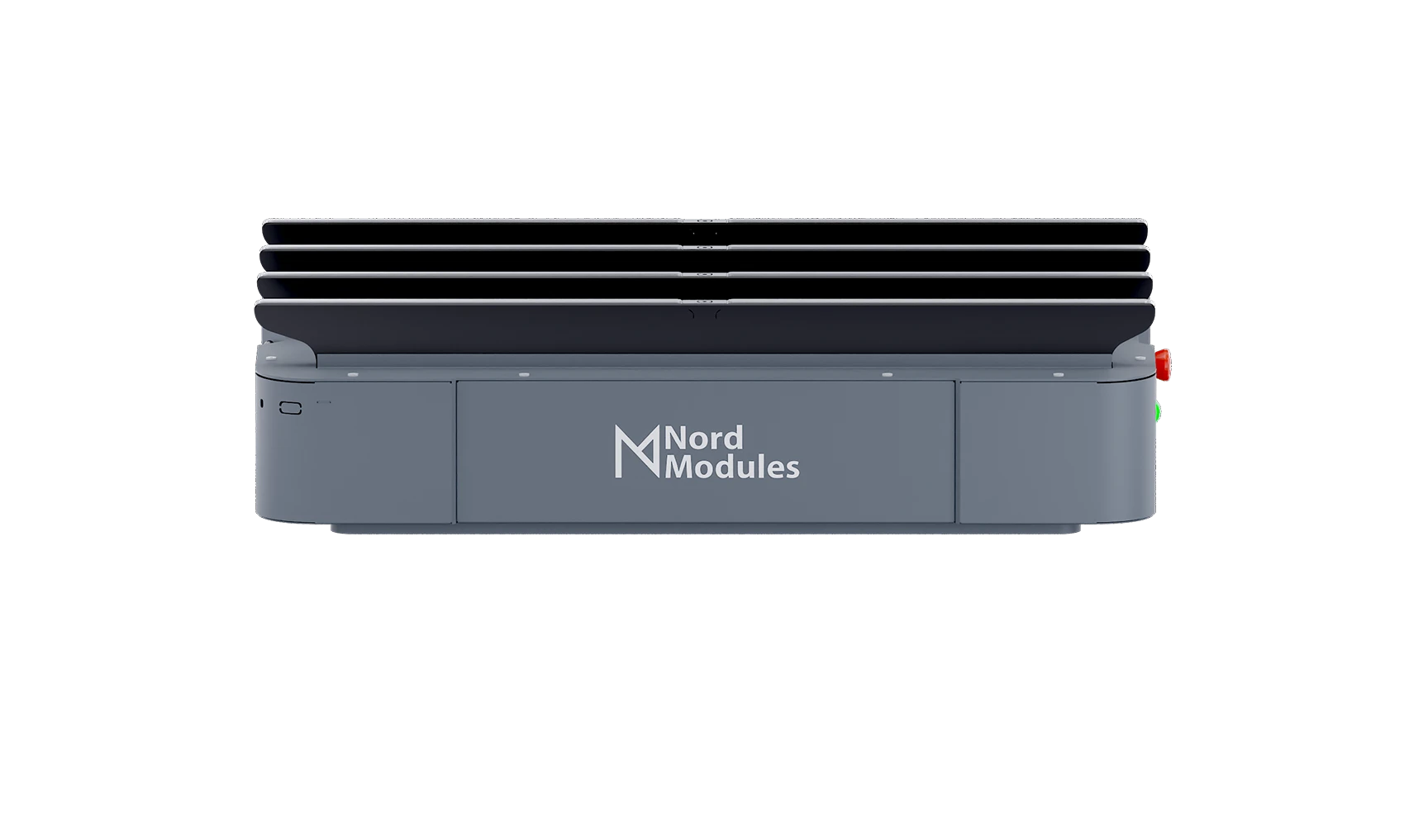

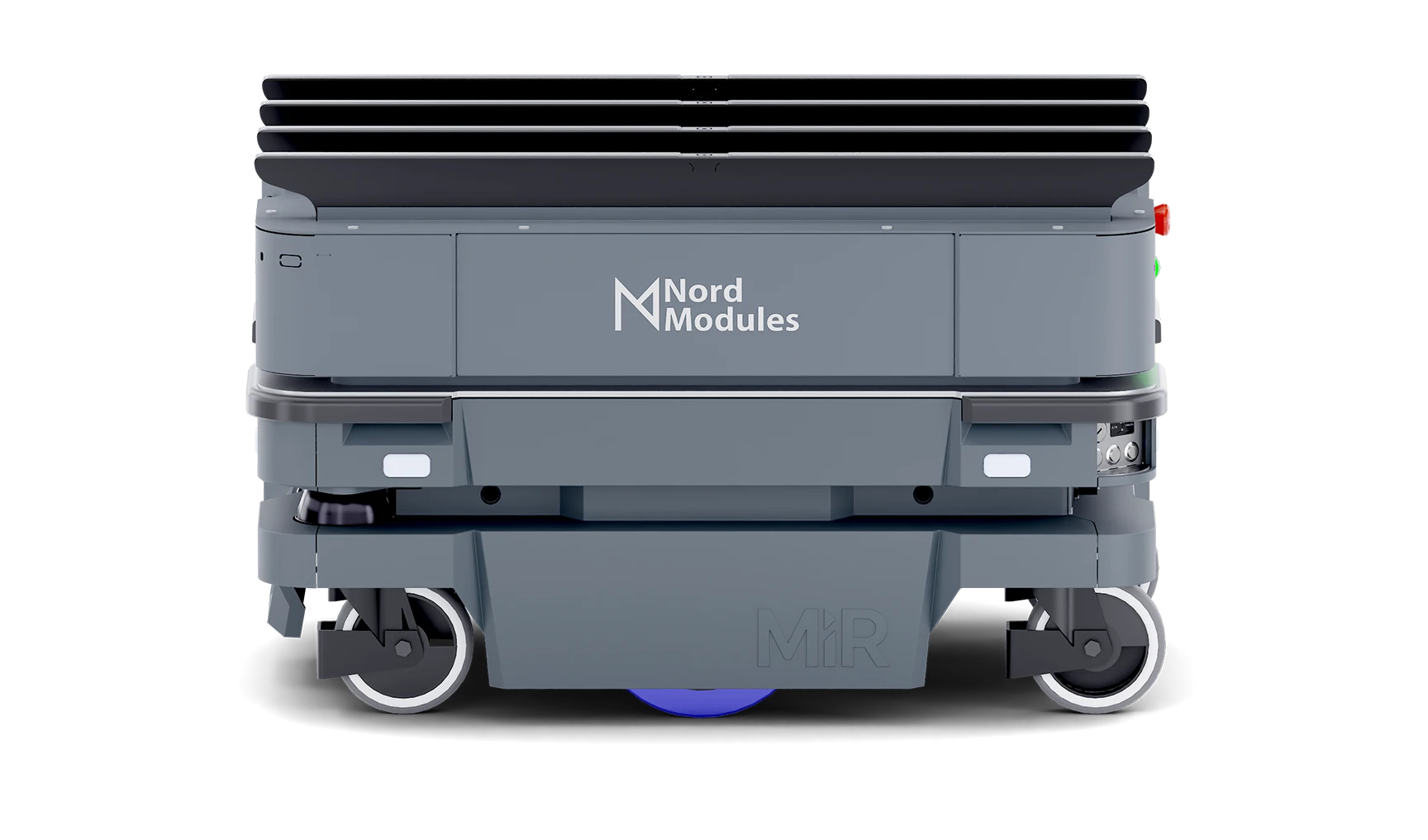

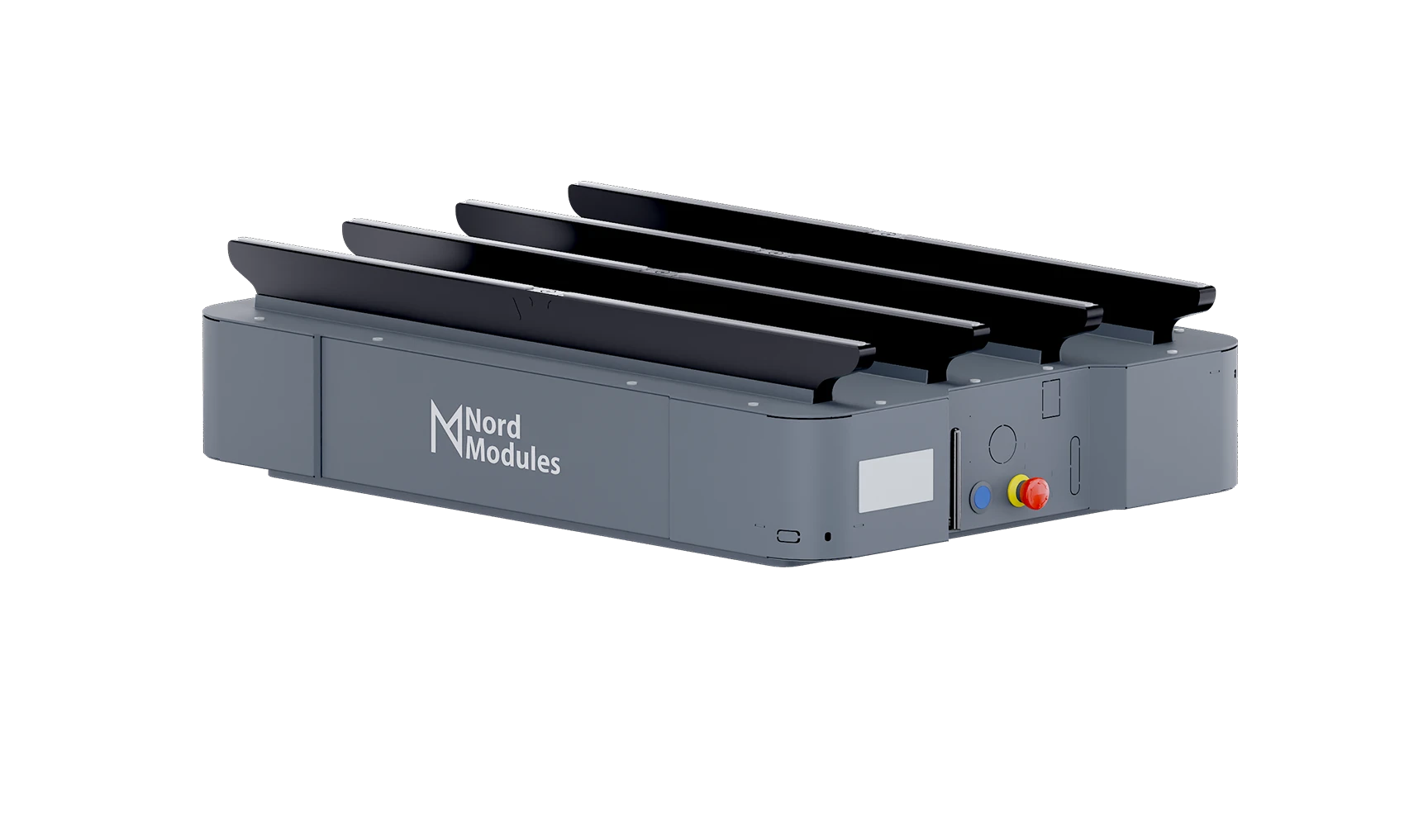

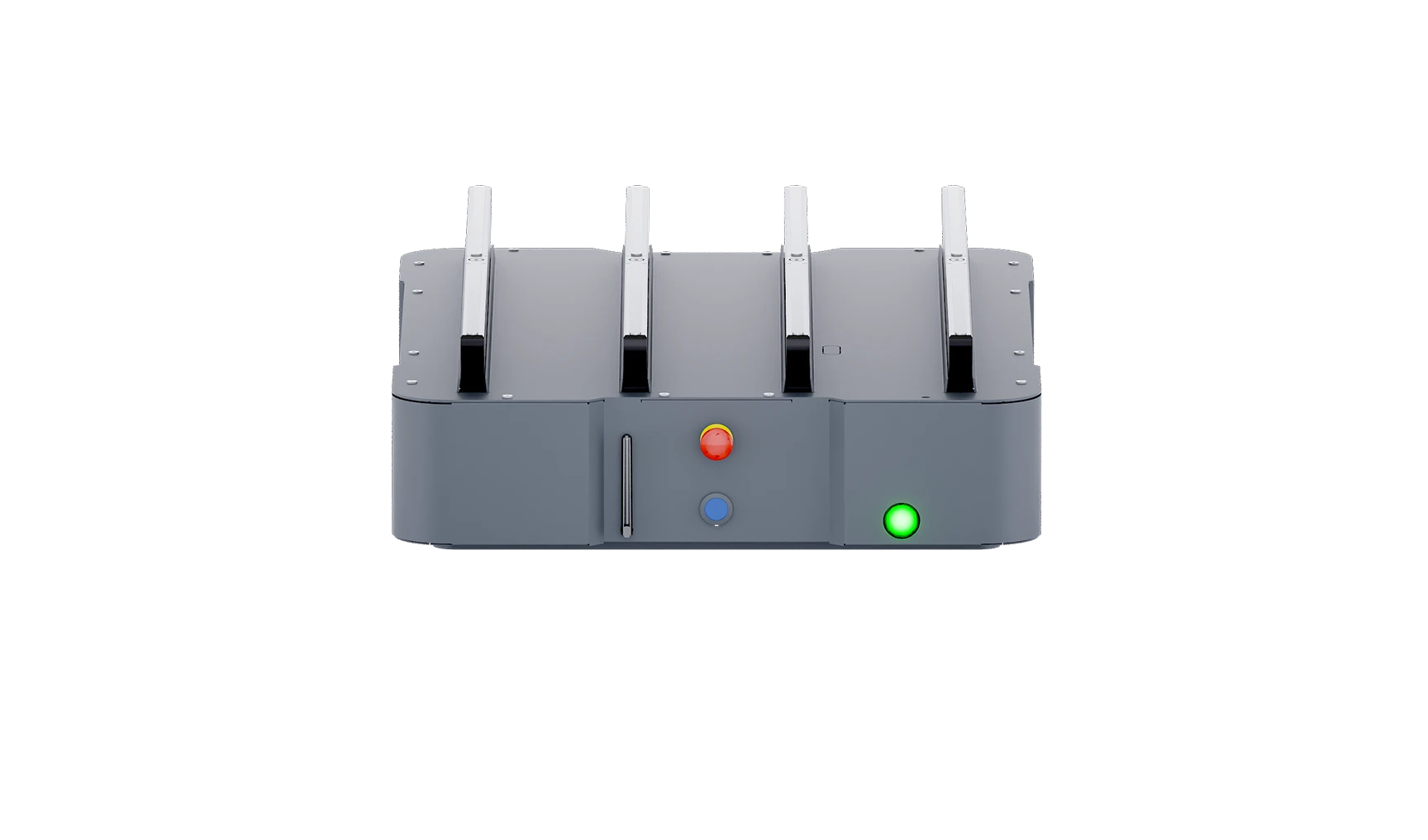

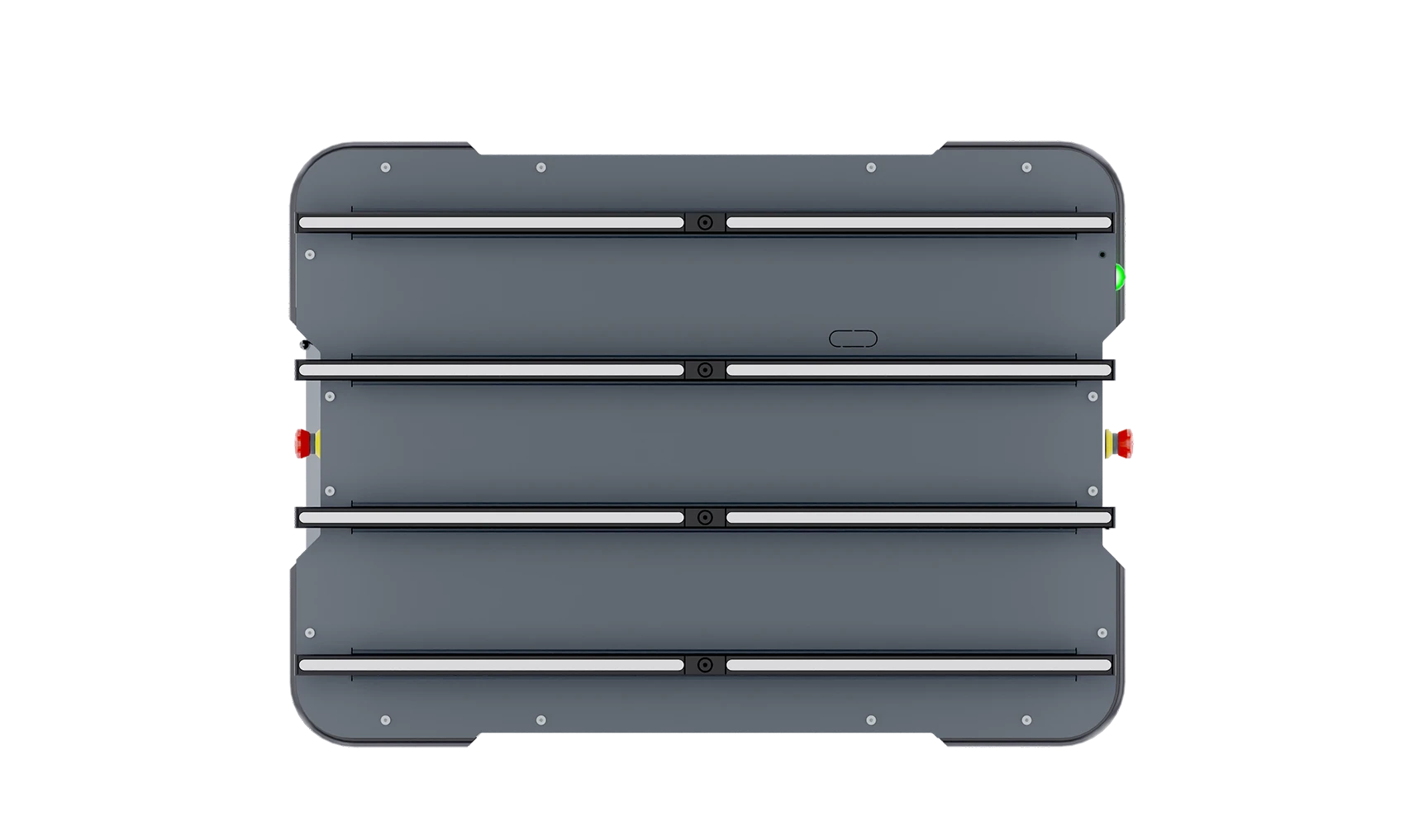

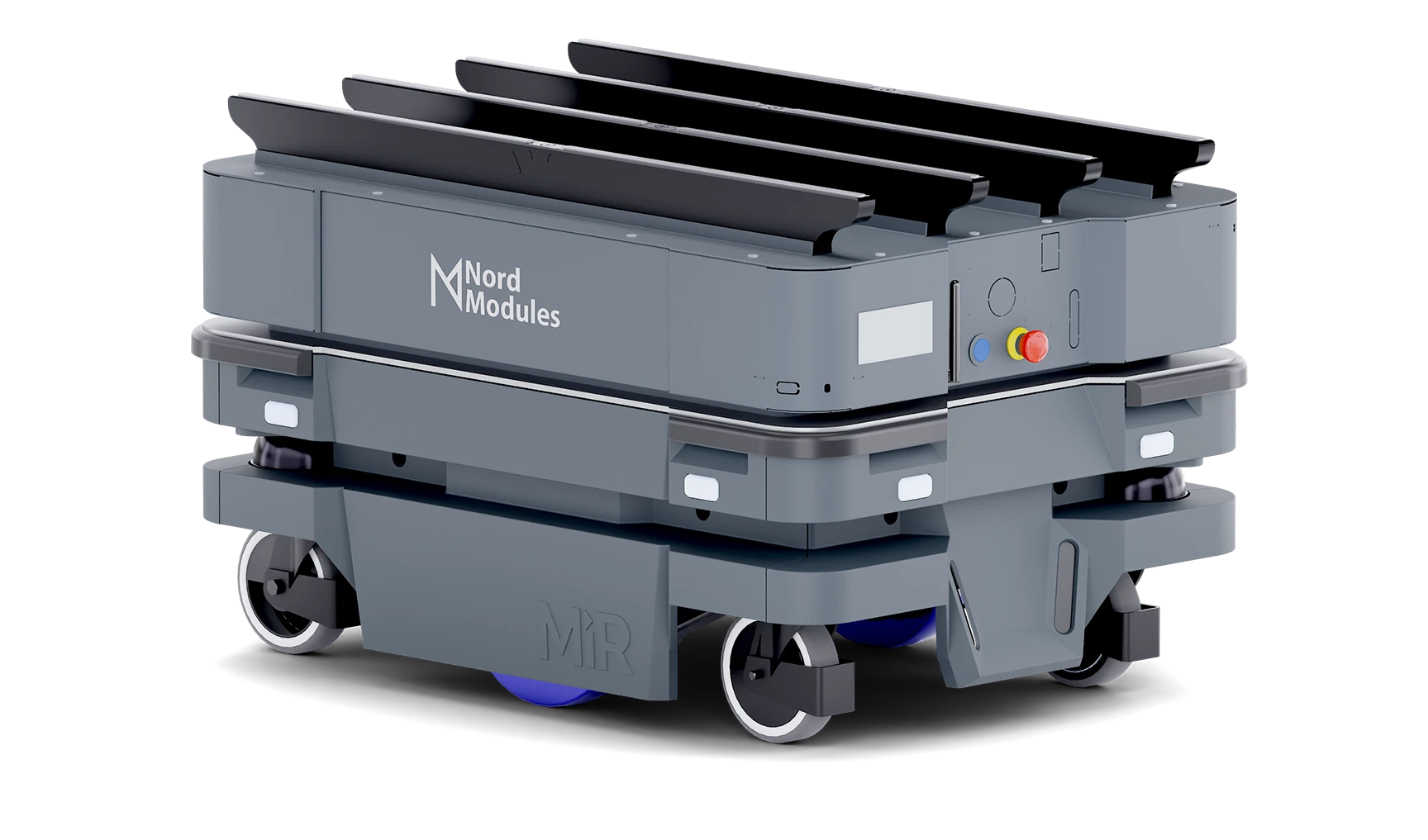

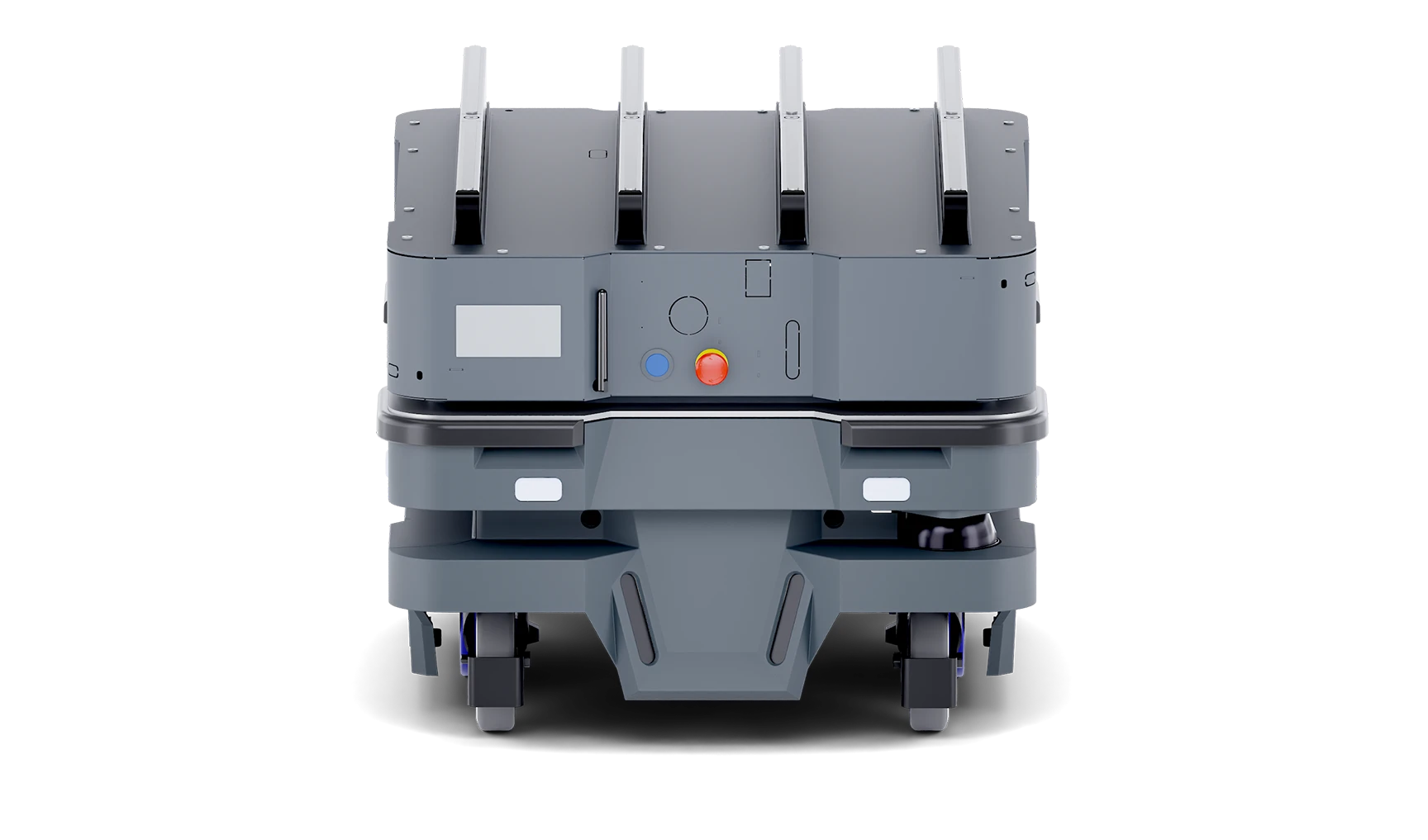

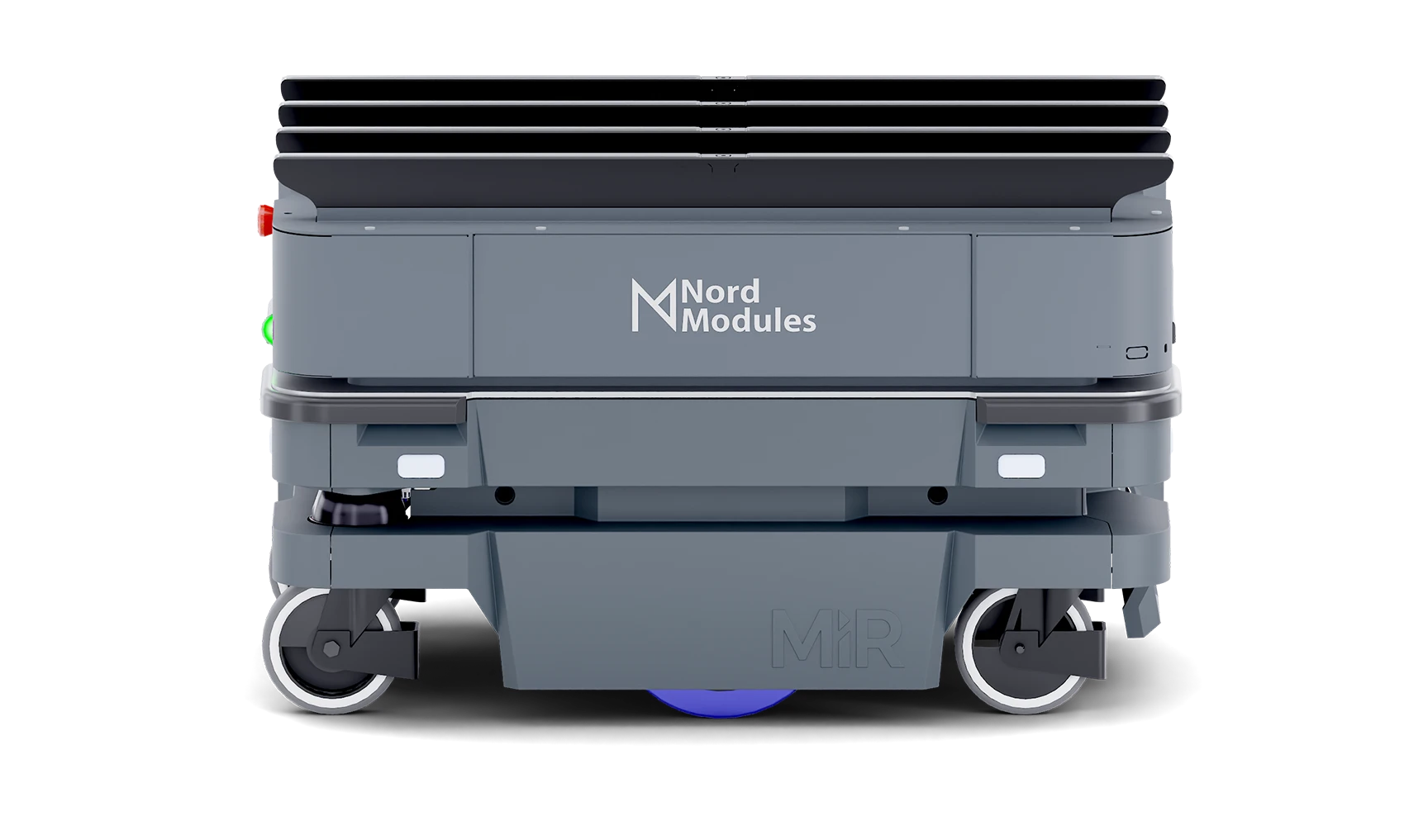

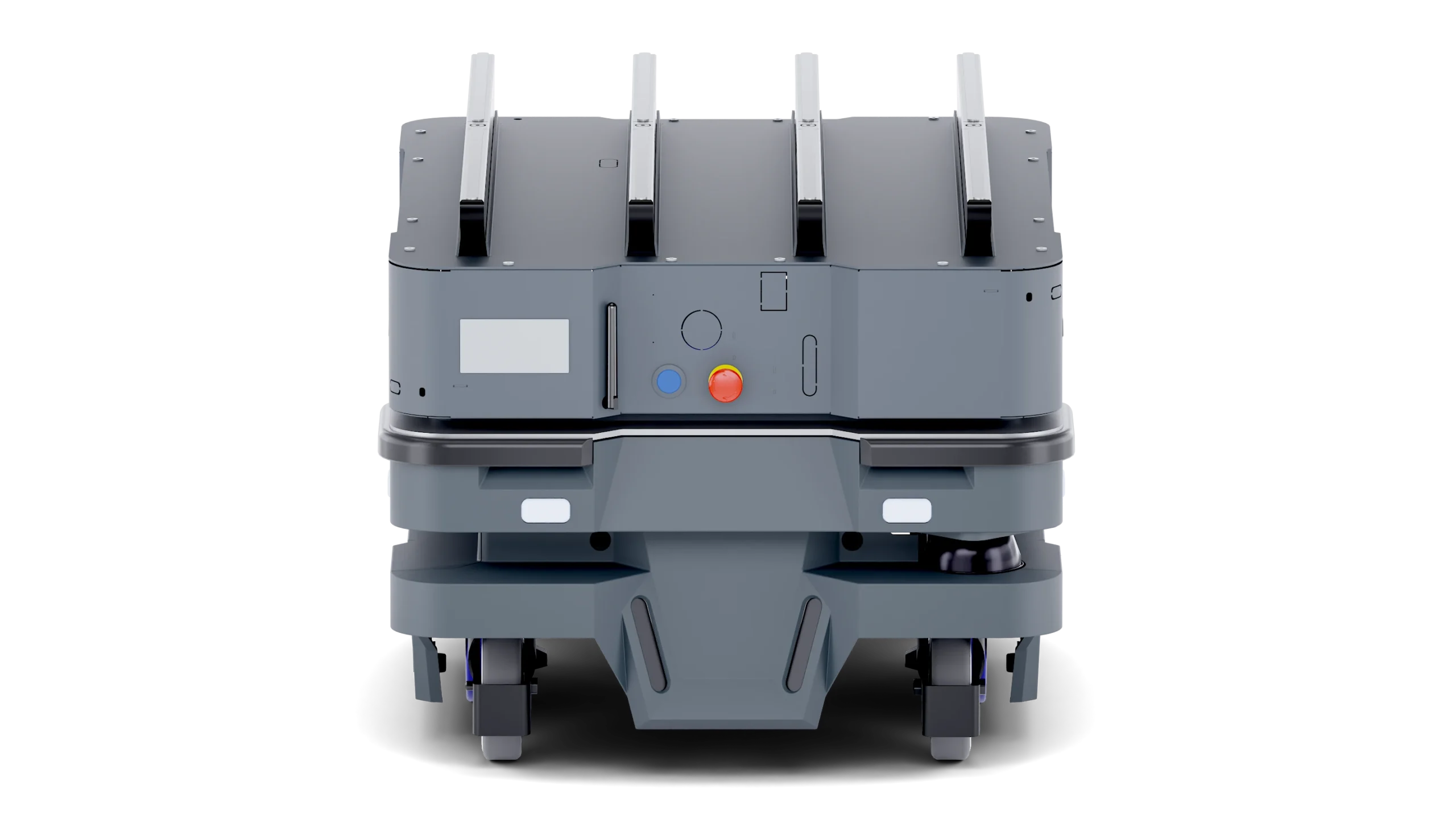

Nord Quick Mover 220-510 — view 1

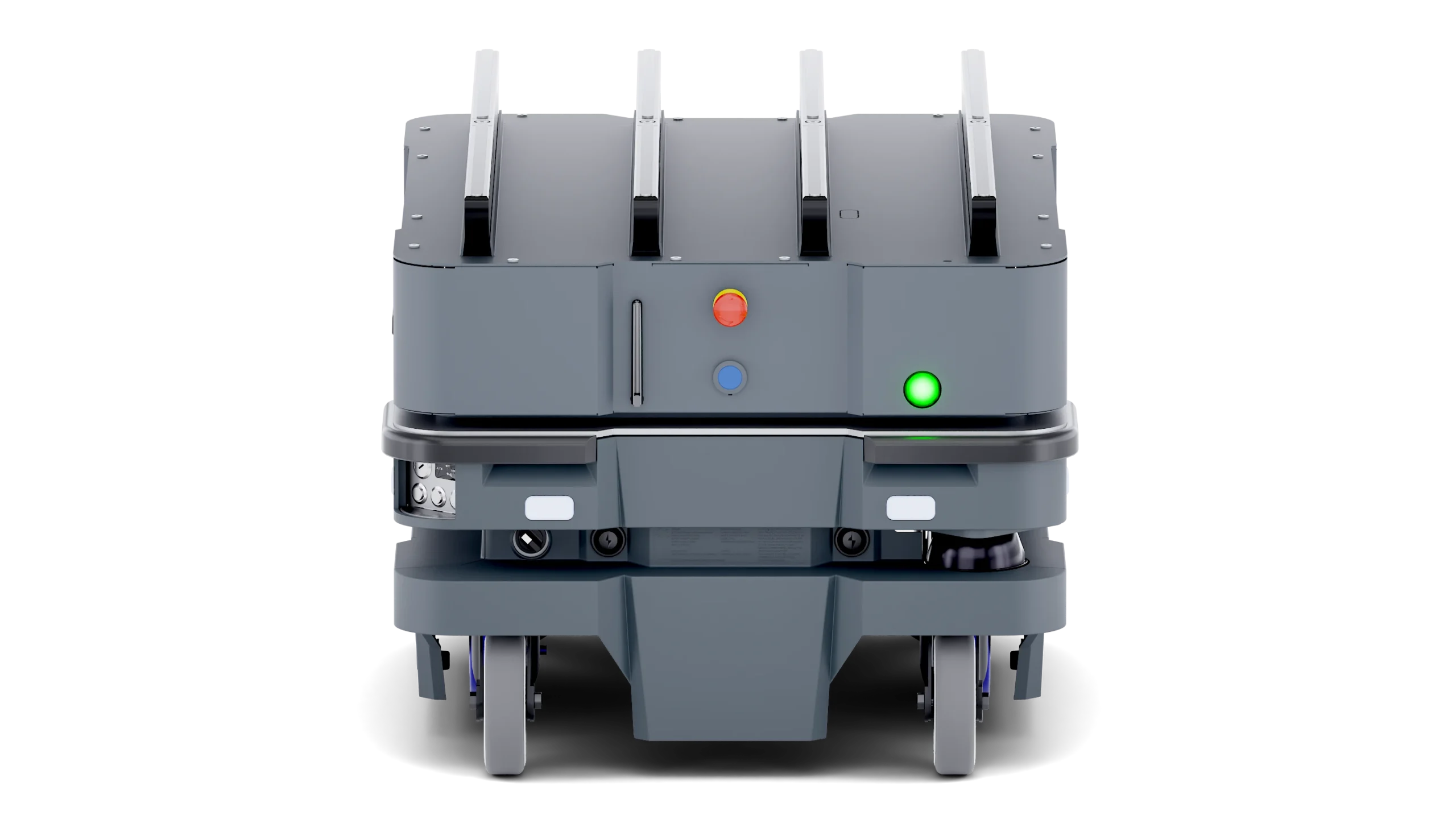

Nord Quick Mover 220-510 — view 2

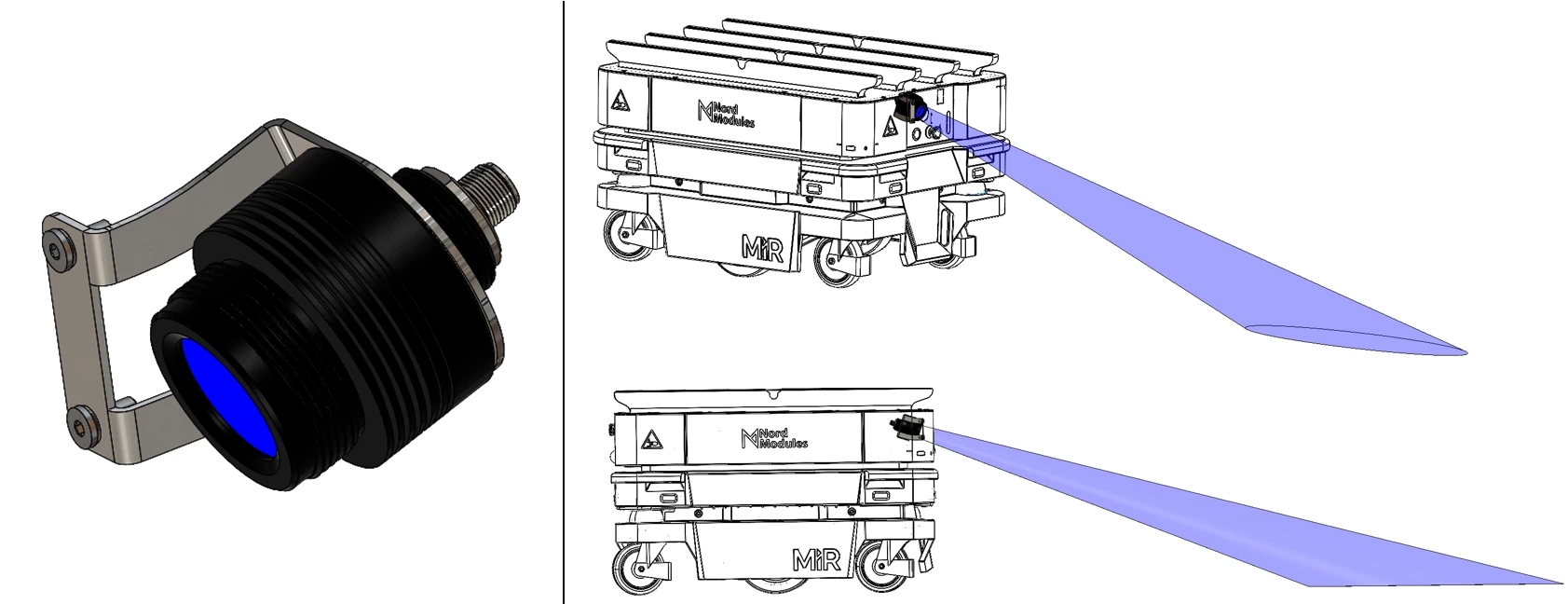

• Increased safety
• Blue light spot center on the floor 1200mm in front of the AMR
• Internal mounted, Front
• Plug and play
• QM Prewired

Article Nr - NM00111498

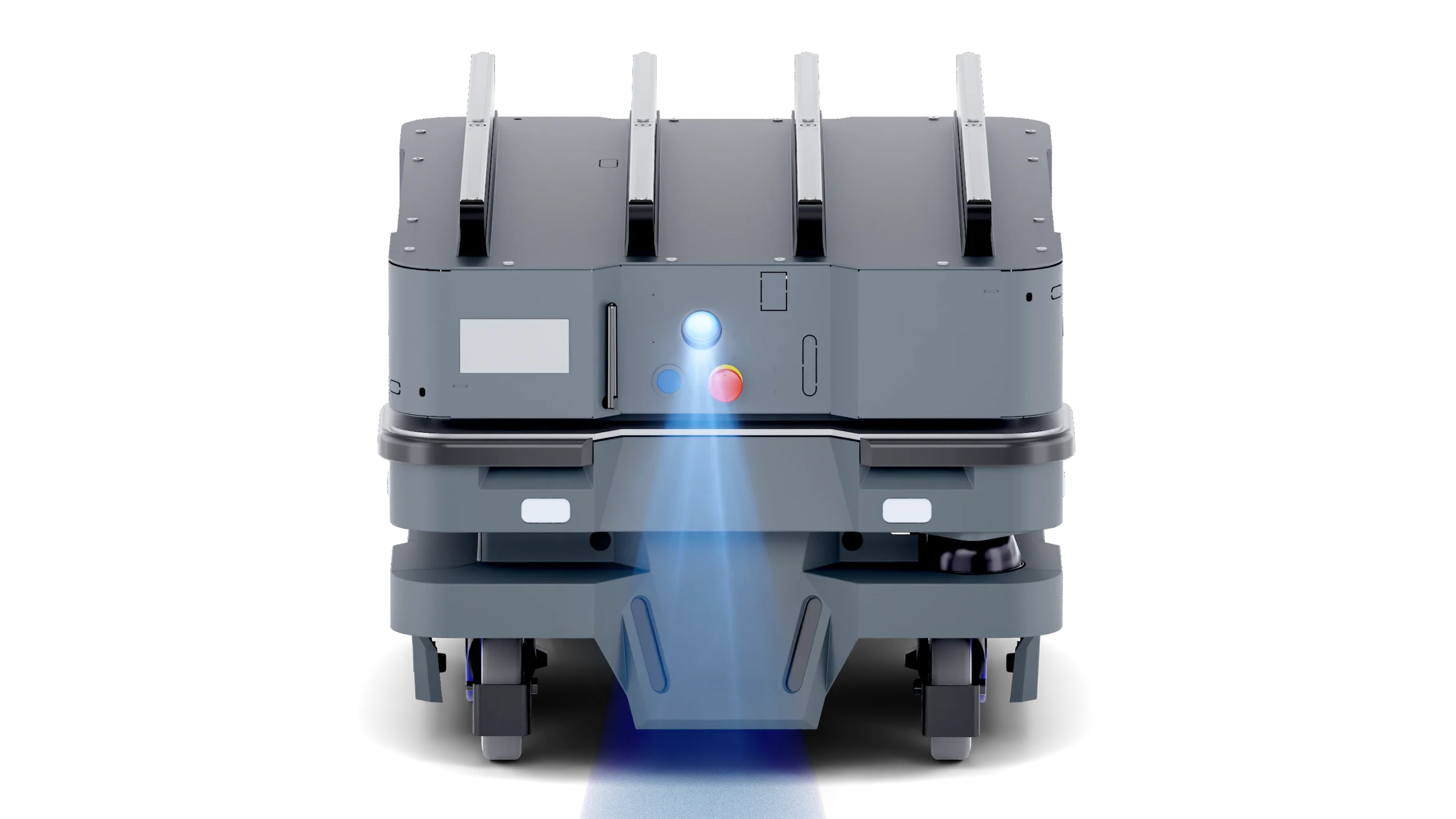

Integrated Blue Light Kit - NM00111498

• Recognize different types of goods placed on P&D station. Enabling Quick Mover to track different goods.
• Barcode scanning
• QR-Code scanning
• 300mm range
• Adjustable scanner
• Scanning in bright and dark surroundings

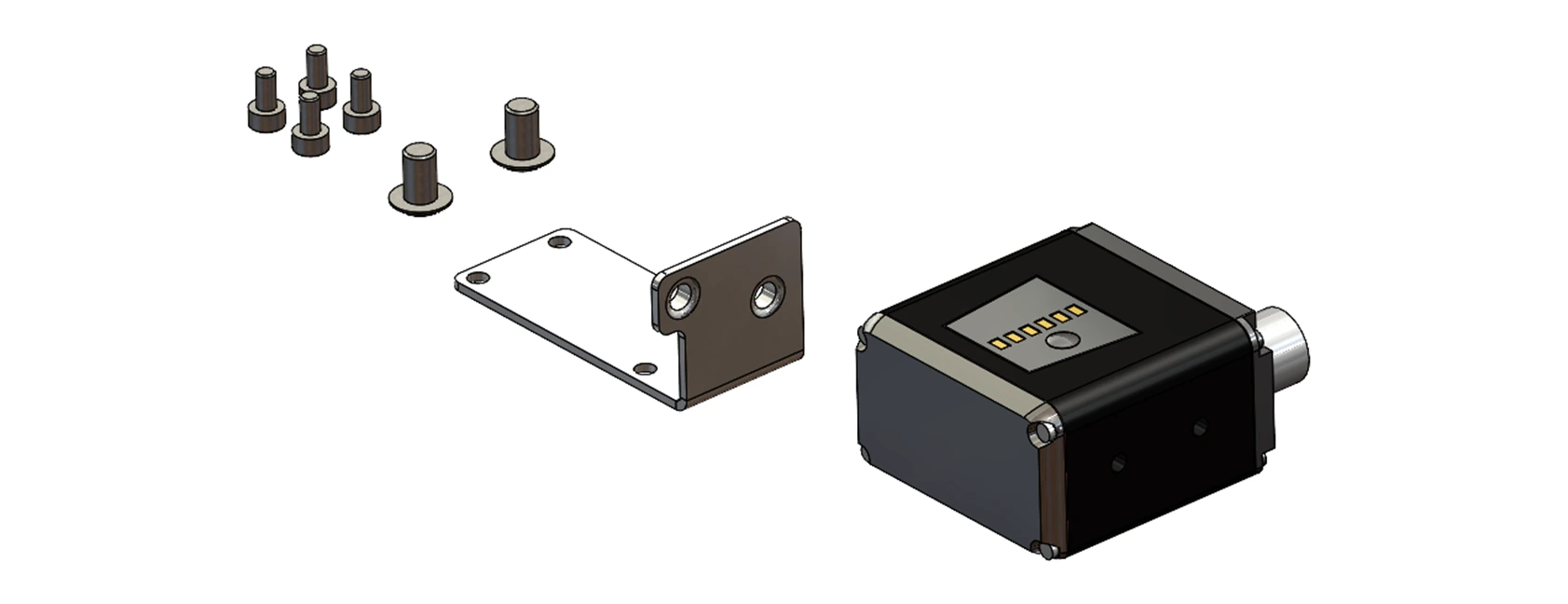

Integrated Code Reader Kit

• Detects on P&D Station
• QM mounted
• Internal mounted, Front
• Adjustable sensor
• Plug and play
• QM prewired
• Photoelectrical sensor
• 1000mm sensor range

Article Nr - NM00038841

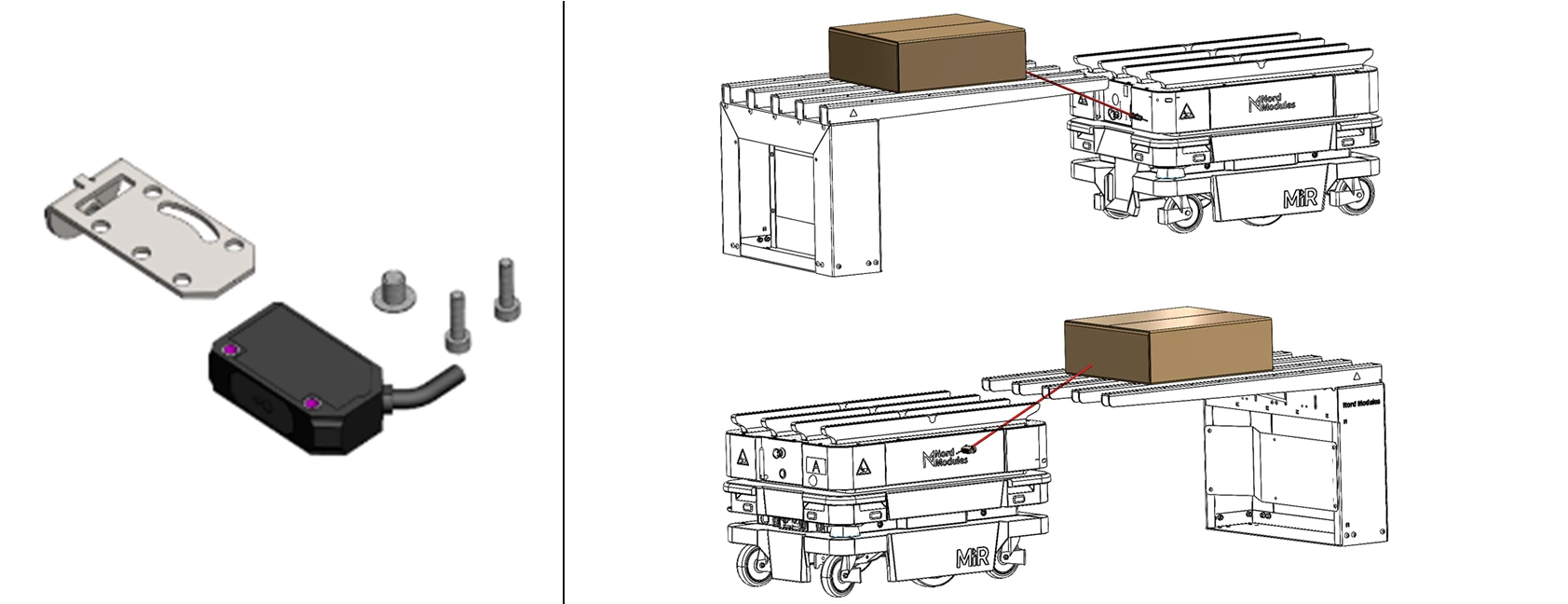

Sensor Dimension Drawings Payload Presence sensor P&D - NM00038841

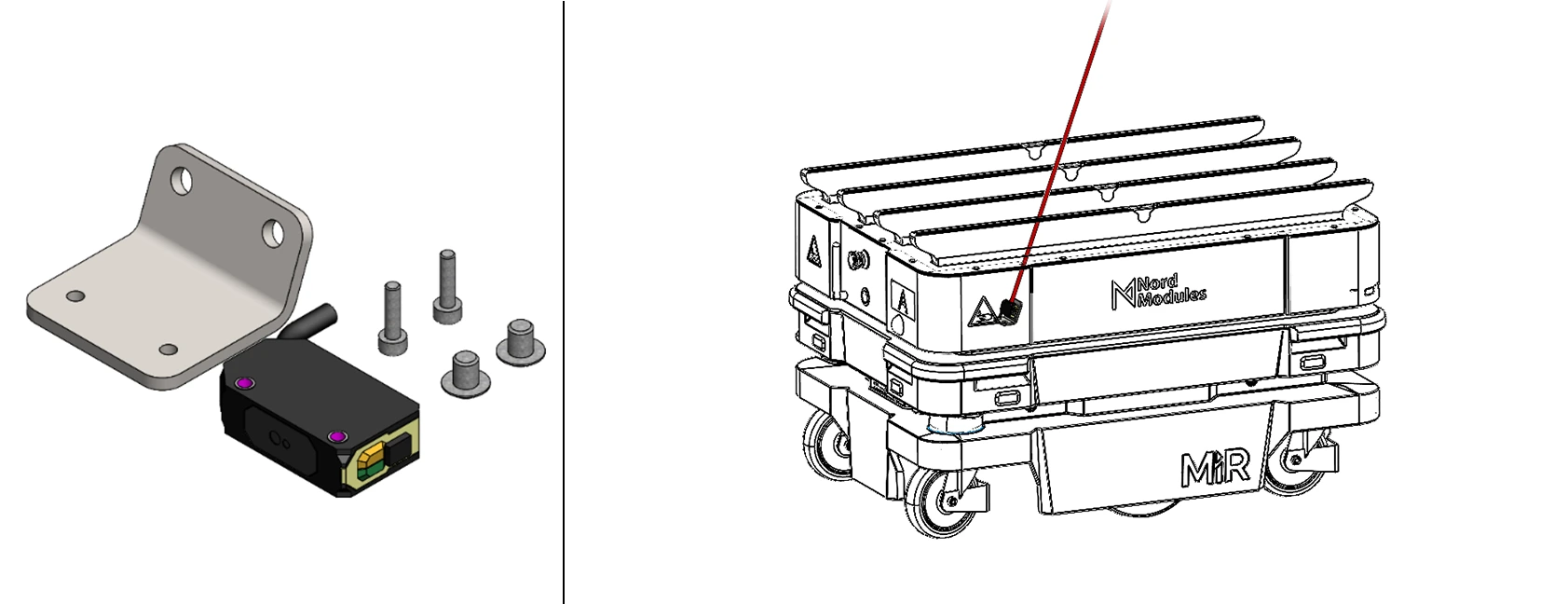

• Detects on Quick Mover
• Internal mounted
• Plug and play
• QM prewired
• Photoelectrical sensor
• 1000mm sensor range

Article Nr - NM00088637

Sensor Dimension Drawings Payload detection sensor QM - NM00088637

• ±2% off 210kg
• Patented solution
• TBA

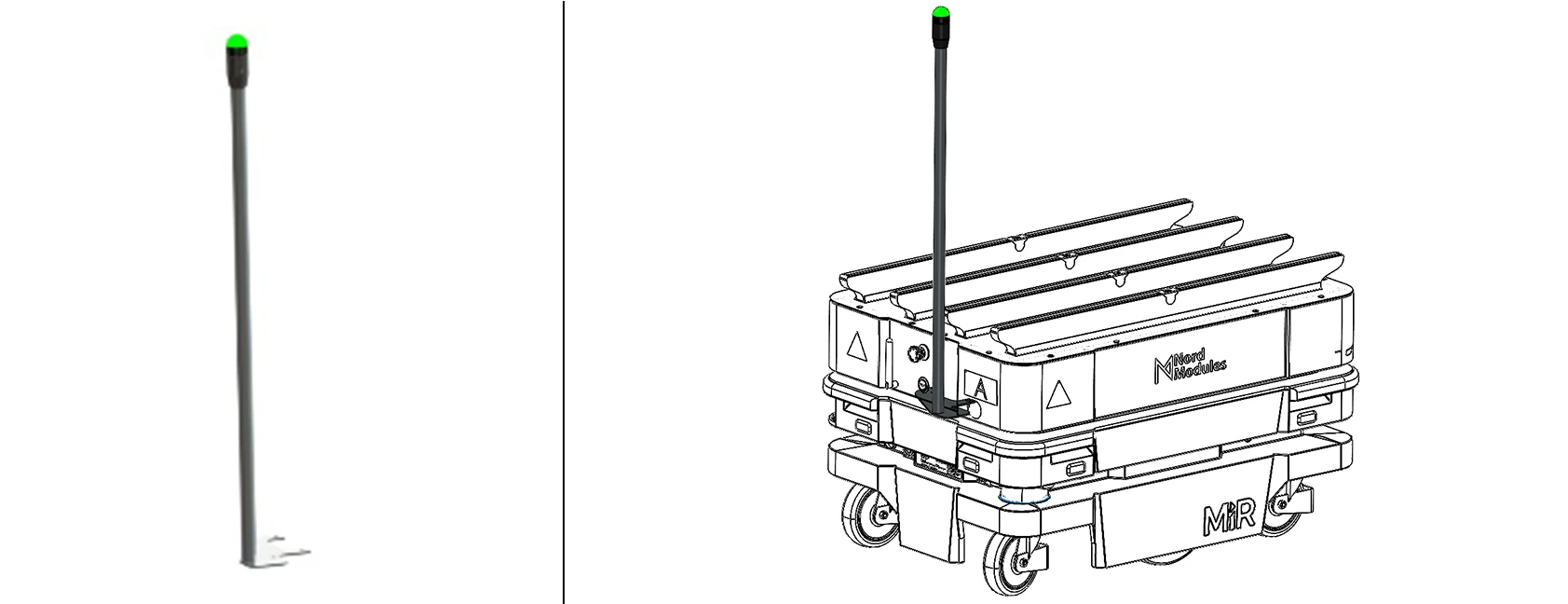

• Increased safety
• Increased visibility
• Stack light indicator check
• Plug and play
• QM Prewired
• Height from ground: 1045mm

Article Nr - NM00071689

Nord Stack Light Tower V1 - NM00071689

Increases pickup/dropoff height
• 550–800 mm (in 50 mm intervals)
• Custom height - contact to Nord Modules
Plug and play
Standardized design
Adaptable for different layouts
Rigid mechanical structure

Retroreflective sensor
Compatible with "On the Flight Gate"
TBA
