Nord Basic Gate – Robotize

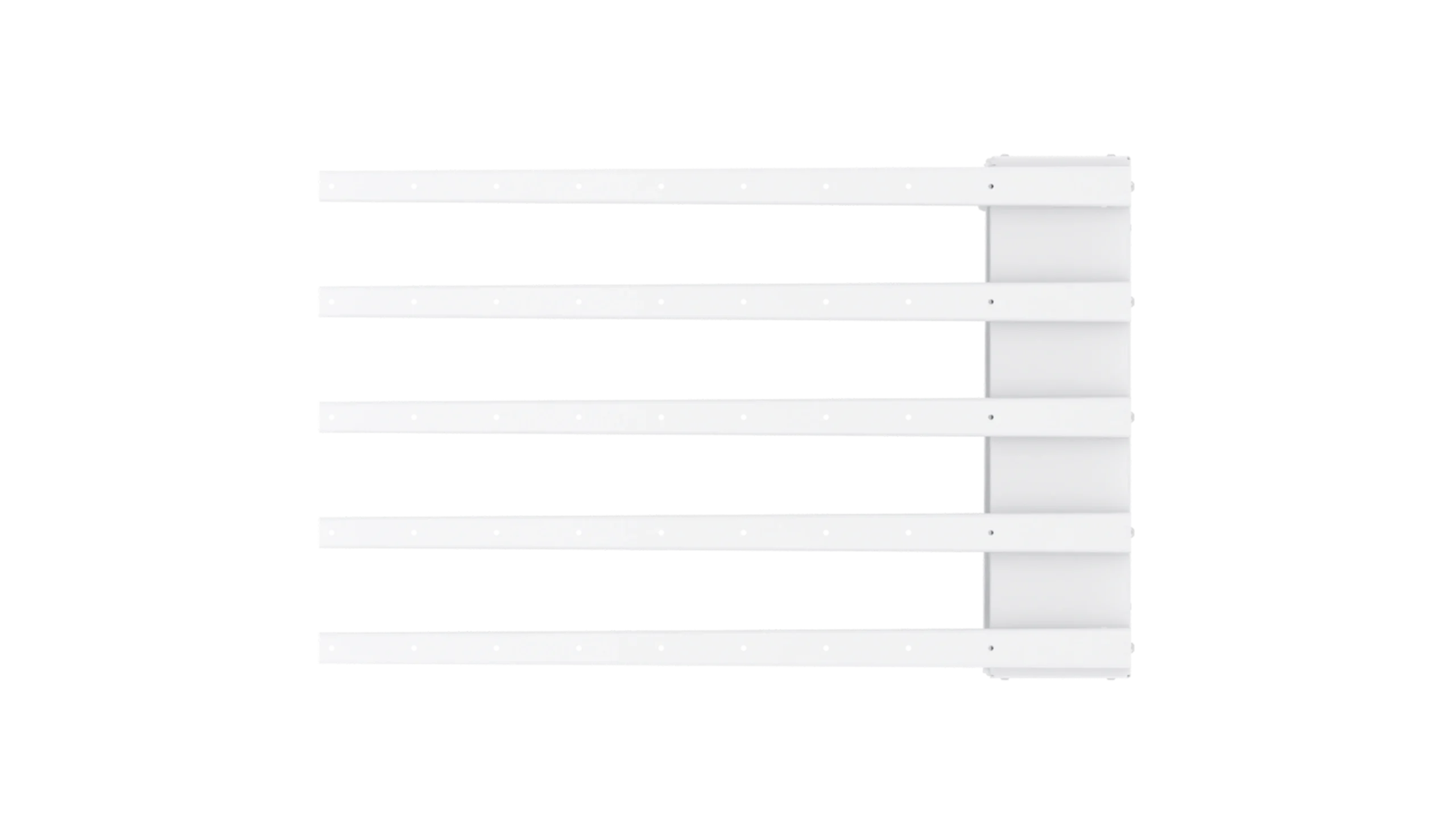

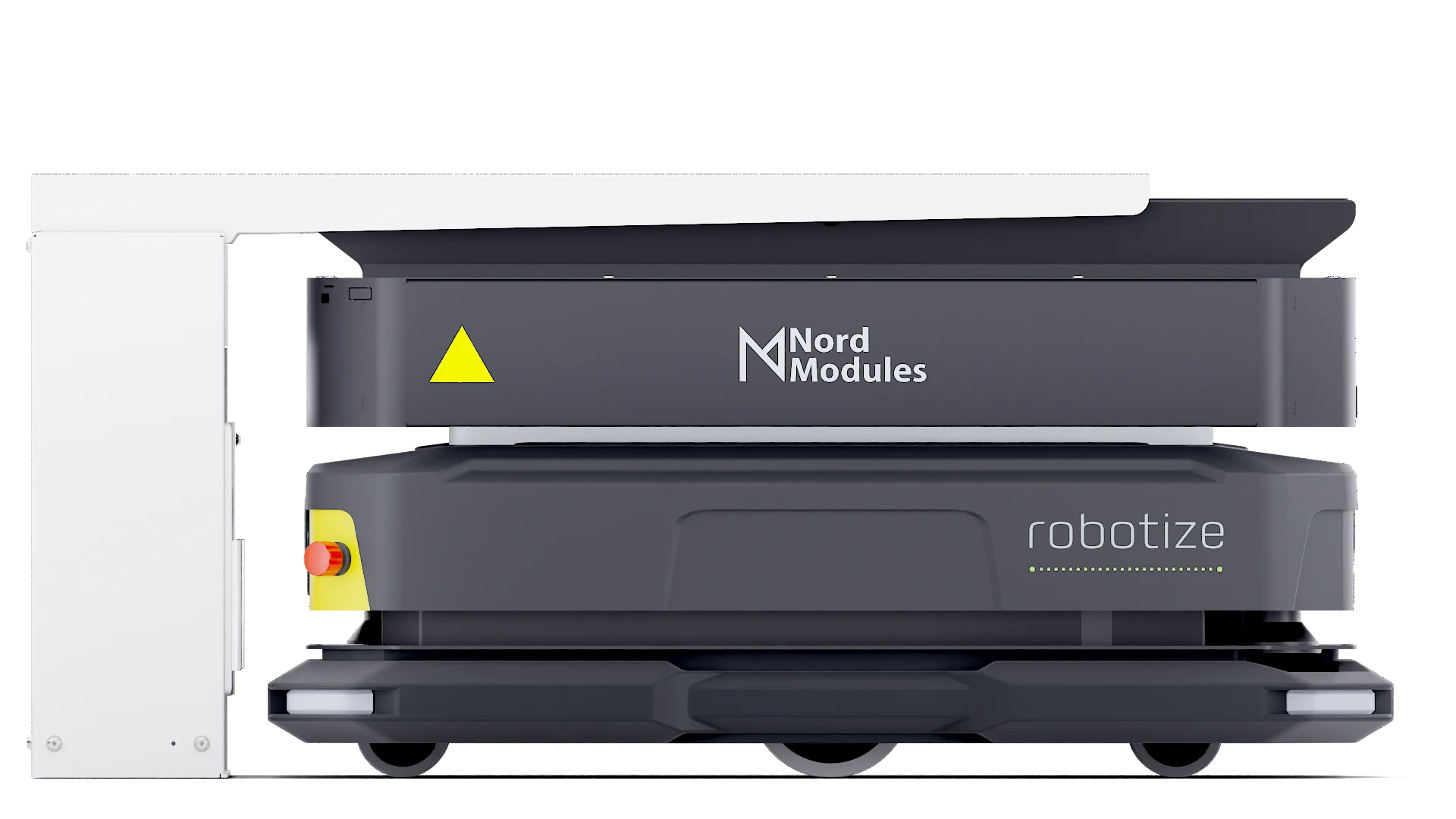

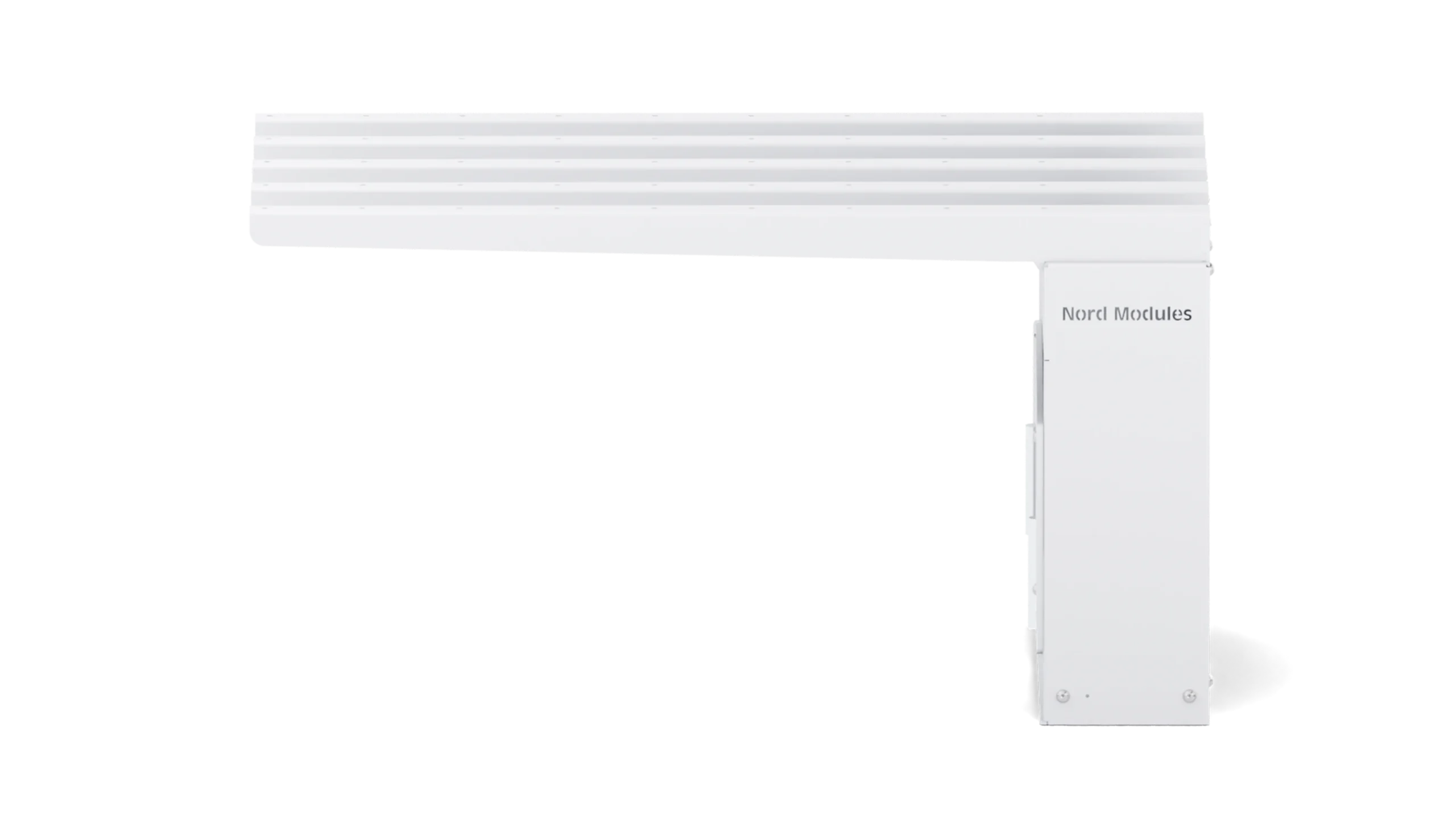

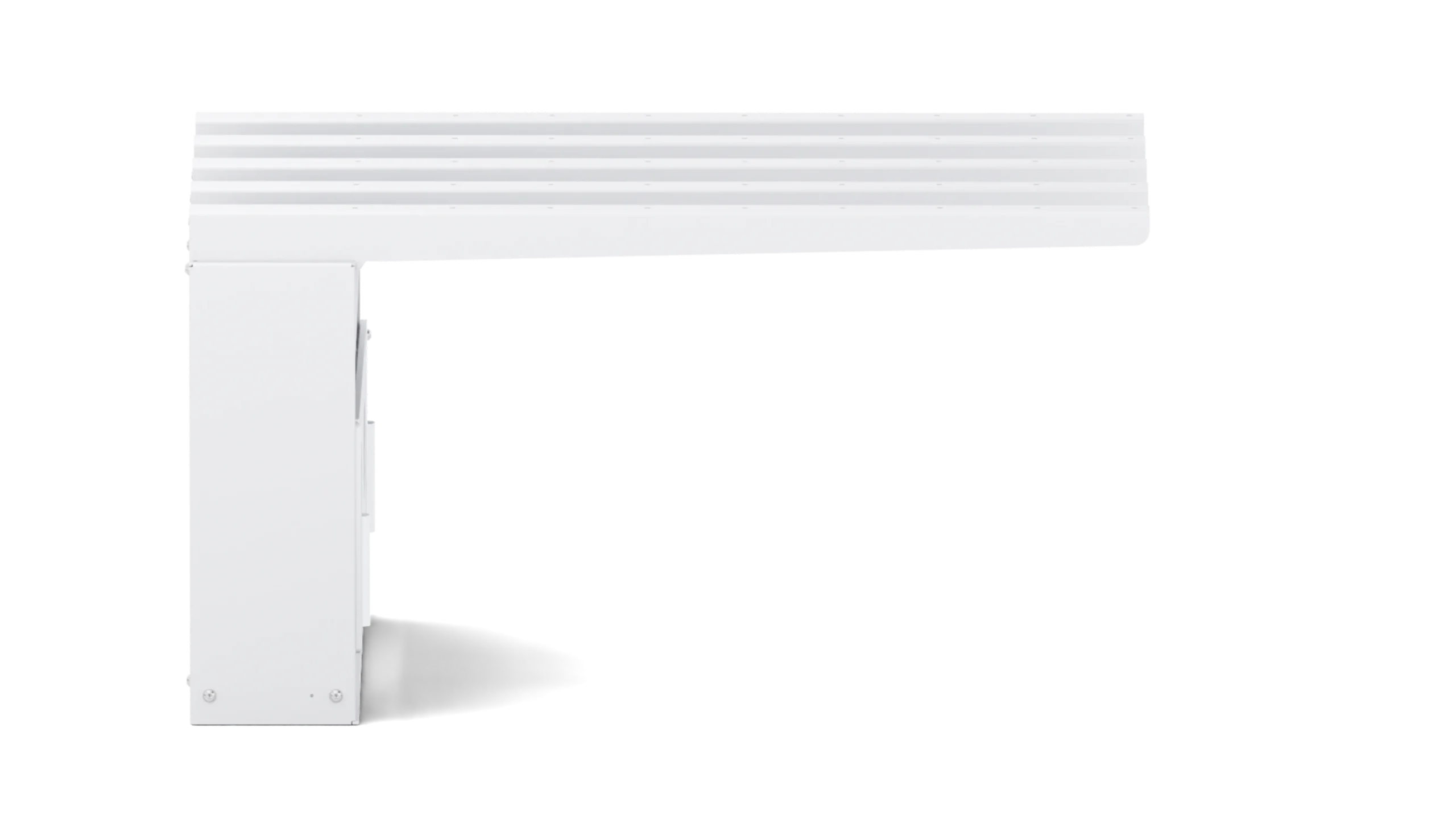

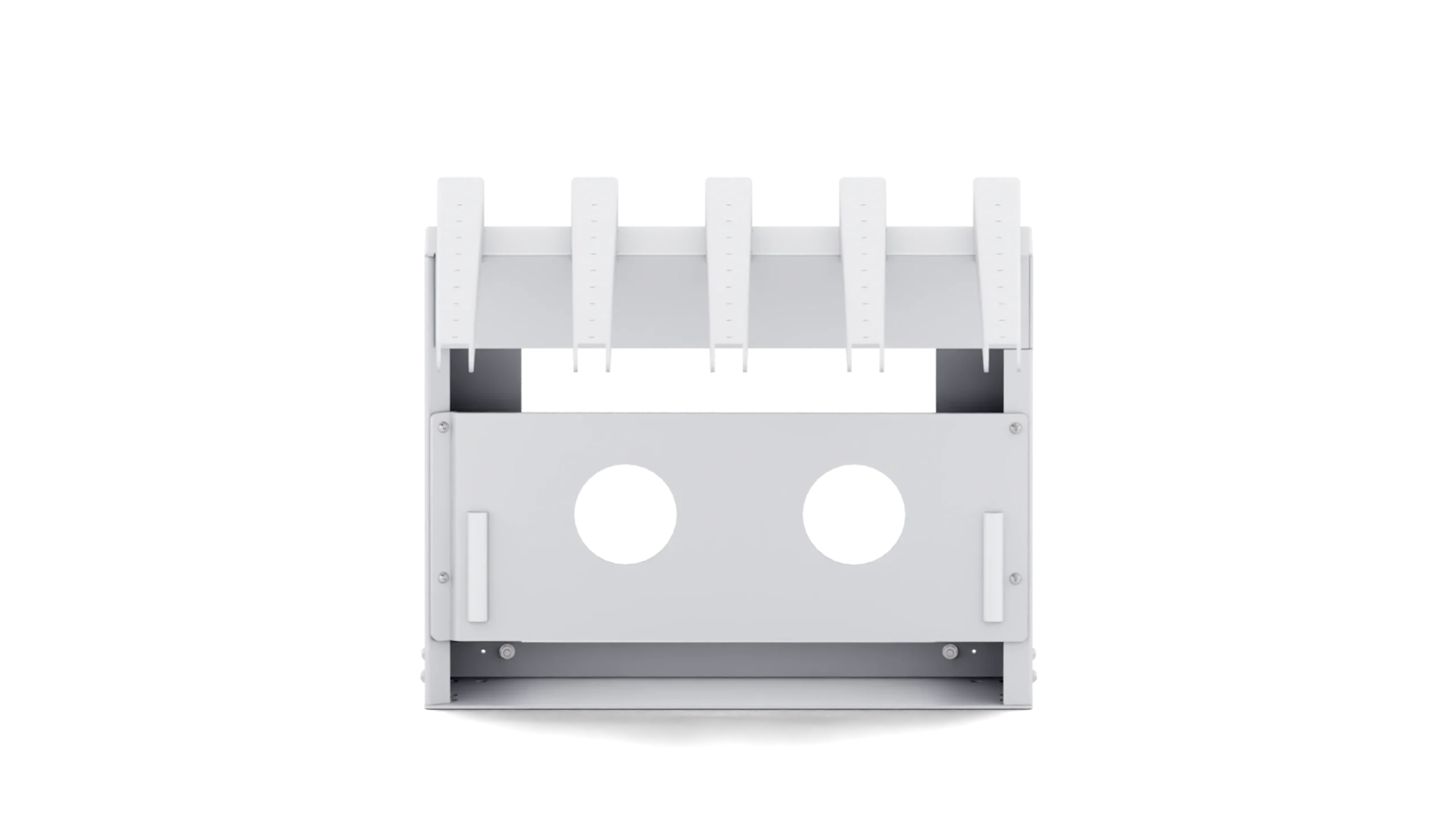

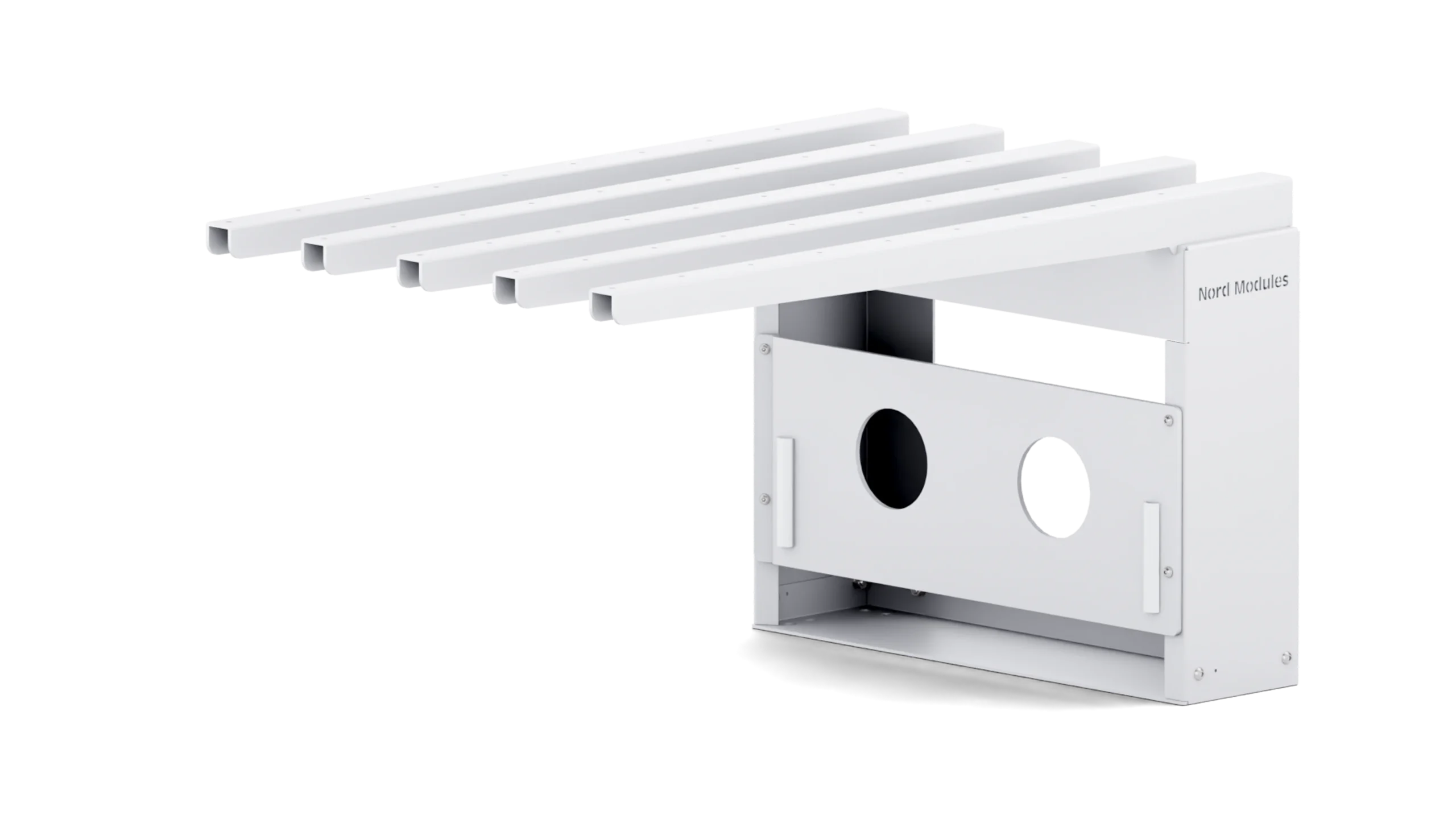

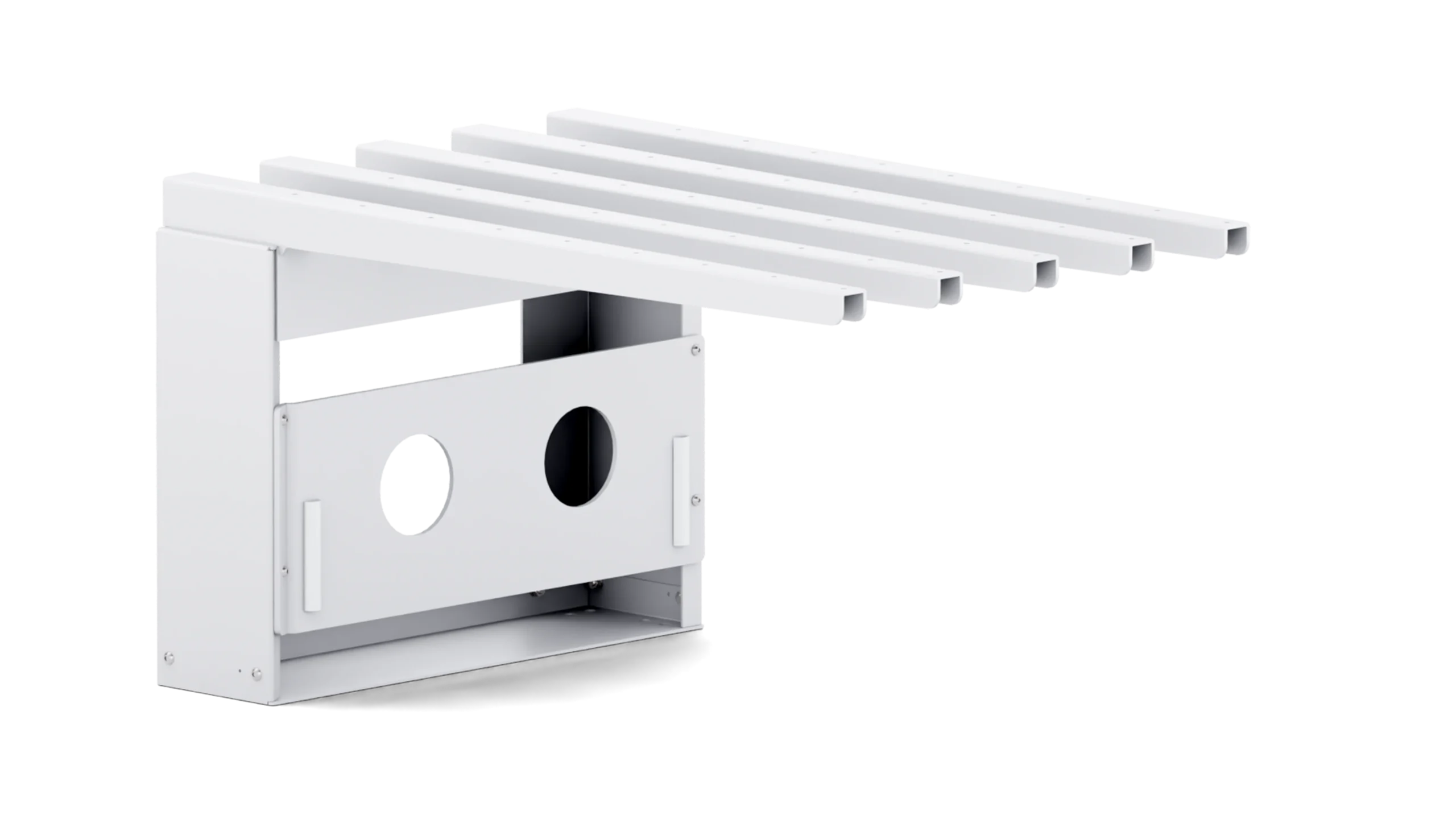

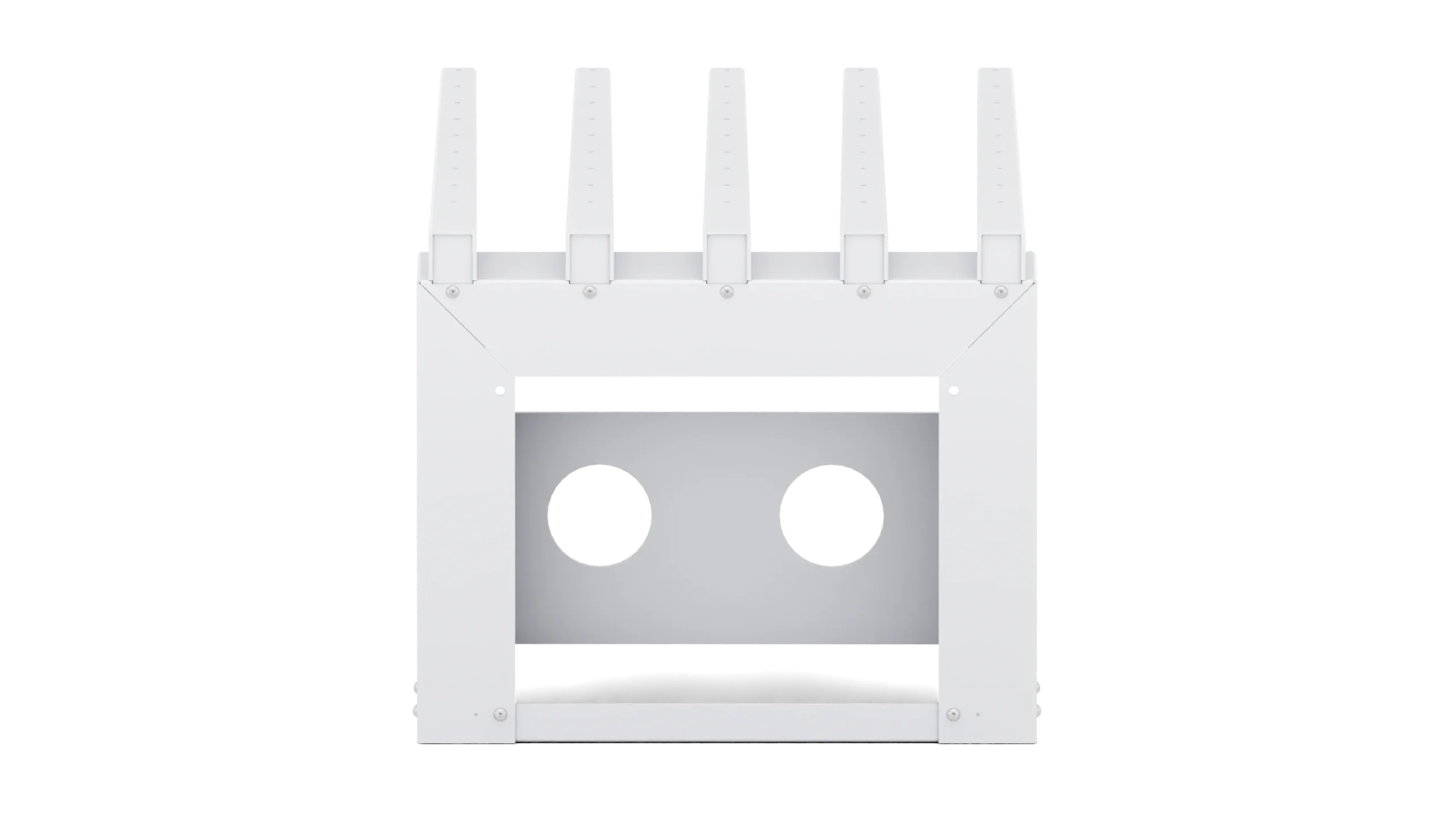

The Nord Basic Gate merges with the Nord Quick Mover 260 installed on an Robotize GoPal P35 AMR. It can receive or hold an object, connecting the mobile robot with production lines and storage systems.

The Nord Basic Gate is designed as a basic standard module that can serve as e.g. a flexible pick-up point or simply be adjusted to specialized work processes. Due to the optimized distance between the arms, the module delivers great flexibility in terms of load sizes – from small to large items.

KEY SPECIFICATIONS

Robot Compatibility
Robotize GoPal® P35

Variation
5-finger

Dimensions (5-finger)
985 x 634 x 588 mm | 38.8 x 24.9 x 23.2 in

Payload Capacity
260 kg | 573.2 lbs

Your Key Benefits

Robotize GoPal P35

Simple Setup and Installation

The Nord Basic Gate offers a simple and fast assembly process, delivering a complete solution when combined with Nord Modules’ Wheel Gates, and Cart.

Space-Saving Design

With its modular construction, the Nord Basic Gate only occupies the space required by the transported goods, making it ideal for production environments with limited floor space.

Flexible Standard Product

Thanks to its modular design, the Nord Basic Gate can be tailored to match each customer’s specific layout and operational requirements.

Optimized Internal Logistics

Capable of handling payloads, the Nord Basic Gate reduces manual handling, enhances safety, and frees up staff for higher-value tasks.

Optional Sensor

This product can be equipped with an additional sensor to detect the presence of any payload at the Gate.

Compatible Products

This accessory is made to work perfectly with Nord Modules’ top modules, helping you get more out of your automation setup. It adds extra functionality while keeping everything simple, reliable, and efficient—even in busy industrial settings.
