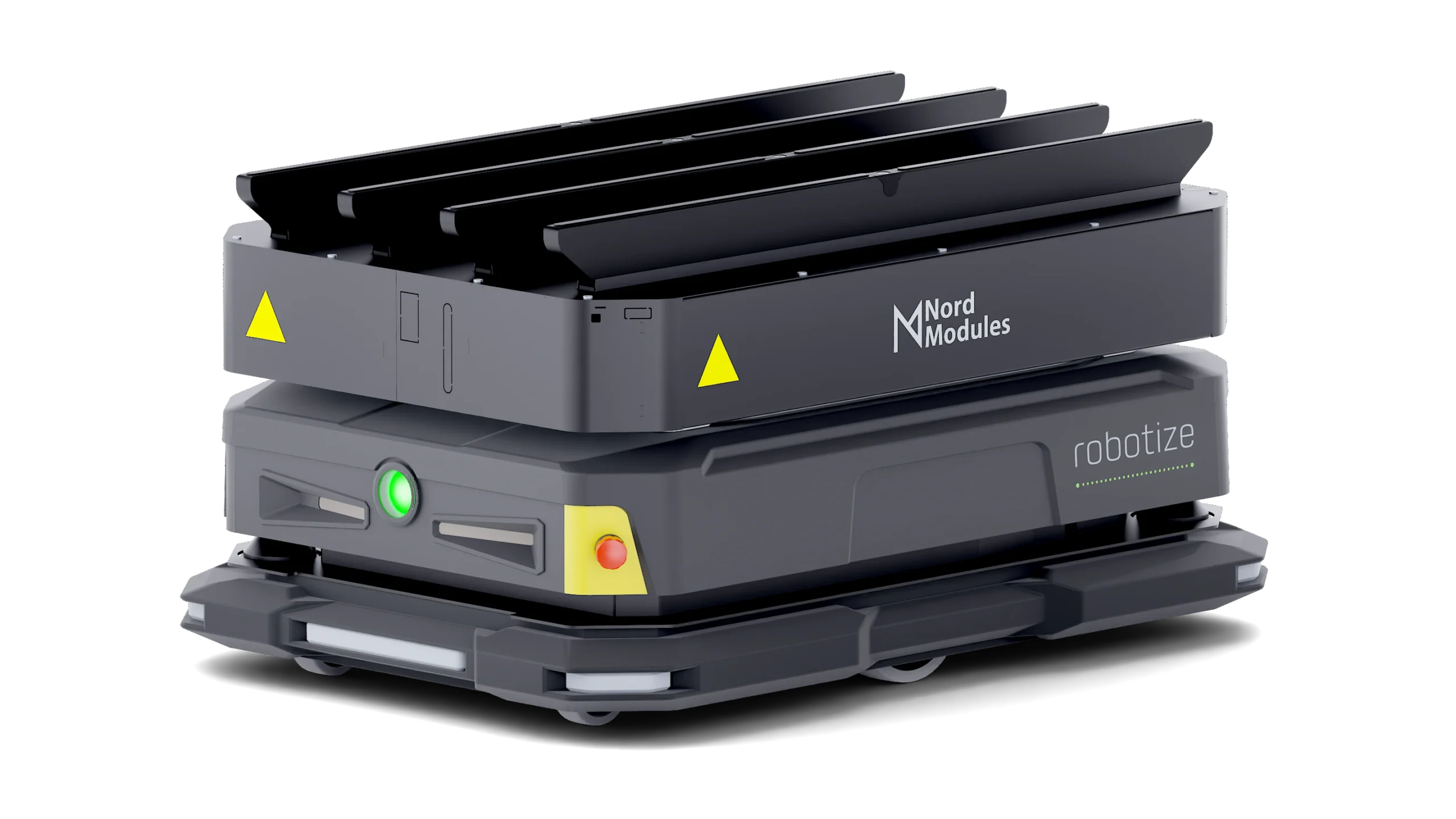

Nord Quick Mover 260

Nord Quick Mover 260

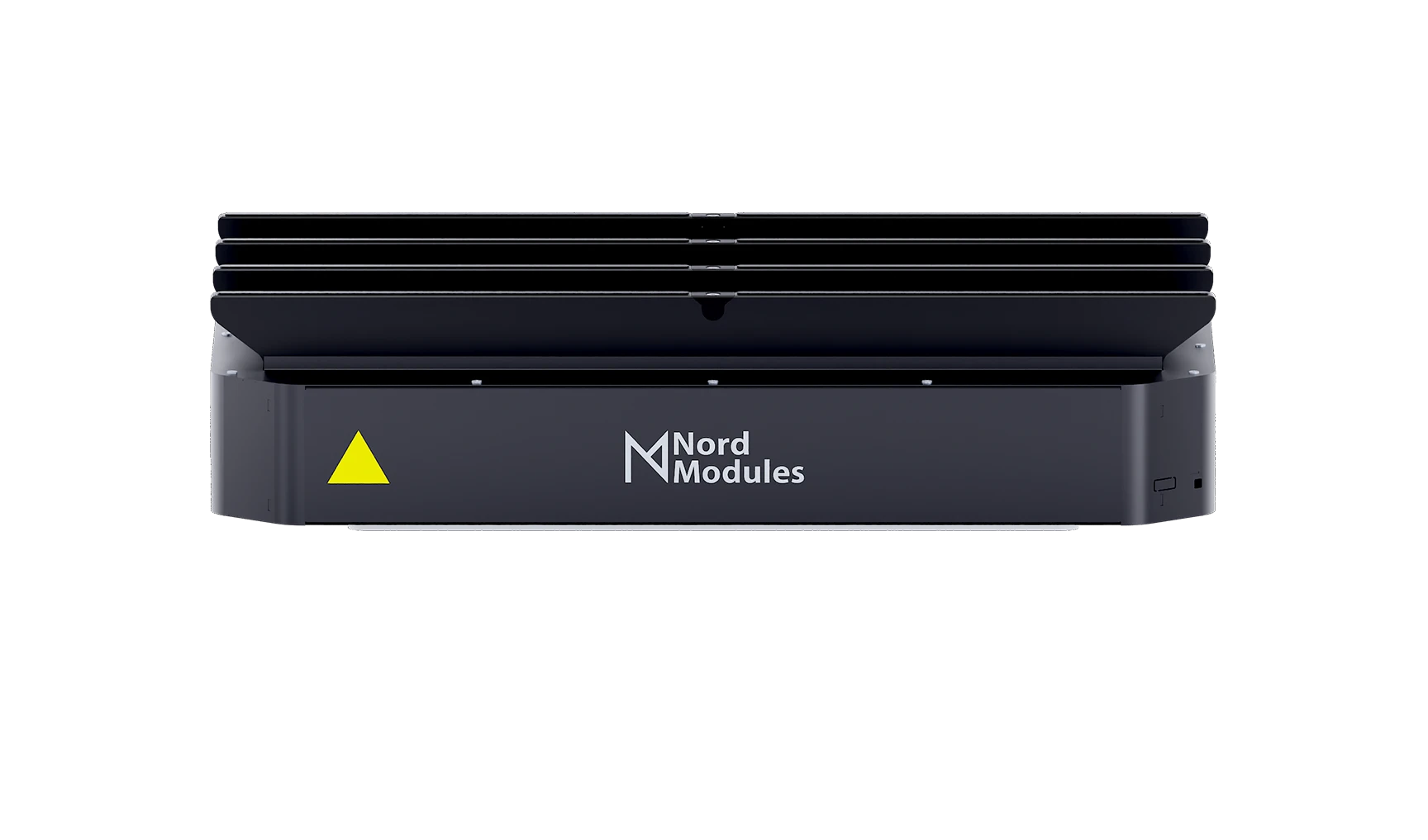

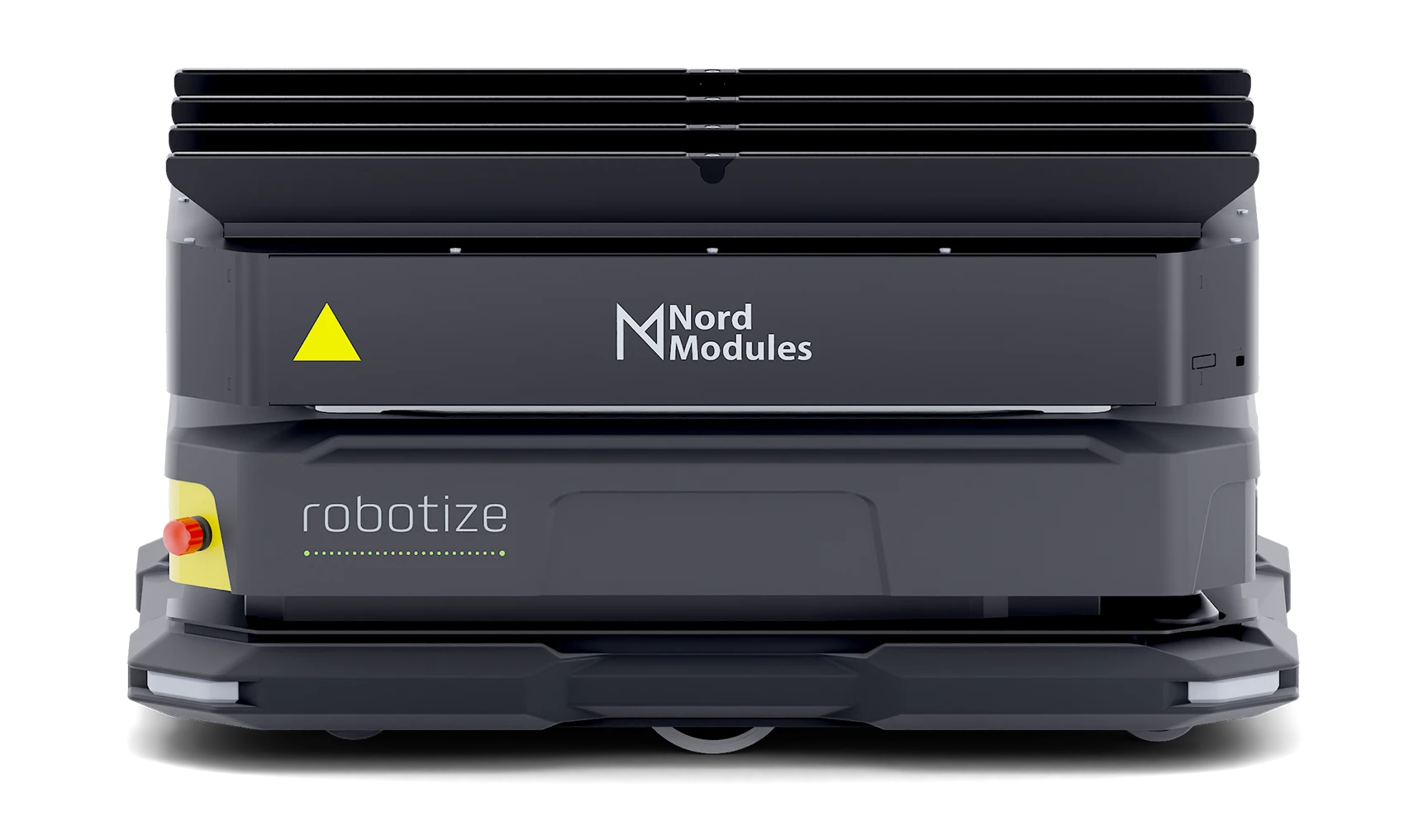

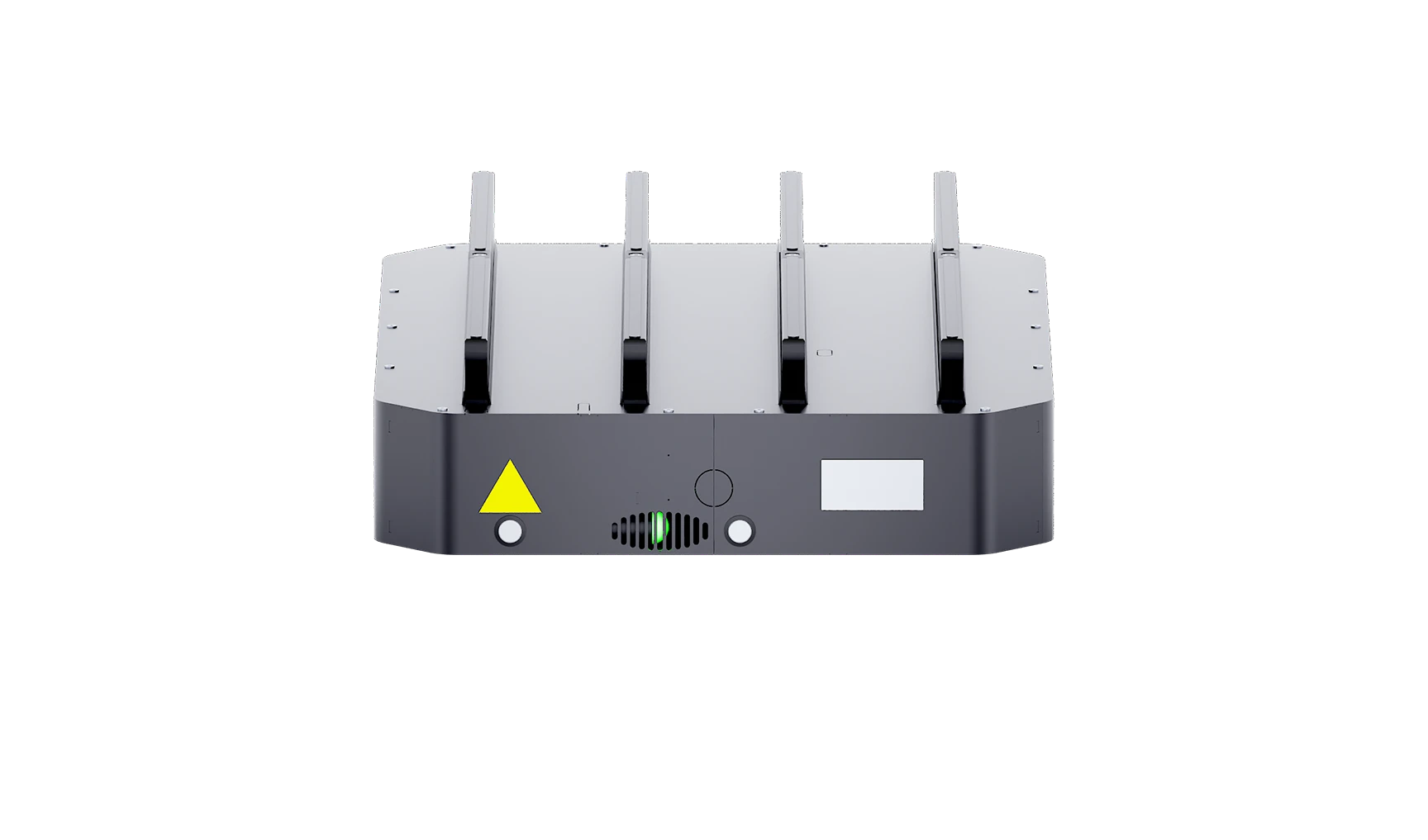

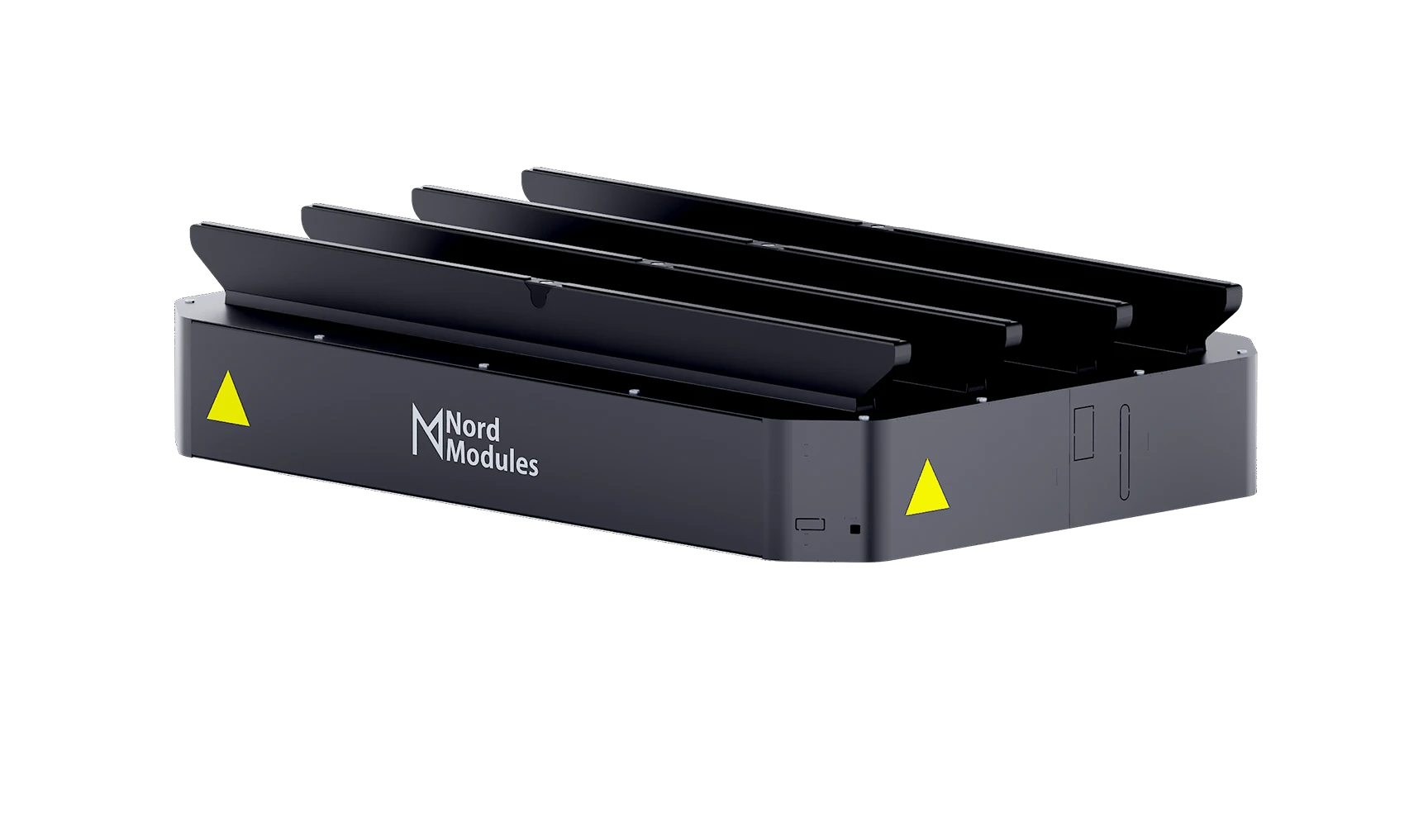

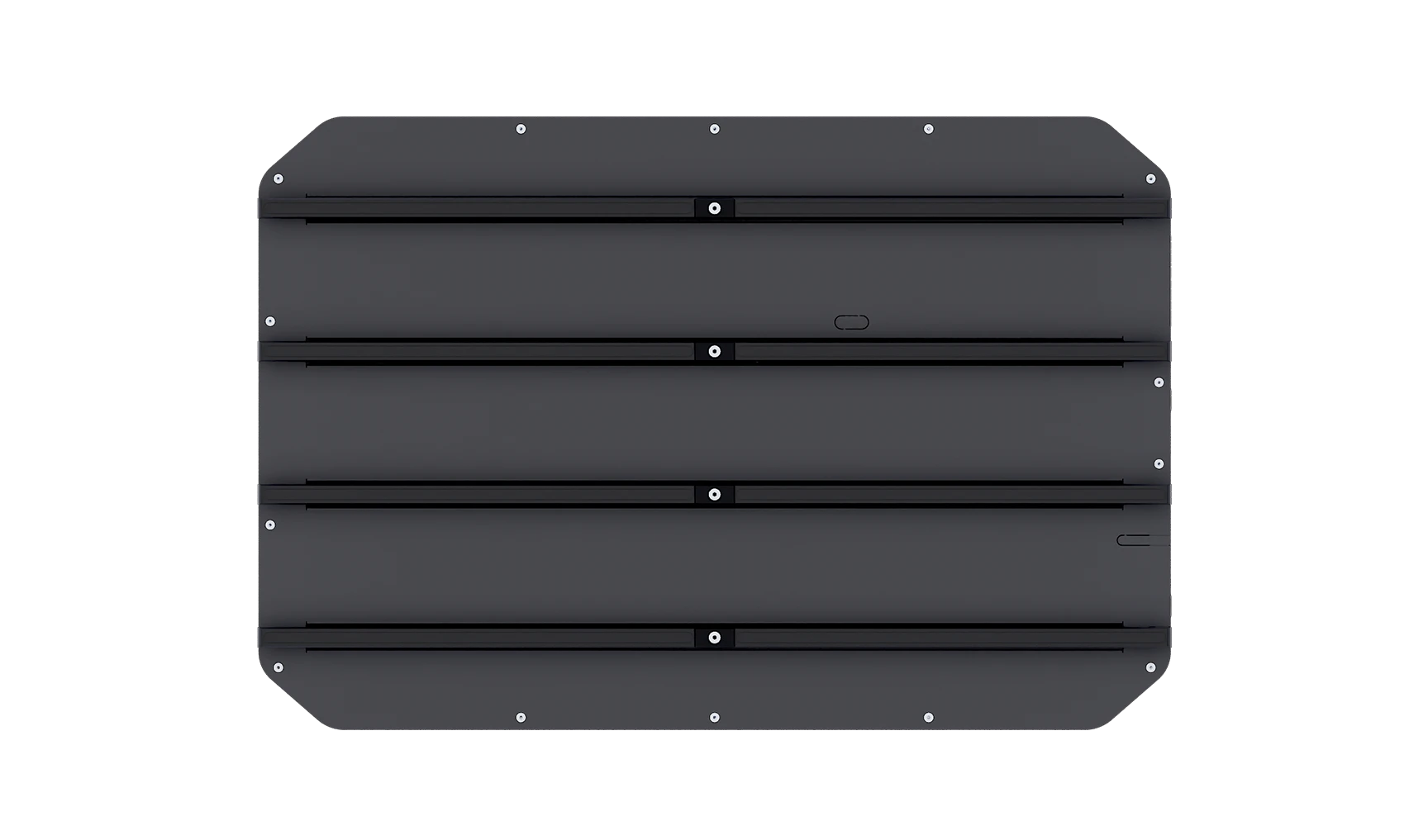

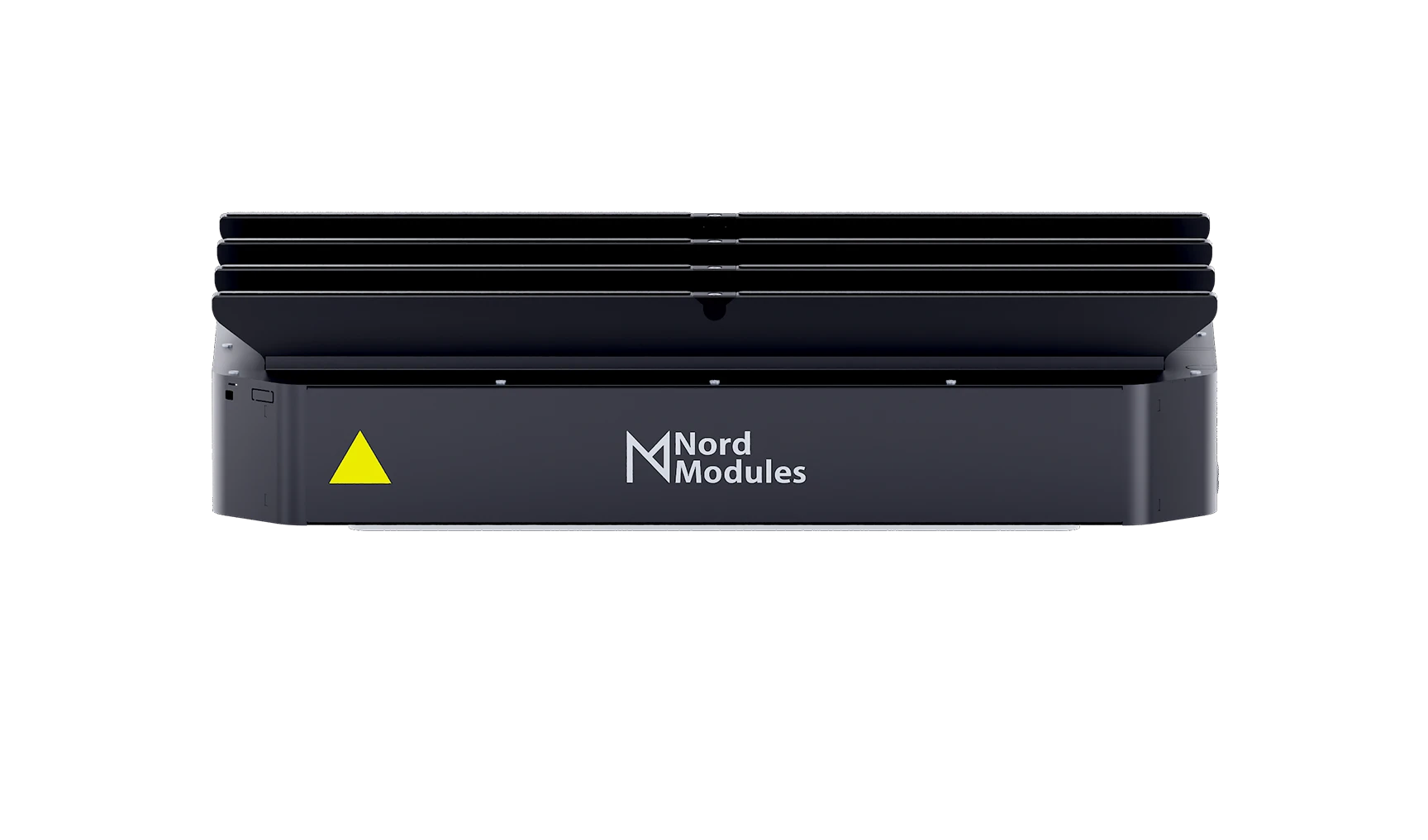

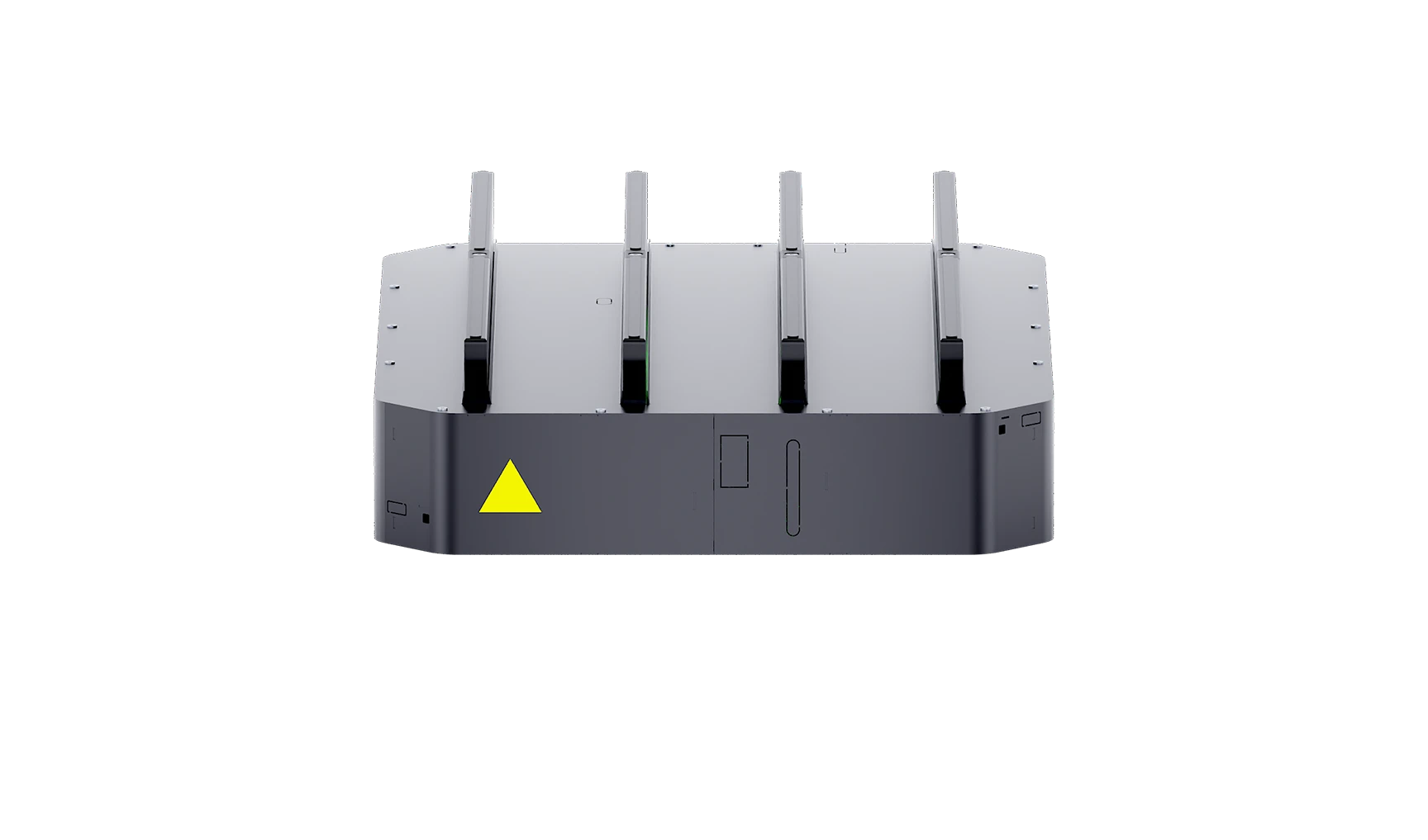

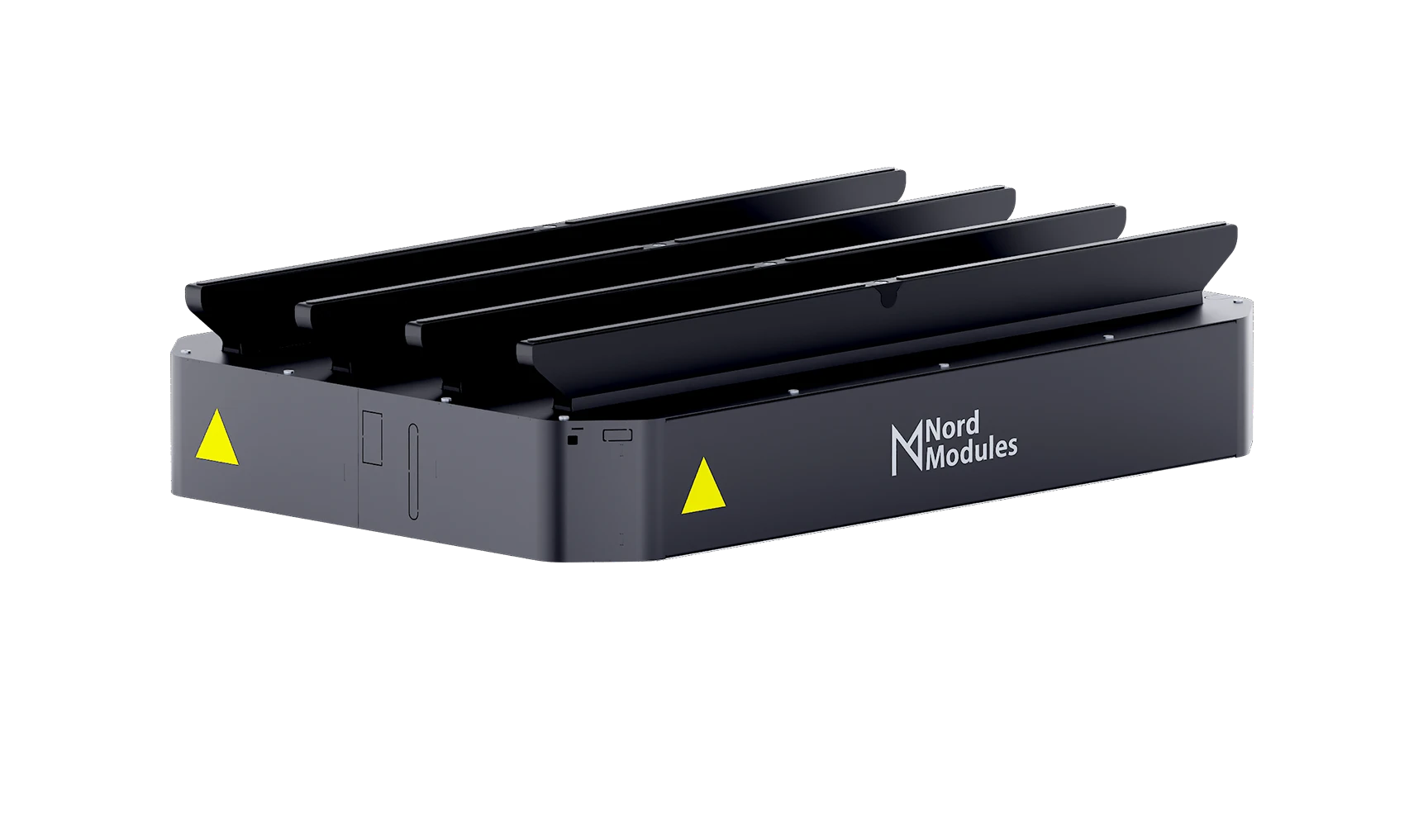

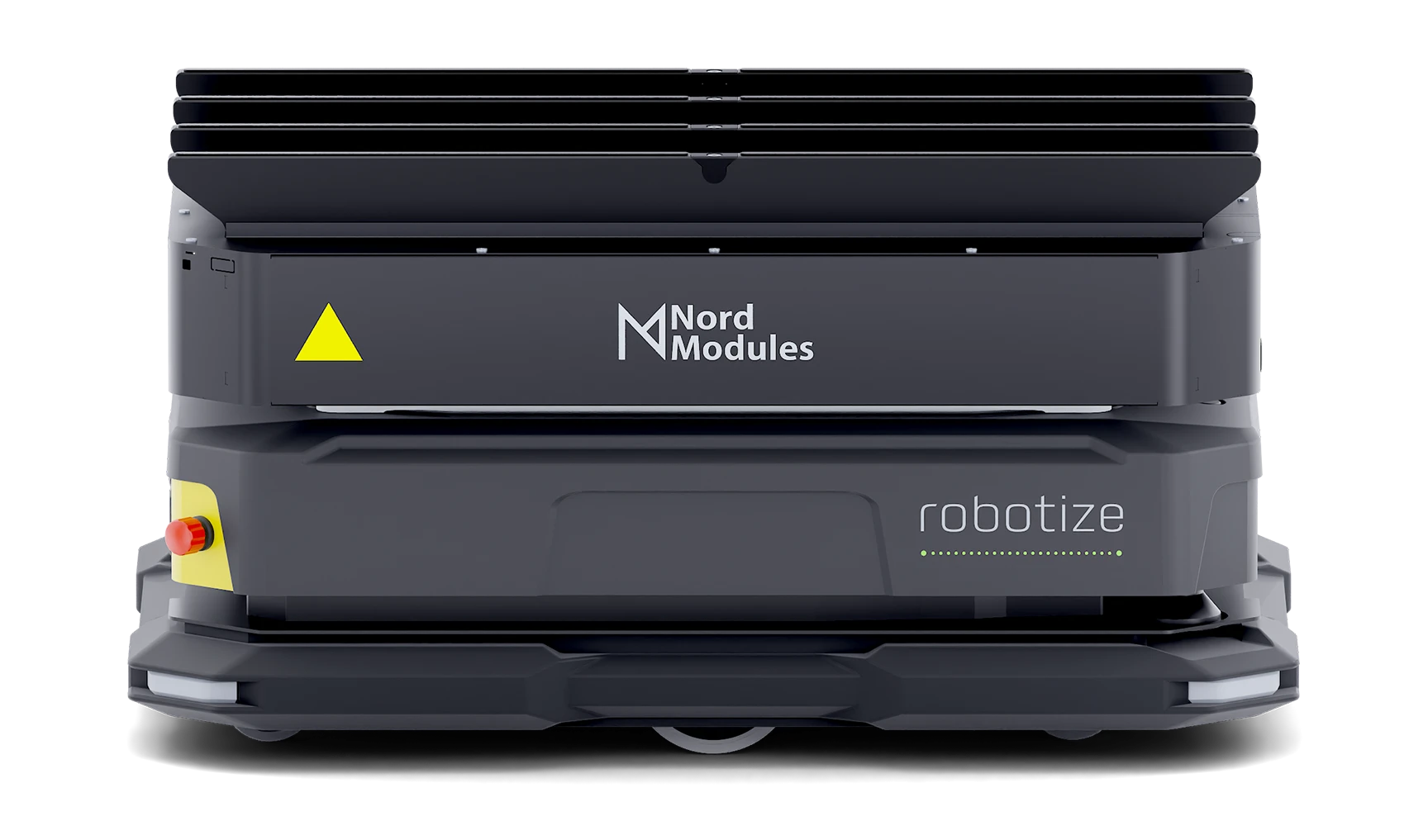

The Nord Quick Mover 260 is a versatile solution for automating internal transportation tasks. Functioning by an integrated lifting mechanism, it efficiently transports goods from the Nord Gates.The top module is mounted on top of the Robotize GoPal® P35 and functions by a lifting mechanism integrated into the module. The top module also has seven optional add-ons available. Quick to set up and adaptable to various workflows, it delivers a complete and flexible automation solution for optimized efficiency
Robot Compatibility
GoPal® P35
Dimensions (LWH)
895 x 603 x 223 mm | 35.2 x 23.7 x 8.8 in
Lifting Height
80 mm | 3.15 in
Lifting Speed
up to 14 mm/s | 0.6 in/s
Weight
47 kg | 103.6 lbs
Lifting Capacity
260 kg | 573.2 lbs
Expected Lifespan
Minimum 600.000 lifts at max. payload
Article Nr
NM00286533
The Nord Quick Mover automates the entire pickup and delivery process. AMR can seamlessly slide under staging gates or conveyors, execute precision lifts, and transfer materials completely hands-free to minimize cycle times.
Setting up the system to your exact needs. With a wide range of compatible accessories and multiple versatile add-ons, the module offers unmatched layout flexibility. You can easily adapt, expand, and customize your configuration to match any specialized workflow or changing production demands.
Move more with fewer trips. Engineered for demanding industrial environments, this robust top module safely handles heavy bins, specialized pallets, and large industrial components with absolute stability, maximizing your daily throughput.
The module is fully integrated into the Robotize GoPal hardware and software infrastructure. It communicates flawlessly with the AMR’s internal systems, ensuring perfect synchronization, rapid deployment, and a fast setup.
Built for continuous 24/7 operation. Featuring rigid structural engineering and integrated safety protocols, the module ensures secure payload retention during transport and docking, protecting your valuable materials and lowering maintenance costs.
Documentation
Product Sheet Dimension Drawings
3D Files
STEP-file (Nord Quick Mover 260)
GET A QUOTE
Showcase
Explore the design, features, and real-world performance
600.000+ lifts at max. payload
Optional Add-Ons

Tailor this product to specific operational needs. Quick to set up and adaptable to various workflows, they deliver a complete and flexible automation solution for optimized efficiency.

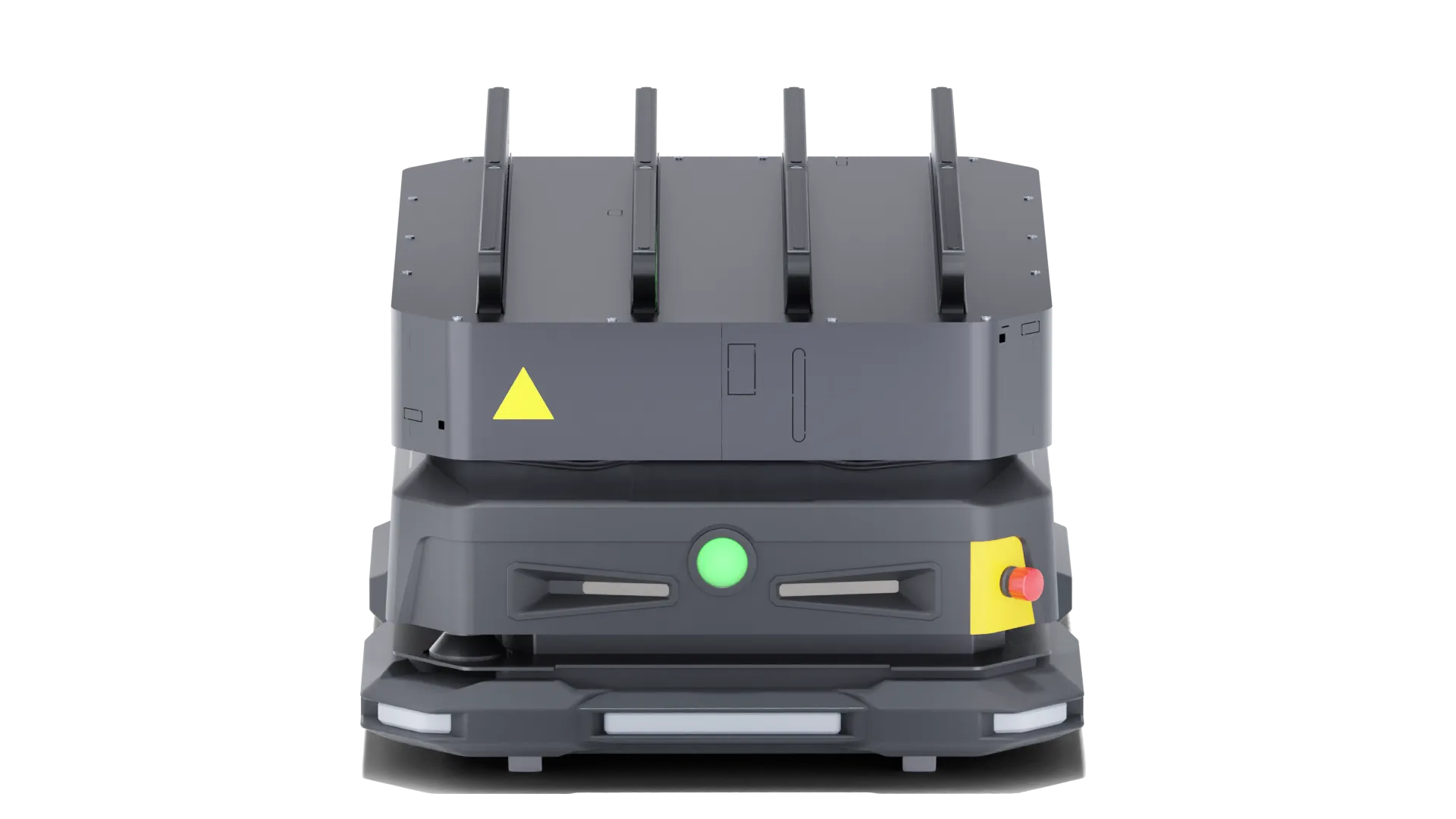

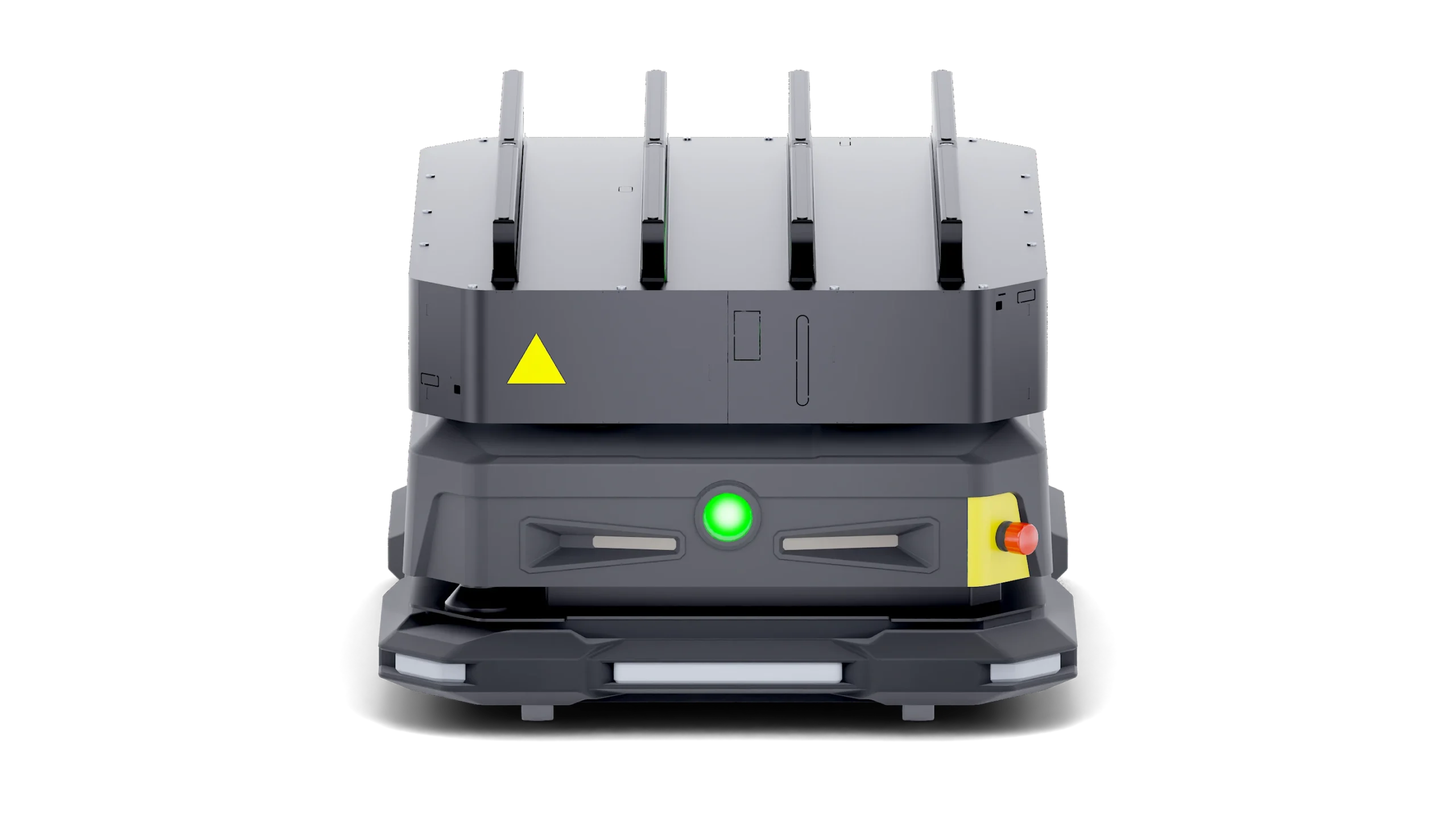

Nord Quick Mover 260 — view 1

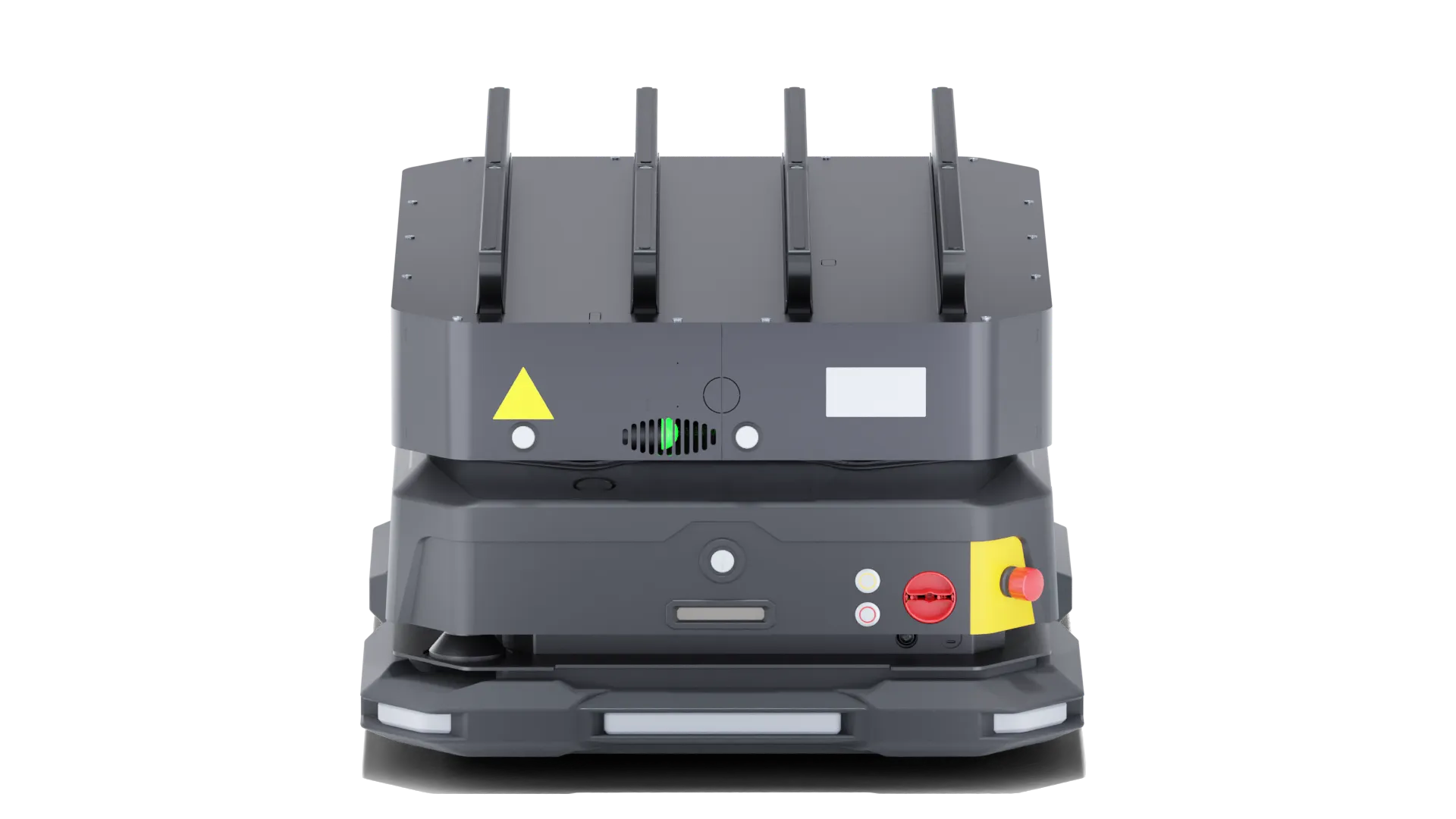

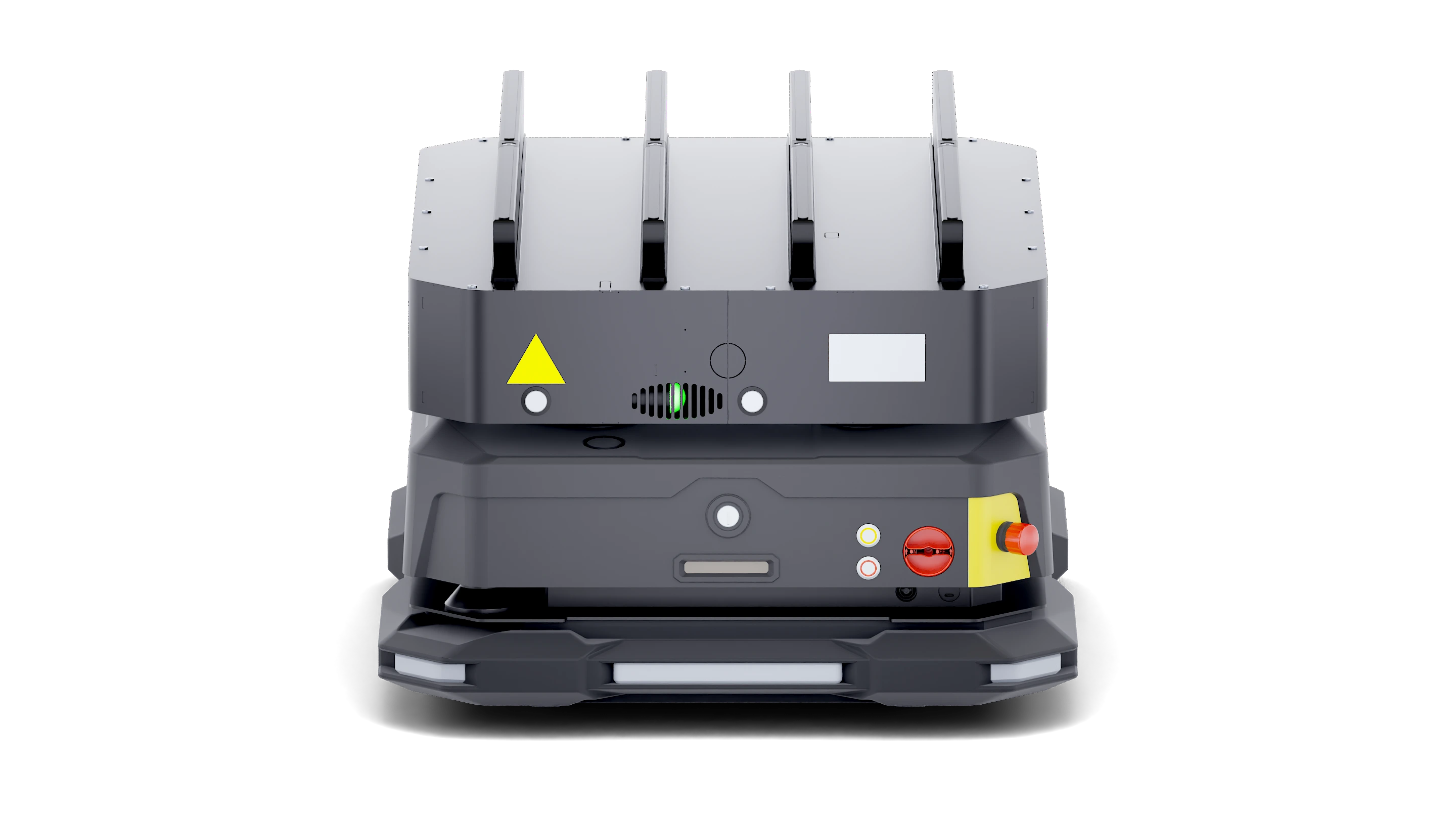

Nord Quick Mover 260 — view 2

Detects on Quick Mover
Internal mounted
Plug and play
QM prewired
Photoelectrical sensor
1000mm sensor range

Article Nr - NM00088637

Sensor Dimension Drawings

Recognize different types of goods placed on P&D station. Enabling Quick Mover to track different goods.
Barcode scanning
QR-Code scanning
300mm range
Adjustable scanner
Scanning in bright and dark surroundings

Detects on P&D Station
QM mounted
Internal mounted, Front
Adjustable sensor
Plug and play
QM prewired
Photoelectrical sensor
1000mm sensor range

Article Nr - NM00038841

Sensor Dimension Drawings

Increased safety
Blue light spot center on the floor
1175mm in front of the AMR
Internal mounted, Front
Plug and play
QM Prewired

Article Nr - NM00111498

Increases pickup/dropoff height
• 550–800 mm (in 50 mm intervals)
• Custom height - contact to Nord Modules
Plug and play
Standardized design
Adaptable for different layouts
Rigid mechanical structure

Integrated payload weight measurement: Max 260 kg (Accuracy: ±2%)
Patented solution
TBA

Retroreflective sensor
Compatible with "On the Flight Gate"
TBA

Increased safety
Increased visibility
Stack Light indicator check (Clear multi-color signaling for robot status)
Plug and play
QM prewired

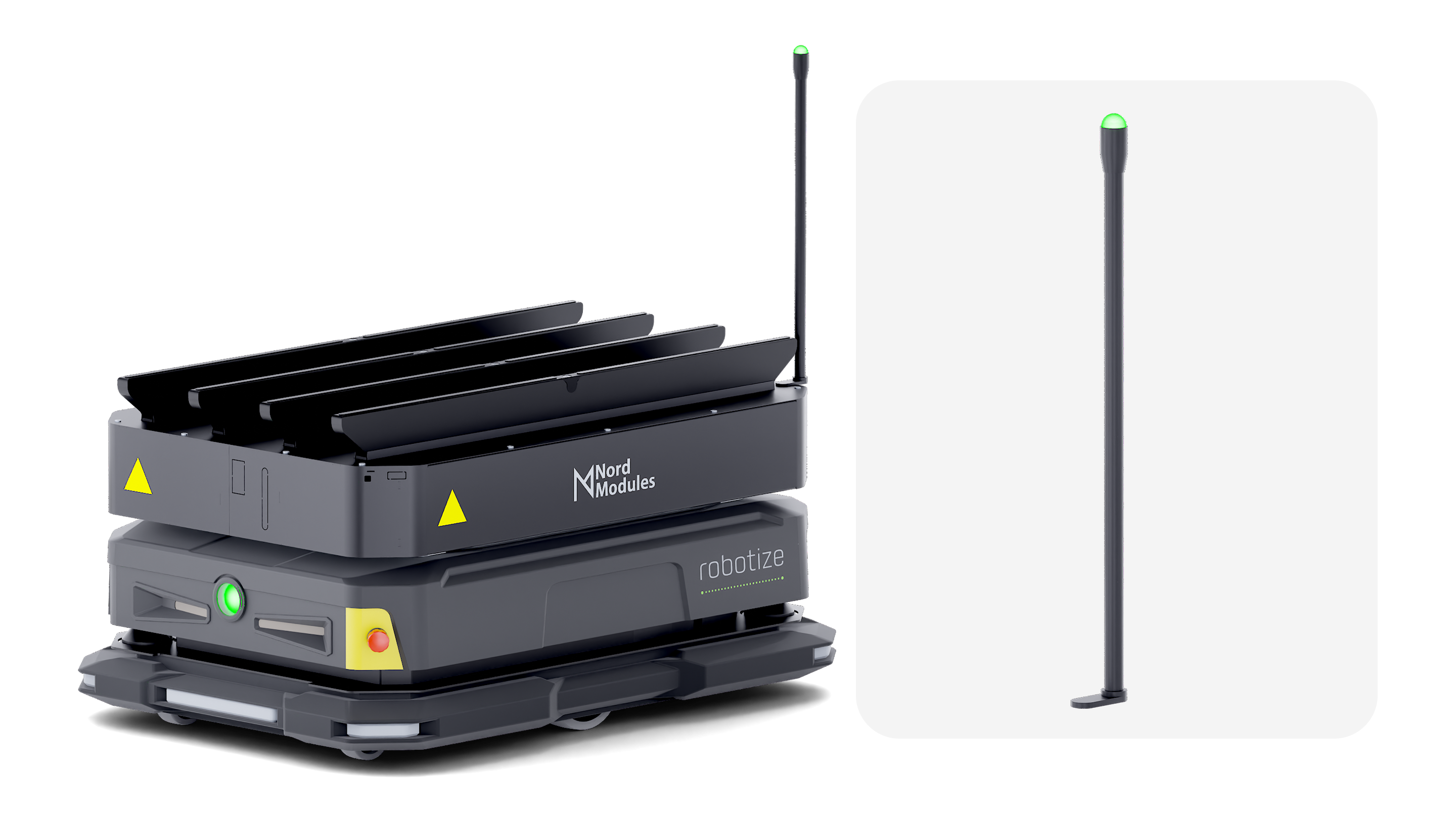

Stack Light Tower
Compatible Products

Enhance functionality with products built for seamless integration and reliable performance. Each one is designed to support and expand the capabilities of this product in demanding environments.

Compatible AMRs

Built for select autonomous mobile robots, making it easy to enhance performance in even the most demanding applications.
