Nord Wheel Gate Horizontal 510 V1 C5-CB5-M3-HWF900

Nord Wheel Gate Horizontal 510 V1 C5-CB5-M3-HWF900

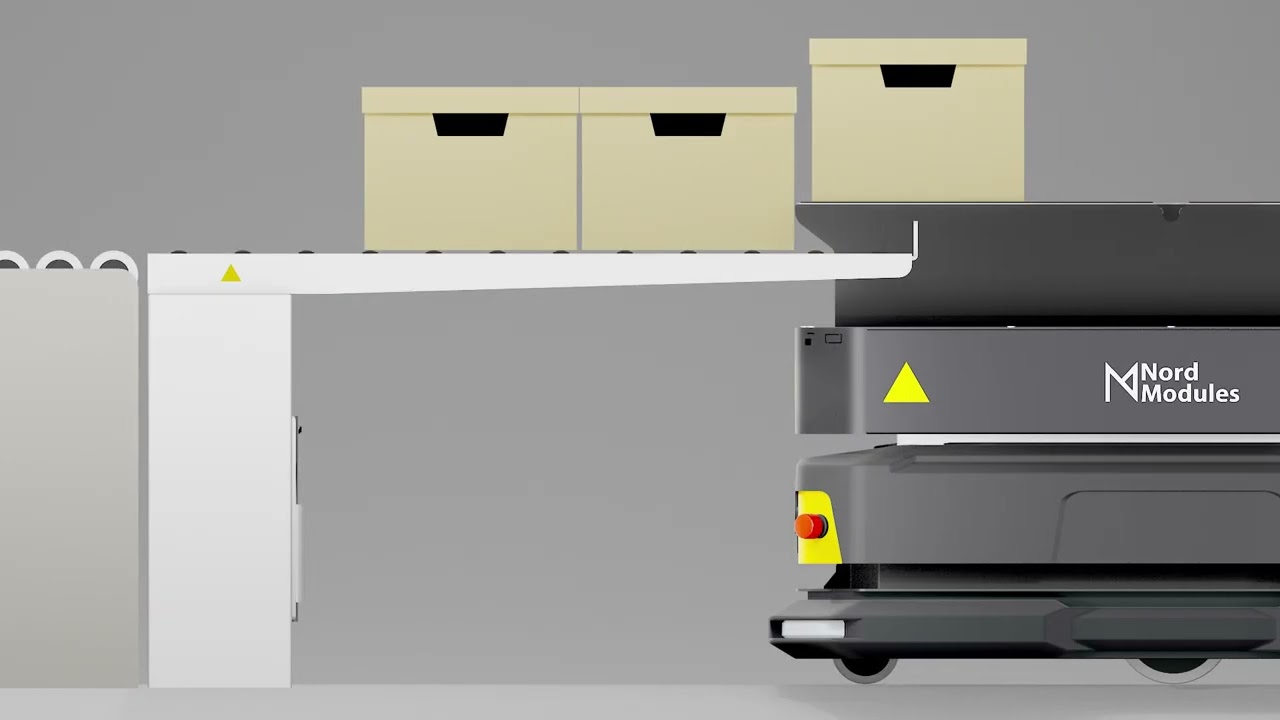

Transform your material handling with the Nord Wheel Gate Horizontal - a compact, fully mechanical transfer station designed as a flexible pick-up point for your factory floor. Operating as a non-powered base unit, this space-efficient module creates a highly efficient bridge between Nord Quick Mover 260 (installed on a Robotize GoPal P35) and production lines. It delivers a rapid, low-maintenance upgrade to your logistics, allowing effortless payload transfers with the flexibility to add smart monitoring sensors when needed.
Robot Compatibility
Robotize GoPal® P35
Variation
5 finger | Horizontal
Finger Length
900 mm | 35 in
Payload Capacity
75 kg | 165 lbs
Article Nr
NM00409789
Engineered to work in perfect with the Nord Quick Mover 260 on Robotize GoPal P35. This ensures fully aligned, reliable, and smooth payload transfers between your mobile fleet and stationary workstations.
Maximize your factory floor efficiency. Its slim, compact footprint allows you to set up flexible pick-up and staging points anywhere even in tight industrial spaces without disrupting existing workflows.
Get your staging points ready in minutes. The stand offers a quick and straight forward installation process, allowing you to securely anchor it to the factory floor or pair it with the Display Base addon to upgrade your internal logistics without major facility modifications.
Boost uptime with zero infrastructure hassle. The core unit requires no electricity or motors to function. Payloads move smoothly purely via heavy-duty industrial rollers, eliminating electrical failure points and lowering operational costs.
Upgrade your smart factory capabilities when you need them. While the base gate is mechanical, you can integrate optional payload detection sensors to monitor object presence, giving your system full digital tracking.
The flat, 0-degree horizontal alignment keeps payloads perfectly stable and stationary when needed, while the high-quality smooth-running rollers allow operators or automated factory systems to easily push and transfer objects in any direction with minimal effort.
Documentation
Product Sheet Dimension Drawings
3D Files
STEP-file
GET A QUOTE

Related Products ☰

Showcase
Explore the design, features, and real-world performance
Optional Add-Ons

With optional add-ons, the Nord Wheel Gate can be customized to meet specific operational needs. Quick to set up and adaptable to various workflows, it delivers a complete and flexible automation solution for optimized efficiency.

Nord Wheel Gate Horizontal 510 V1 C5-CB5-M3-HWF900 — view 1

Adjustable sensor [angle 0 - 50° / Sensor range 50mm - 1000mm]
Detects payload on gate
Default sensor range: 1000mm
Photoelectrical sensor
Additional control needed
The sensors can be installed in 4 different locations

Article Nr - NM00120139

Sensor Dimension Drawings Nord Payload Detection on Gate from Gate V1 - NM00120139

No need for mounting to floor
Moveable gate
Not for industrial use
Max Payload - 75 kg / 165.3 lbs

Article Nr - NM00345414

Display Base - NM00345414
Compatible Products

This accessory is made to work perfectly with Nord Modules’ top modules, helping you get more out of your automation setup. It adds extra functionality while keeping everything simple, reliable, and efficient even in busy industrial settings.

Compatible AMRs

This product is compatible with select autonomous mobile robots, making it easy to enhance performance in even the most demanding applications.
