Handling capacity

PM1000-Omron HD

Robot compatibility:
Omron HD-1500

Nord Modules compatibility:
Pallet Conveyor, Dock Target, Spacer Kit

Dimensions (LWH):
1650 x 1138 x 171 mm | 64.96 x 44.8 x 6.7 in

Max Handling capacity:
1270 kg | 2799 lbs

Speed:
200 mm/sec | 7.9 in/sec

Height from floor to top of rollers:
504 mm | 19.84 in (possible extension up to 800 mm | 31.5 in)

Center distance between rollers:
95.8 & 108.5 mm | 3.77 & 4.27 in

Transport area:
1510 x 1072 mm | 59.45 x 42.2 in

Weight:
230 kg

Description

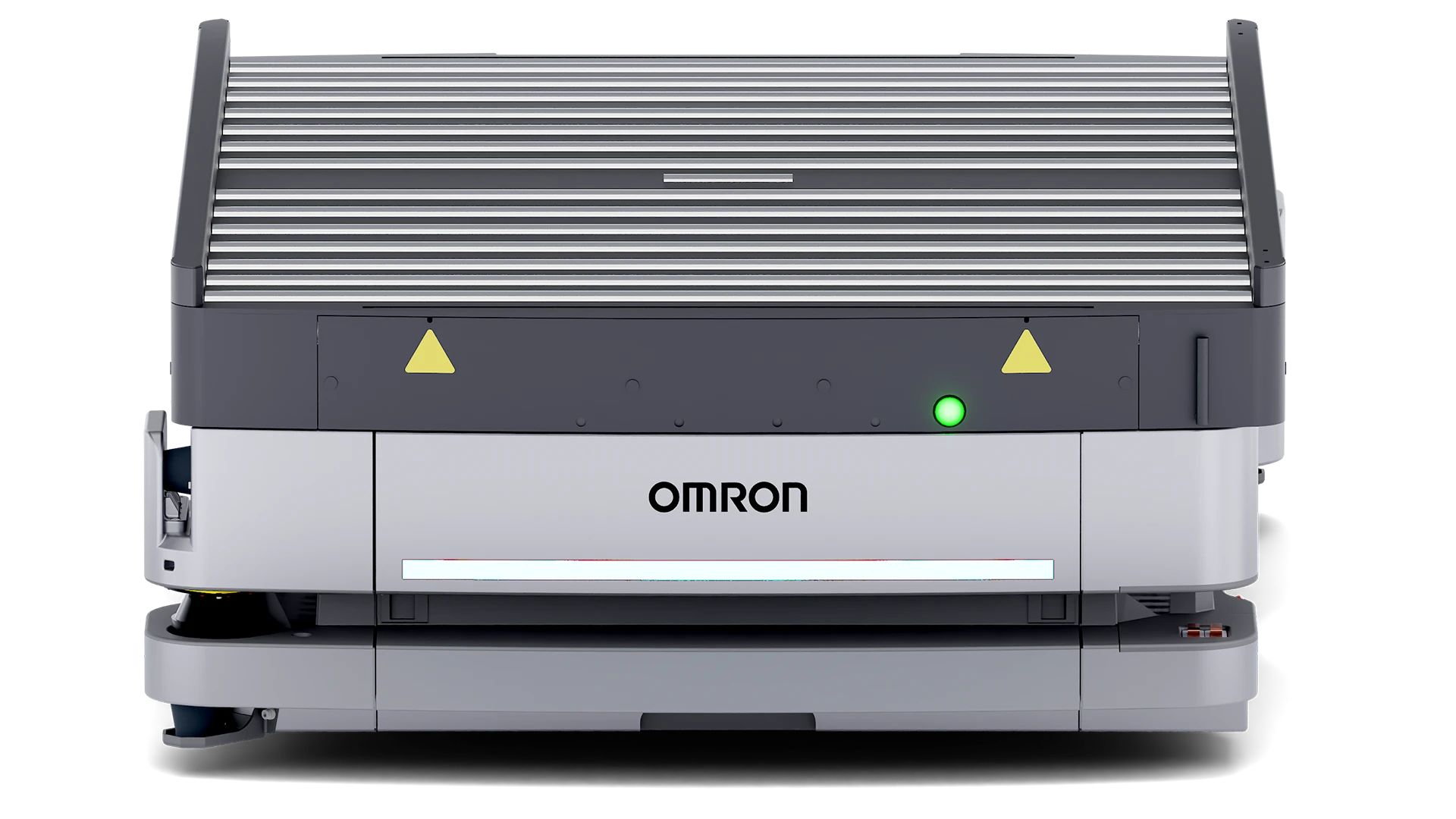

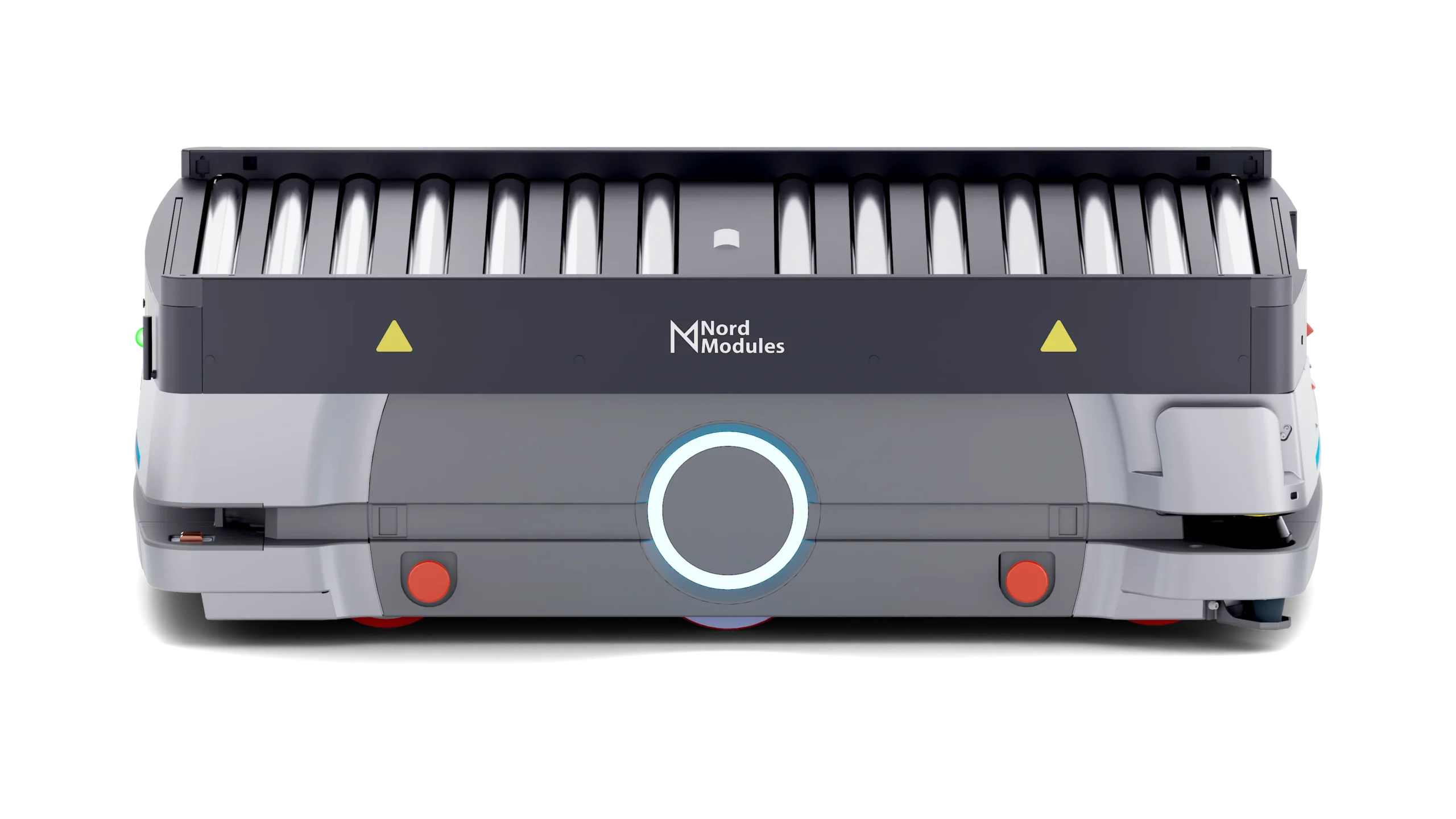

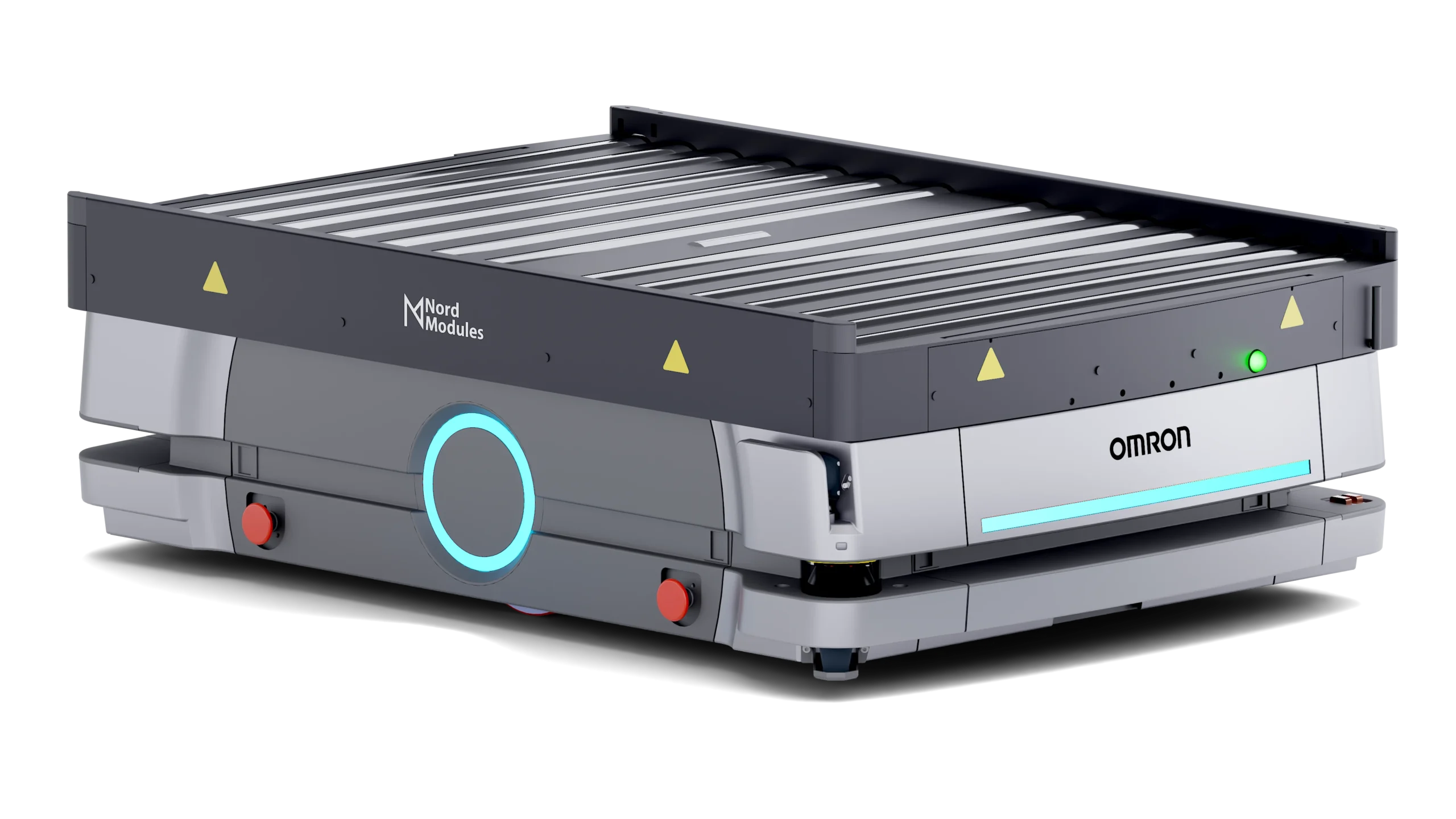

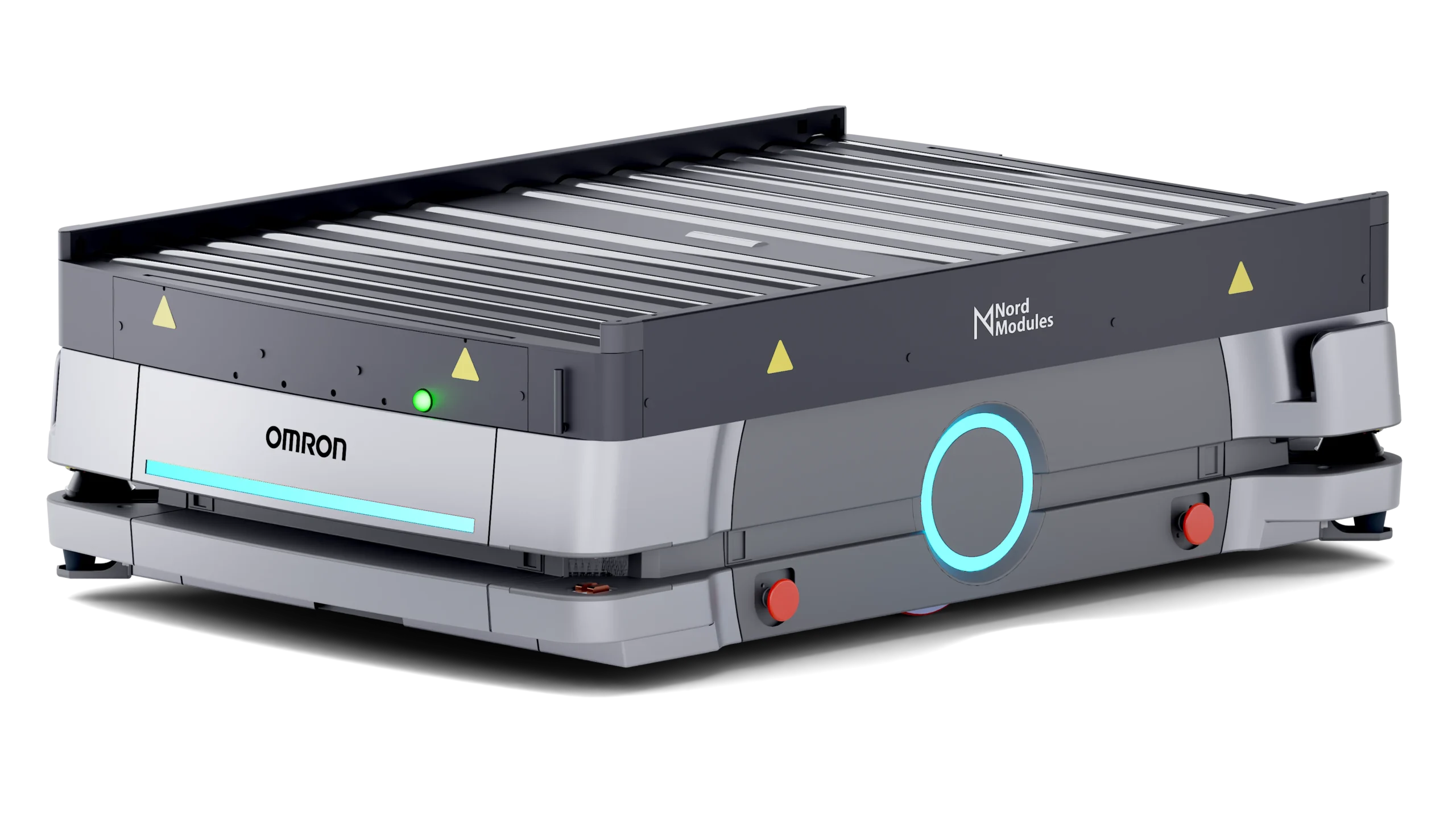

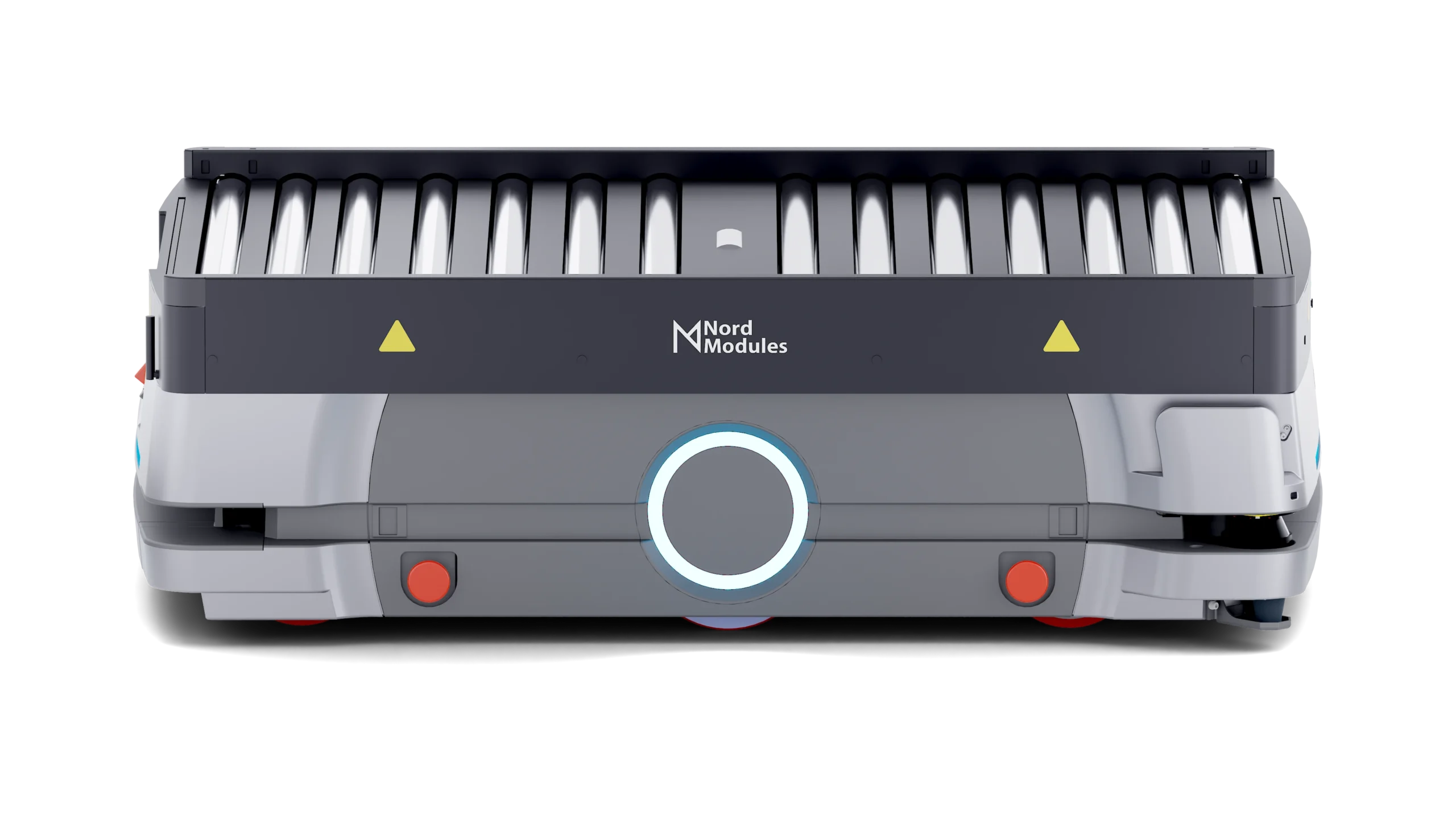

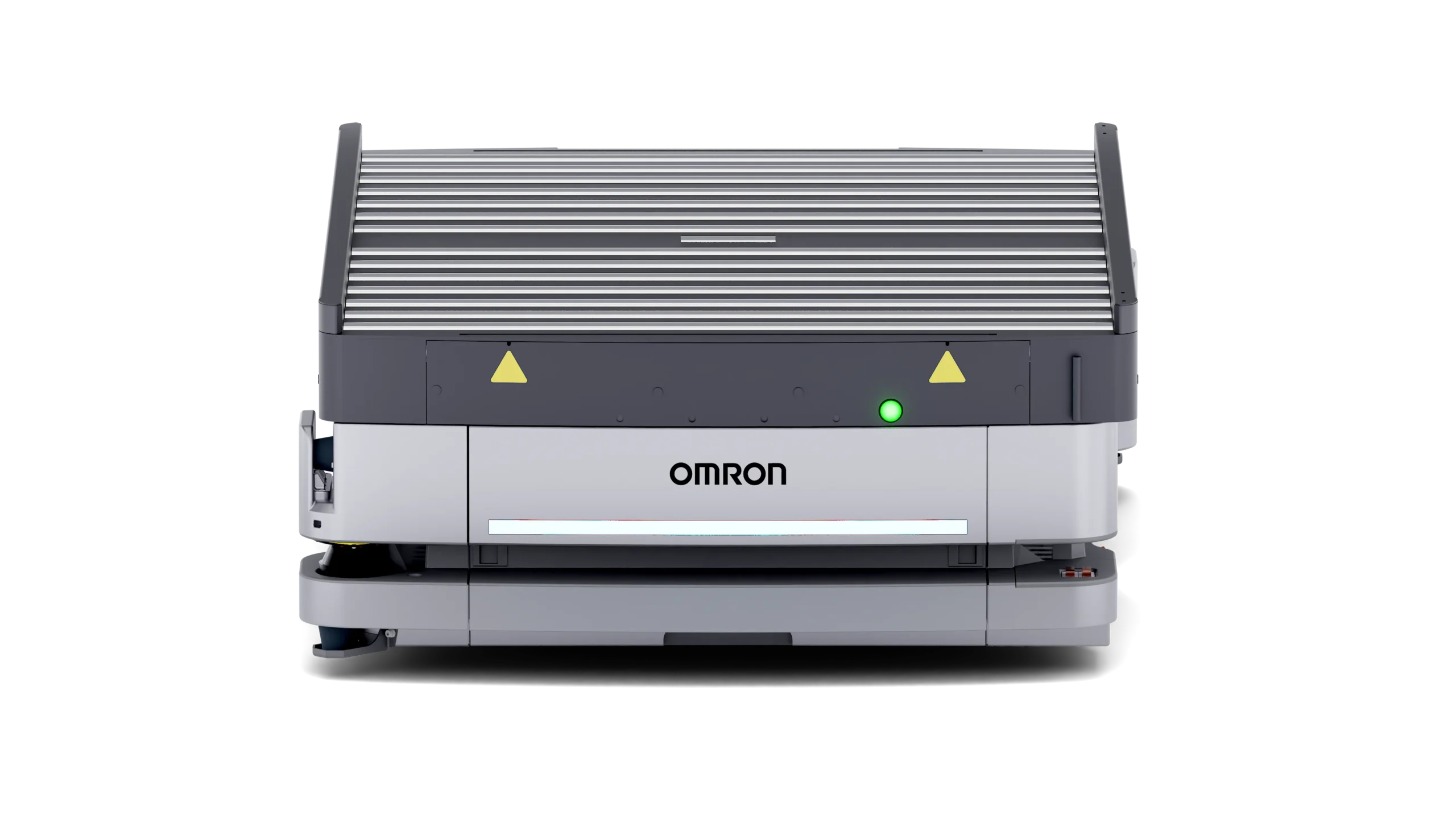

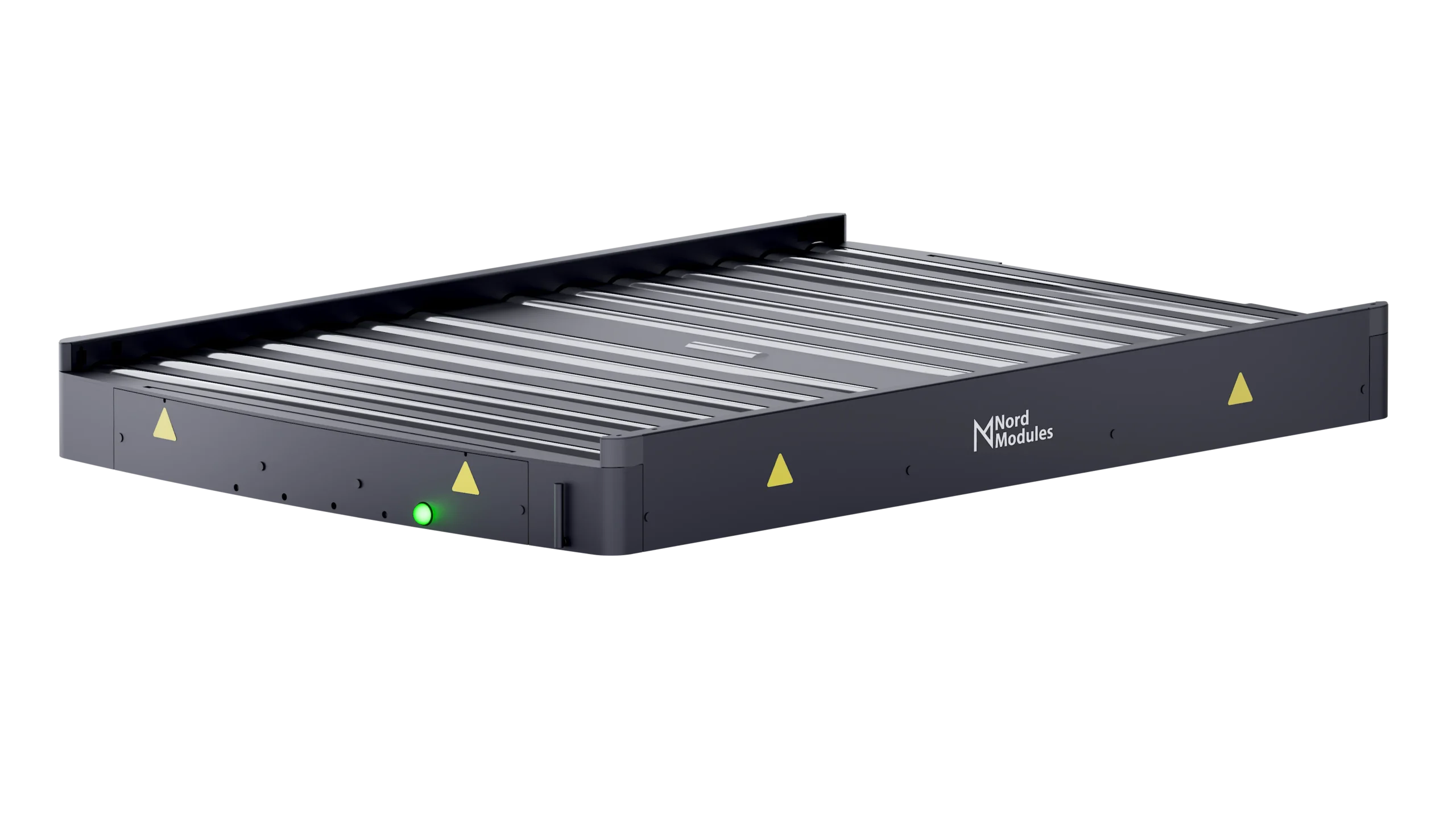

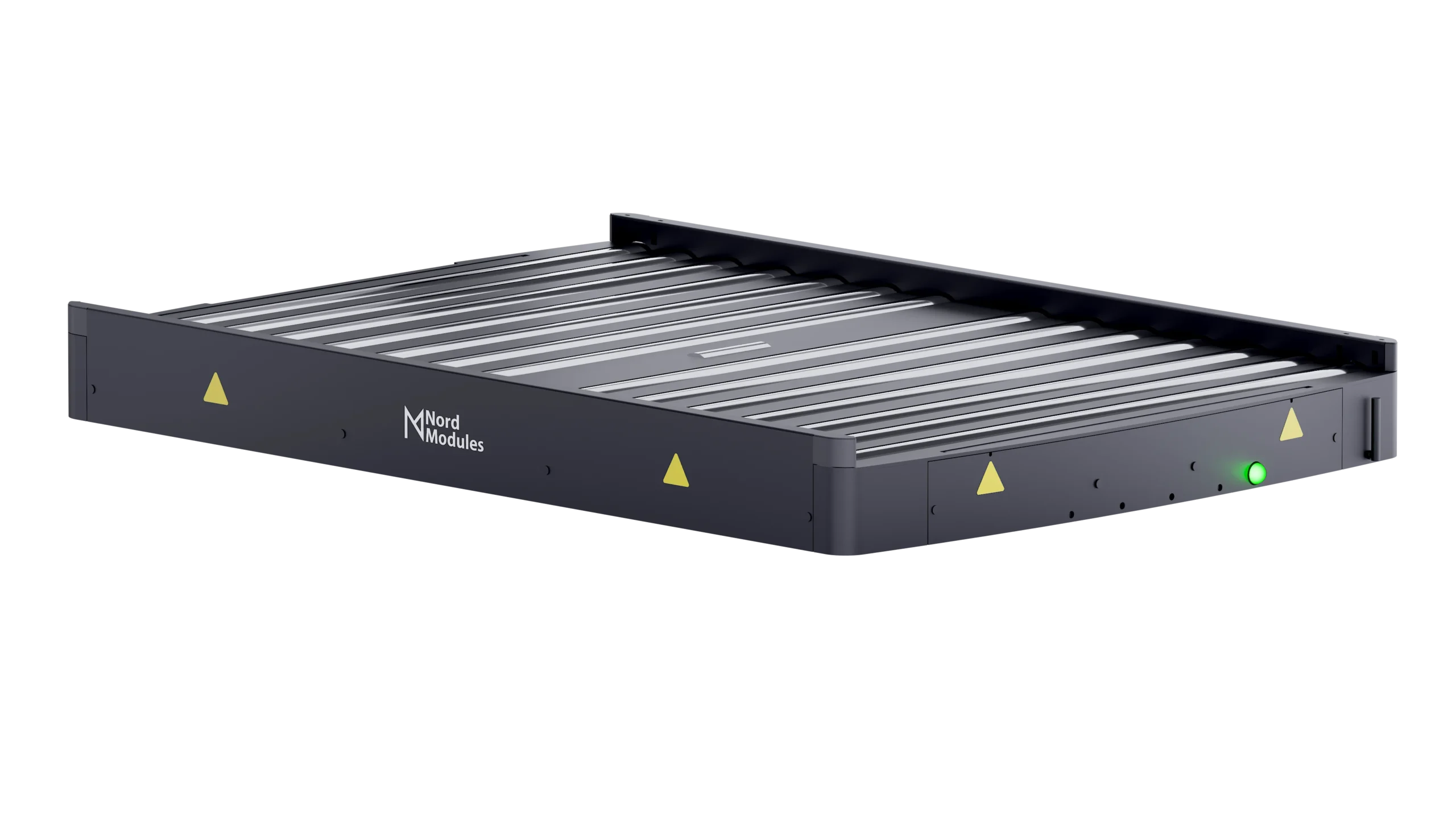

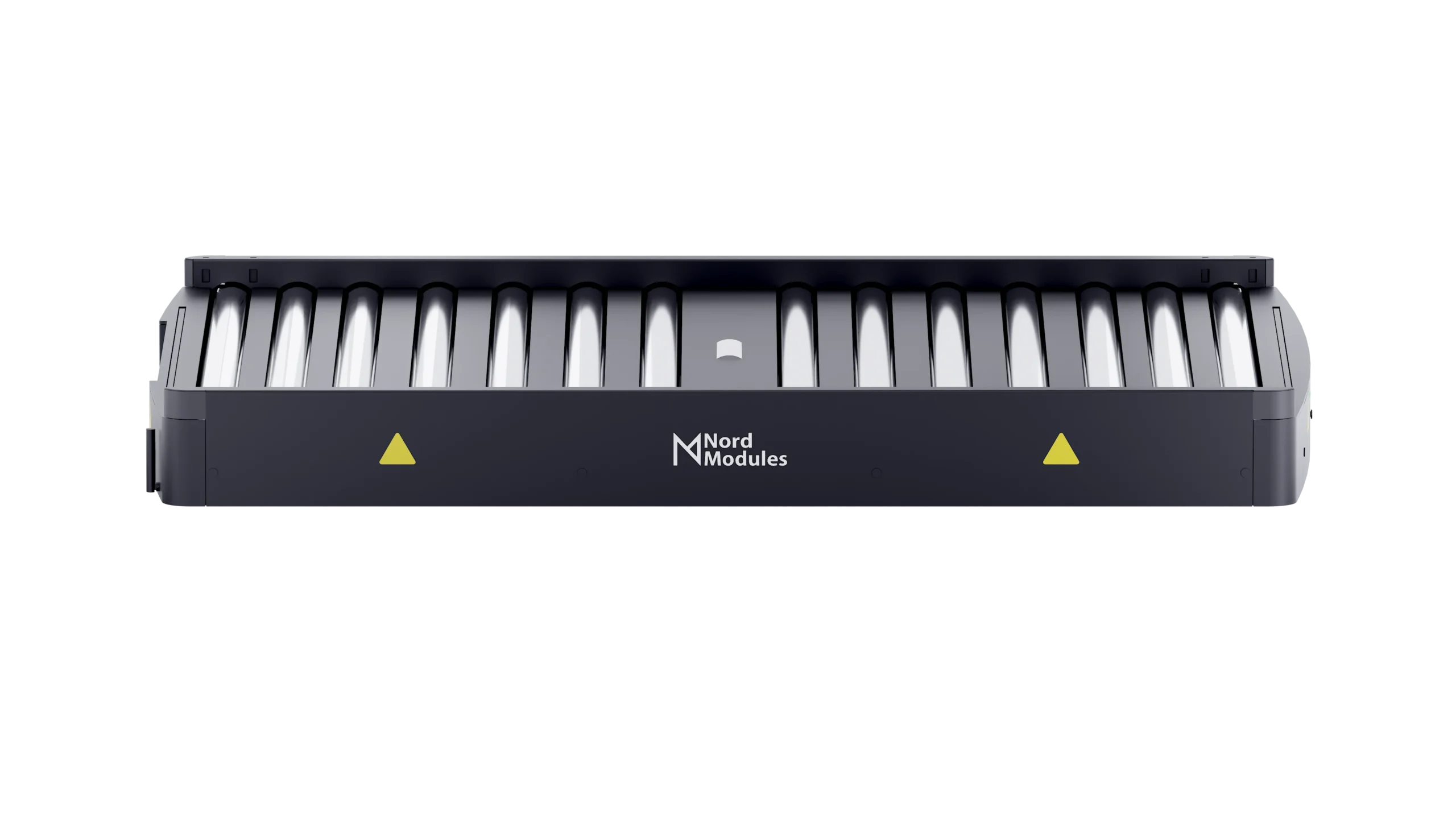

The Pallet Mover enables the Mobile Robots to pick up and deliver pallets – transporting them to e.g. production lines or packing stations, thereby enhancing internal logistics.

The Pallet Movers integrated technology enables communication to external roller conveyors by wireless signals. A Nord Modules Dock Target can be installed on an existing conveyor line allowing the PM1000 to successfully dock and receive or deliver a pallet.

This fully automated premium solution allows heavy payload transportation of up to 1270 kg to optimize logistics and production.

Your key benefits:

  • High industrial quality
  • Within the footprint of the Omron HD-1500
  • Safe heavy payload transportation with 4-sided guard rails and breaks on all rollers
  • Transport of both EU- and US-size pallets.
  • “Roll through solution” with loading and delivery from front AND rear end
  • PLC controller and servo technology.

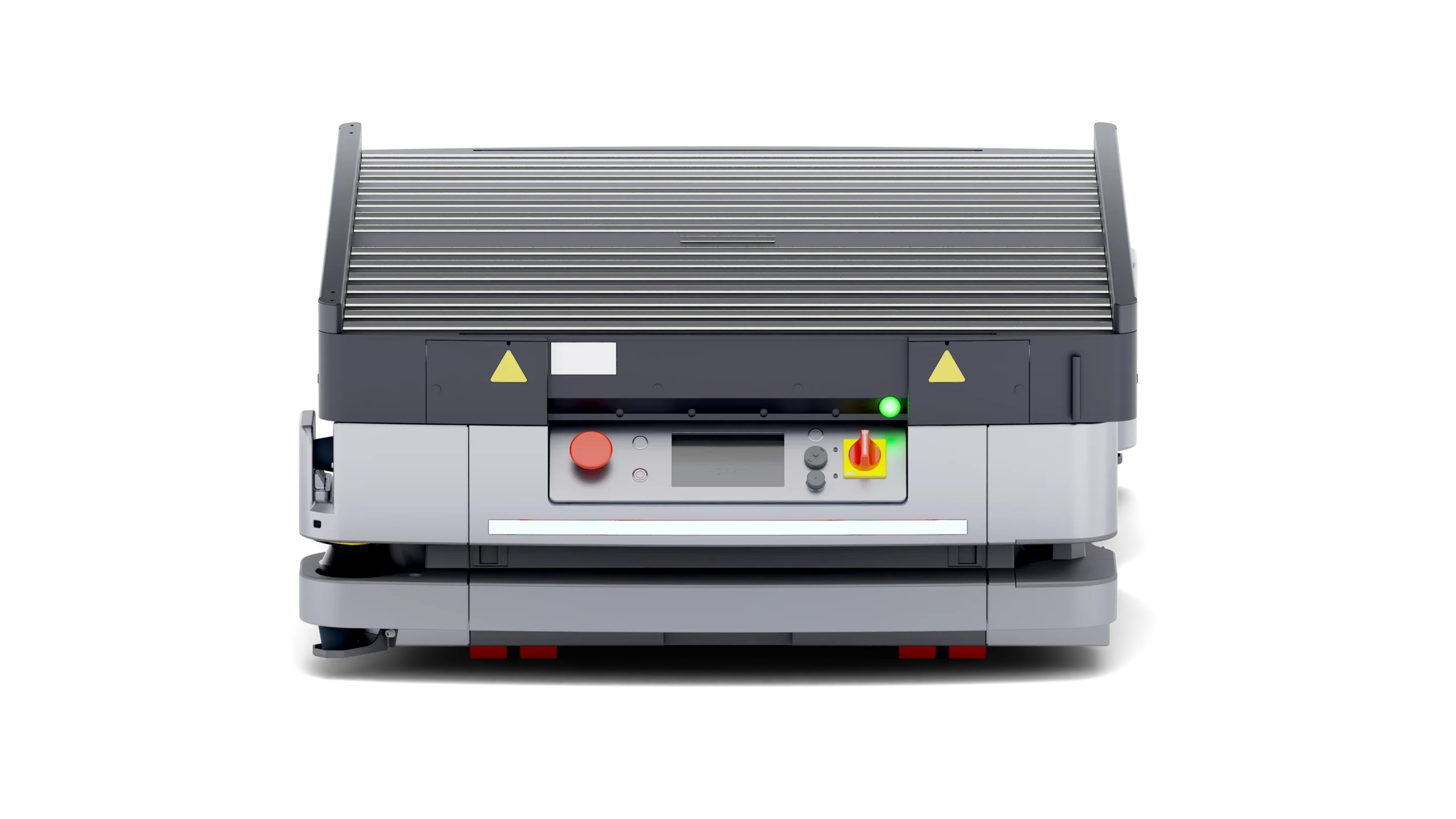

  • Stack-light – information of operation level.
  • High level of feedback.
  • Option: rubber coating of roller
  • Automatic synchronization of speed

Compatible with…
