Nord Quick Mover 200-588-LD250

Nord Quick Mover 200-588-LD250

The Nord Quick Mover is a lifting top module that turns a Omron LD-250 into an automated transport link between stations. It picks up and delivers loads at Nord Gates, which can sit at either end of an existing conveyor, feeding the line or taking goods off it, or work as standalone pickup and drop-off points.
Robot Compatibility

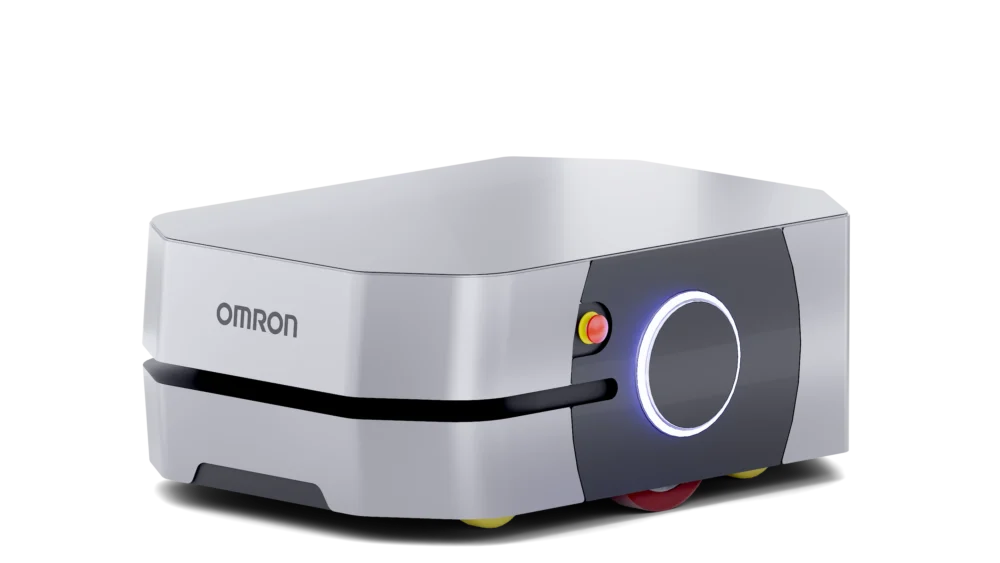

Omron LD-250
Dimensions (LWH)
944 x 690 x 201 mm | 37 x 27.2 x 7.9 in
Stroke Length
80 mm | 3.15 in
Lifting Speed
up to 14 mm/s | 0.6 in/s
Weight
42 kg | 92.6 lbs
Payload Capacity
200 kg | 440 lbs
Service Interval
Service intervall for every 200.000 cycles
Expected Lifespan
Minimum 600.000 lifts at max. payload
Article Nr
NM00172438
Gates mount at the end of stationary conveyors, so the AMR plugs into your line without a rebuild.
The same Quick Mover serves conveyor ends, workstations and simple floor-level pickup and drop-off points.
Fixed pricing and short deployment instead of a one-off engineering project.
Rated for 600,000 lift cycles, with components tested for vibration, impact and daily wear.
Documentation
Product Sheet Dimension Drawings
3D Files
STEP-file (Nord Quick Mover 200-588)

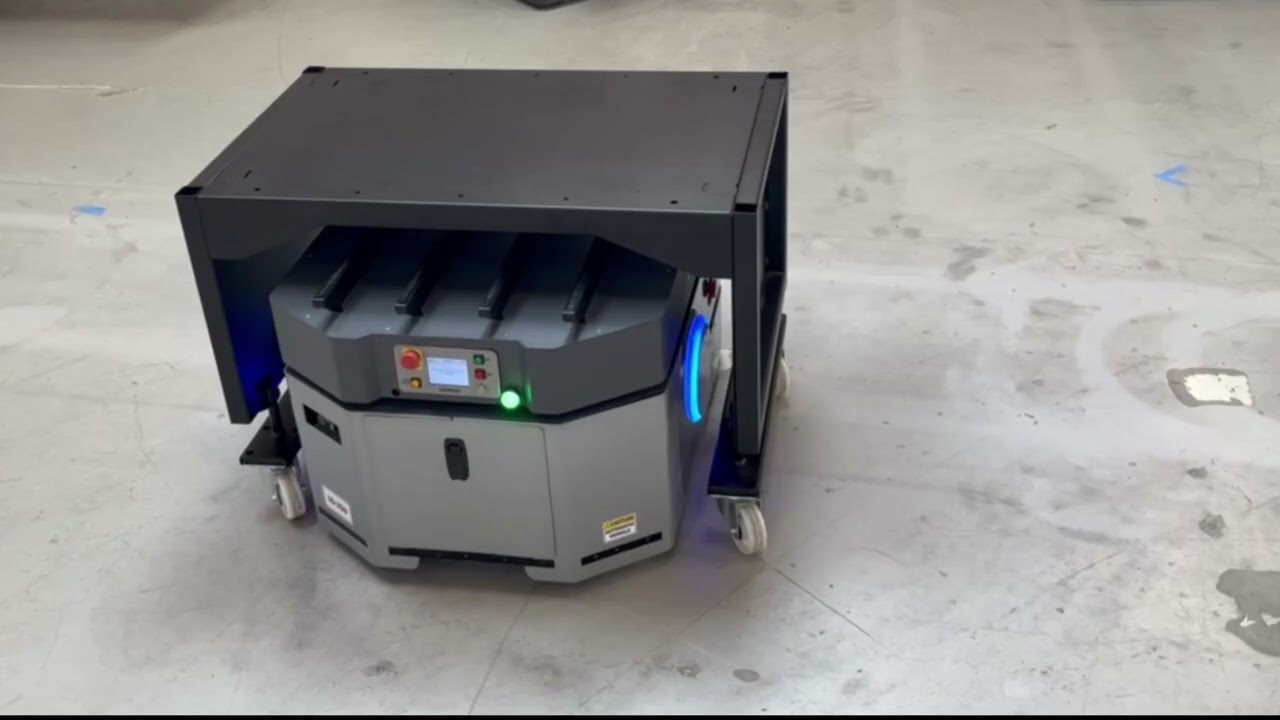

Showcase
Explore the design, features, and real-world performance
600.000+ lifts at max. payload
Optional Add-Ons

Tailor this product to specific operational needs. Quick to set up and adaptable to various workflows, they deliver a complete and flexible automation solution for optimized efficiency.

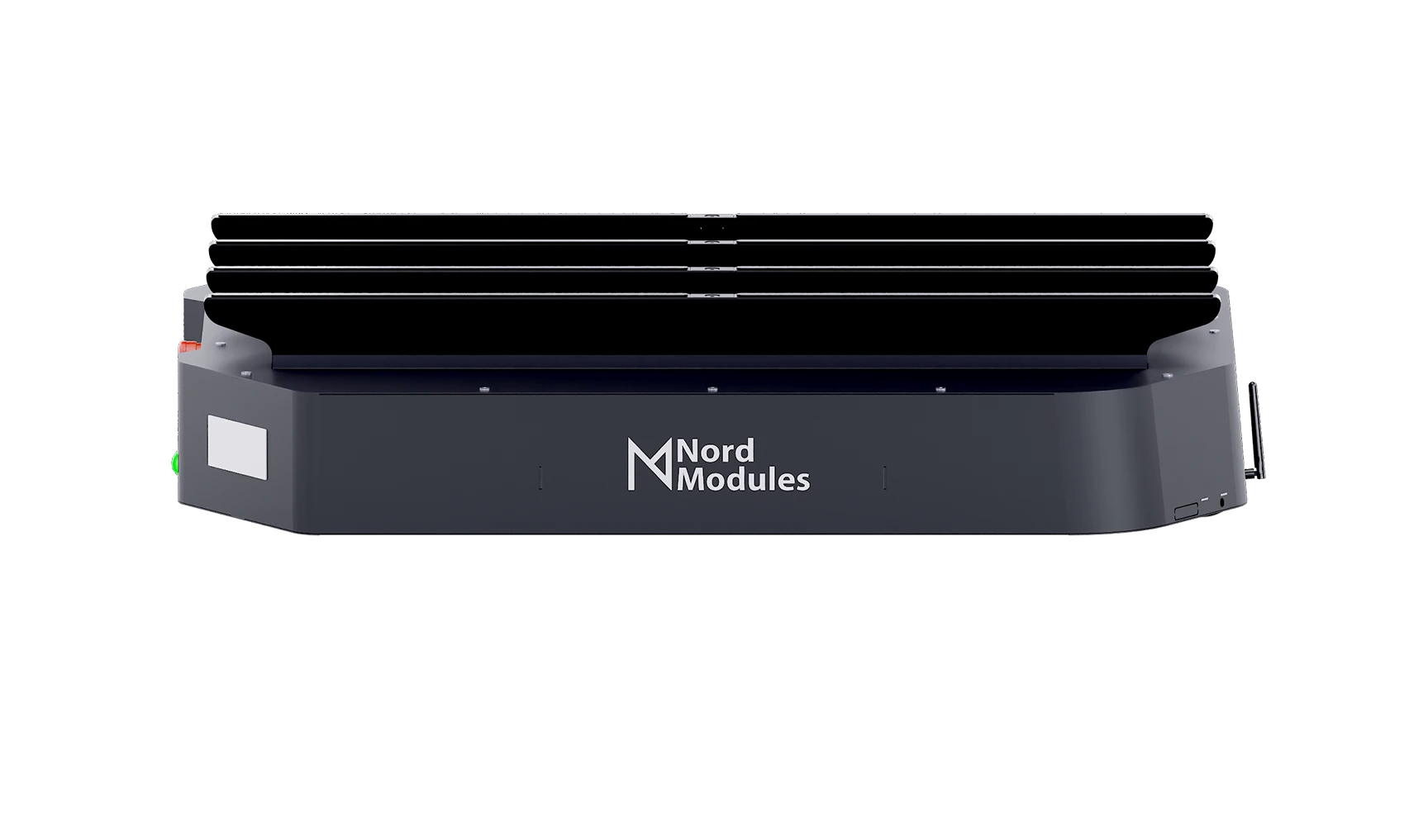

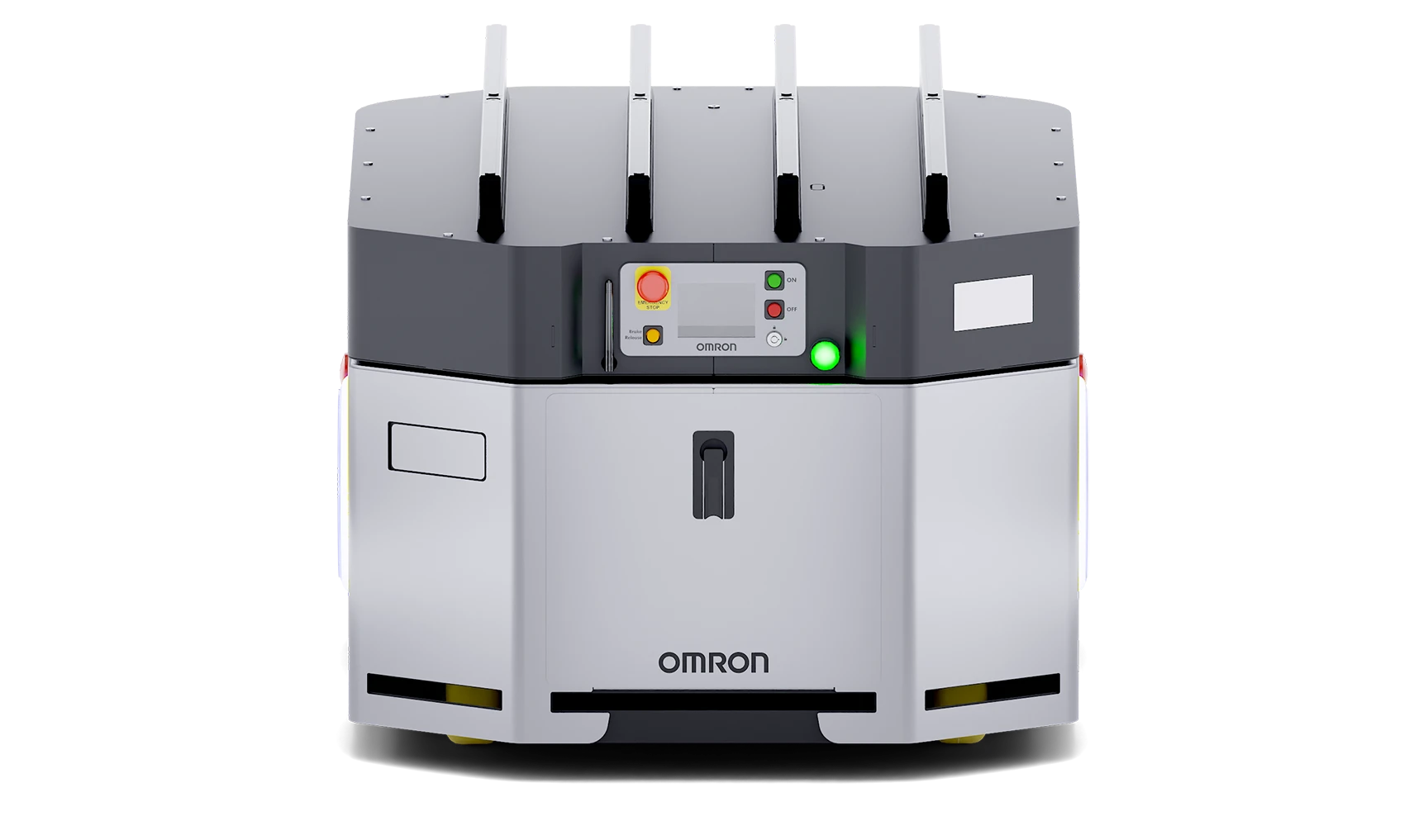

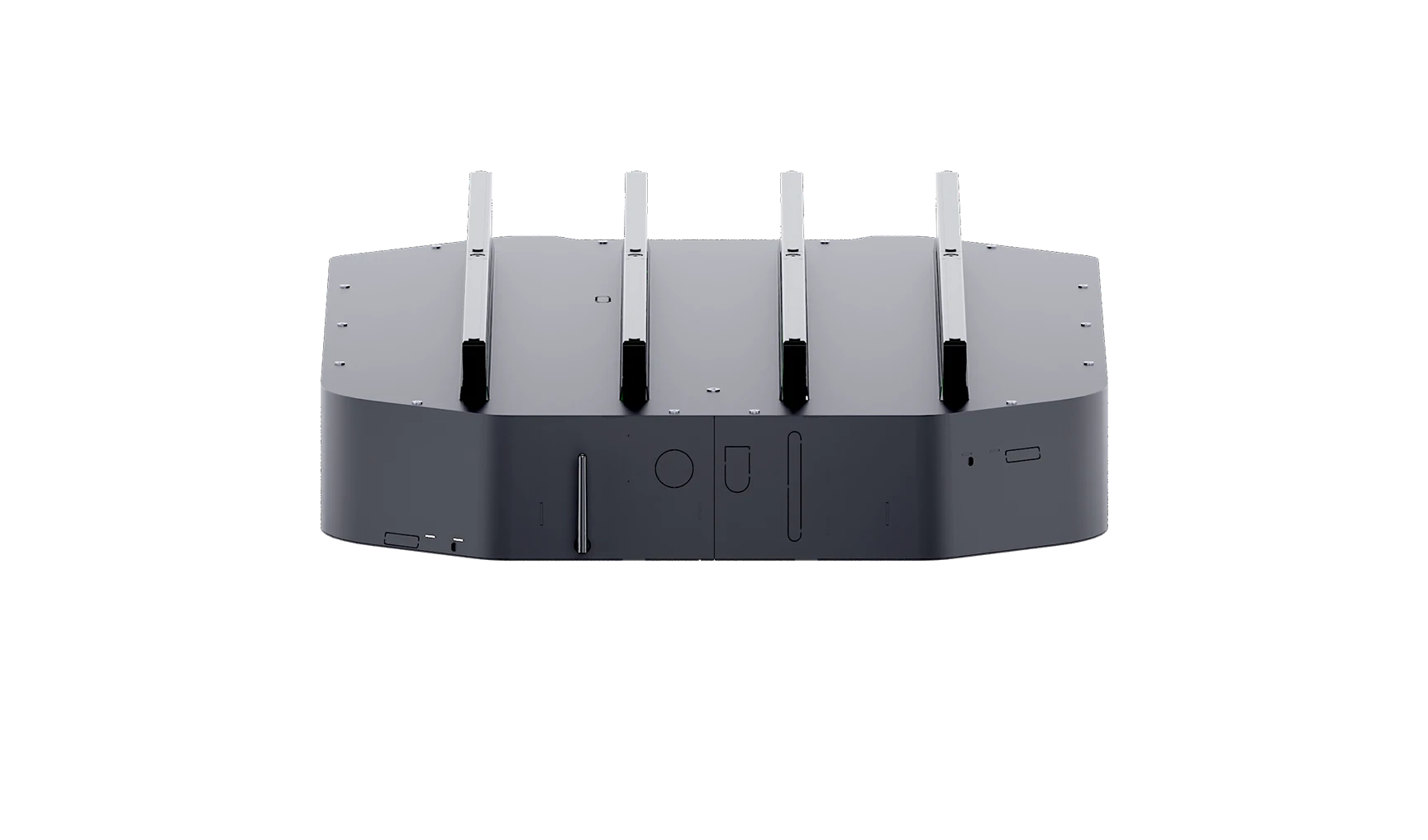

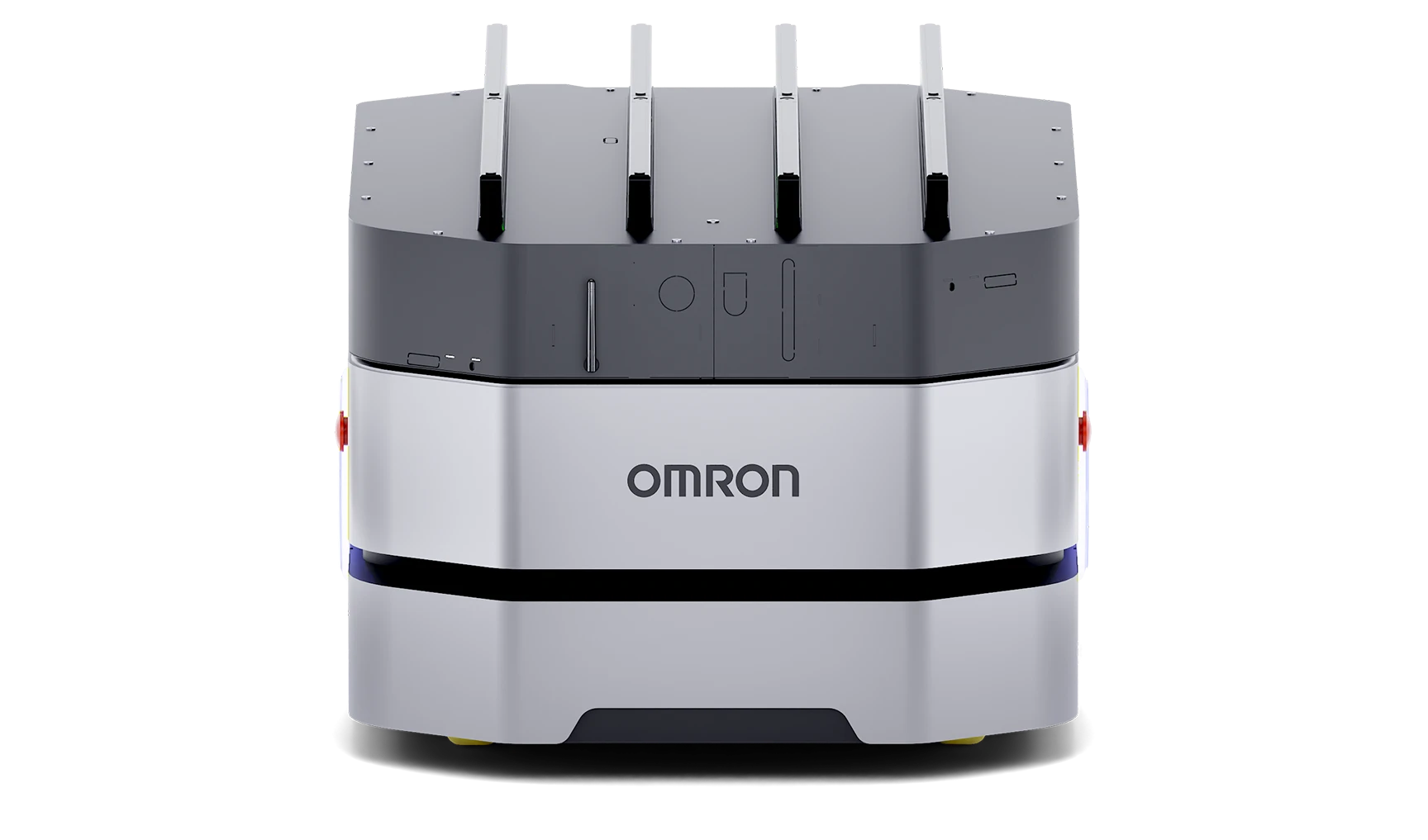

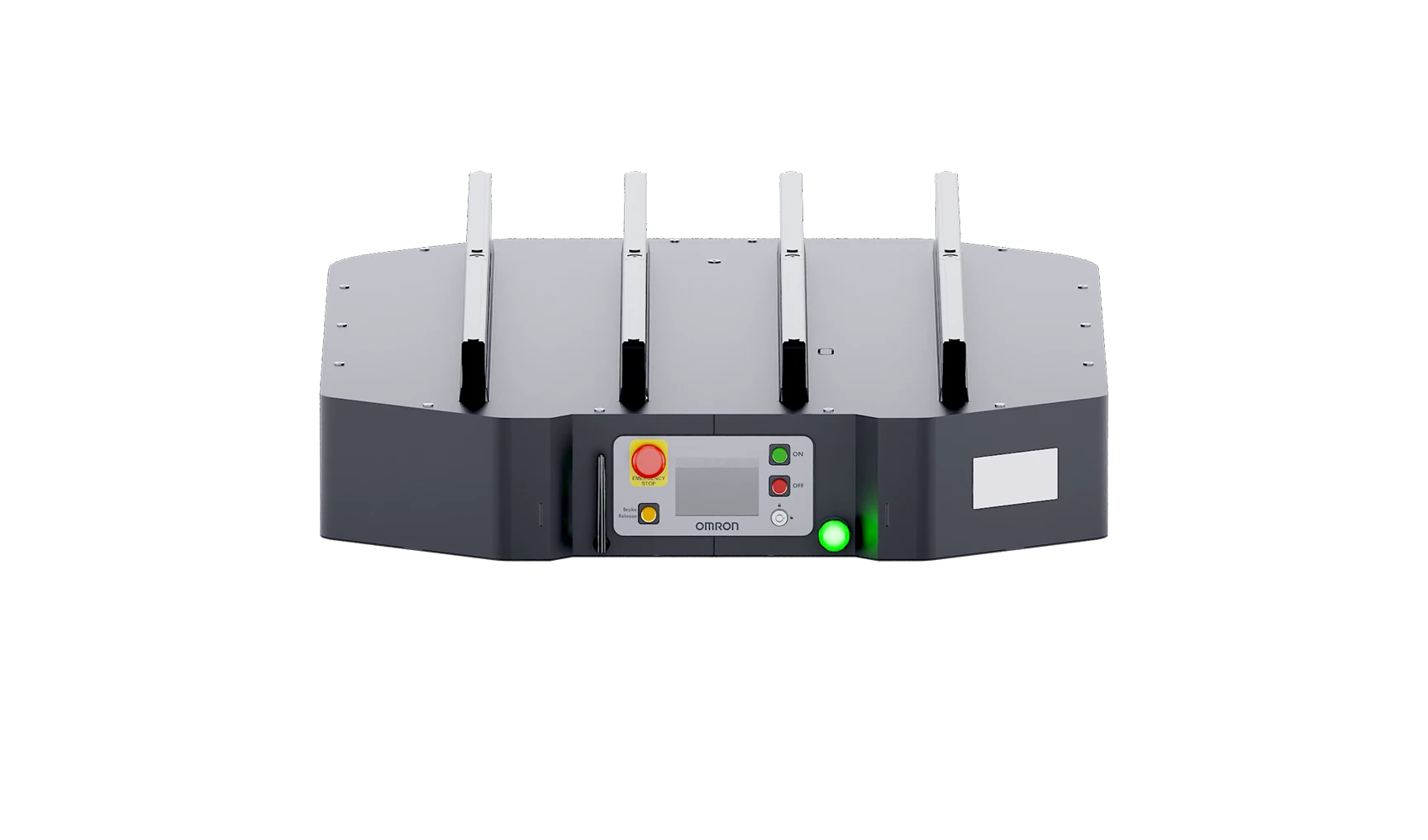

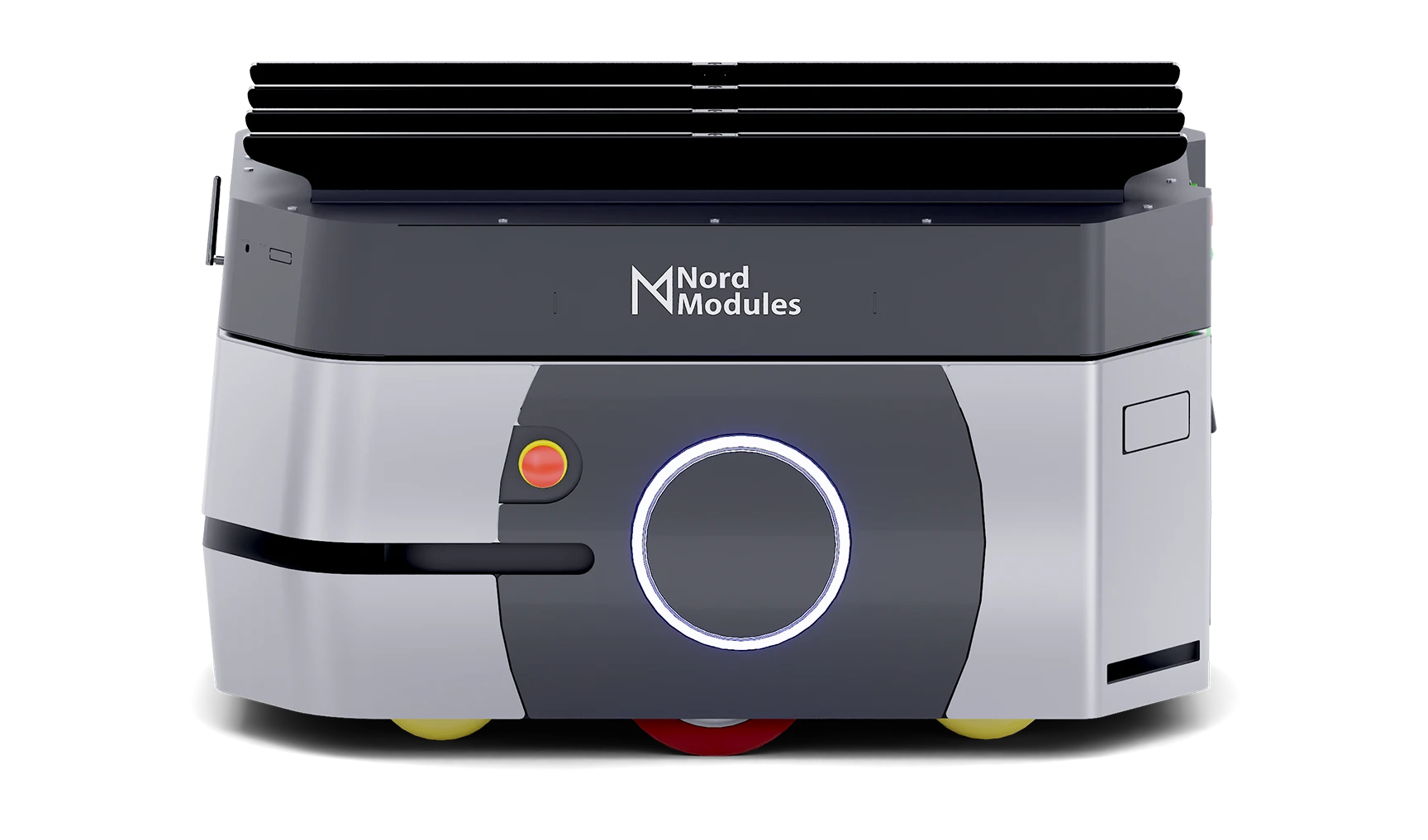

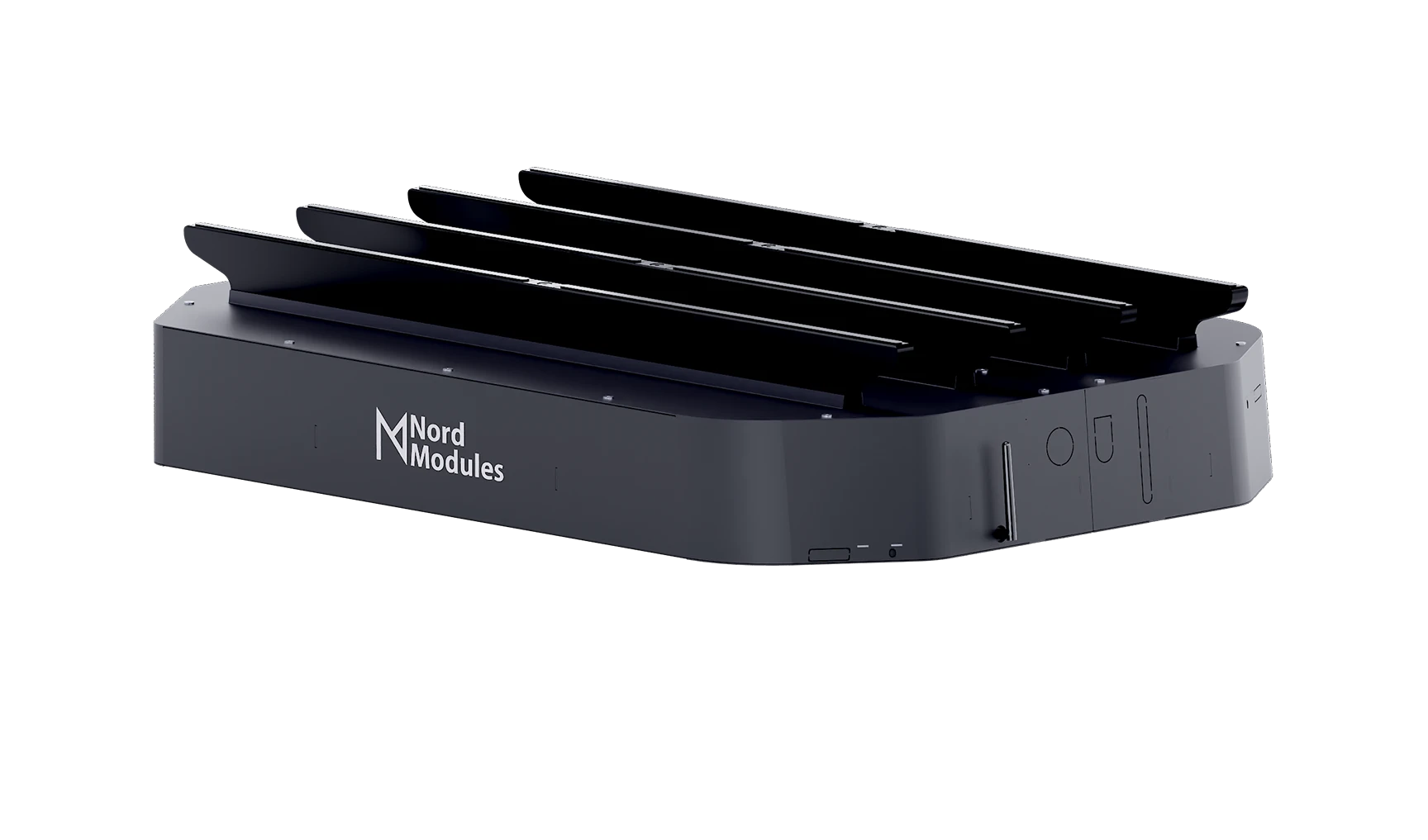

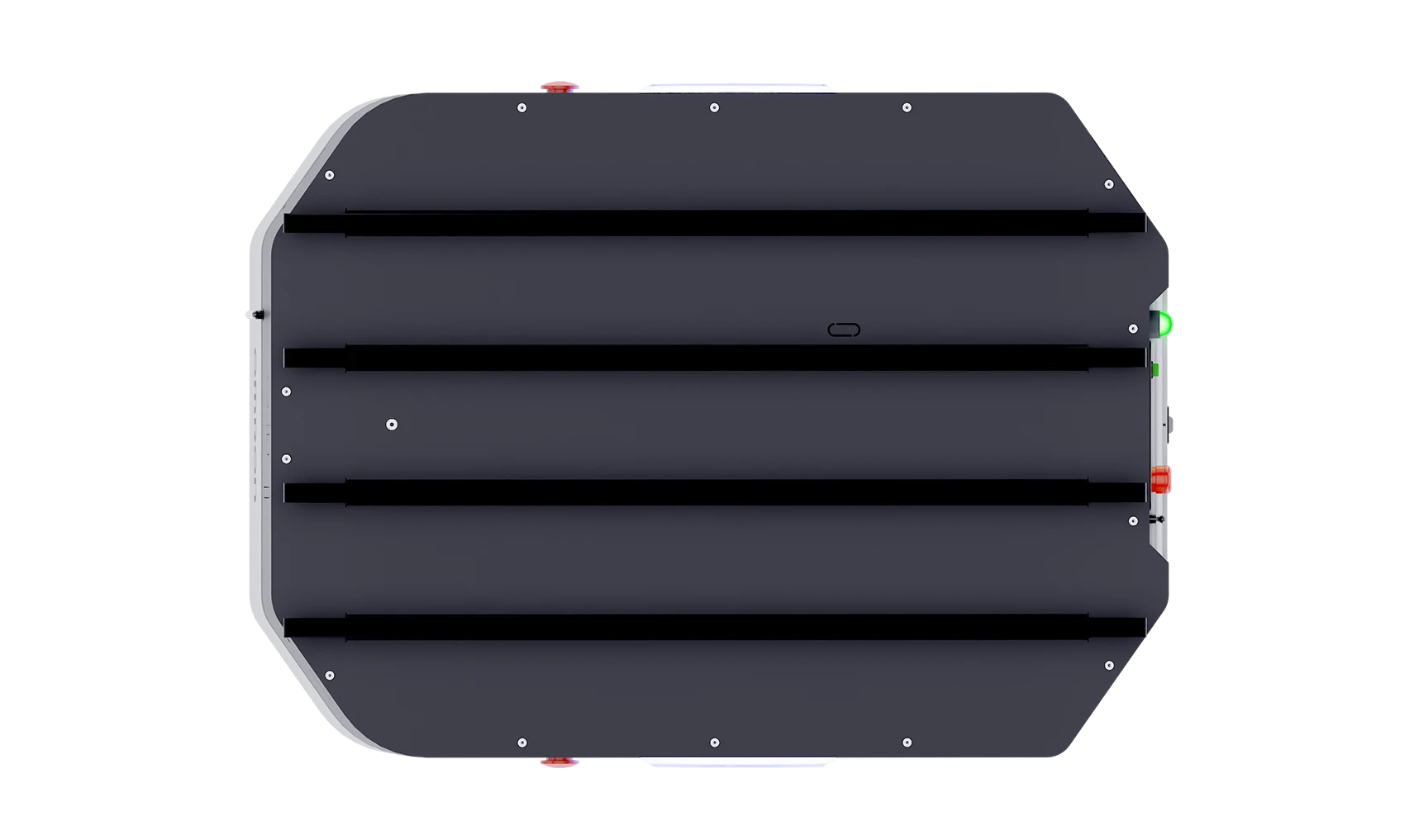

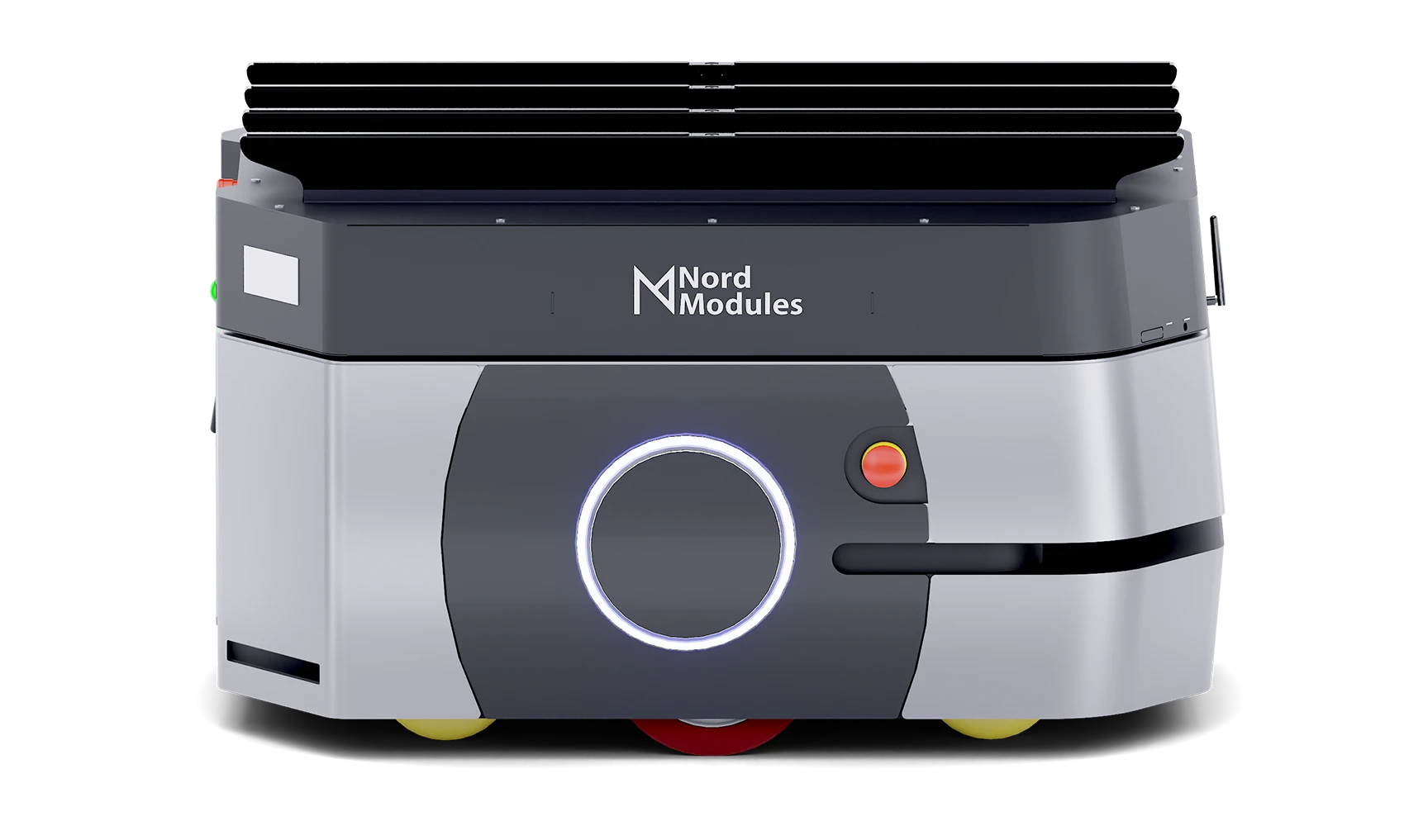

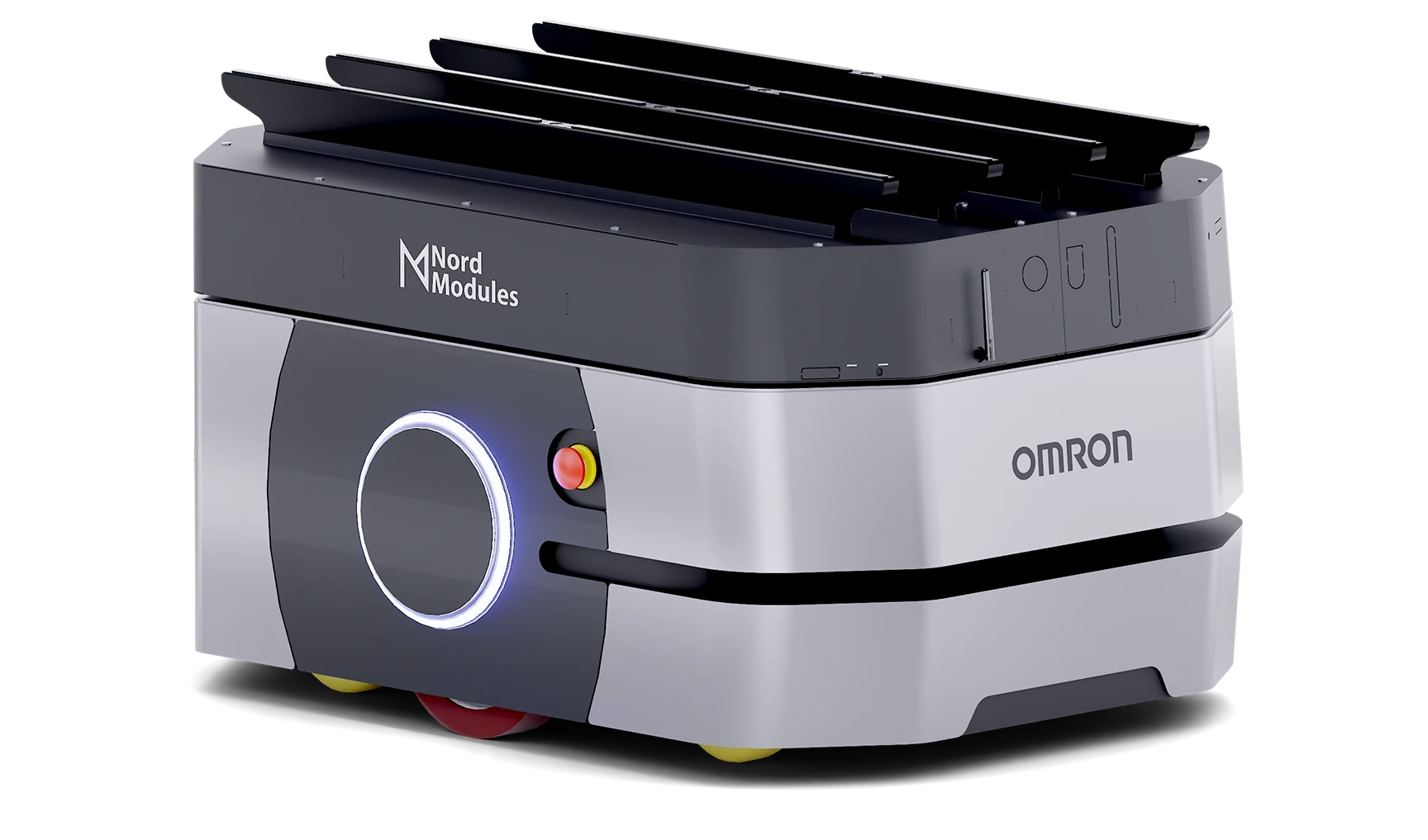

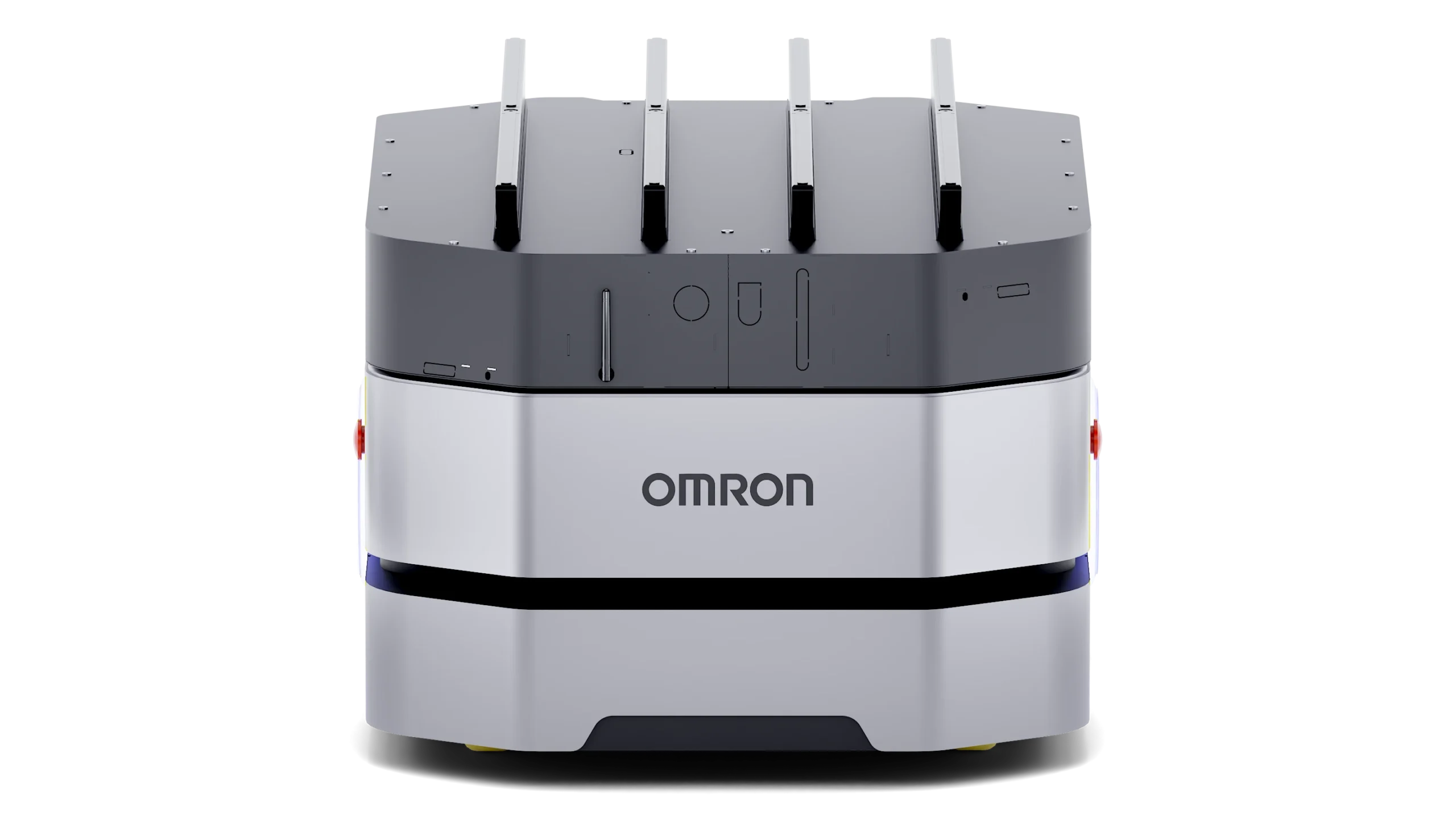

Nord Quick Mover 200-588-LD250 — view 1

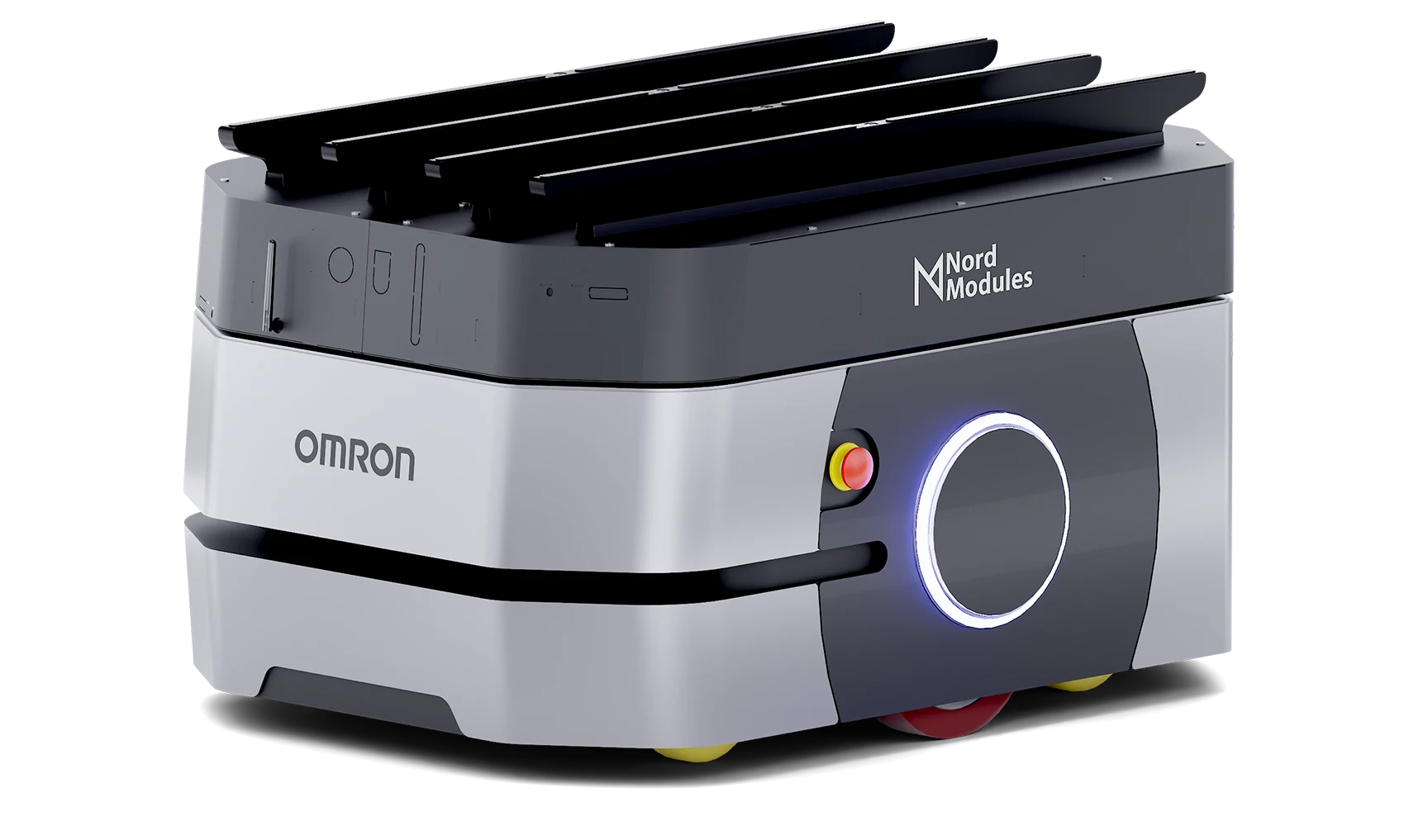

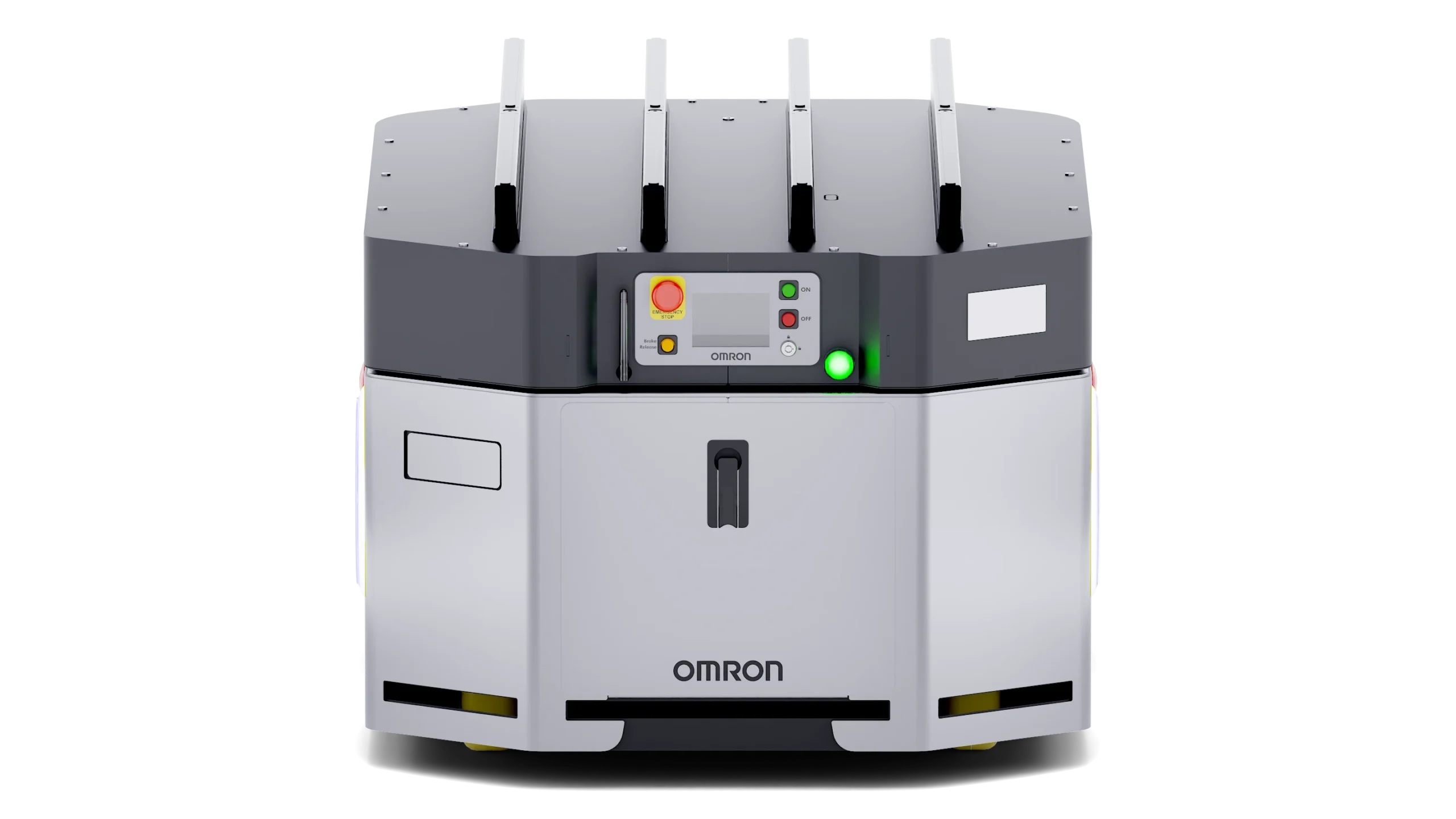

Nord Quick Mover 200-588-LD250 — view 2

• Increased safety
• Blue light spot center on the floor 1200mm in front of the AMR
• Internal mounted, Front
• Plug and play
• QM Prewired

Article Nr - NM00111498

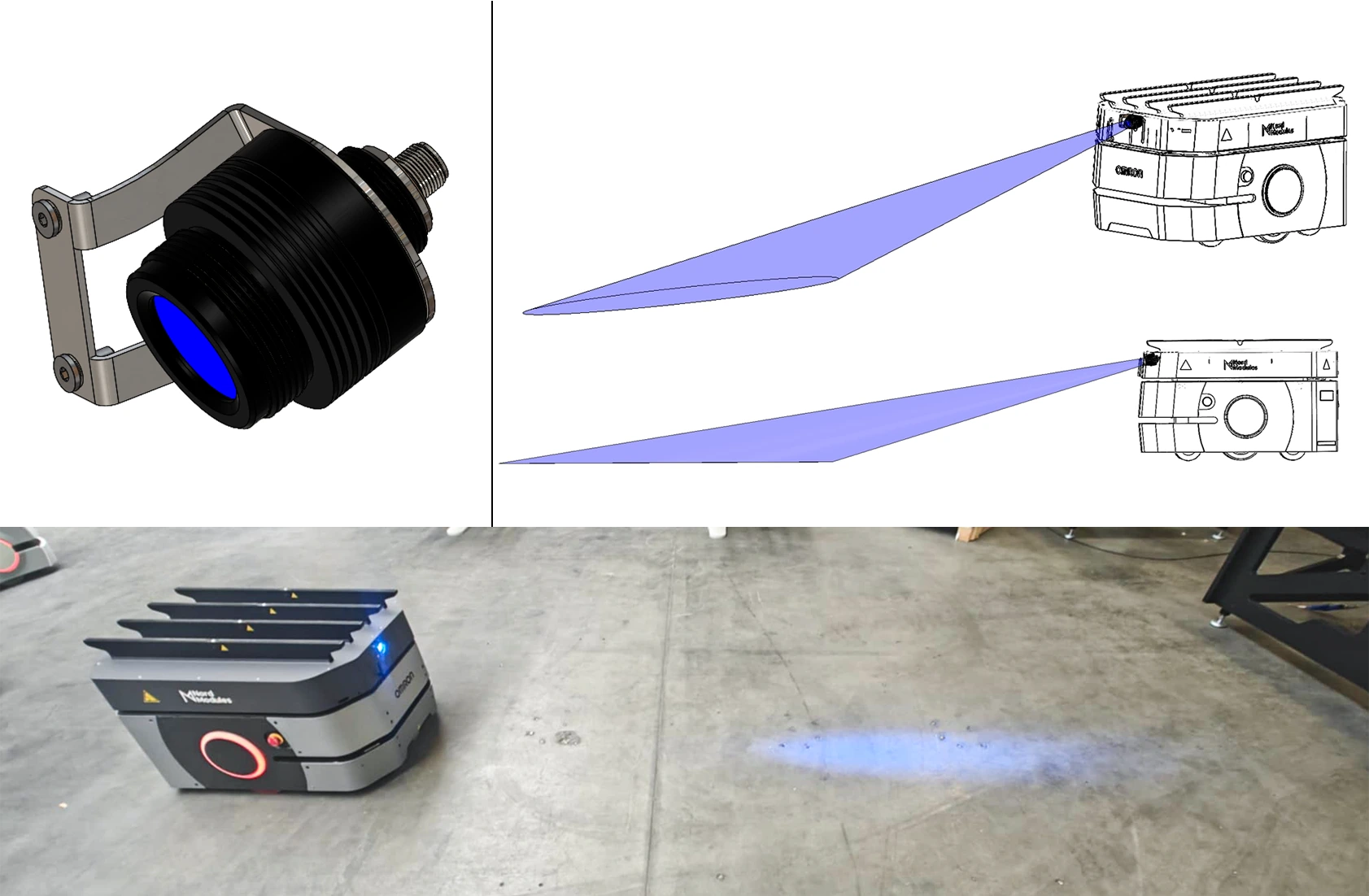

Integrated Blue Light Kit - NM00111498

• Recognize different types of goods placed on P&D station. Enabling Quick Mover to track different goods.
• Barcode scanning
• QR-Code scanning
• 300mm range
• Adjustable scanner
• Scanning in bright and dark surroundings

Article Nr - NM00306536

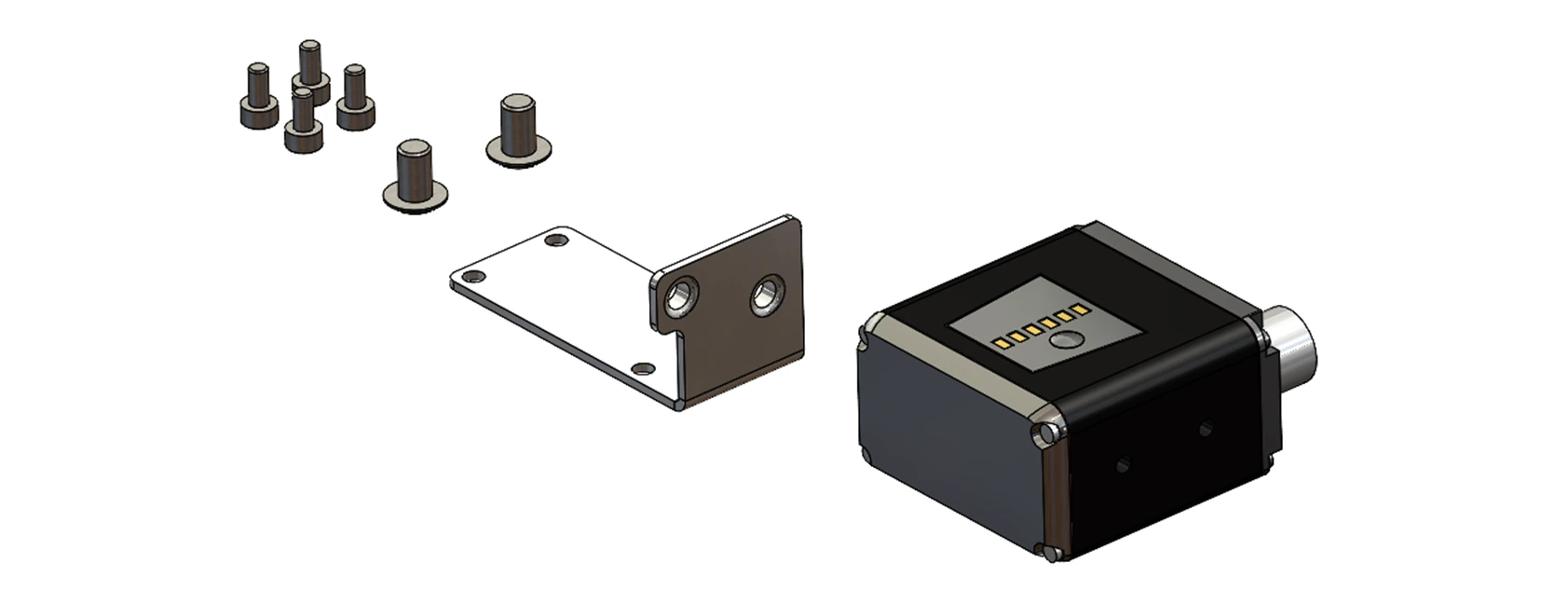

Integrated Code Reader Kit - NM00306536

• Detects on P&D Station
• QM mounted
• Internal mounted, Front
• Adjustable sensor
• Plug and play
• QM prewired
• Photoelectrical sensor
• 1000mm sensor range

Article Nr - NM00038841

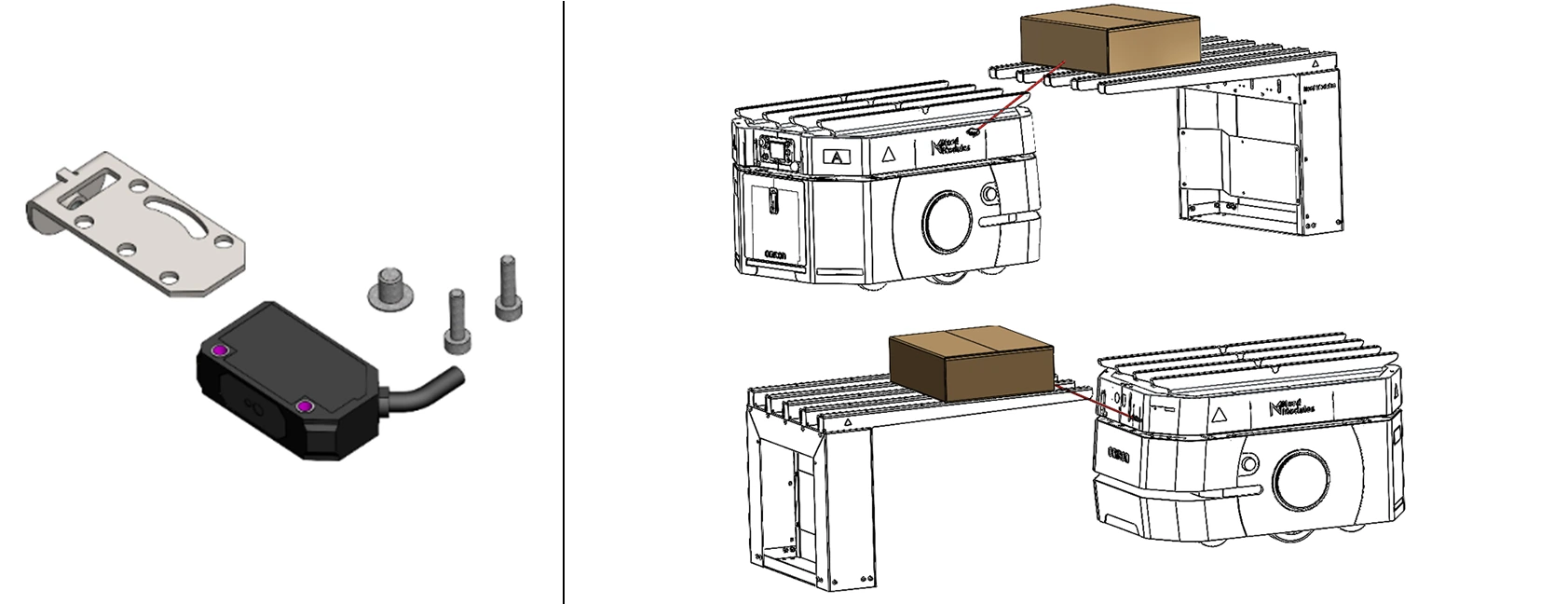

Sensor Dimension Drawings Payload Presence sensor P&D - NM00038841

• Detects on Quick Mover
• Internal mounted
• Plug and play
• QM prewired
• Photoelectrical sensor
• 1000mm sensor range

Article Nr - NM00088637

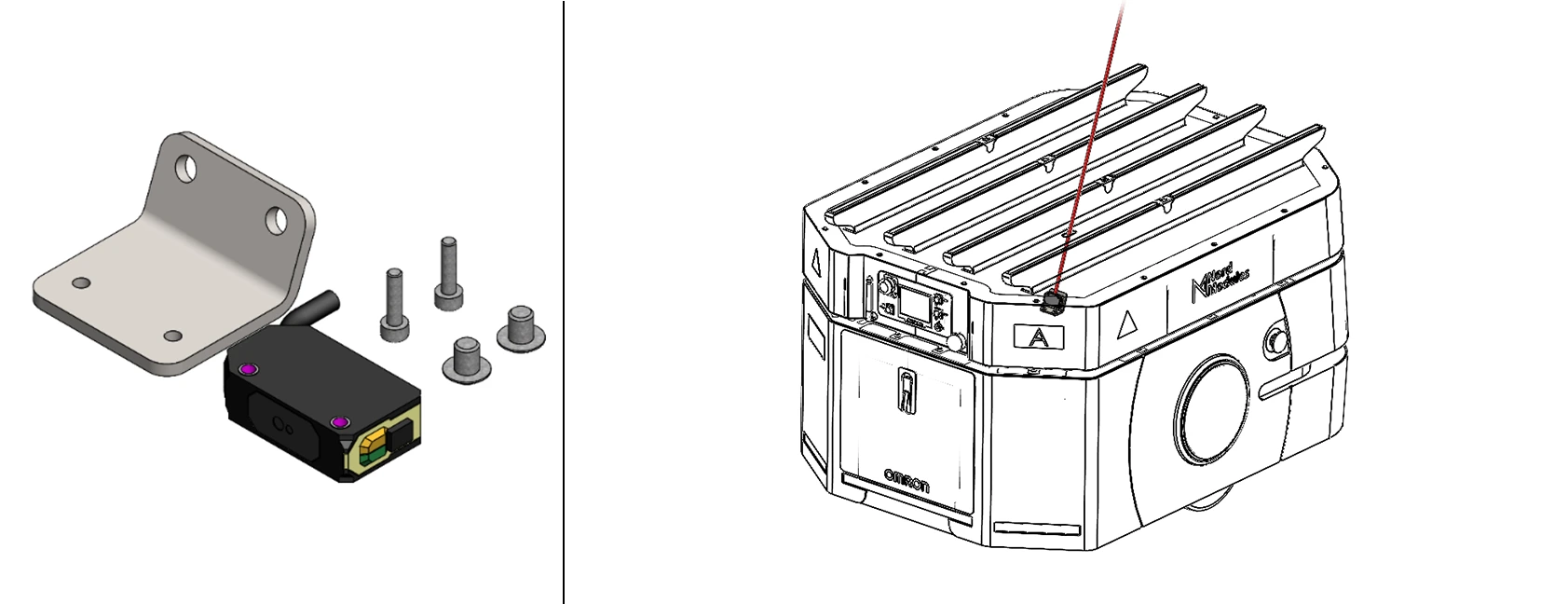

Sensor Dimension Drawings Payload detection sensor QM - NM00088637

• ±2% off 200kg
• Patented solution
• TBA

• Increased safety
• Increased visibility
• Stack light indicator check
• Plug and play
• QM Prewired
• Height from ground: 1045mm

Article Nr - NM00046386

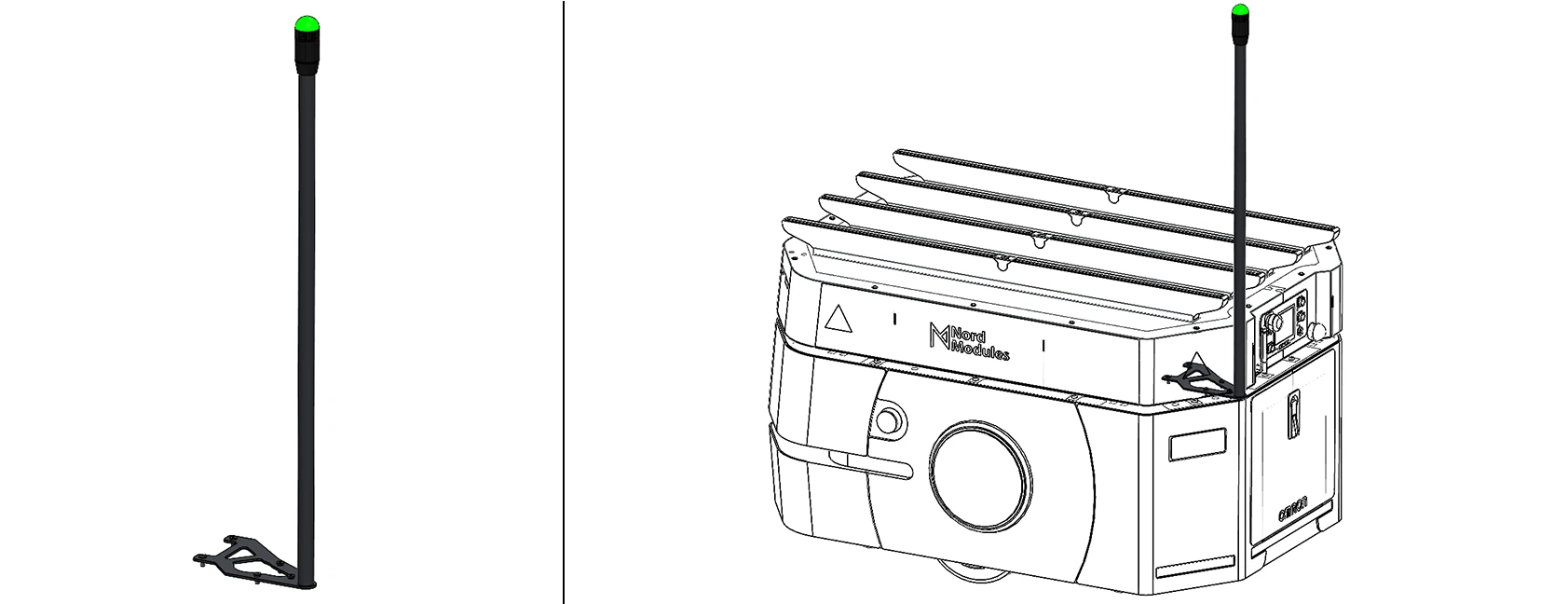

Sensor Dimension Drawings Nord Stack Light Tower - NM00046386

• Standard solution suitable for docking to a P&D with 600-800mm from ground in 50mm intervals
• For custom heights contact Nord Modules sales department

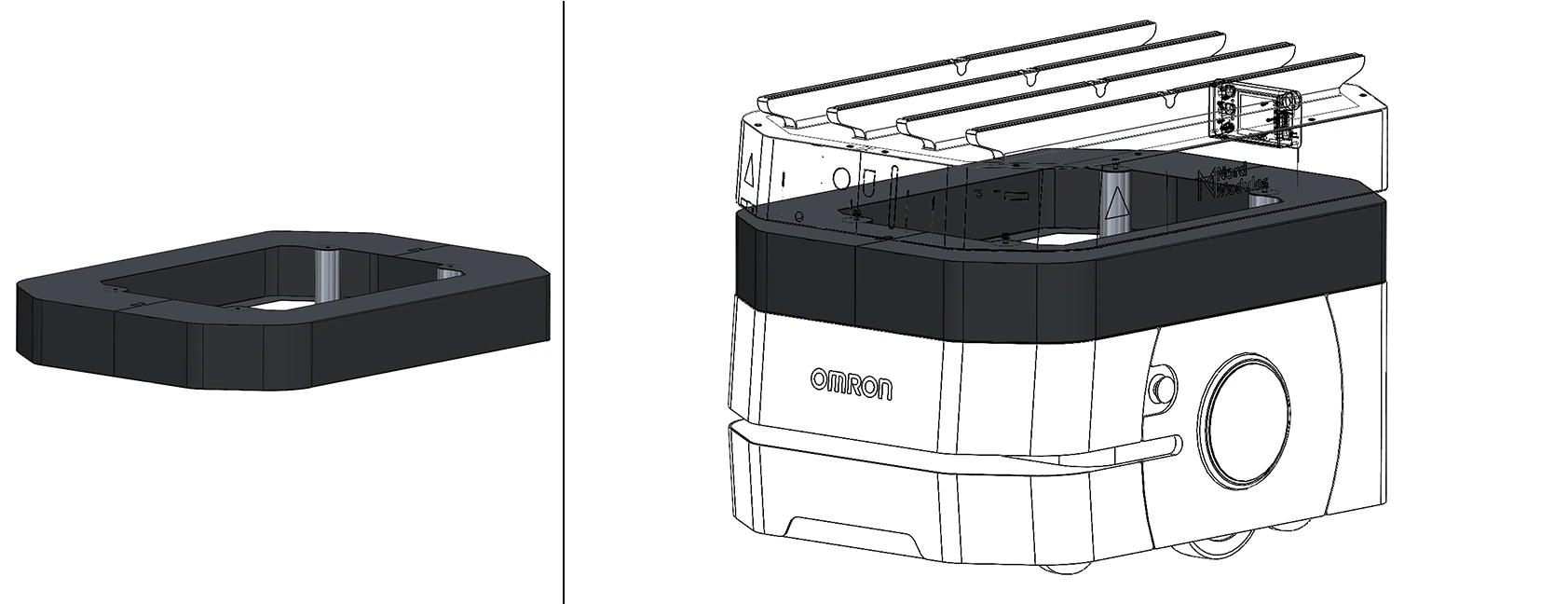

Spacer Kit

Retroreflective sensor
Compatible with "On the Flight Gate"
TBA

Compatible Products

Enhance functionality with products built for seamless integration and reliable performance. Each one is designed to support and expand the capabilities of this product in demanding environments.

Compatible AMRs

Built for select autonomous mobile robots, making it easy to enhance performance in even the most demanding applications.
