Basic Gate – MiR

Robot compatibility:
MiR100, MiR200, MiR250

Nord Modules compatibility:
Quick Mover 70, Quick Mover 220, Quick Lift 220-510

Variations:
3-finger, 5-finger, long fingers, short fingers

Height (QM70):
532 mm | 21”

Height (QM220):
480 mm | 18.9”

Height (QM220-510 & QL220-510):
510 mm | 20.1”

Center distance between fingers:
140 mm | 5.5”

Color:
RAL 7035

Description

Our Basic Gate merges with our Quick Mover installed on the MiR robot to receive or hold an object, connecting the mobile robot with production lines and storage systems. It is designed as a basic standard module that can serve as e.g. a flexible pick-up point or simply be adjusted to specialized work processes.

The Basic Gate module of this series possesses the smallest footprint possible and are also suitable for projects with severe space constraints. Due to the optimized distance between the arms, the Basic Gate module delivers great flexibility in terms of load sizes – from small to large items.

Your key benefits:

  • Simple and fast assembly process - providing a complete solution in combination with the Nord Modules Wheel gates, Cobot Tower, and Shelf Cart.
  • The modular design makes the footprint only as big as the transported goods and makes the module suitable for factories with very limited space.
  • Reliable and cost-efficient connection of the mobile robot MiR100, MiR200, or MiR250 with production lines and storage systems.
  • Optimization of internal logistics receiving heavy payloads of up to 200 kg, freeing staff from handling heavy items.
  • Modular design makes it possible to build up the gate unique for the customer’s

Robot compatibility

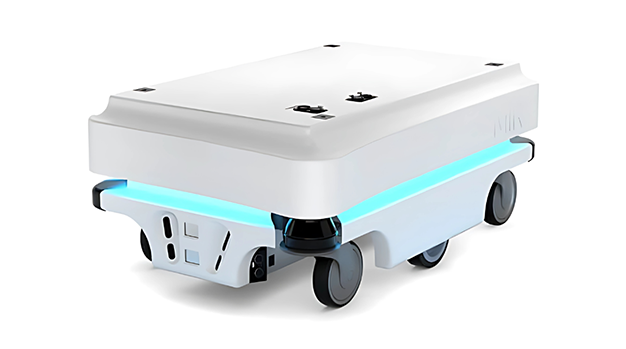

MiR100 robot

MiR100

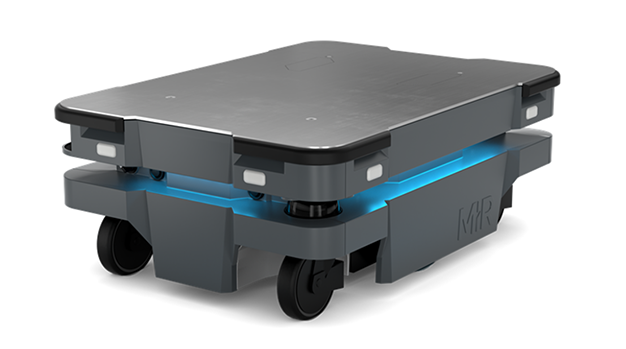

MiR250 - an autonomous mobile robot from Mobile Industrial Robots

MiR250
