Handling capacity

PM800-Omron MD

 Robot compatibility:
Omron MD-650 & MD-900

Nord Modules compatibility:
Dock Target, Spacer Kit, Pallet Rack MD

Dimensions (LWH):
1344 x 940 x 171 mm | 52.92 x 37 x 6.73 in

Max Handling capacity:
500 & 750 kg | 1102 & 1653 lbs

Speed:
200 mm/sec | 7.9 in/sec

Height from floor to top of rollers:
454 mm | 17.87 in (possible extension up to 800 mm | 31.5 in)

Center distance between rollers:
95.8 mm | 3.77 in

Transport area:
1215 x 874 mm | 47.83 x 34.4 in

Weight:
140 kg | 308.6 lbs

Description

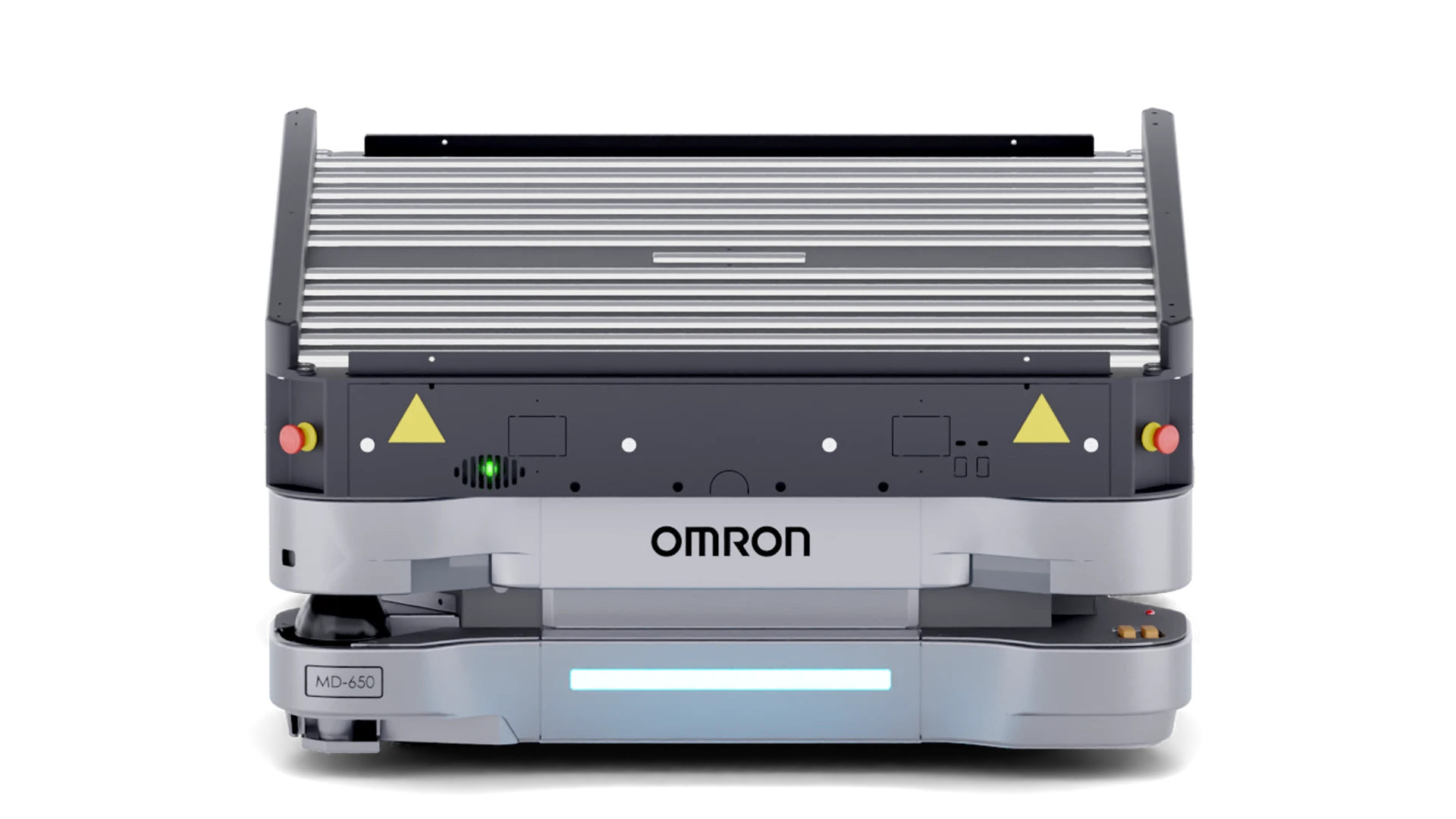

The Pallet Mover enables Omron AMRs to pick up and deliver pallets – transporting them to e.g. production lines or packing stations, thereby enhancing internal logistics.

The Pallet Movers integrated technology enables communication to external roller conveyors by wireless signals. A Nord Modules Dock Target can be installed on an existing conveyor line allowing the PM800 to successfully dock and receive or deliver a pallet.

This fully automated premium solution allows heavy payload transportation of up to 500 kg for the MD-650 robots and 750 kg for MD-900 to optimize logistics and production.

Your key benefits:

  • High industrial quality
  • Small footprint around the Omron MD-650 & MD-900 robots
  • Safe heavy payload transportation with 4-sided guard rails and breaks on all rollers
  • Transport of both EU- and US-size pallets.
  • “Roll through solution” with loading and delivery from front AND rear end
  • PLC controller and servo technology.
  • Stack-light – information of operation level.
  • High level of feedback.
  • Option: rubber coating of roller
  • Automatic synchronization of speed

Optional Add-ons:

  • Payload measurement
  • Registration of payload on gate
  • QR-/Barcode scanner

Robot Compatibility

Omron MD-650

Omron MD-650

Omron MD-650

Omron MD-900
